Трубчатая предварительной усадочная машина Deguan для трубчатого уплотнителя трикотажной ткани с паровым/электрическим/тепловым маслом
- Category: Textile Finishing Machines >>>
- Supplier: Dezhou Deguan Textile Machinery Co. Ltd.
Share on (60827093104):
Product Overview
Description
Product Description

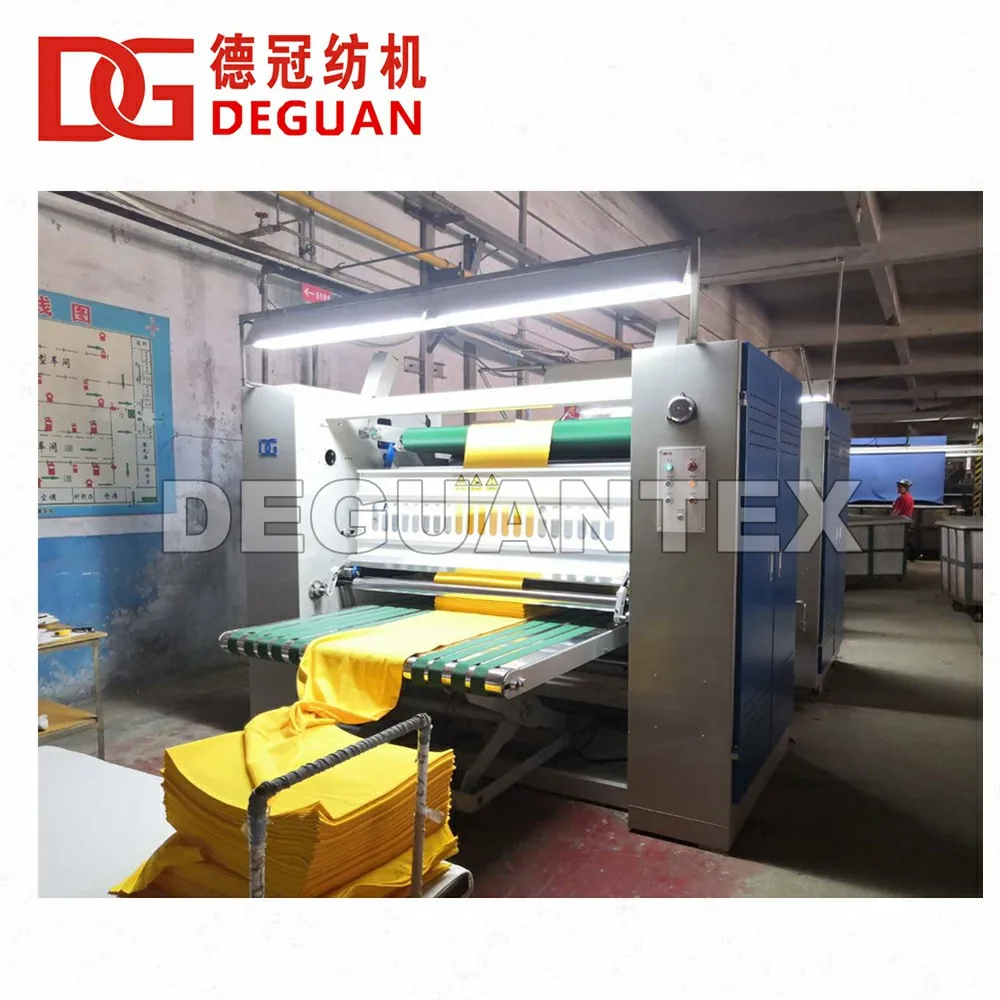

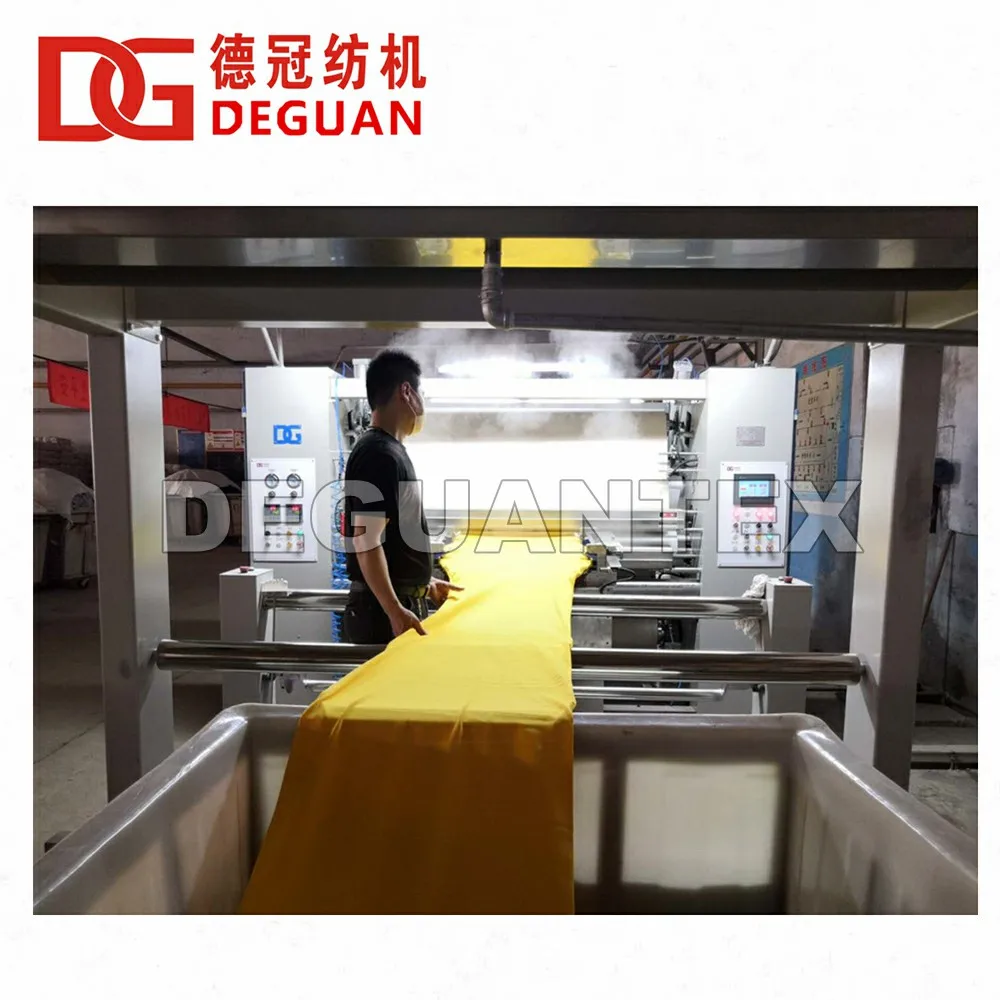

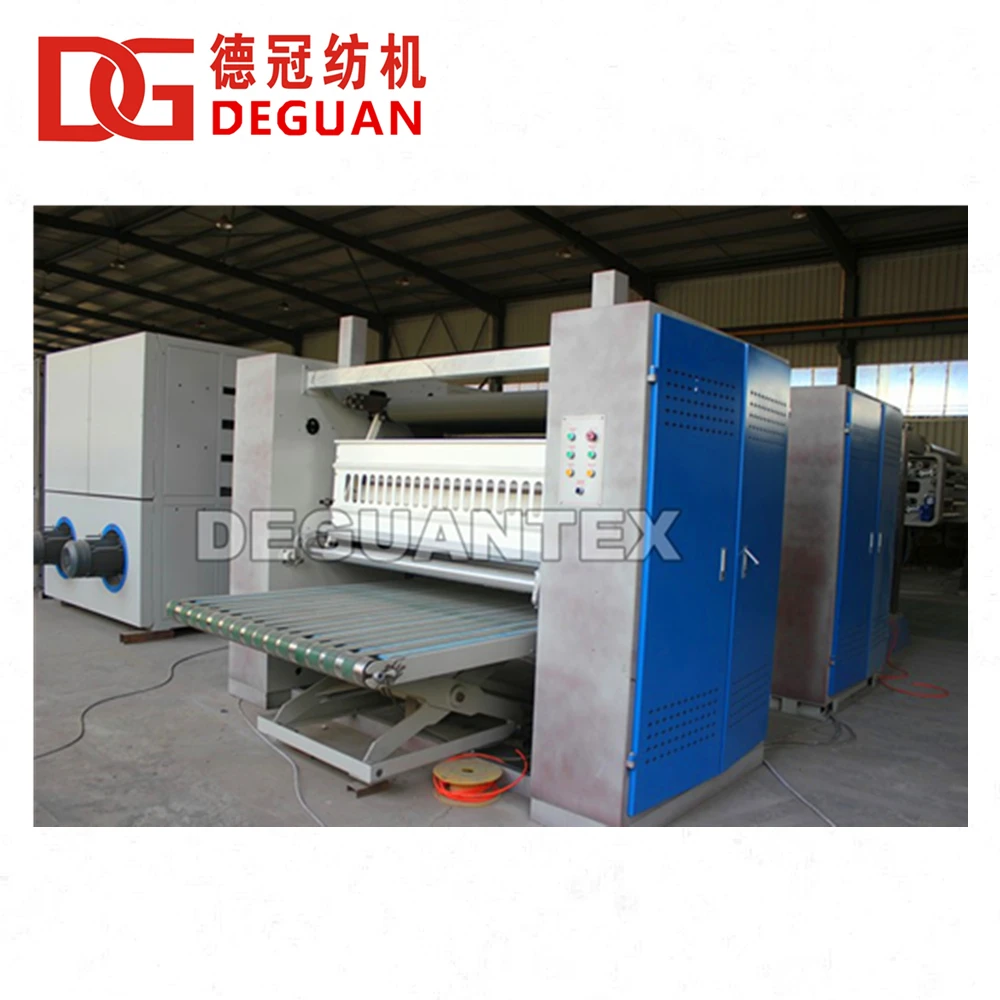

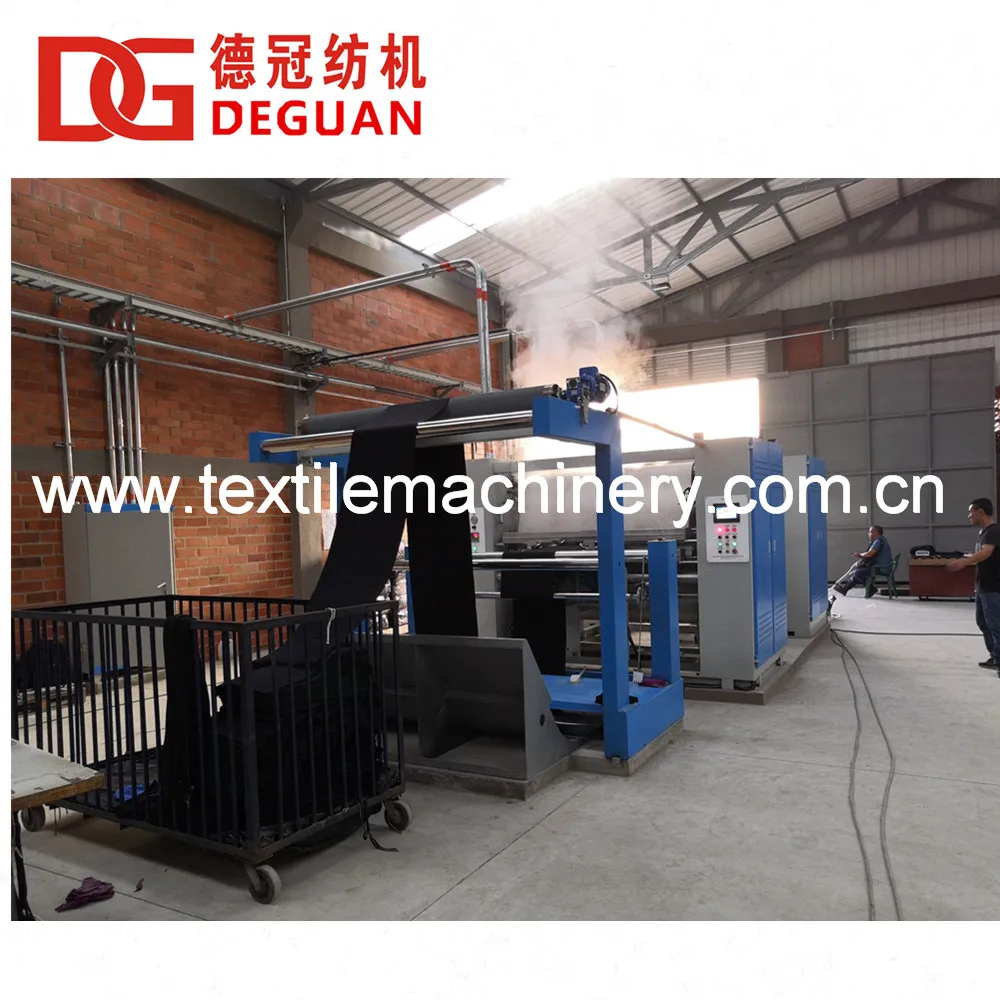

Tubular Compactor
1.\tMethods of Heating: 1.Steam 2. Thermal Oil 3. Electricity
2.\tThis machine is used for tubular cotton knitted fabric and preshrinking process, and the tubular compactor is equipped with 20mm Nomex carpet, magnetic shuttle, hydraulic lifting platform.
3.\tThe temperature of machine could reach 180℃ max based on different heating source.
4. Precision Folder included with Compactor machine as a whole set of professional finishing machine.
5.\tOur machine blanket is 20mm thickness, which could resist high temperature and not pollute the fabric. After the process of preshrinking, the fixed size of tubular fabric could be achieved.
6.\tThe width of fabric: 1450 mm Max.
**single pass, double pass or mixed pass
***Standard diameter of Cylinder is 450mm.
Technical Specification | ||
Model | DGYS450 | |
Name | Tubular Fabric Compactor machine with Precision Folder | |
Application | Textile-finishing(shrinkage rate:2-5%) | |
Suitable Fabric | Tubular knitted Fabric Pure cotton,wool,blended fabric(cotton content>65%) | |
Main Matching Fabric | Tubular fabric of above 65% cotton content | |
Heat source | Thermal Oil / Electricity/Steam | |
Pre-shrinking type | 20mm Nomex compacting | |
Supporting Plate type | Magnetic shuttle | |
Fabric Outfeed type | Auto Precision Folding | |
Max fabric width | 1450mm | |
Working speed | 5-30m/min | |
Max temperature of | Electricity, Thermal Oil <180℃,Steam<140℃ | |
Breadth Adjustment type | Semi-automatic | |
Capacity of machine | 10kw | |
Standard machine power supply | 380V/3P/50HZ | |
Control power supply | 220V/24V | |
Compressed air | 0.35-0.6MPa | |
Dimension | 7450mm*2740*2100mm (L*W*H) | |
Parts Details
The magnetic & motorized stretcher keeps the width of the tabular fabric constant and makes it possible to obtain the desired overfeed. It transports the fabric to the first felt by opening and stretching the fabric to a variable extent, Which can be controlled by the operator panel. A pair of sensitive detector makes it possible to detect broken holes in the fabric, and a safety device ensures that the lances are in the proper position.
From the Magnetic Shuttle, you can see the fabric auto entry's operation will be easy to grasp and save your labour, increase the production.
Meanwhile, the sensor could detect the potential broken fabric and stop the entry automatically.
The exit of fabric is equipped with precision folding machine, one button one press will done. We'd like to show you how to operate our tubular compactor when we face to face.
Machine Drawing
Detailed Images
Machine Parts

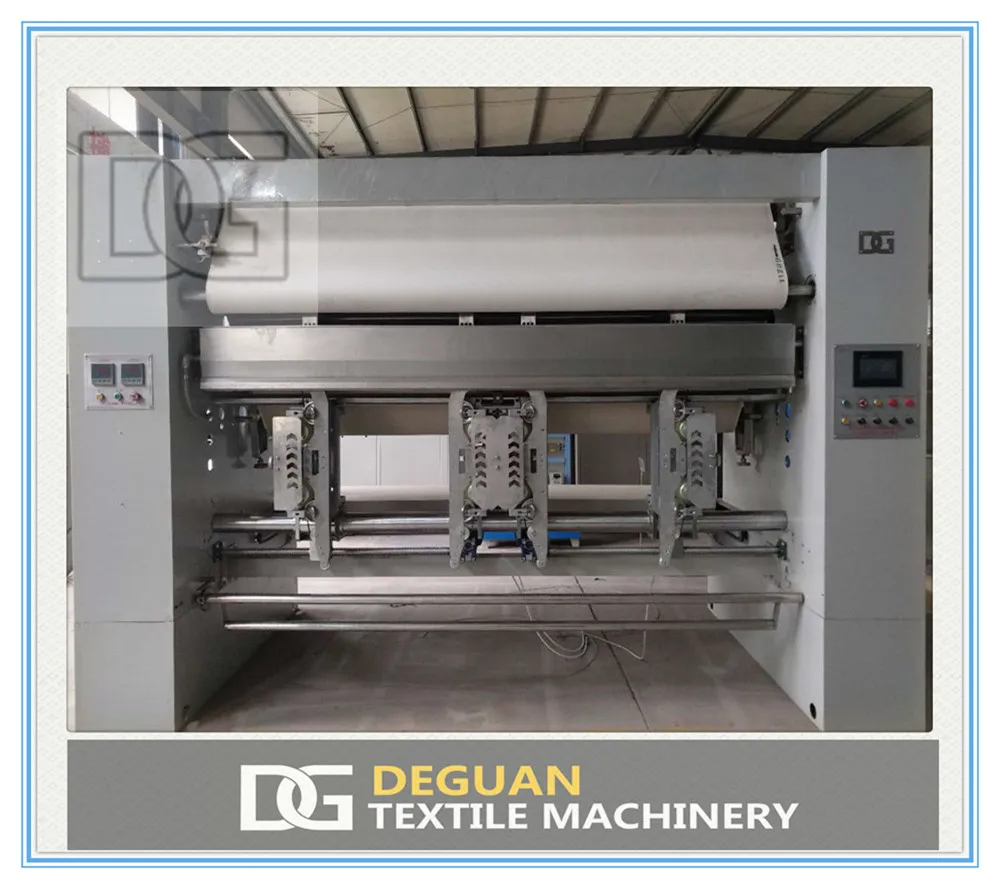

Name: Magnetic Shuttle
Brand: Deguan
Original:China
The magnetic & motorized stretcher keeps the width of the tabular fabric constant and makes it possible to obtain the desired overfeed. It transports the fabric to the first felt by opening and stretching the fabric to a variable extent, Which can be controlled from the operator panel. A pair of optical censers makes it possible to detect holes in the fabric, and a safety device ensures that the lances are in the proper position..
Main Features
Name: Blanket
Brand: With Nomex materia
Original: China
The blanket made of by imported material and has high ltemperature resistance. Reliable quality and 20mm thickness could last for 10years at least.
Machine Parts
Name: Frame
Brand: Deguan
Original: China
Stainless Steel frame in Tubular Compactor, high quality could make you use this machine without any problem.
Main Features

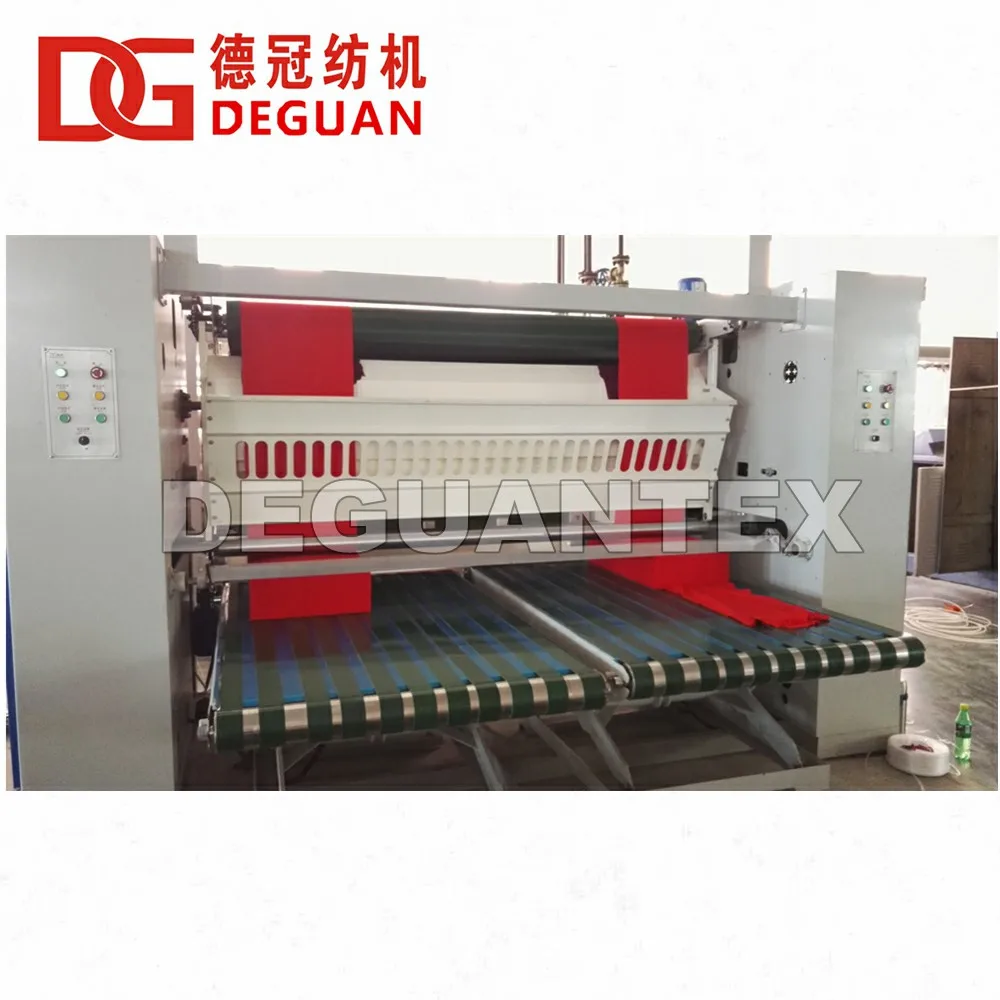

Name: Precision Folding machine
Brand: Deguan
Original: China
The exit of fabric of Tubular Compactor is Folding mode. Our Precision Folding machine could deal with the tubular fabric in excellent order and easy to collect after processing.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine
*Training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 7500mm(L) * 2750mm(W) *2150mm (H) | |
Weight | 4.5 T | |
Packaging Details | Standard Export Package Based on our many years experiences Pallet or Frame | |
Packaging | ||
Size | 7500mm(L) * 2750mm(W) *2150mm (H) | |
Weight | 4.5 T | |
Packaging Details | Wrapping Package Different parts with different package to ensure the perfect status | |
Deguan Factory
DEGUAN SERIES
Deguan Stenter
Working Procedure of Stenter Machine
Open-width fabric entry → Spreading → Infrared Centering→ Padder→ Weft straightener → Overfeed → Uncurling → Infrared detect→ Pinning → Stentering → Air cooling → Depinning → Fabric exit→ Plaiting/Winding
Deguan Tubular Compactor
About Tubular Compactor, equppied with Precision Folder, its really popular worldwidely and we export this machine to so many countries. For tubular cotton fabric, it is very useful and the effect is amazing. This machine could meet your requirements of product and make you more competitive during fabric market.
Deguan Open Width Compactor
The Open Width Compactor machine is used for open width cotton fabric pre-shrinking process.
At the beginning of overfeed, the cotton fiber will be processed by steaming to increase the humidity
and plasticity. Then the fabric will be widened and pre-shrinked in order to reduce shrinkage and get a good soft feature.
At the beginning of overfeed, the cotton fiber will be processed by steaming to increase the humidity
and plasticity. Then the fabric will be widened and pre-shrinked in order to reduce shrinkage and get a good soft feature.
Deguan Relax Drying Machine
The relax dryer machine is used for tubular and open-width fabric with heating cylinder by three-layer belt.
Because each layer could be run under different speed, the fabric could be kept in loosen status without any tension during the drying process.
Deguan Balloon Padder with Detwister
Stainless Balloon Padding Machine is used for impregnating softening liquid to wet process of double dip the tubular fabric, then padding the residual liqiud. it can replace the traditional process of centrifugal machine and wet expander. It is high efficient and easy to operate. Tubular Balloon Padder is really a 3in1 powerful machine..
Deguan Heat Setting Machine
This Heat Setting Machine is used for processing of tubular chemical knitted fabric, The machine makes synthetic and mixed fabric to obtain stable siez with stainless steel roller.
The fabric is heated in the heating chamber and get cool process when getting out of machine.
Deguan Vertical Calender
The Calender machine is used for processing cotton and cotton-blend tubular fabric. It equipped
with reinforced support plate, 14mm thickness of NOMEX blanket and mechanical folding machine.
After processing with this machine, the fabric could reach certain size and smooth appearance.
Deguan Auto Slitter (Detwisting and Slittering machine with padder)
This machine is used before stenter and open width compactor. It can slit the tubular fabric and then squeeze the water, immerse the fabric in softener. It also is available for the open width fabric. Auto Slitter is necessary during fabric textile finishing process.
