JCZ5-7.2(12) grid-connected power substation vacuum contactor



JCZ5-7.2(12) indoor high voltage vacuum circuit breaker is a type of 12kv,50HZ three phase alternating switch. The mechanism and vacuum interrupter are designed to be a whole. Specialized 3AF type spring operating structure from Siemens can be operated by manual or carry out direct current energy saving operation. It’s can be designed as 210mm,230mm,250mm,275mm and other kinds of phase space, which matches better with different kinds of switchgear, such as handcart type JYN2-12,JYN6-12,KYN2-12.



Ambient condition

1 Ambient temperature: max +40°C min -15°C(conveyance under -30°C is allowed)

2 Altitude: ≤1000m

3 Relative humidity: daily average relative humidity: ≤95%; monthly average relative humidity≤90%; daily average saturated vapor pressure ≤2.2*10-3 MPa; monthly average value   ≤1.8*10-3 MPa

4 Earthquake intensity: ≤8 degree

5 The installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution



Order instruction

Complete model and order quantity of the product

Rated current, rated voltage, distance of each poles

Rated short circuit breaking current, operation voltage

Required accessory and quantity

Other requirement please contact with us directly





Mechanical Data

No.

Item

Unit

Value

1

Rated voltage

KV

12

2

Rated lighting impulse withstand voltage

KV

Inter phase or to ground 75,fructure 80

3

Rated short-time power frequency withstand voltage

KV

Inter phase or to ground 42,fructure 48

4

Rated short-circuit breaking current

KA

20

25

31.5

40

5

Rated current

A

630/1250/1600

1250/1600/2000/2500

1600/2000/3150

6

Rated thermo stability current(valid)

KA

25

31.5

40

7

Rated dynamic stability current(peak)

KA

63

80

100

8

Rated short-circuit making current(peak)

KA

63

80

100

9

Rated operations of short-circuit breaking current interruption

Times

50(40kA is 30)

10

Rated working current of over current and tripping coil

A

5

11

Rated operating sequence



0-0.3s-CO-180s -CO/0-180s-CO-180s-CO(40KA)

12

Rated current of auxiliarate switch

A

AC10,DC5



13

Rated voltage of energy saving release

V

AC.DC220   AC.DC110

14

Closing time

Times

≤75

15

Opening time



≤60(40)

16

Power of energy saving motor

W

275

17

Energy saving time

S



≤15

18

Mechanical life

Times

20000





Mechanical characteristics adjustment data

No.

Item

  Unit

Value

1

Rated contact stroke

  mm

11 ±1

2

Contact over travel

mm

8±2

3

Average opening speed

  m/s

1.0~1.8

4

Average closing speed

  m/s

 0.6~1.1

  0.8~1.3

  0.8~1.3

5

Contact bouncing duration at closing operation

  ms

≤2

6

Core distance between phases

  mm

210,230,250,275,280

7

Three-pole simultaneity

  ms

≤2

8

Conductive circuit resistance  of each phases

  μΩ

<40

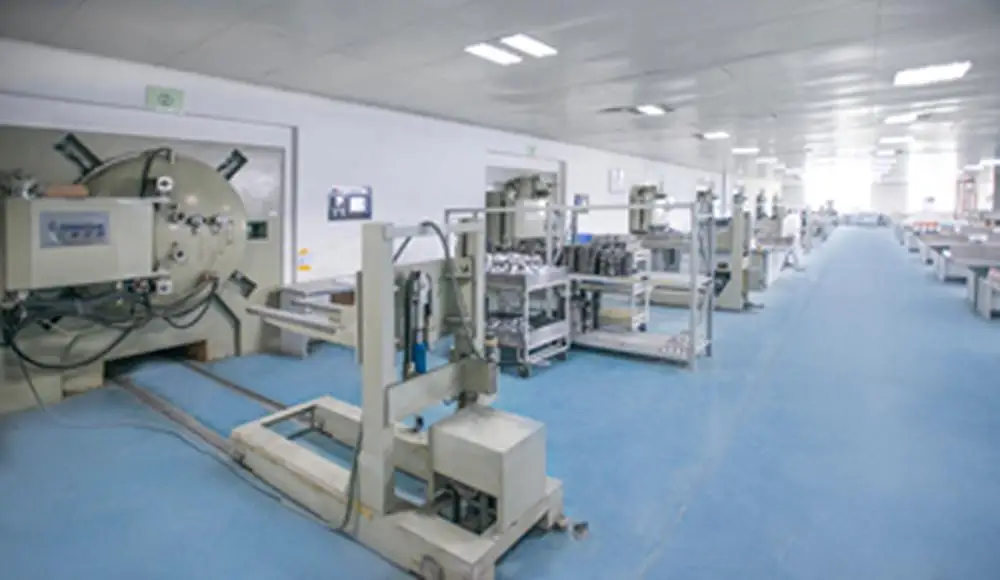

 Hand view of our company
