carrier tape for packaging capacitors and resistors IC LED Passive WLCSP

Carrier Tape definition:

        The carrier tape refers to a tape product in the field of electronic packaging, which has a specific thickness, and equidistantly distributes holes (also called pockets) for holding electronic components in the longitudinal direction thereof and is used for indexing. Positioning holes for positioning.

Use of carrier tape

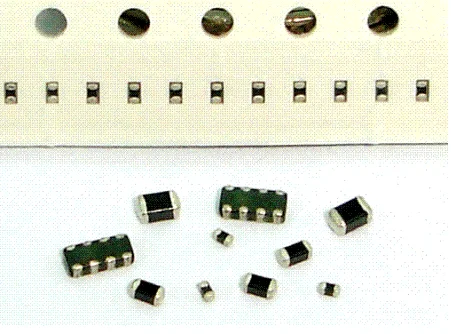

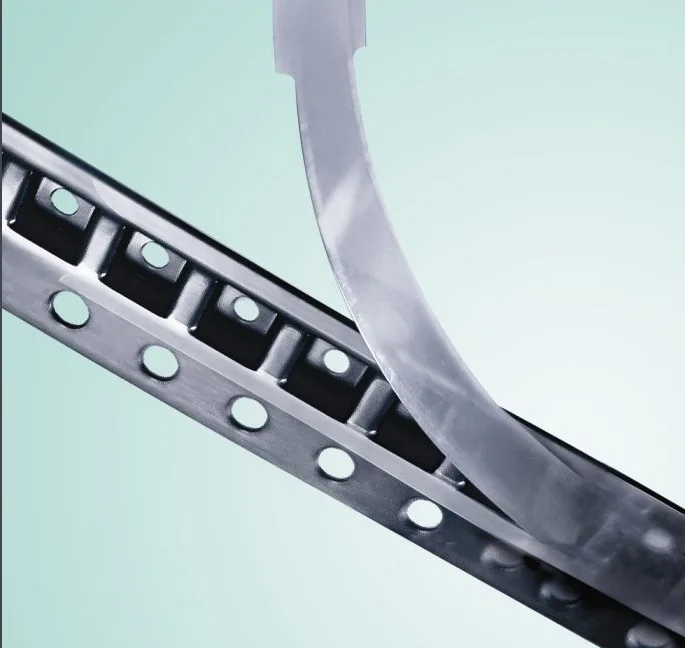

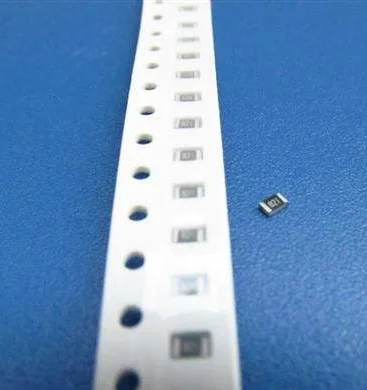

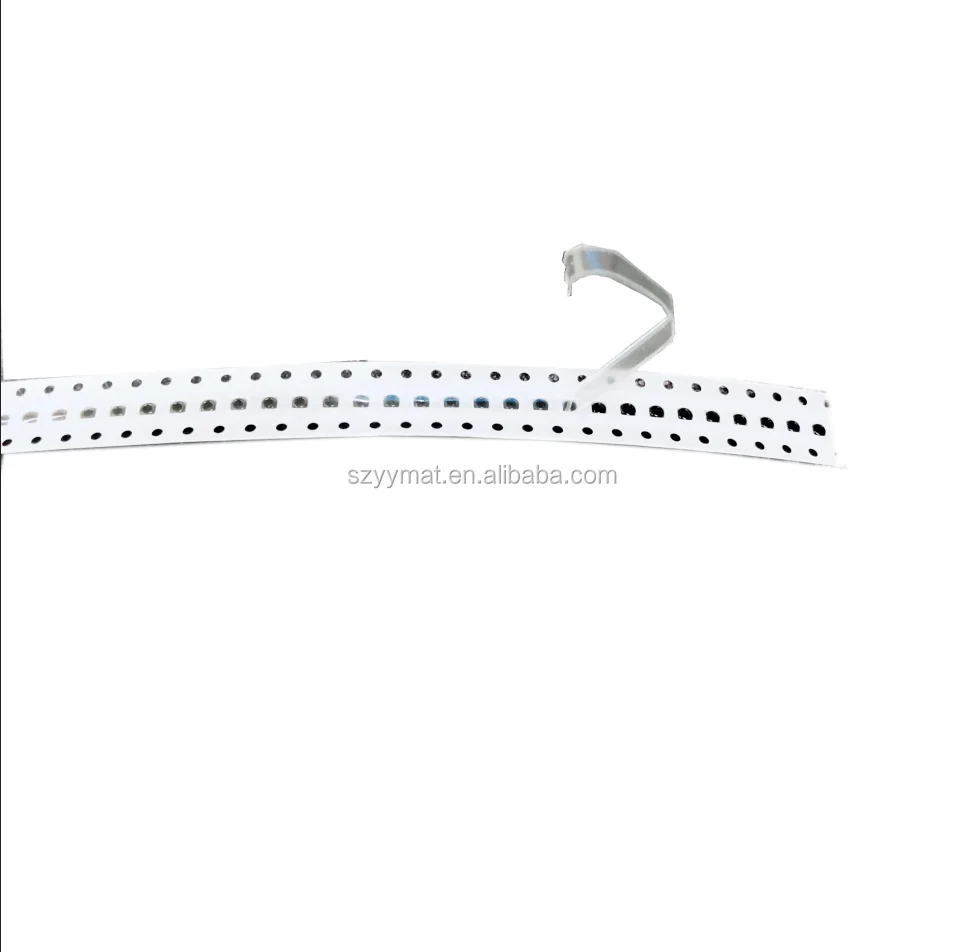

        Carrier tape is mainly used in the electronic component mounting industry. It is used with a cover tape (upper tape) to carry electrical components such as resistors, capacitors, transistors, diodes, etc. in a carrier tape, and to form a closed package by sealing the cover tape over the carrier tape for Protect electronic components from contamination and damage during transportation. When the electronic components are placed, the cover tape is peeled off, and the automatic placement device sequentially takes out the components contained in the pocket through the precise positioning of the tape index holes, and mounts them on the integrated circuit board (PCB board).

Carrier classification

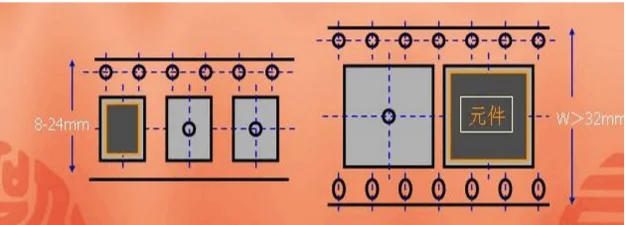

        According to the width: According to the size of the electronic components carried by the package, the carrier tape is also divided into different widths. Common widths are 8mm, 12mm, 16mm, 24mm, 32mm, 44m, 56mm, etc.

With the development of the electronic market, the chip has a smaller and smaller trend, and the carrier tape has also been developed in a precise direction. Currently, there is a carrier tape supply of 4 mm width.

Carrier material:

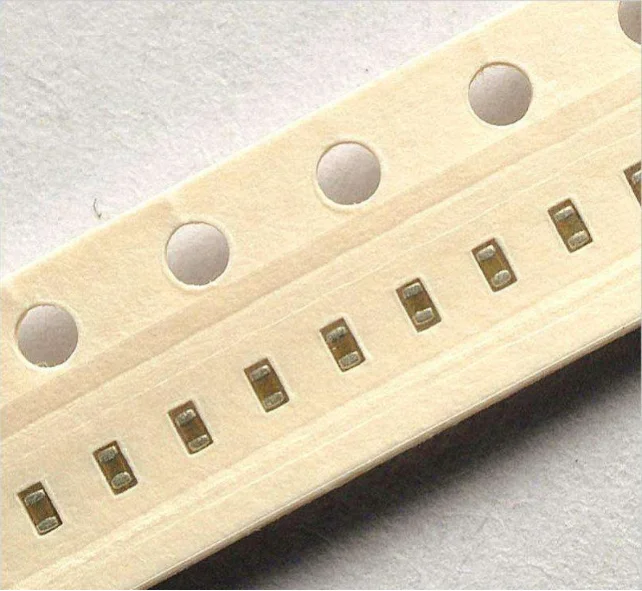

      The material of the carrier tape mainly includes two types: plastic (polymer) and paper. The embossed carrier tape is mainly composed of plastic materials. Currently, the mainstream in the market is PC (polycarbonate) carrier tape, PS (polystyrene) and ABS (acrylonitrile-butadiene-styrene copolymer resin) carrier tape. There are also a small amount of carrier tape prepared from PET, APET and other materials. The stamping carrier tape is mainly prepared from paper materials or PE composite materials.

Product Characteristics

        PC materials are characterized by high mechanical strength, good transparency, good dimensional stability, high glass transition temperature and good heat resistance. The mechanical strength of the PS material is lower than that of the PC material, so sometimes the ABS material is made into a three-layer composite sheet to increase the tensile strength of the carrier tape. The mechanical strength of the PET material is close to that of the PC, but due to the crystalline material, the dimensional stability is poor. .

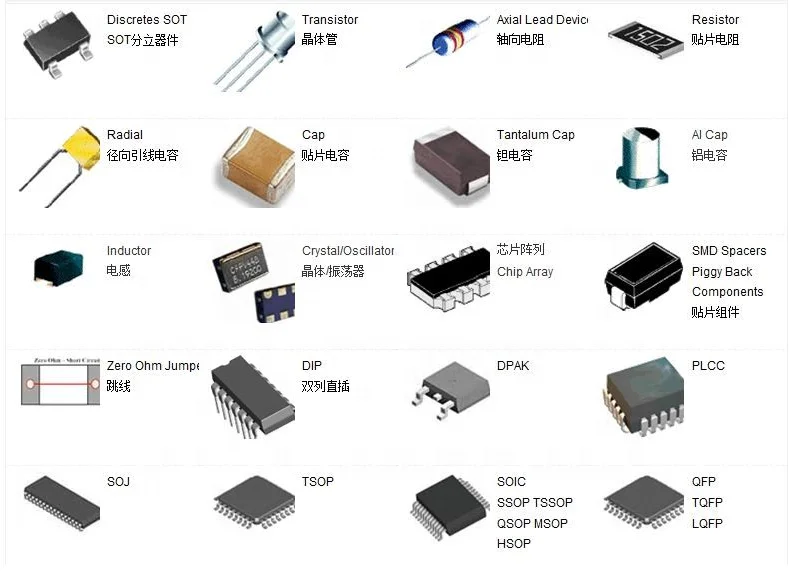

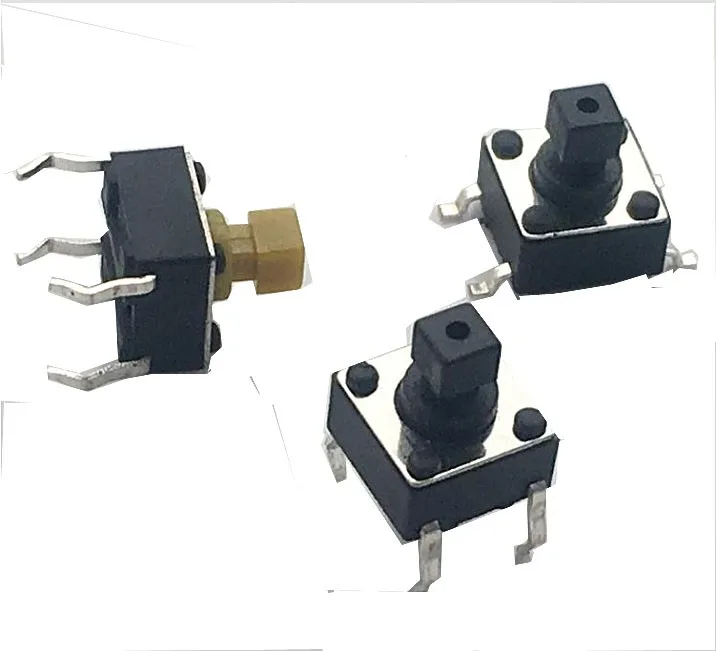

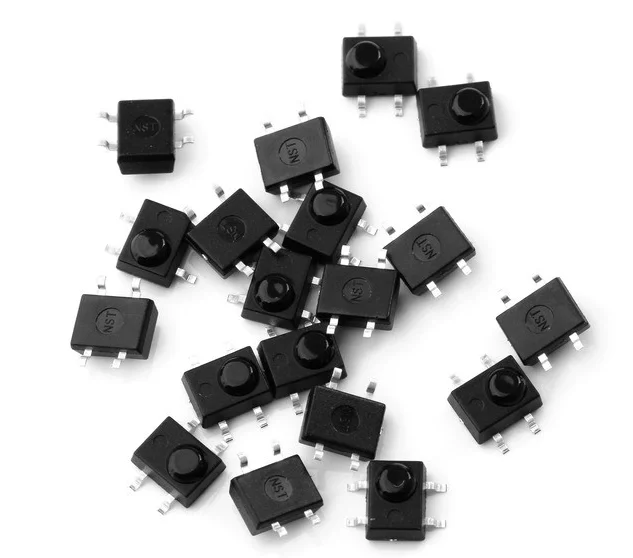

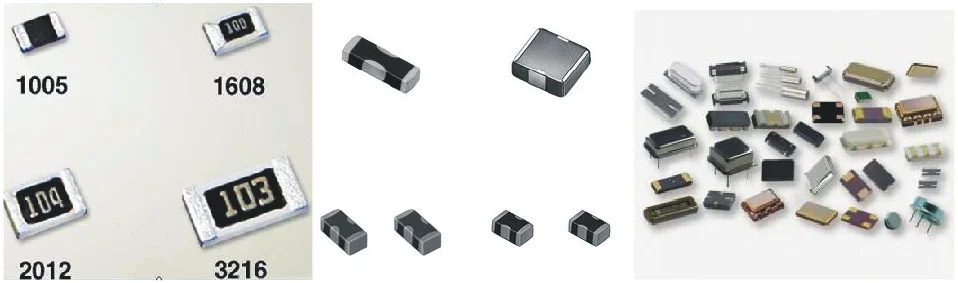

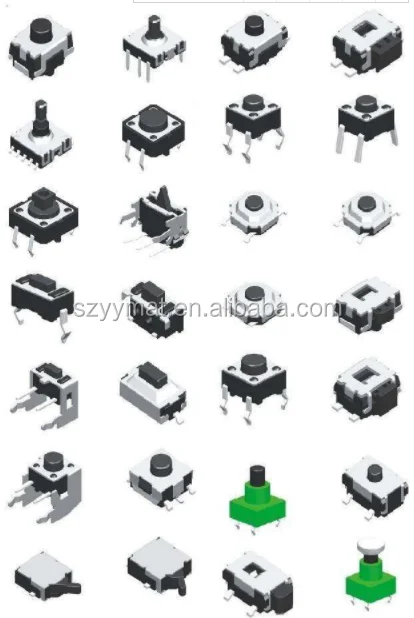

Main application areas

Q1. Can I have a sample order for Carrier tape and Cover tape?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs1-2 days, mass production time needs 2-3 weeks for order quantity more than

Q3. Do you have any MOQ limit for Carrier tape and cover tape order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Carrier tape and cover tape?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on Carrier tape and cover product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, We offer lifetime free technical service support for our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new tape with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
