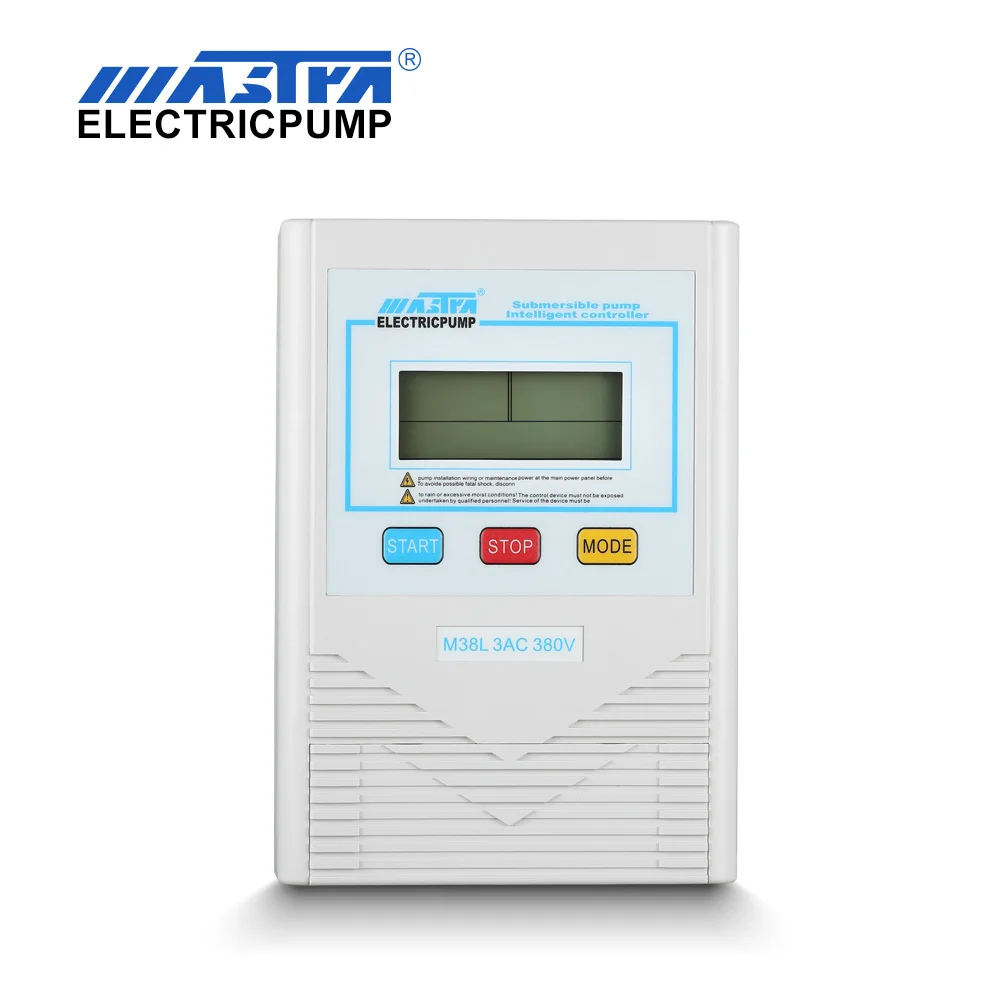

Single Phase Portable LCD screen Submersible Pump Intelligent Controller

Product Overview

Description

APPLICATIONS

Submersible pump / sewage pump / pipeline pump / multistage pump / centrifugal pump To protect , control water level and control pressure for above pumps.



MAIN FEATURES
Operation :	Only Manual mode for R18A ,Auto/Manual mode to choose for R18B, Operate the situation before power cut automatically .“Store ”key function to use more easily, one key to reset all data
LCD screen :	Running situation and Fault message of the pump and controller display directly on the screen.
Data displayed :	run, dry run, over load, under V, over V, stalled, no calibr;
Protect function:	the controller can protect the pumps from over V, under V, over load, stalled , dry run;
Control switch(only for R18B) :	water level probe, float



TECHNICAL PARAMETERS:

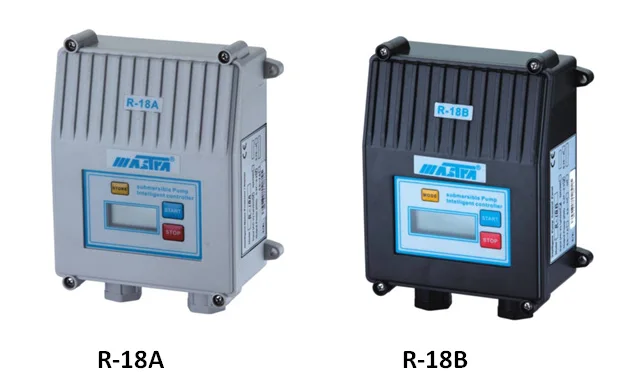

Model:	R18A(only motor protection)/ R18B( motor protection and water level control)
Voltage:	220V(1phase) ,Customized;
Frequency:	50/60Hz
power range:	0.37-2.2kw(1phase)
Distance:	<=200m
Degree of protection:	IP54
Note: If customized voltage is needed, please contact us.
