high intensity wet water ctb ctn mineral drum magnetic separator
- Category: >>>
- Supplier: Shandong Huaxin Electromechanical Equipment Co. Ltd.
Share on (60827271702):
Product Overview
Description
Product Description
magnetic minerals, or removing strong magnetic minerals from non-magnetic minerals. With a deep magnetic field, the machine can make a continuous row of ore feeding and discharge. It also has enough working clearance and high processing capabilities.in magnetic drum separator price
(actually, we have magnetic solution in complete series by wet and dry style)
Advantages Features
(1),short magnetic circuit.
(2),low magnetic flux leakage
(3),high magnetic intensity ,up to 8000gauss to 10000gauss.
(4),with disaggregating function for sticky and poor fluidity powders.
(5),wear resistance.
(6),simple structure to maintain.
(7),virgin magnet with high coercive force and high remanence.
(8),Trade Assurance (provided by alibaba,100% your money secured).
For more funtions you want to have(non standard), please Click Here to get advice and know detailed explanation above the list functions.of magnetic drum separator price
Technical Data
model | Drum size (D*L)mm | Magnetic strength mT | Handling capacity | Power kw | Rotary
Speed r/min | Weight kg | |||
Medium value | average | Max strength | t/h | m³/h | |||||
CTB(N.S)-46 | 400*600 | —— | 130 | 160 | 1-30 | 5 | 1.1 | 45 | 600 |
CTB(N.S)-66 | 600*600 | —— | 145 | 170 | 5-10 | 16 | 1.1 | 40 | 750 |
CTB(N.S)-69 | 600*900 | —— | 145 | 170 | 8-15 | 24 | 1.1 | 40 | 830 |
CTB(N.S)-612 | 600*1200 | —— | 145 | 170 | 10-20 | 32 | 2.2 | 40 | 990 |
CTB(N.S)-618 | 600*1800 | —— | 145 | 170 | 15-30 | 48 | 2.2 | 40 | 1330 |
CTB(N.S)-712 | 750*1200 | 120 | 155 | 180 | 15-30 | 48 | 3 | 35 | 1500 |
CTB(N.S)-718 | 750*1800 | 120 | 155 | 180 | 20-45 | 72 | 3 | 35 | 2100 |
CTB(N.S)-918 | 900*1800 | 148 | 165 | 190 | 25-55 | 90 | 4 | 28 | 2900 |
CTB(N.S)-924 | 900*2400 | 148 | 165 | 190 | 35-70 | 110 | 4 | 28 | 3500 |
CTB(N.S)-1018 | 1050*1800 | 148 | 165 | 190 | 40-75 | 120 | 5.5 | 22 | 4000 |
CTB(N.S)-1021 | 1050*2100 | 148 | 165 | 190 | 45-88 | 140 | 5.5 | 22 | 4500 |
CTB(N.S)-1021 | 1050*2100 | 160 | 240 | 280 | 45-88 | 140 | 5.5 | 22 | 4500 |
CTB(N.S)-1024 | 1050*2400 | 148 | 165 | 190 | 52-100 | 160 | 5.5 | 22 | 5000 |
CTB(N.S)-1024 | 1050*2400 | 160 | 240 | 280 | 52-100 | 160 | 5.5 | 22 | 5000 |
CTB(N.S)-1030 | 1050*3000 | 160 | 240 | 280 | 65-125 | 200 | 7.5 | 22 | 6200 |
CTB(N.S)-1218 | 1200*1800 | 148 | 165 | 190 | 47-90 | 140 | 5.5 | 19 | 5800 |
CTB(N.S)-1218 | 1200*1800 | 160 | 240 | 280 | 47-90 | 140 | 5.5 | 19 | 5800 |
CTB(N.S)-1224 | 1200*2400 | 148 | 165 | 190 | 82-120 | 192 | 7.5 | 19 | 6200 |
CTB(N.S)-1224 | 1200*2400 | 160 | 240 | 300 | 82-120 | 192 | 7.5 | 19 | 6200 |
CTB(N.S)-1230 | 1200*3000 | 148 | 165 | 190 | 80-150 | 240 | 7.5 | 19 | 7200 |
CTB(N.S)-1230 | 1200*3000 | 160 | 240 | 280 | 80-150 | 240 | 7.5 | 19 | 7200 |
CTB(N.S)-1530 | 1500*3000 | 180 | 240 | 300 | 90-170 | 270 | 11 | 14 | 8100 |
CTB(N.S)-1540 | 1500*4000 | 180 | 240 | 300 | 115-220 | 350 | 11 | 14 | 9300 |
The max magnetic strength we can get to 8000 gauss to 10000gauss with extruded system or NdFeB ring section, if you
want to have specific requireements, welcome to Click Here for comprehensive solution.

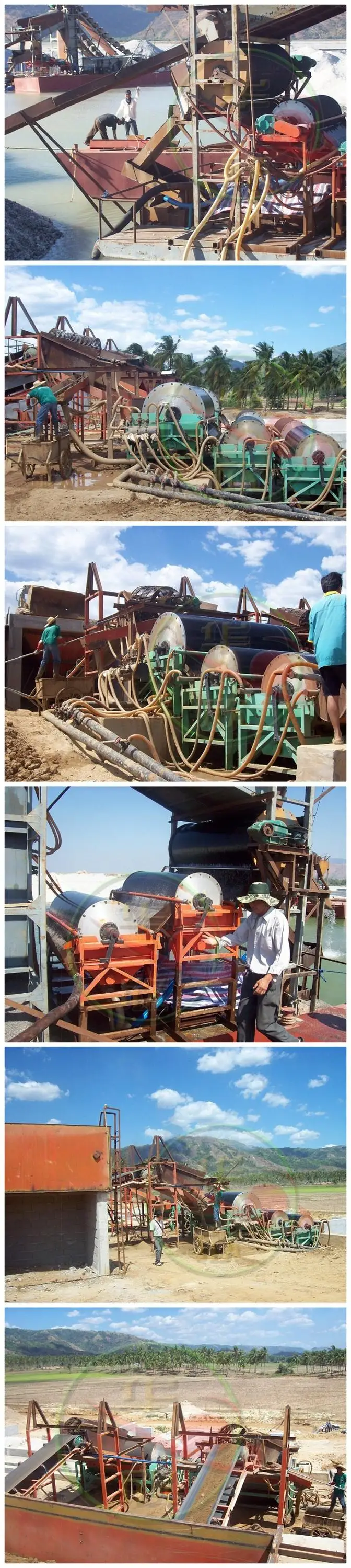

Mining Project
Machinery Equipment
Certifications
Company Information
If you want to know more about us, welcome toClick Hereto leave your message, which,with your request, can help us send you the latest E-catalogue.
Cooperation Partners
How to get a quote and help?
To make a responsible and exact quote for you, it will be helpful if you can tell us :
(1),what kind of mineral to be processed by magnetic separation?
(2),the granularity size ,and handling capacity?
(3),others to be cleared with our engineer, please Click Here to send inquiry, where you can receive professional advice about the test analysis, flow chart ,and machine choices.
your contact will keep confidential with us.
With your permission, we would like to send you E-catalogue, photos, and actual video.
