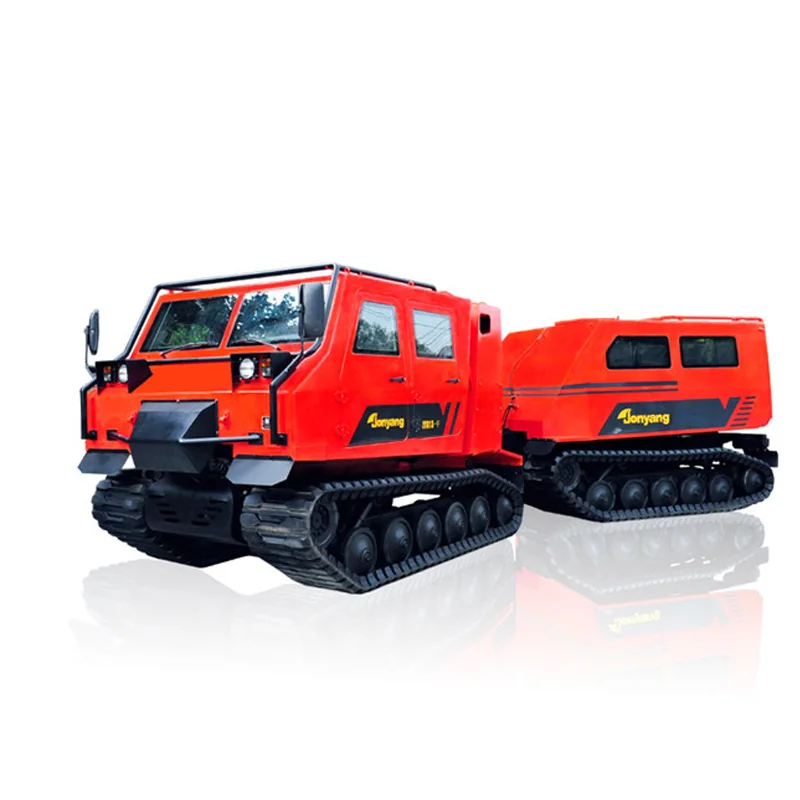

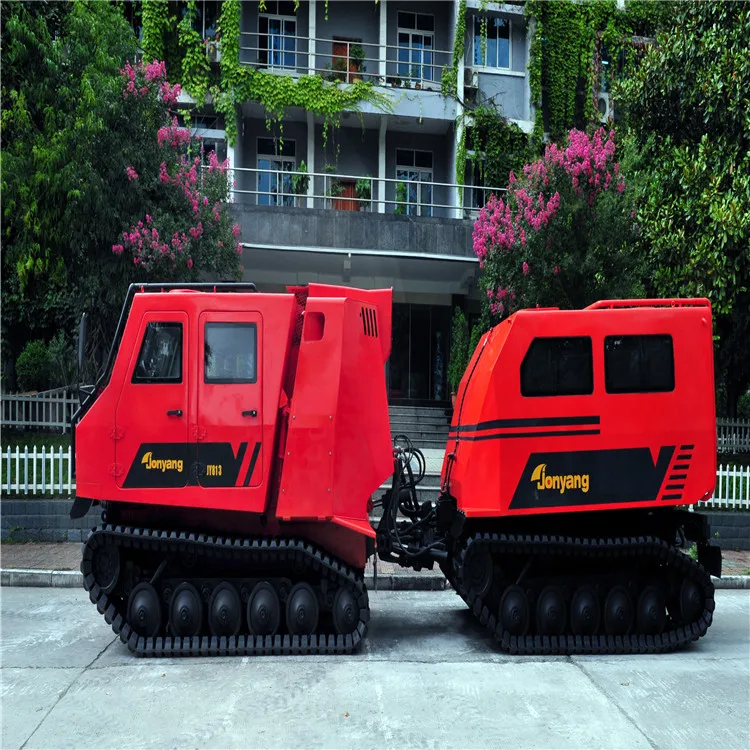

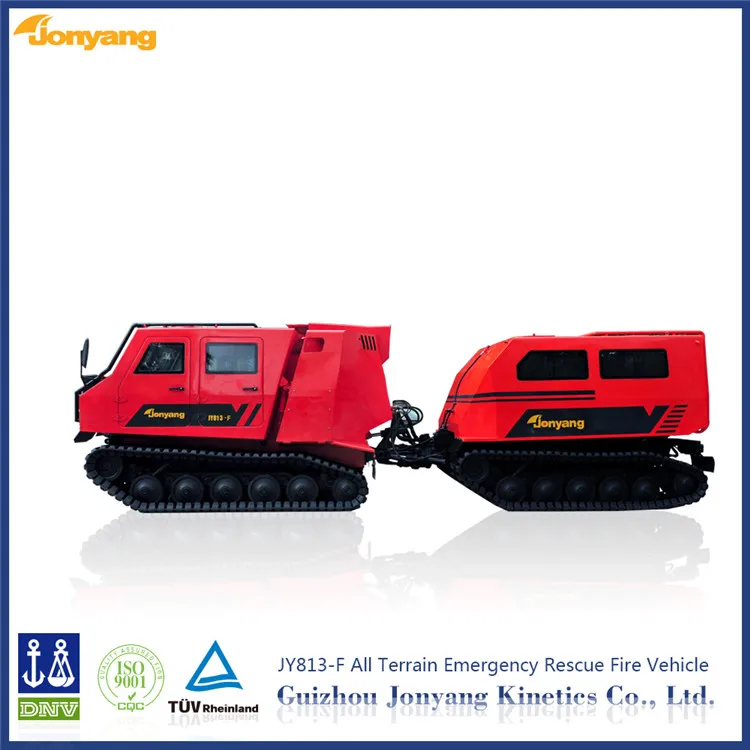

JY813-F Caterpillar All-terrain Fire Rescue Vehicle equipped with rescue equipment for life detectors, generators, multi-functional stretchers, air-filled pumps, hydraulic expanders, medical first aid kits, air respirators, rock drills, satellite phones and toolboxes .
The all-terrain crawler-type rescue fire fighting vehicle can perform various emergency rescue tasks under special terrain, environment, and climatic conditions, and it fully absorbs the technical advantages of the existing rescue vehicle, which is a completely in accordance with the public security firefighting team. Rescue the actual all-terrain public security rescue vehicle. It has important application value in many fields such as fire safety, disaster emergency rescue and municipal construction, and can provide important equipment support for the country.
Specifications | JY813-F |
Total weight | 11500kg |
Max. Speed on highway | 60km/h |
Max. Off-road Speed | 25km/h |
Max. Swimming Speed | 5km/h |
Endurance ability | 500km |
Travel ability on Mud or Ford | 1.2m |
Travel ability for Ditches | 1.5m |
Ambient temperature for working | -41℃~+46℃ |
Altitude for working | 4500m |
Working Environment | All-weather |
Life detector | KD-912 |
Hydraulic dilator | GYKZ40/600 |
Rock drill | YN27C |
Air respirator | RHZKF6.8/30.2 |
As the technology is constantly updated, all parameters are subject to the actual product.
Guizhou Jonyang Kinetics Co.,Ltd is located in Guiyang city, Guizhou Province.A well-konwn construction machinery company with hydraulic excavator manufacturing technologies and sales management experience accumulated in more than 40 years experience,is the first to develop and manufacturing hydraulic excavators in China.We are a high and new technology enterprise that have already established a construction machinery research center in Guizhou,and a postdoctoral workstation and a provincial technical center.
At present,our products have formed a large scale and series.We assure the efficient performance of products and that the products can always meet the demand of customers due to the advanced and mature hydraulic technology,the mechanical processing technology and mechanics technology in the world,also the professional mechanical manufacturing capacity, testing capacity in process and excellent quality system(Jonyang obtained the quality management system certificate of ISO9001:2008 and national military standard of GJB9001N:2009).
Our main products include wheeled hydraulic excavators from 6 to 35 tons,crawler hydraulic excavator from 3.5 to 75 tons and special machinery equipments.The areas of application include the traffic infrastructure construction of road,railway,airport and port,include the mineral energy development of coal,iron ore and non-ferrous metal,include the infrastructuring construction of urban context and the new rural construction,include the natural disaster emergency rescue of earthquakes and floods.
Jonyang has set up sales and service network covering both home and abroad markets, which can provide machinery sales ,spare parts supply and maintenance and relevent training with comprehensive service.we have been entitled to engage in the import and export business and our small excavator have been sold to europe,America,Africa,Oceania,Southasia,Central Asia,etc.
Pre-Sales Service
* Inquiry and consulting support
* View our Factory
After-Sales Service
* Training how to instal the machine,training how to use the machine
* Engineers available to service machinery overseas
Q: What are our advantages compared with other factories?
A: 1.State owned enterprise, Military standard quality.
2.Competitive price, Stable and prompt delivery time.
3.More than 40 years excavator R& D experiences, overseas engineer available.
4.First producer of the scientific investigation heavy machine to the South Pole.
Q: What payment terms can we accept?
A: T/T, L/C/, Cash, Paypal, Credit Card, Money Booker, Money Gram, West Union
Q: What trade terms can we work?A: EXW,FOB,CIF,CFRQ: What the validity of our price quotation?
A: Always 30~60days.
Q: What logistic ways we can work for shipment?
A: By sea, road, railway.
Q: Any after-services we can provide?
A: Yes, engineers overseas services available.
