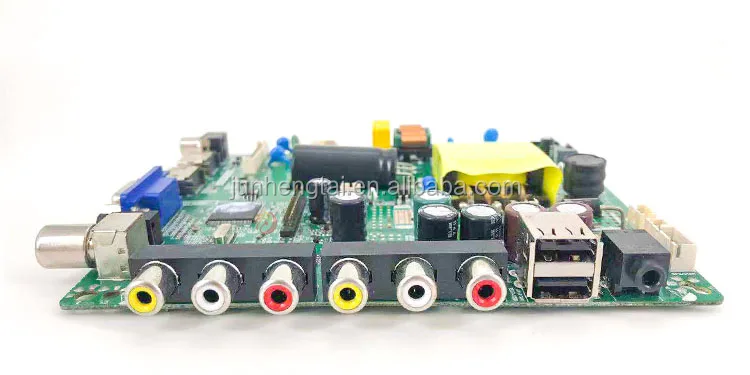

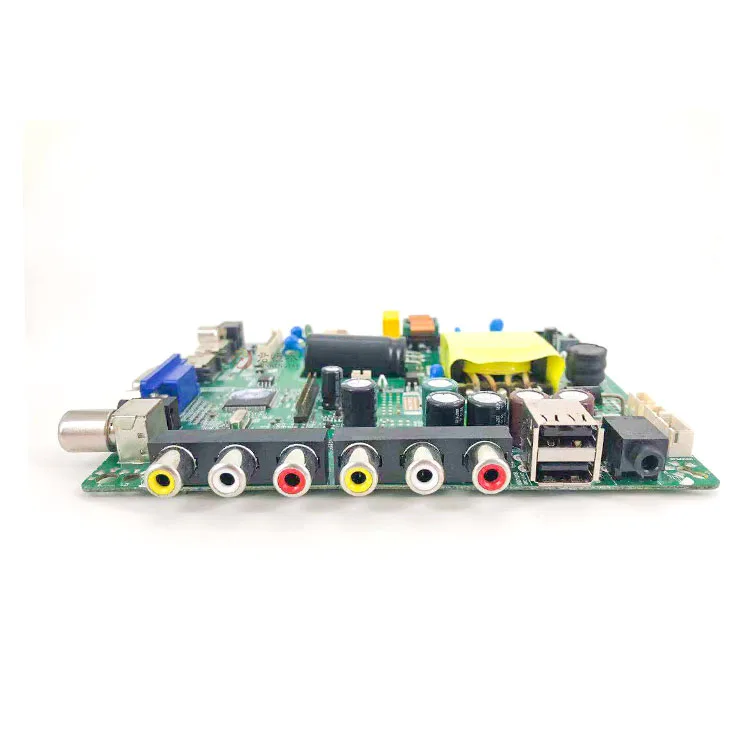

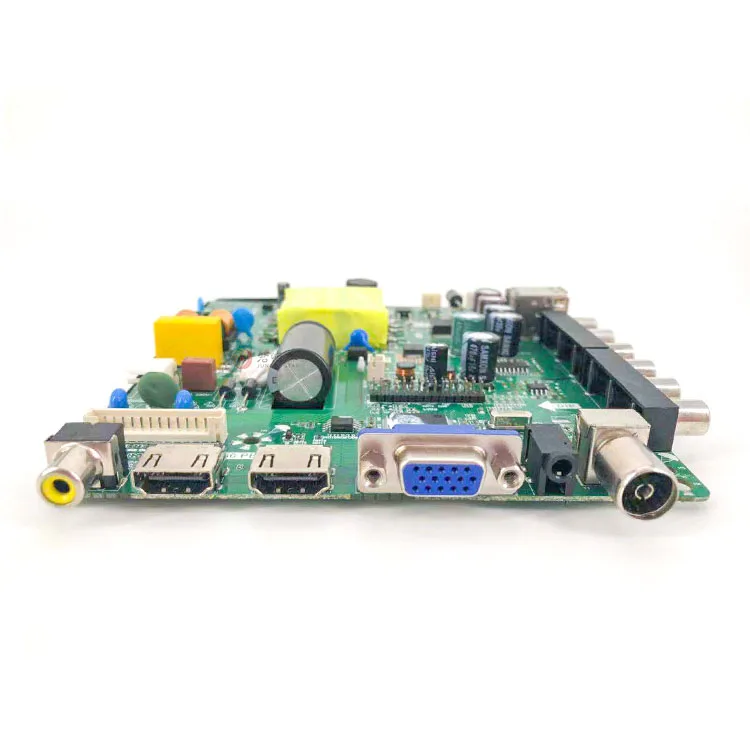

Junhengtai Factory Price Manufacture Universal LCD TV Controller Driver Board Modle TP.V56.PB801

We provide LED TV Mainboards with different configurations for TV assembling or replacement. We also accept customization according to required specifications (based on large quantities).  Every product has accessories. It's according to customer required.

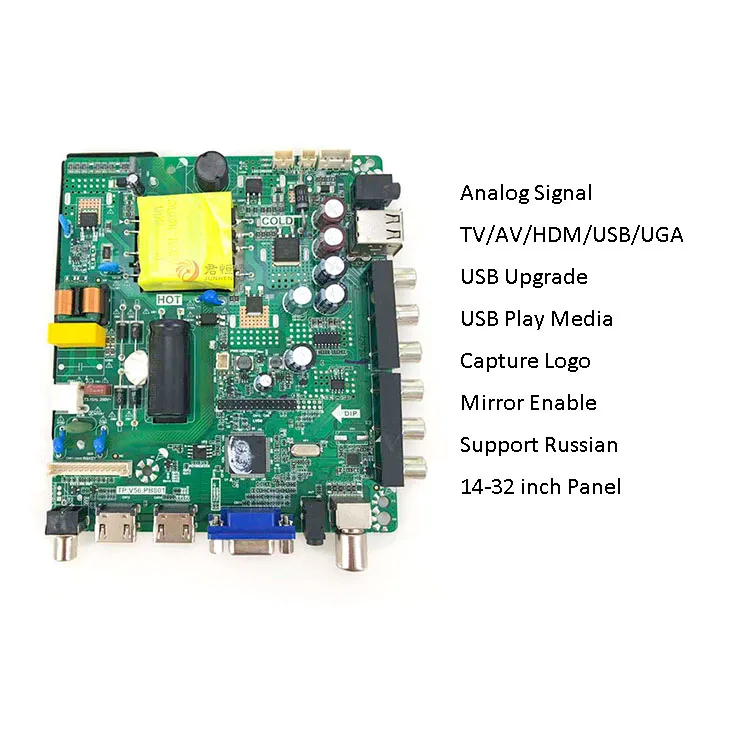

Modle: TP.V56.PB801
Picture:

1.Firmware Writing

Step 1: Empty the U disk

Step 2: Copy the corresponding resolution program (*. Bin file) with the TXT file to the
U disk base on your screen size.

Step 3: Connect the U dish and TV Mainboard Via USB Interface.

Step 4: Connect the Keyboard and TV Mainboard.

Step 5: Connect the power supply, check the keyboard light. If there is a flashing light,
that is in the written program, waiting for the light turn to Green, work is done.
If there is no flashing light, please cut off the power supply, then connect the USB once
again, then connect the power supply again,

(Note: *During Step 5,the power supply can't be cut off *The same firmware can only
be burned once time)

Please check the Video for more instruction

After all done, use the remote control to turn on the tv (after burning the firmware, the
mainbaord is on standby,need the remote control to turn on the tv)

2. Factory Settings

Menu--remote control press 1147--factory setting

Screen Specification Adustment: Factory setting--Use the right key to choose--MAP
data (LVDS MAP DATA has 16 items totally, it is enough for most of the screen)

3. BOOT LOGO SETTING

Step 1: Put your logo into the U disk

Step 2: connect your U disk with mainboard

Step 3: Find your logo in Multi-media File

Step 4: Select your logo

Step 5: Press No."6 " on remote control to change to fullscreen play,then press "ok" on
the remote control, on the bottom of the option items, there is a " catch", choose it.
Done

 Every product has accessories. It's according to customer required. About the accessories infoprmation, please requry us.

1.   Suitable for worldwide analog TV system PAL/NTSC/SECAM

2.   LCD control board Support 3D board

3.   Expanded port board can support1~2 AV input,1AV output,1YPBPR input

4.   Reliable EMC and antistatic treatment measures

5.   Automatically detect input video format

6.   VGA +DVI +HDMI+USB inputs.

7.   Built-in superior quality stereo speakers.

8.   Support multi OSD languages.

9.   Max supports Full HD lcd tv main board 1920X1080 resolution TFT-LCD screen.

10. Dynamically adjust picture's color , contrast ratio, definition and so on.

11. Rating of Audio loudspeaker output is 2W*2(8ohm).

12. universal LCD control board support lot of panel.
