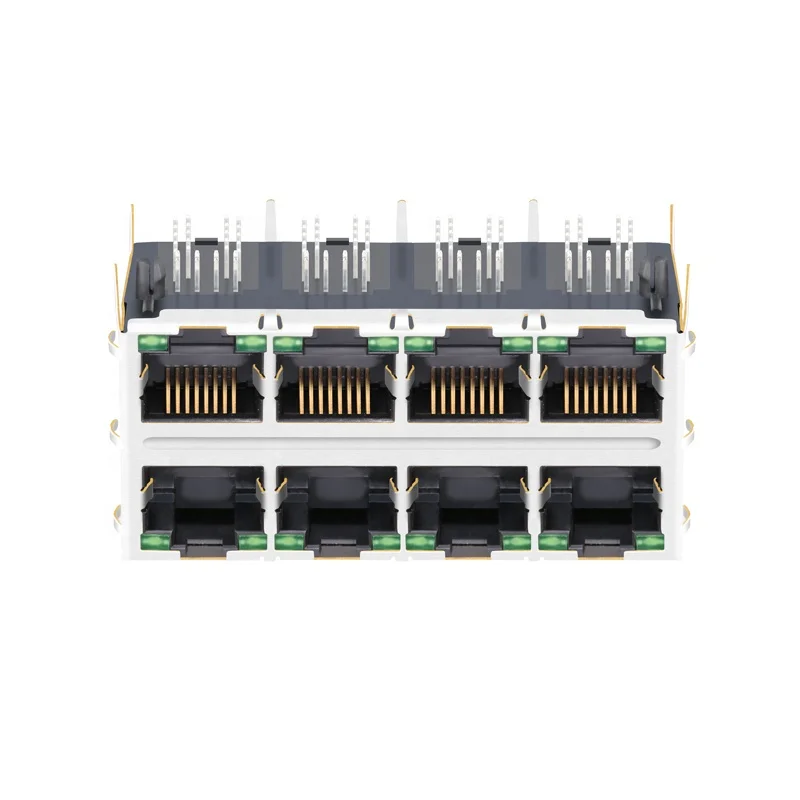

2.5G Base-T Integrated Magnetics PoE+ 2x4 Port Ethernet RJ45 Connector
- Category: Connectors and Accessories >>>
- Supplier: Shenzhen,LINK-PP,INT'L,Technology,Co.,Ltd.
Share on:
Product Overview
Description
2.5G Base-T Integrated Magnetics PoE+ 2x4 Port Ethernet RJ45 Connector
Products Description
Item | RJ45 Female Connector |
Link-PP Part Number | LPJG47039AWNL |
Part Status | Active |
Connector Type | Jack |
Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
Application-Lan | Ethernet(NoN PoE) |
Number of Ports | 1x1 Port |
Speed | 10/100/1000 Base-T |
Latch | Down/Up |
Cores per Port | 4 |
Orientation | 90° Angle (Right) |
PCB Mount Angle | SIDE ENTRY |
Shield EMI Tabs | Without/With |
LED Option | Green/Yellow |
PCB | FR4 |
PCB Retaining Post | T POST |
Temperature | 0℃ TO 70℃/-40℃ TO 85℃ |
Bst Circuit | Yes |
AutomDX | YES |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Turns Ratio RX/TX | 1CT:1CT |
Configuration RX/TX | T,C |

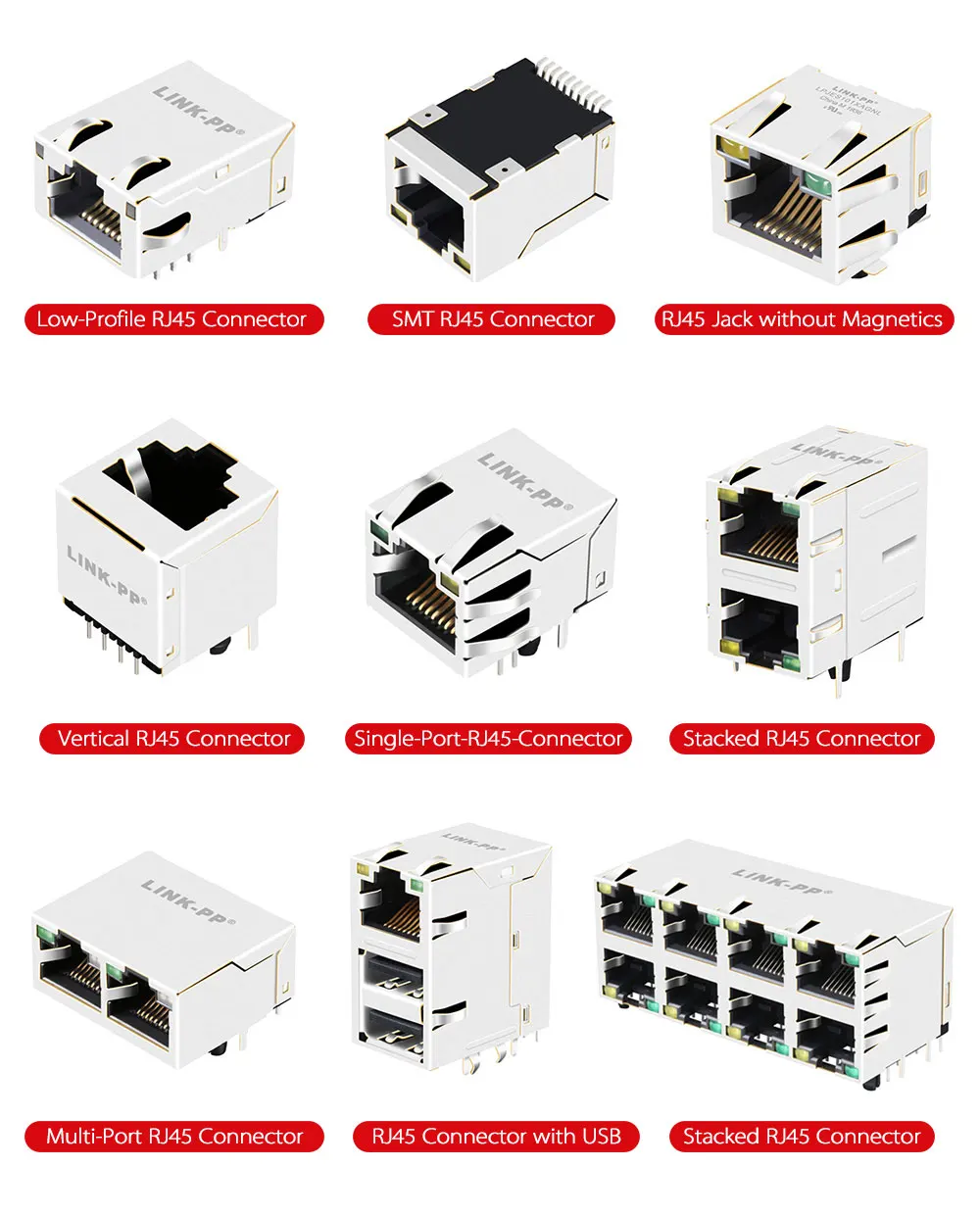

☟ Click Below Products Link To Get More ☟

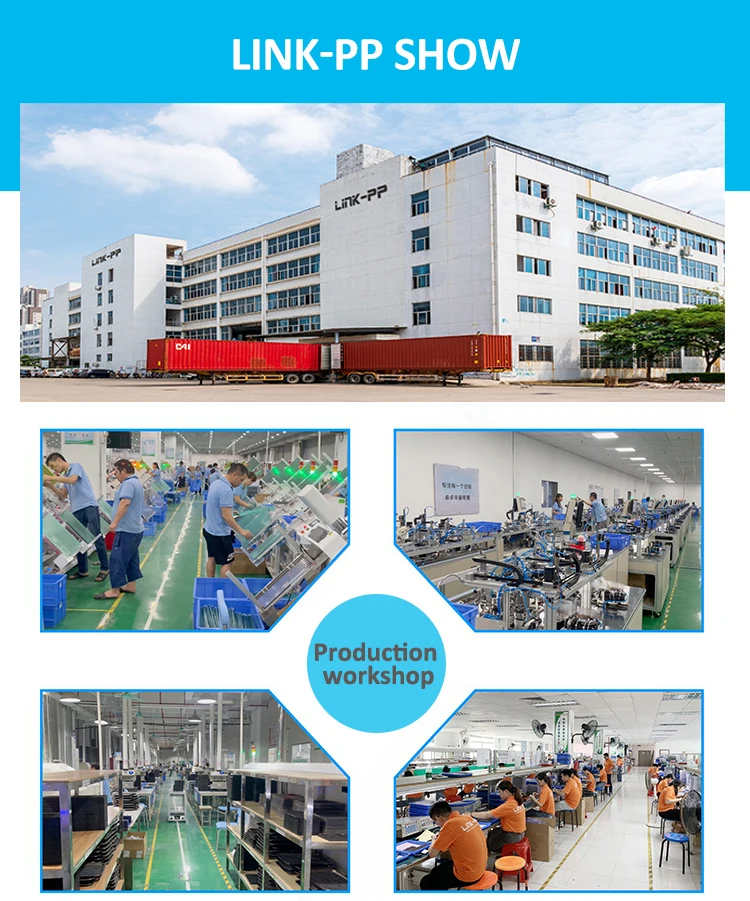

Company Profile
LINK-PP INT'L Technology Co., Ltd established in 1997,is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
LINK-PP is a global supplier magnetic telecom and networking components of OEMs, contract manufacturers and CEMs.supplying more than 10000+ customers oven 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
FAQ
1. Are you factory or trading company?
LINK-PP INT'L Technology Co., Ltd is a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector、lan transformer、RJ11 connector and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?

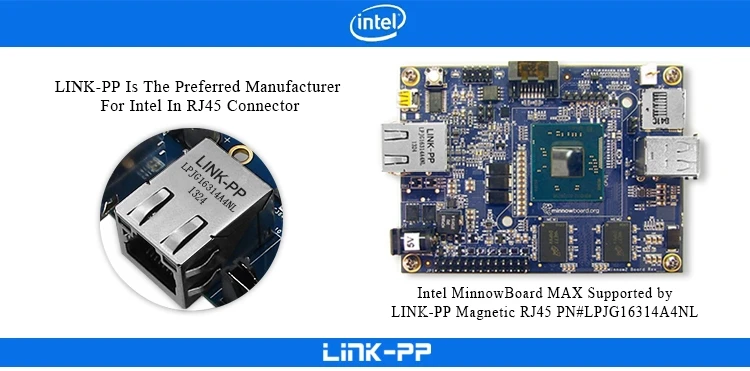

19 years of production experience and we are intel's and Jabil's partner for many years.
