12V 40AH lead acid Solar gel battery
US $10.00-$38.00
4 evf 150 electric car battery 8v 150ah agm deep cycle battery
- Category: Lead Acid Batteries >>>
- Supplier: Jiangxi WOLF Power Technology Company Limited
Share on (60827419038):
Product Overview
Description

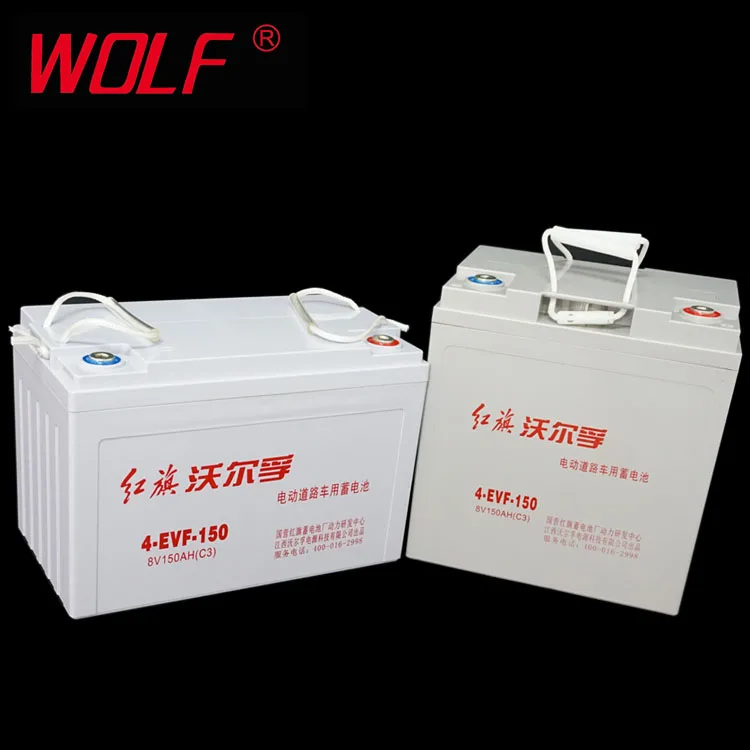

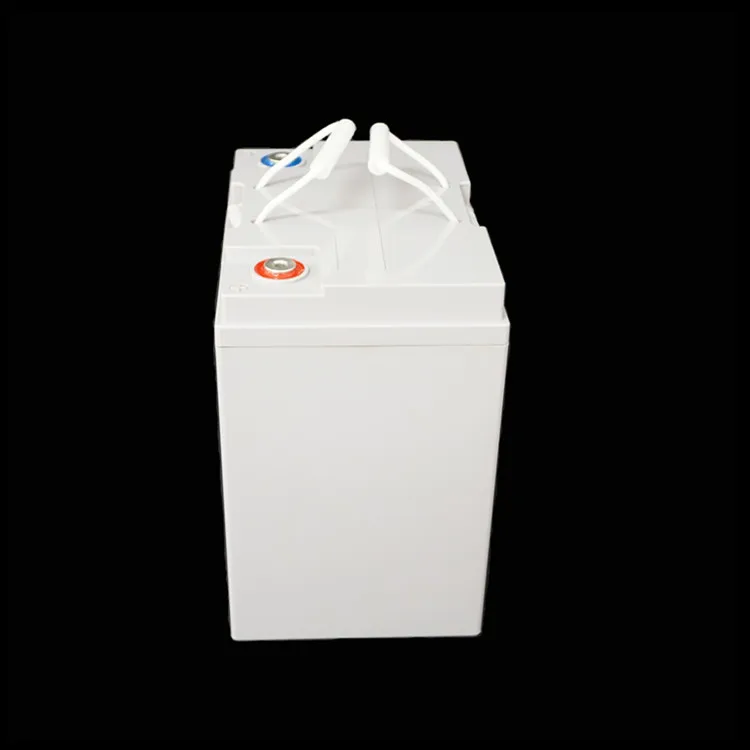

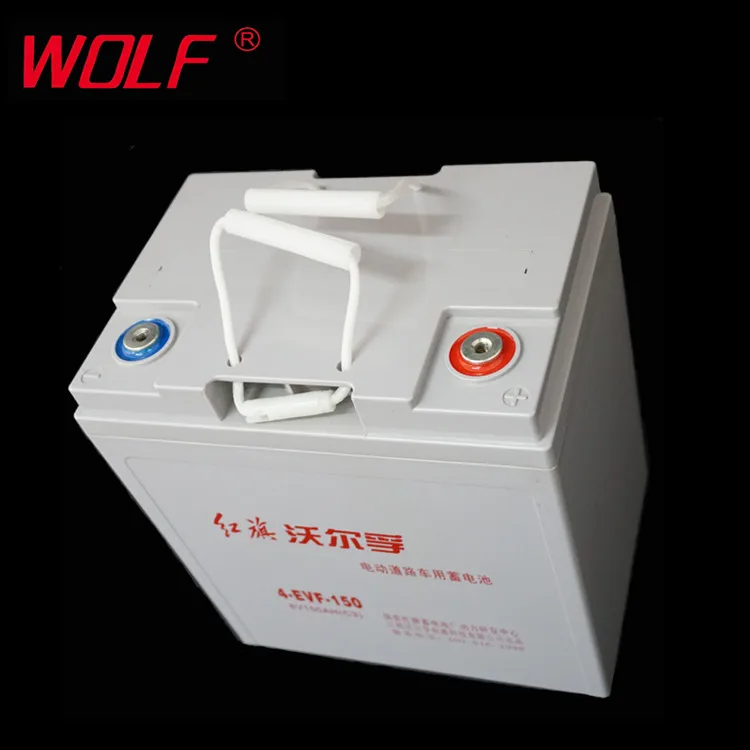

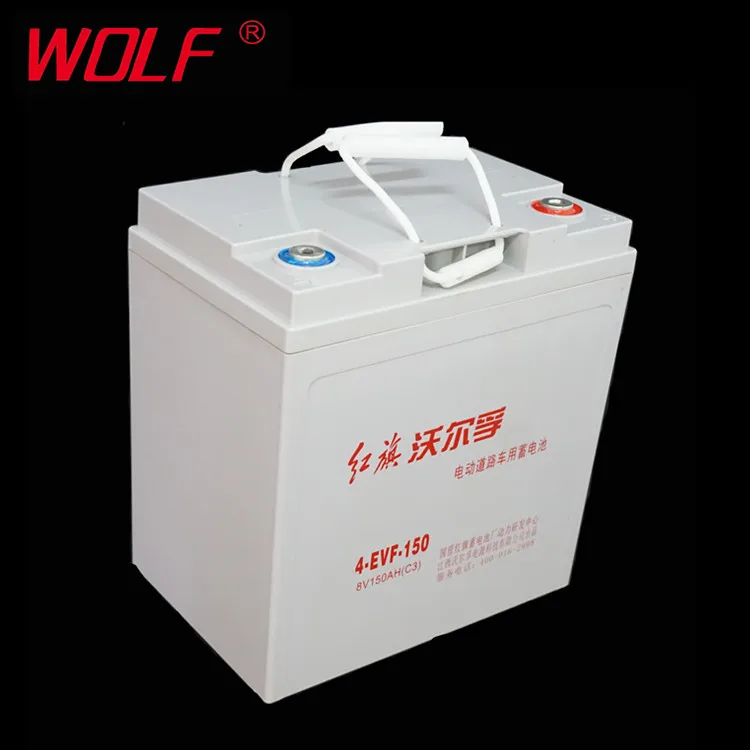

4 evf 150 electric car battery 8v 150ah agm deep cycle battery
Product Description
Voltage range:6V,8V,12V
Capacity design:60-230AH
Application:
agm deep cycle battery also applied in electric tricycle, low-speed electric car, golf cart, electric sightseeing car, electric forklift, electric stacker, electric lifting platform, electric floor washer, electric sweeper, electric garbage truck, etc.
BATTERY STANDARD | BATTERY CHARACTERISTICS | ||||||
RATED VOLTAGE(V) | 8 | CAPACITY (Ah,25℃) | 10Hr | 200 | |||
RATED CAPACITY(3hr) | 150AH |
| 5Hr | 170 | |||
OVERALL DIMENSIONS | Length(mm) | 260 |
| 3Hr | 150 | ||
| Width(mm) | 180 |
| 2Hr | 135 | ||
| Height(mm) | 280 | The factory open circuit voltage(V) | 8.6-9.0 | |||
| Total Height | 280 | Charging voltage (V) | Floating charge | 9.10-9.16 | ||
Weight | KG/Lb | 36/79.3 |
| Cycle | 9.7-9.8 | ||
Battery cover material | ABS | Max Discharge current(≤5SEC) | 830A | ||||
Battery internal resistance | ~3.5mΩ | Max Discharge current(≤5SEC) | 150A | ||||
Discharge capacity in different temperature(3Hr) | 40℃ | ~102% | Storage time and self- discharge capacity (3Hr) | 1 month later | More 90% | ||
| 25℃ | ~100% |
| 2 months later | More 86% | ||
| 0℃ | ~90% |
| 3 months later | More 82% | ||
EVF Series Models
Model and Specification:
Model | Rated Voltage (V) | Rated Capacity (AH) | Reference Weight(KG) | Reference Dimensions |
L*W*H(mm) | ||||
6-EVF-60 | 12 | 60 | 20±0.5 | 260*175*170 |
6-EVF-70 | 12 | 70 | 23±0.5 | 260*175*215 |
6-EVF-80 | 12 | 80 | 26±0.5 | 260*175*215 |
6-EVF-100 | 12 | 100 | 34±0.5 | 330*180*215 |
6-EVF-110 | 12 | 110 | 36±0.5 | 330*175*220 |
6-EVF-120 | 12 | 120 | 40±0.5 | 407*174*233 |
6-EVF-150L | 12 | 150 | 51±0.5 | 483*170*240 |
6-EVF-150H | 12 | 150 | 50±0.5 | 333*180*280 |
4-EVF-150L | 8 | 150 | 33.5±0.5 | 330*180*220 |

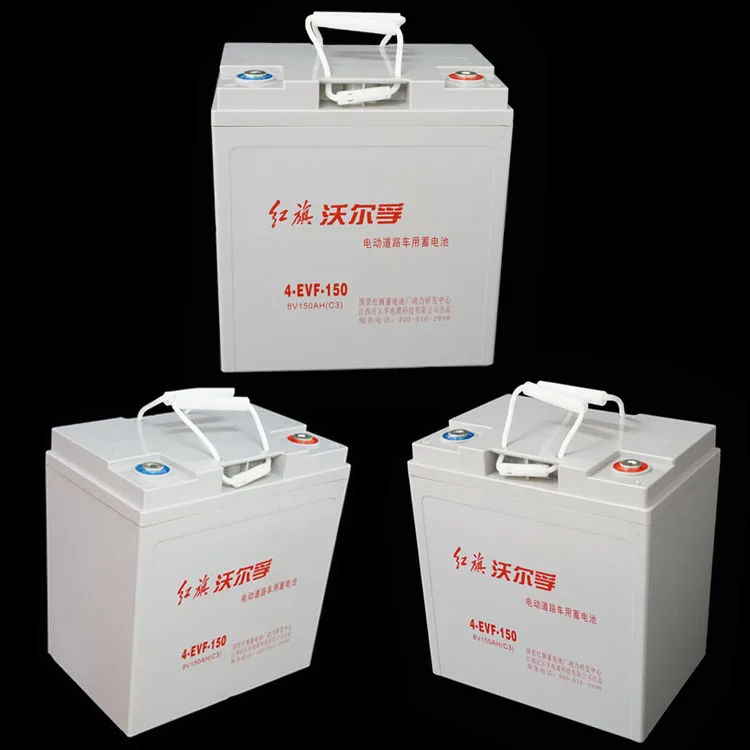

4-EVF-150H | 8 | 150 | 34.5±0.5 | 260*180*280 |
3-EVF-200L | 6 | 200 | 33±0.5 | 330*180*220 |
3-EVF-200H | 6 | 200 | 34±0.5 | 260*180*275 |
EVF Battery Charging
| Current | Voltage | Time | Transition Conditions | Temperature Compensation |
T1 constant | constant current | Charging to | 2h | Charging to until the | yes |
T1 constant | constant current | Charging to | 7h | Charging to until the | yes |
T3 constant voltage | limited current | Constant voltage | 2h | Constant voltage and | yes |
T4 Floating charge | limited current | Constant voltage U3=2.35V/cell | 4h | Charging time reach to 4h | none |
| Shut down |
|
|
|
1.Equalizing charge method:help to maintain and restore the capacity of battery
2.Constant voltage U2=2.5V/cell,limited current 0.02C(A)charging,time≤2h,none in Winter,2-3times in Summer
3.Feed system: allow maximum feeding current:2.0C(A),at the maximum current,
feeding time:2-3 seconds
4.Pulse current charge: when using the pulse charging,please contact technical department in advance.
Charge and discharge characteristics:
Allow the maximum discharge current:(≤5SEC)5C
Allow maximum charging current:0.5C
Standard charging current:0.15C
Cycle of charging voltage:2.45V/cell(20-25℃)
Agm Deep Cycle Bettery Performance Curve:
EVF Product Uses
Application:
agm deep cycle battery applied in electric tricycle, low-speed electric car, golf cart, electric sightseeing car, electric forklift, electric stacker, electric lifting platform, electric floor washer, electric sweeper, electric garbage truck, etc.
Company Information
JiangXi WOLF Power Technology CO.,LTD is mainly engaged in high quality motive power lead-acid battery, energy storage valve-regulated battery and military battery.
The company has a complete and scientific quality management system, providing strong technical support and perfect after-sales service for customers.
Enterprise has passed the ISO9001 quality management,environment management and health and safety management system certification. WOLF brand products are best-selling domestic and international markets as it’s excellent quantity
We adhere to the spirit of innovation, integrity and win-win to create value for customers and contribute to the cause of power supply.
We sincerely welcome clients visit our factory, give us guidance. Let's work hand in hand to creat brilliancy.
Packaging & Shipping
Package:we can print your logo on the battery case, and you can offer your logo.
Shipping:Used our forwarder or your forwarder you can shoose
FAQ
Q1.What’s your terms of payment?
A: 100% or 30% disport in advance, 70% balance pay off against the copy bill of loading. We will show you the photos of the products and packages before you pay the balance.
Q2: What’s kinds of battery will you provide?
A: We have three type battery: There are many different model battery here, we can supply 12v 60ah-150ah battery, 8v 150ah-170ah battery, 6v 200ah-230ah battery. Support OEM
Q3: Operating temperature
A: Discharge: -15--40℃
Charge: 0--40℃
Storage:-15--40℃
Q4: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case, and you can offer your logo.
Q5. Can I get discounts?
A: Yes, for big order and repeat order clients, we give reasonable discounts.
Q6: Which Shipment way is available?
By sea to your nearest port.
By air to your nearest airport.
By express (DHL, UPS, FEDEX, TNT, EMS) to your door.
By truck to your shipping agents' address or pointed warehouse.
