CR918S BIP функция и все инжектор поколения кодирования функция коллектора системы впрыска топлива инжектор топлива насоса испытательного стенда
- Category: Testing Equipment >>>
- Supplier: Taian,Beacon,Machine,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description

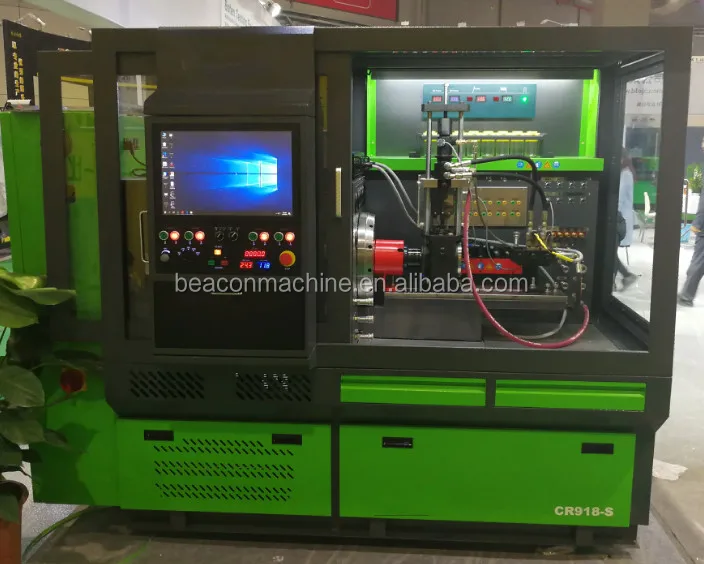

CR918S BIP function and all injector generation encoding function common rail diesel injector fuel pump test bench
Product Description
MAIN CONFIGURATION
6 injectors can be triggered at the same time , and 6 injectors correction codes can be generated simultaneously!
Accurate response time
Generate oil volume correction code
Test PT pump

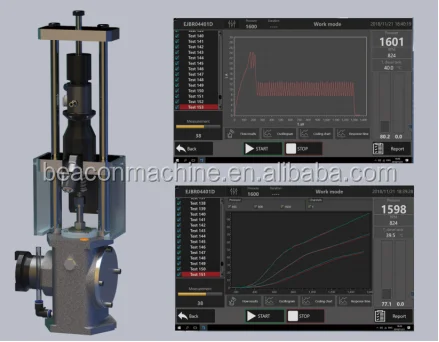

Test PT injector
Test HPI Q60 X15
Test Cummins HPI Actuator
FEATURES:
Bosch 6,7,8,9,10-digit IMA encoding generation
Bosch piezo injector IMA,ISA encoding generation
DENSO QR oil volume correction code generation
Delphi C2i,C3i encoding generation
Siemens (VDO) ICC code generation
Test common rail injector
Test common rail pump

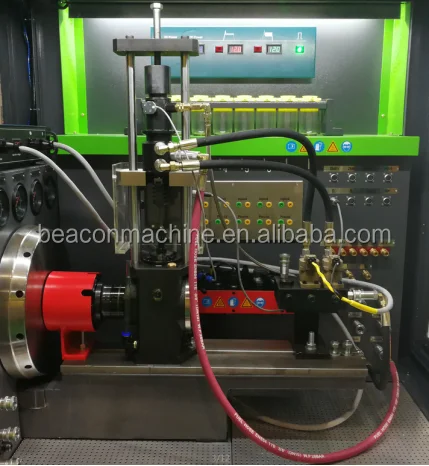

Test EUI/EUP
Test the HEUI injector
Test HEUI actuation pump
The highest rail pressure is 2600 bar
Drive motor 22KW
Injection drive and system voltage monitor
Common rail with filter function
Dual DRV configuration
High pressure filter plugging reminder function
Waste tank overflow warning
Oil tank and diesel tank strong integrated air conditioning system
TECHNICAL PARAMETERS | |
Main power | 380V AC 220V(Optional) |
Phase | Three,single(Optional) |
Frequency | 50HZ/60HZ |
Current | 45A(MAX) |
Main Motor | 22kw |
Main motor rotation | 0-4000 RPM/MIN |
Oil motor HP/FLOW | 0.19KW/13L/MIN |
Diesel motor HP/FLOW | 0.19KW/13L/MIN |
Control circuit voltage | DC12V/24V 350W |
ECU internal voltage | 0-200V DC(MAX) |
Oil tank volume | 30L |
Diesel Tank volume | 52L |
Tempreature control | Heating/Forced cooling |
Max rail pressure | 180Mpa 240Mpa(Optional) |
Flowmeter(injection) | 4-550ml/min |
Flowmeter(pump supply) | 1-400L/H |
Flowmeter(pump flowback) | 1-400L/H |
Flowmeter(oil) | 5-600L/H |
Center distance between motor and working bench | 125mm |
Weight | 1100KG |
Outlook size net | (LxWxH)2400x1350x1880 |
Wooden cage | (LxWxH)2500x1480x2050 |
Packaging & Shipping
Our Services
Company Information
FAQ
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
