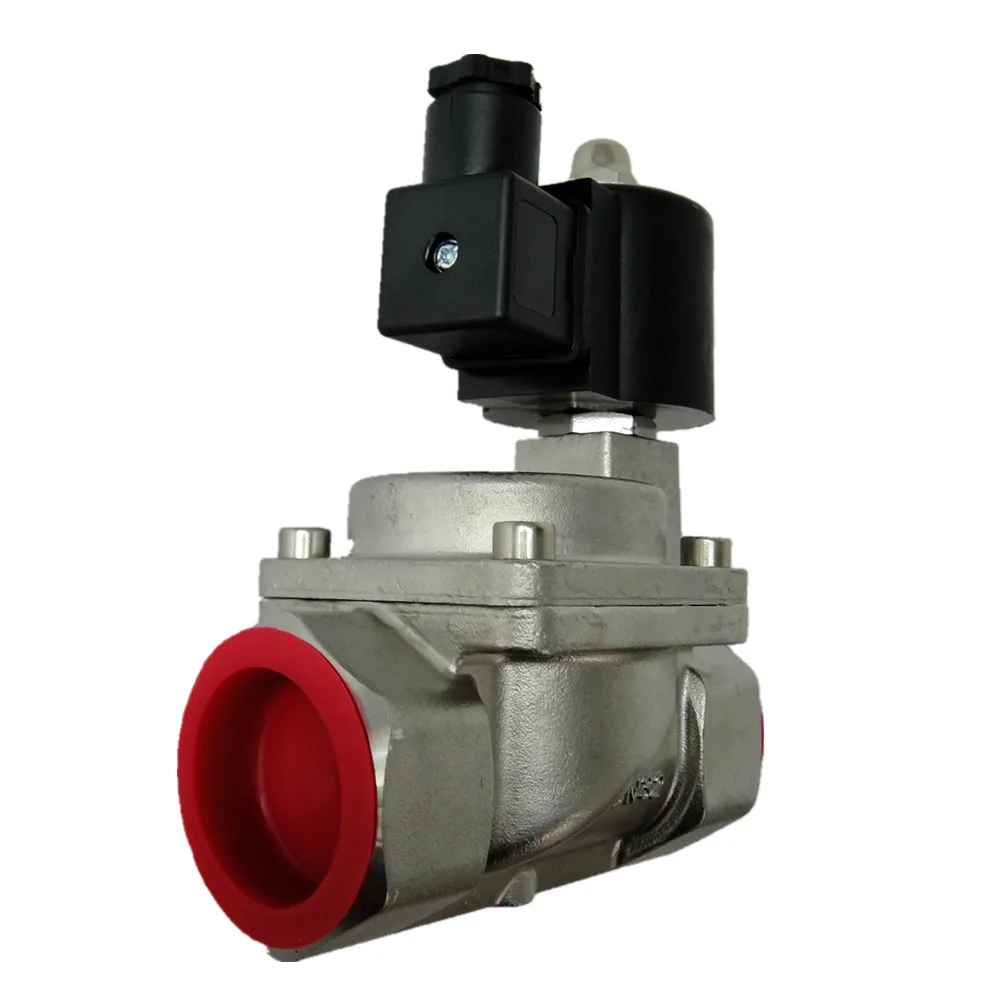

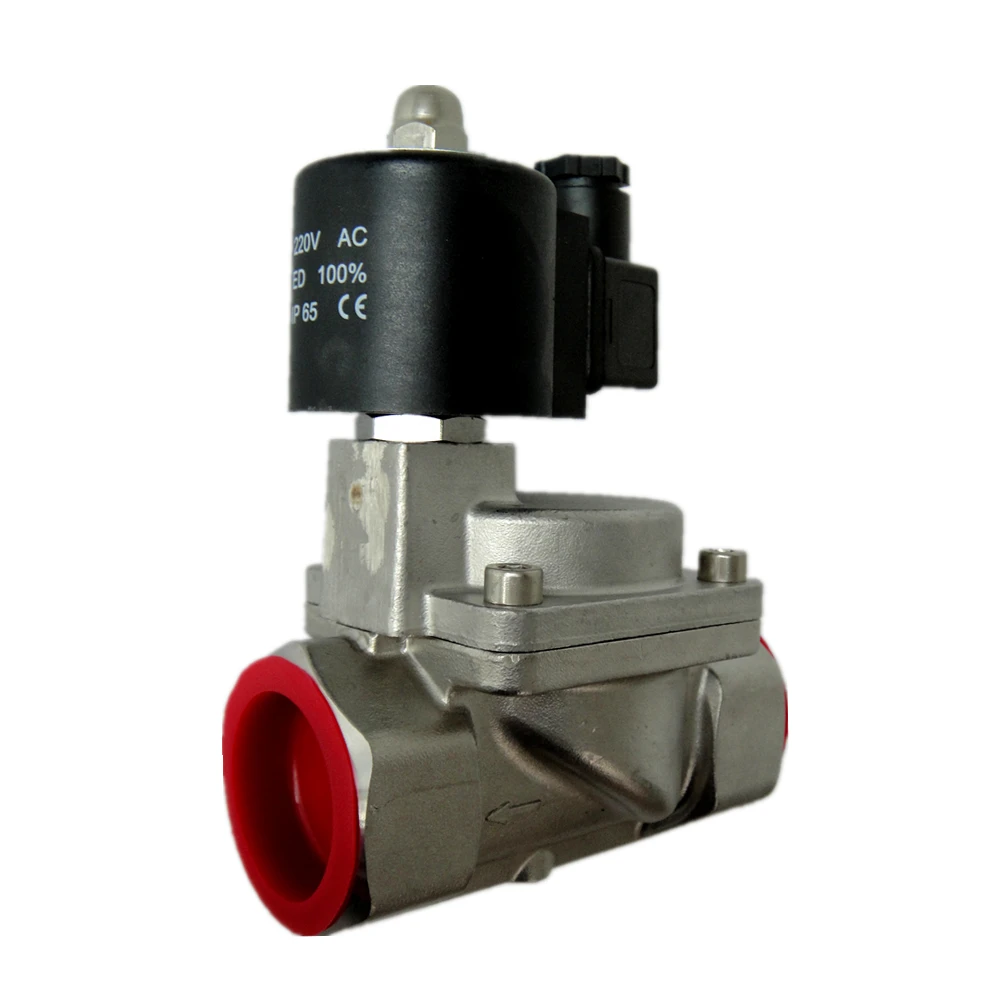

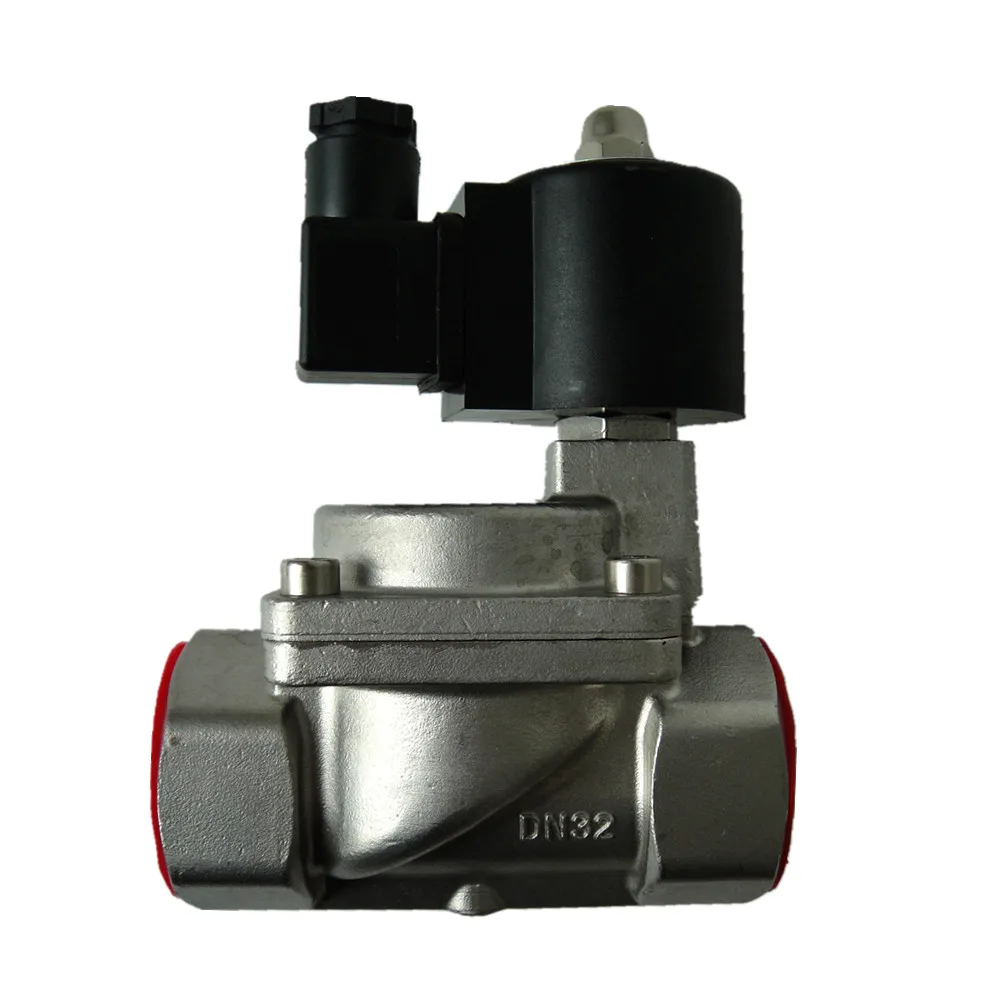

2/2 Way KLS 32 D1 Stainless Steel High Pressure Pilot Piston Type Steam Water Solenoid Valve
2/2 Way KLS-32-D1 Stainless Steel High Pressure Pilot Piston Type Steam Water Solenoid Valve
2/2 Way KLS-32-D1 Stainless Steel High Pressure Pilot Piston Type Steam Water Solenoid Valve
2/2 Way KLS-32-D1 Stainless Steel High Pressure Pilot Piston Type Steam Water Solenoid Valve
2/2 Way KLS-32-D1 Stainless Steel High Pressure Pilot Piston Type Steam Water Solenoid Valve

2/2 Way KLS 32 D1 Stainless Steel High Pressure Pilot Piston Type Steam Water Solenoid Valve

Share on (60827498000):


Price:$94.00

Quantity:


Product Overview

Description


Product Description

2/2 Way KLS-32-D1 Stainless Steel High Pressure Pilot Piston Type Steam Water Solenoid Valve

\t
KLS
\t
15
\t
V
\t
NO
\t
D1
\t
AC220V
\t
Specification Code
KLS:KLQD Stainless Steel Pilot Piston Type Solenoid Vale
\t
Port Size
15:G1/2''
20:G3/4''
25:G1''
32:G1-1/4''
40:G1-1/2''
50:G2''
Other customized
N:NPT
P:PT
\t
Sealing Material
Blank:PTFE
V:VITON
E:EPDM
Other customized
Latching coil only use for rubber sealing
\t
Blank:Normally Closed
NO:Normally Open
T:DIN coil with Timer
\t
Customized Coil
D1:IP65 DIN 16433LP
D2:IP65 DIN AB410HP
D3:IP65 DIN AB510LP
D4:IP65 DIN AB510HP
L:IP65 DIN Latching Coil(Limited to DC6,12,24)
LD1:IP65 DIN 16433LP with LED
LD2:IP65 DIN AB410HP with LED
LD3:IP65 DIN AB510LP with LED
LD4:IP65 DIN AB510HP with LED
LL:IP65 DIN coil with LED latching coil(Limited to DC6,12,24)
W:IP65 wiring type coil AB410B
Z:Ex-proof coil 1680
A:IP67 waterproof coil 16431
Other customized coils
\t
Standard Voltage
DC12V
DC24V
AC24V 50Hz/60Hz
AC110V
50Hz/60Hz
AC220V
50Hz/60Hz
\t
Model
\t
KLS-15
\t
KLS-20
\t
KLS-25
\t
KLS-32
\t
KLS-40
\t
KLS-50
\t
Port Size
\t
G1/2''
\t
G3/4''
\t
G1''
\t
G1-1/4''
\t
G1-1/2''
\t
G2''
\t
Operation Medium
\t
Steam,air,water,oil(below 50CST fluid),micro-corrosive media,multiple chemical fluids
\t
Orifice Size
\t
15mm
\t
20mm
\t
25mm
\t
32mm
\t
40mm
\t
50mm
\t
C Value
\t
5
\t
6
\t
13
\t
20
\t
28
\t
39.5
\t
Pressure Difference
\t
The minimum pressure:0.05MPa the maximum pressure reference pressure table
\t
When the medium is steam: the maximum operating pressure of 1.2MPa,
short-term maximum operating pressure of 1.6MPa
\t
Rubber:Max.1.6MPa
\t
Protection Degree
\t
IP65; IP67; Ex-proof Grade; Ex mb I Mb; Ex mb II T4 Gb; DIP A20 TA T4
Detailed Images
Packing & Delivery
Payment
Production Process
Our Company

NingBo Kailing Pneumatic Co ,LTD. is a professional company engaged in the production of Solenoid Valves and pneumatic parts.Our company has strong techologies and high capability in research and development of new products.The company has fine workmanship amd perfect inspection techniques. The products include Solenoid Valve , Air source treatment unit , control element and executive element etc which are widely used in industries such as machinery , metallurgy, food , textile and environmental protection .

FAQ

Q1. Is sample order acceptable?
A: Yes.It's ok.

Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?
A: We have stock for standard products.

Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.

Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
