Product Overview

Description


Product Name:1~5liter Full Automatic Tinplate Can Making Machine

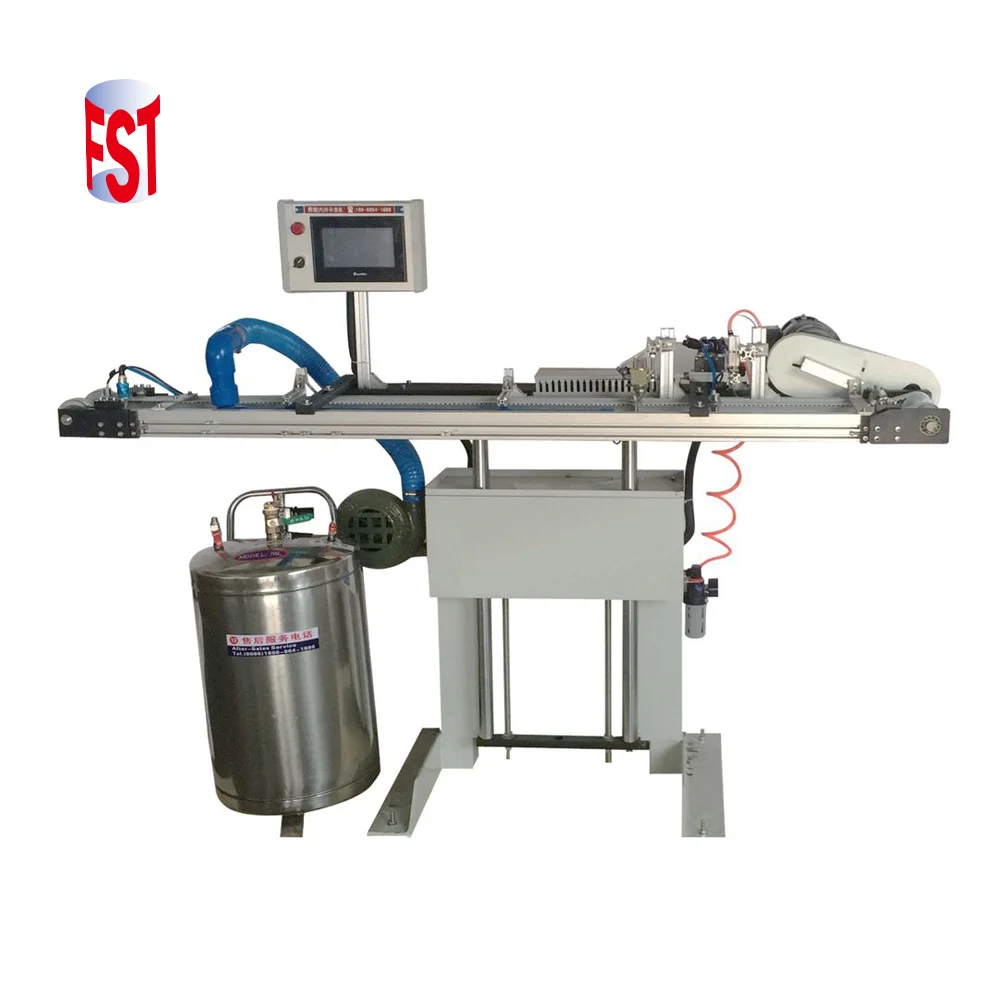

We provide a complete range of machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems.

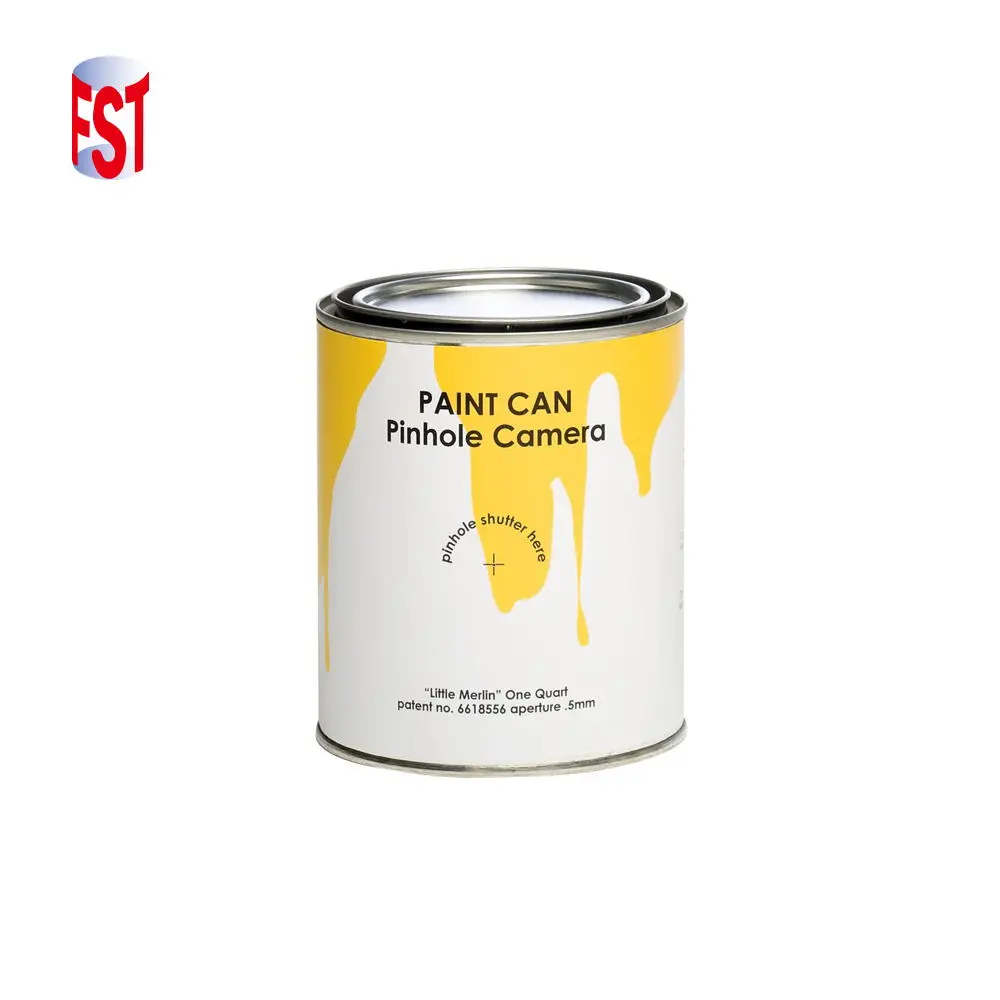

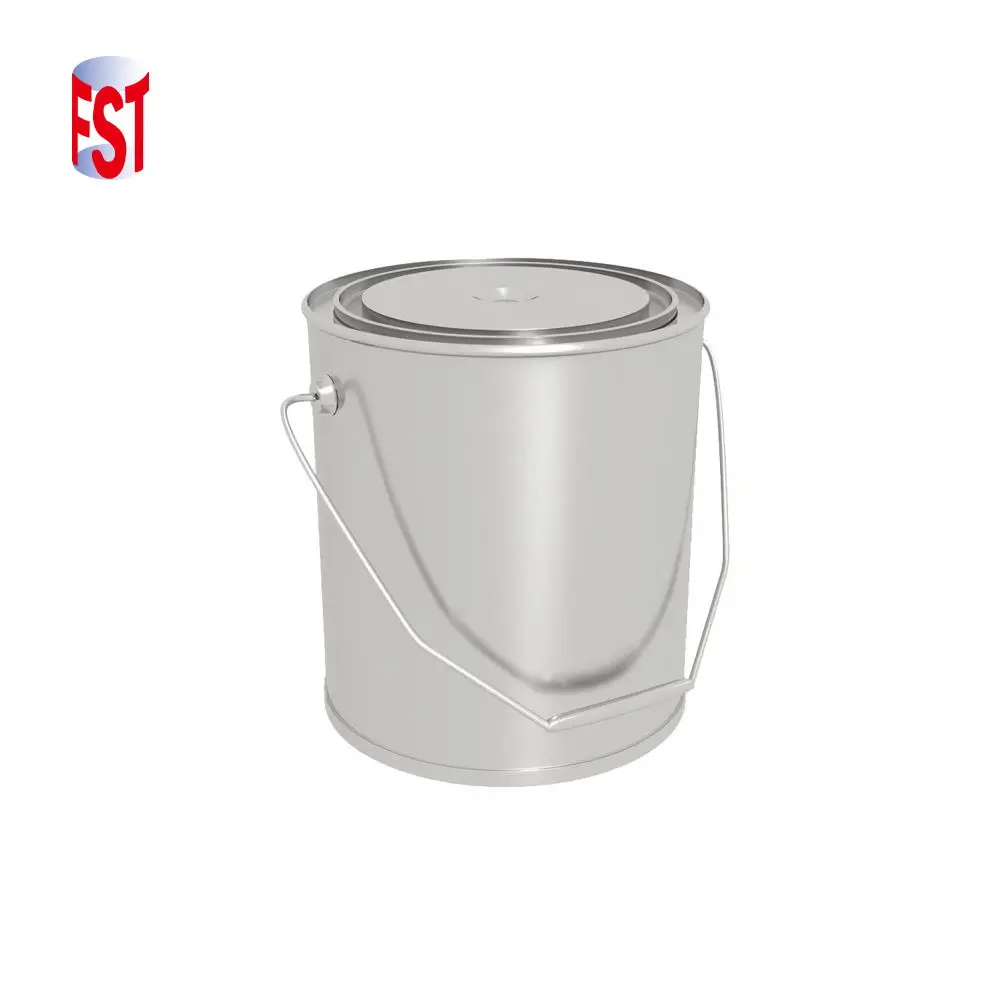

The follow is 1~5liter full automatic paint can production line with productivity of 60cans/min
Product Paramenters

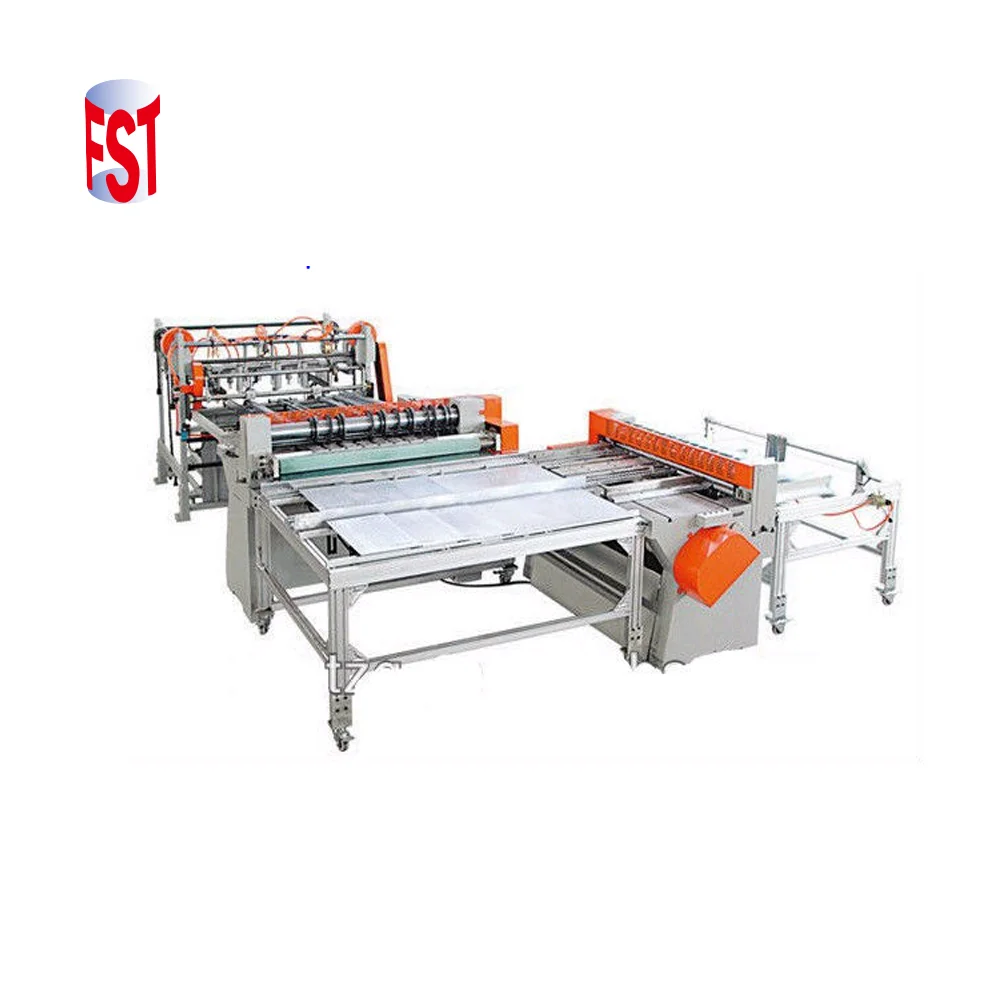

Automatic Duplex Slitting Machine
Automatic Slitting Machine is use to cut the printed tinplate base material (large square metal sheets) into body blanks of required size,it's the first stage in the production line.
Model
GT-A10
Max Thickness
0.4mm
Max Width
1200x1200mm
Min Width
600x600mm
Power
15kw
First Strip
5 pieces
Second Strip
15 pieces
Net Weight
2000kg
Dimension
2500x2000x1200mm

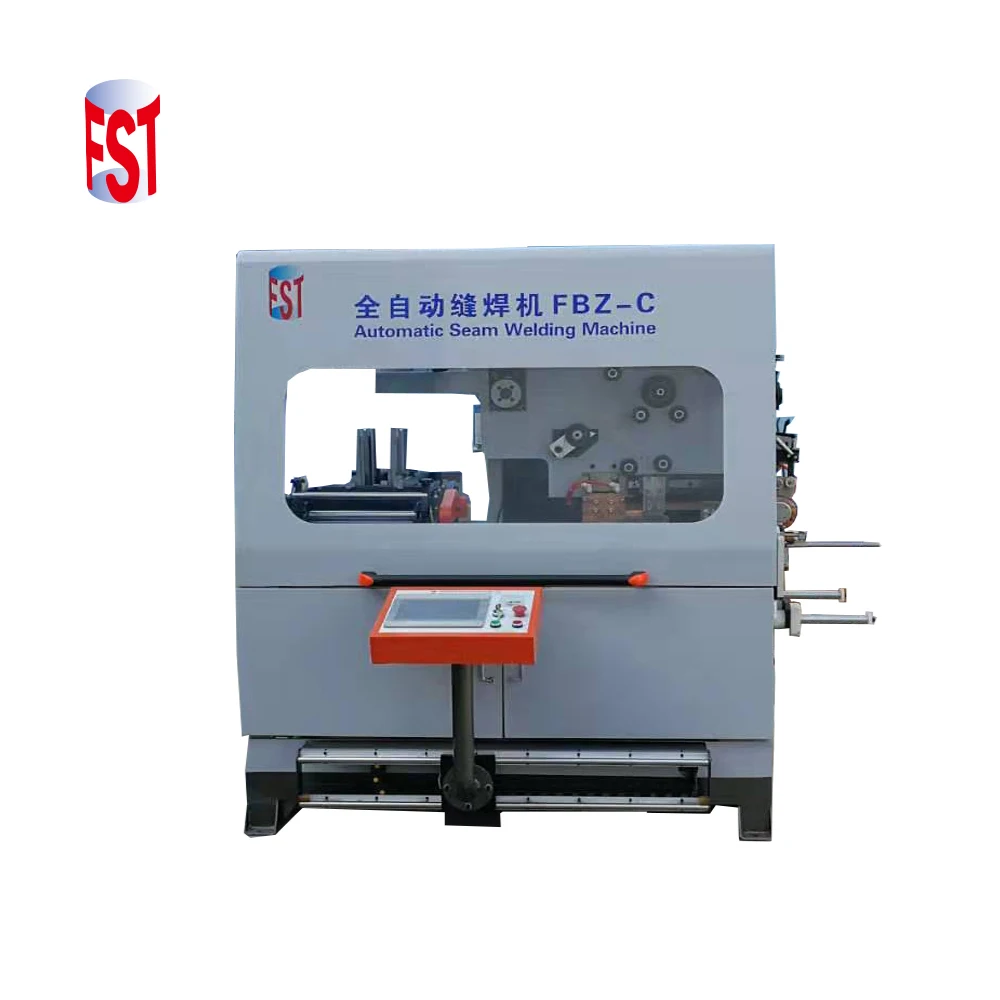

Automatic Canbody Welder
Automatic Canbody Welder is use to make body blanks into cylindrical shape and welding,it's the second stage in the production line.
Model
FBZ-C
Input Power
3N380V/50HZ  25KVA
Welding Speed
5~15m/min
Productivity
60cans/min
Diameter Range
Φ52~Φ170mm
Height Range
300mm
Welding Thickness
0.18~0.28mm
Overlap
0.4~0.6mm
Net Weight
2500kg
Dimension
2200x2700x2000mm

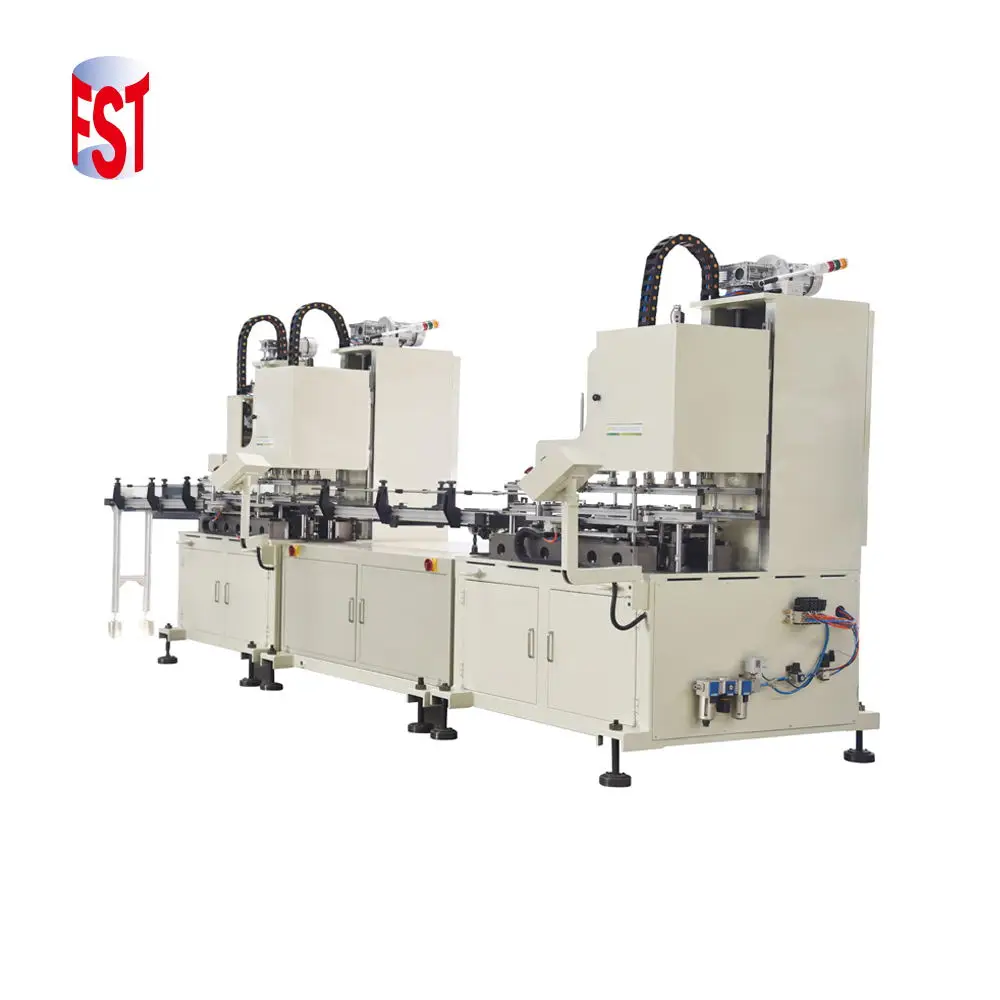

Automatic Bodyformers
Automatic Bodyformers is use to given the canbody into final shape and prepared for the endseaming process.it's combine all the necessary functionsin a single machine: flanging,and seaming the bottom or top end.
Model
FST-20
Diameter Range
Φ210~Φ290mm
Height Range
420mm
Capacity
20~30cans/min
Thickness
0.28~0.42mm
Air Pressure
0.3~0.5Mpa
Power
30kw
Net Weight
5200kg
Dimension
6500x1200x2300mm

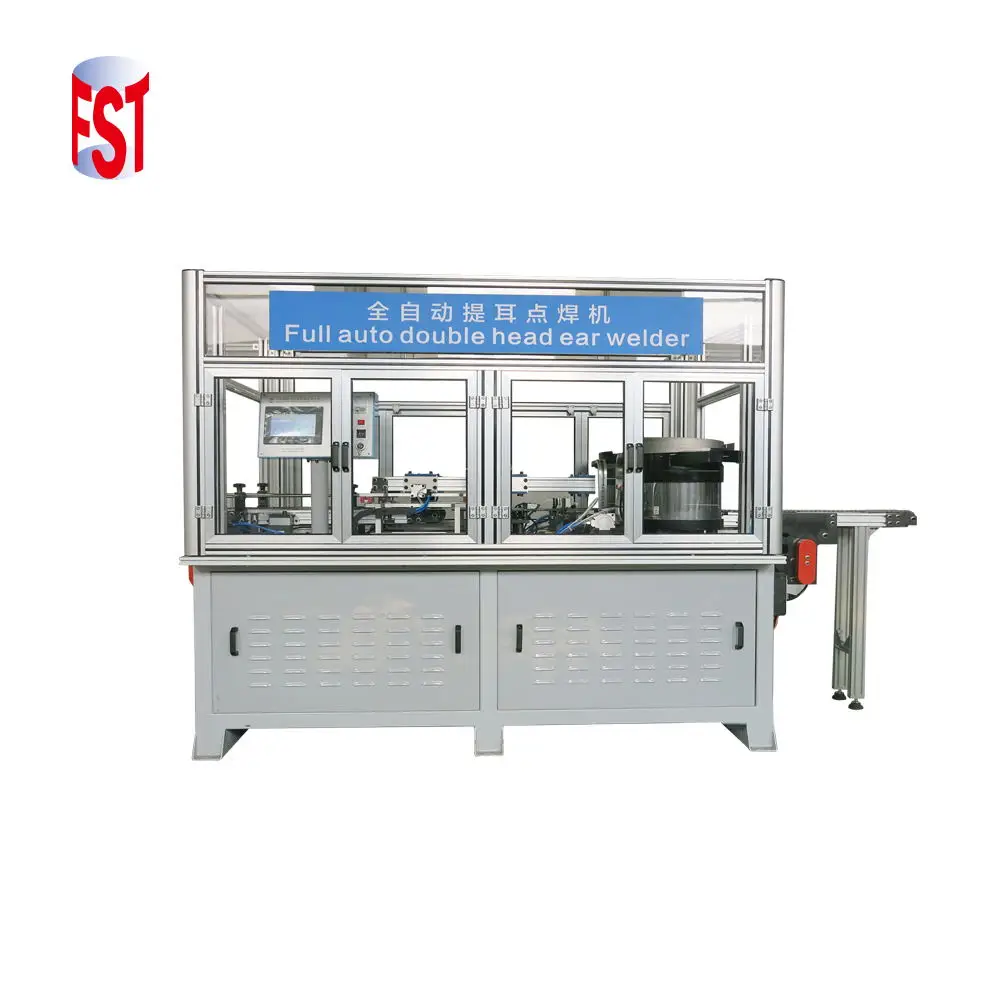

Automatic Earlug Welding
Automatic Ear Welding is use to welding the ear to the canbody.
Model
DNZD60B
Input Power
3N380V/50HZ 60KVA
Productivity
20~25cans/min
Diameter Range
Φ150~Φ180mm
Air Compressor
900L/min  0.6MPa
Net Weight
600kg
Dimension
3300x1500x1600mm
Our Advantages
♦ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF & SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.
Exhibition
2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou
Company Profile
Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making machine production line,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
