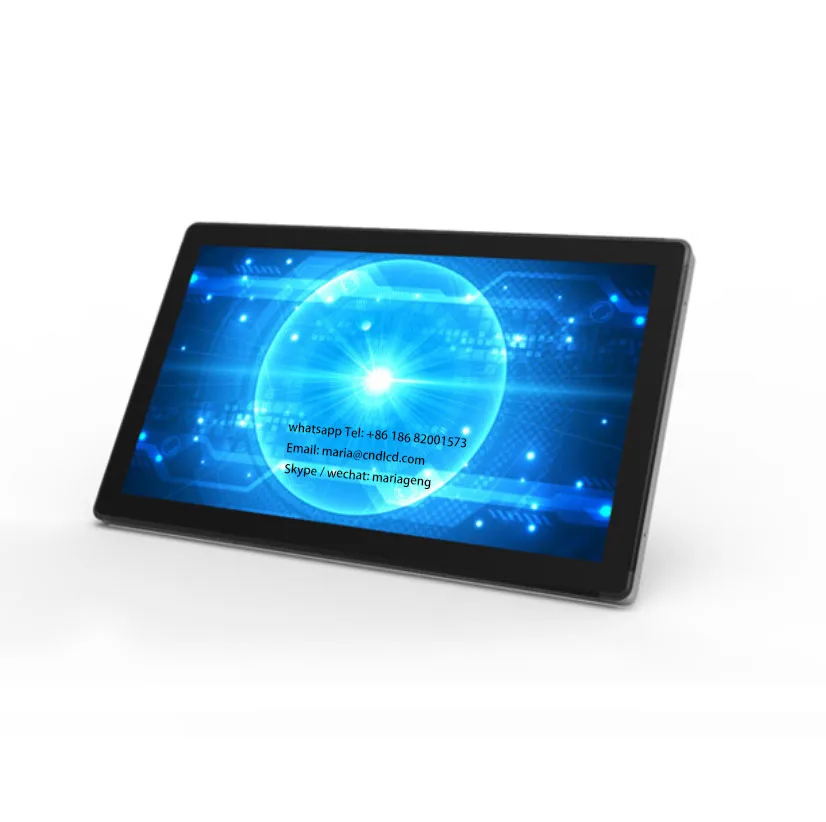

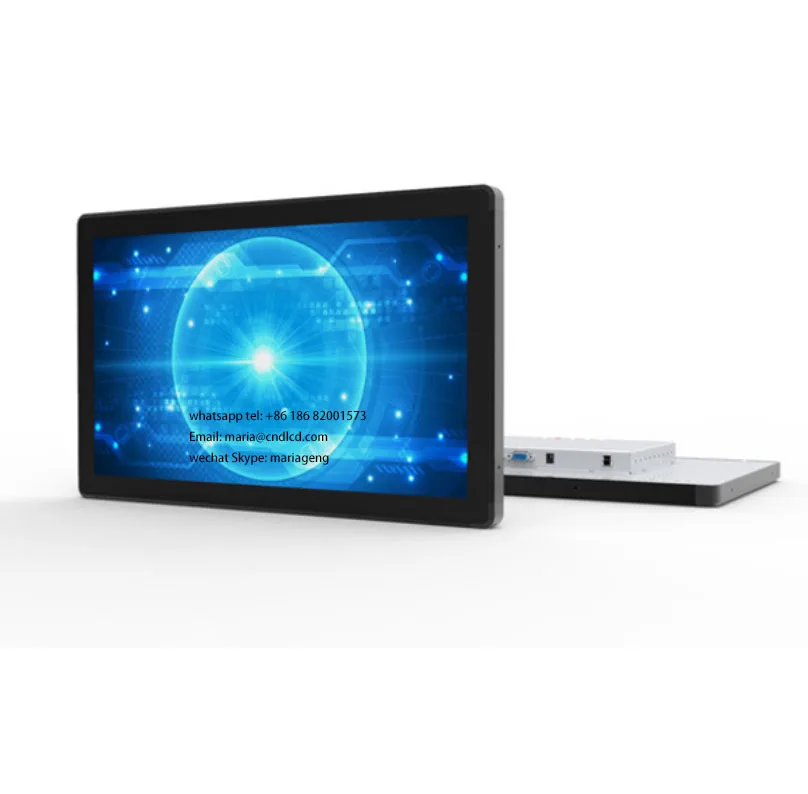

15.6 inch HMI KIOSK ATM VTM industrial financial Open frame PCAP capacitive USB touch screen Panel display monitor
- Category: >>>
- Supplier: CND Electronic Technology (shenzhen) Co. Ltd.
Share on (60827525852):
Product Overview
Description
Product Description

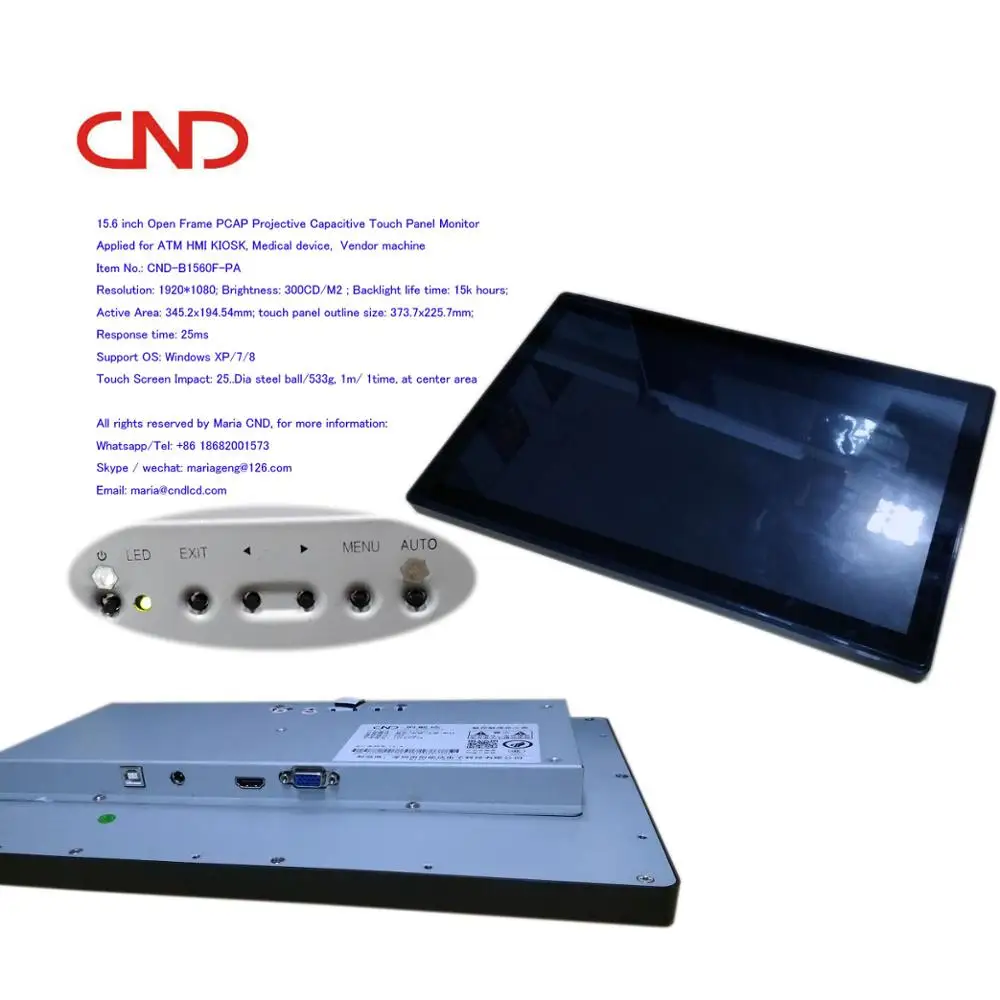

Product name: 15.6'' Industrial LCD True flat screen capacitive touch monitor with VGA DVI (HDMI option) Pen touch signature
Application: Bank ATM / VTM, Terminal Self-service Machine, Ticket Self-Vendor Machine, Display in Rail Transit, Industrial HMI, Game Machin, POS Machine, Retail ,

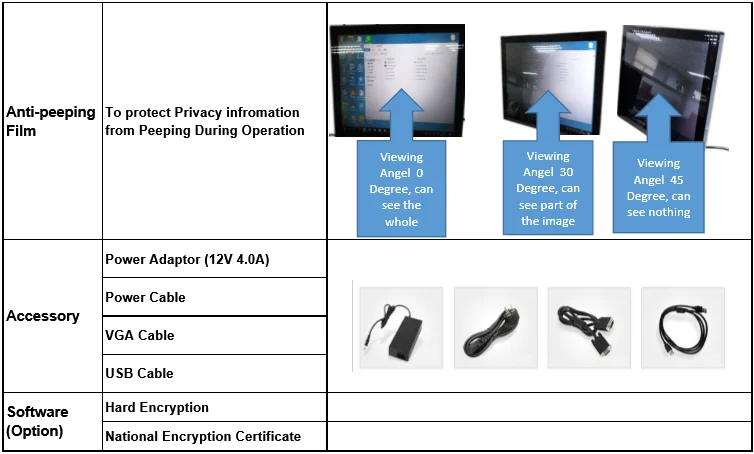

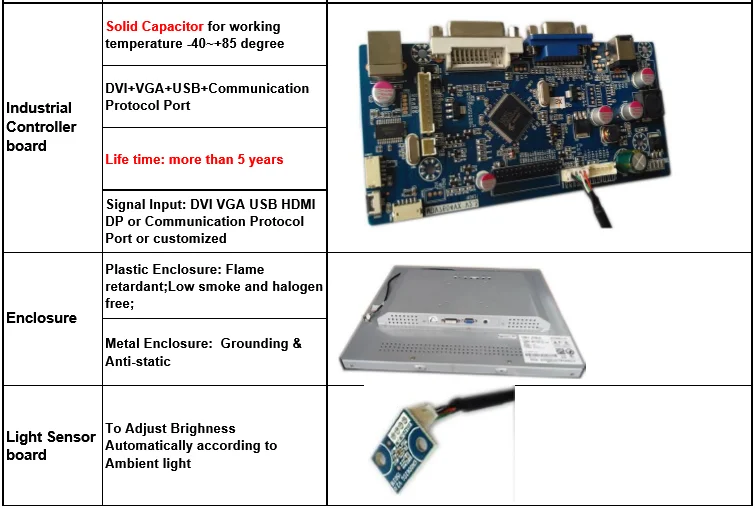

Function Options: Pen touch handwriting , Privacy protection Film, hard encryption, self-destruction, light sensor,
Certification: CCC, FCC,Rohs, CE, ISO9001-2015
Service: OEM / ODM, customization on resolution and size, and structure etc
Working temperature: -30°C~80°C
Resolution: 1920*1080, with options: 1400*900, 1280*1024
OSD: Brightness, contrast, Definition, auto, phase, horizontal/vertical position
Viewing Angle: 89/89/89/89 (typ.)
Brightness: standard 300cd/m2, (high brightness: 450cd/m2)
Kiosk ATM VTM HMI Open Frame Touch Screen Monitor Hardware & Software Specification
NO. | Item | Description | ||
1 | Input Signal | Field separation RGB Component Signal Digital Signal DVI(T.M.D.S) | ||
2 | Support Mode | DOS,VGA,SVGA,XGA,SXGA,WXGA+,UXGA,WUXGA | ||
3 | Color depth | 24bit | ||
4 | Output Signal | LVDS Standard | ||
5 | OSD Control | Power Exit Left Right Menu Auto(only for VGA) | ||
Plug & Play | VESA DDC 1/2B | |||
6 | OSD Language | English & Chinese | ||
7 | Power Consumption | Power Requirement | 12V | |
Stand-by | 1.0W | |||
Panel-drive Voltage | 3.3V,5V,12V | |||
8 | Panel back-light | LED | ||

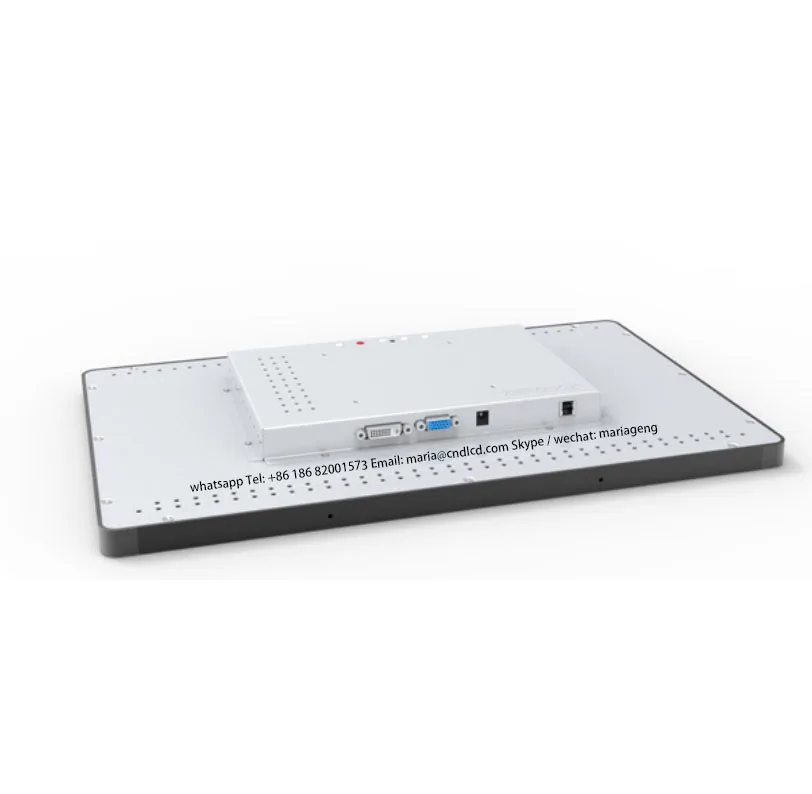

| Interface | Remark | Quantity | |
9 | USB2.0 | B Type | 1 | |
11 | AUDIO | Input 3.5 jack Output:2*2w (8 Ω) | Jack×1 | |
12 | DVI | TMDS Signal | 1 | |
13 | VGA | 1D-SUB 15PIN | 1 | |
14 | DC-IN | 2.1 jack | 1 | |
15 | LVDS | LVDS 30PIN | 1 | |
Our Services
One Year Quality Warranty;
Provide 1‰ free spares with all goods;
Hardware & Firmware customization
Firmware customization to meet any customer request;
Check the following link for more Android boards
A64 Android mother board cheap price cost efficient
RK3288 android mother board with 4G wirless LTE module
Android board with POE SKD kit

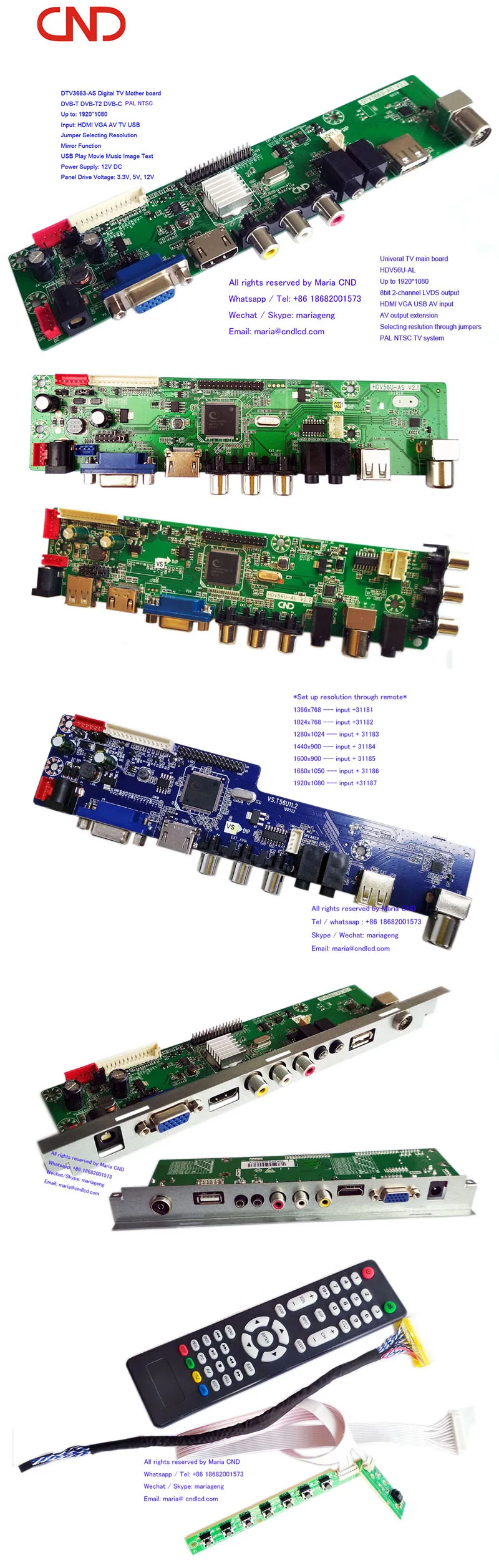

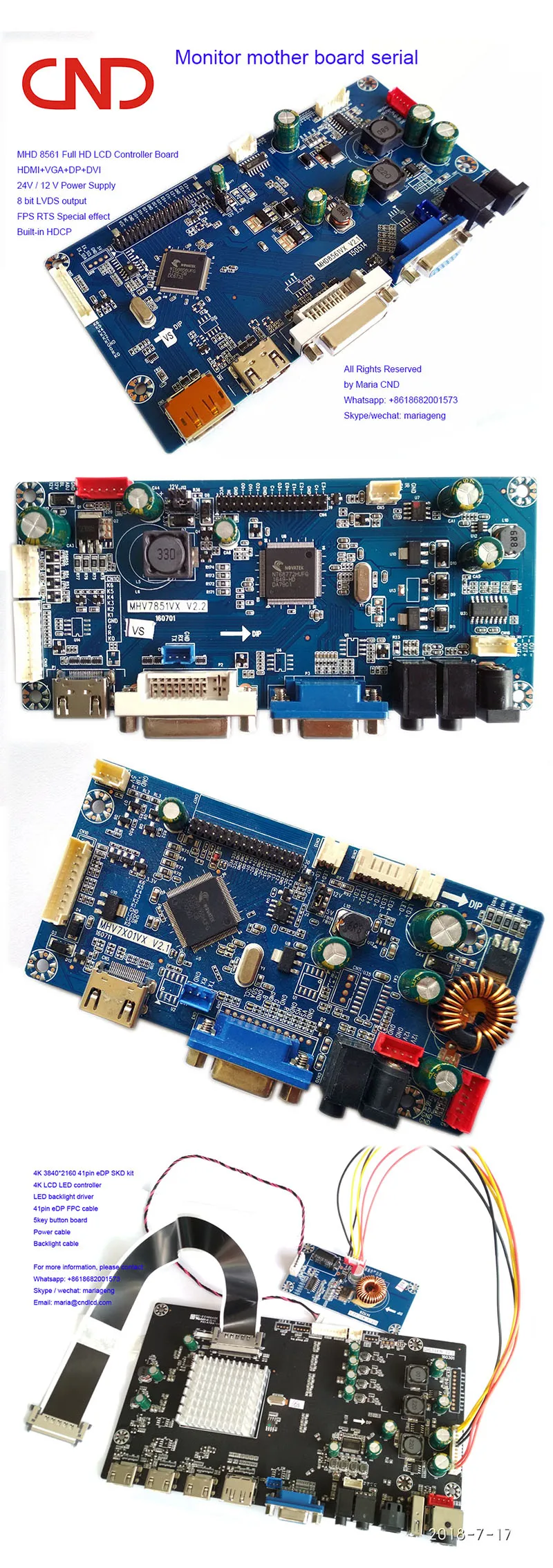

TV mother board
DTV3663 TNT Digital TV DVB-C DVB-T DVB-T2 TV mother board
V59 V56 DS-V56 DS-V59 TL-V59 Universal TV mother board

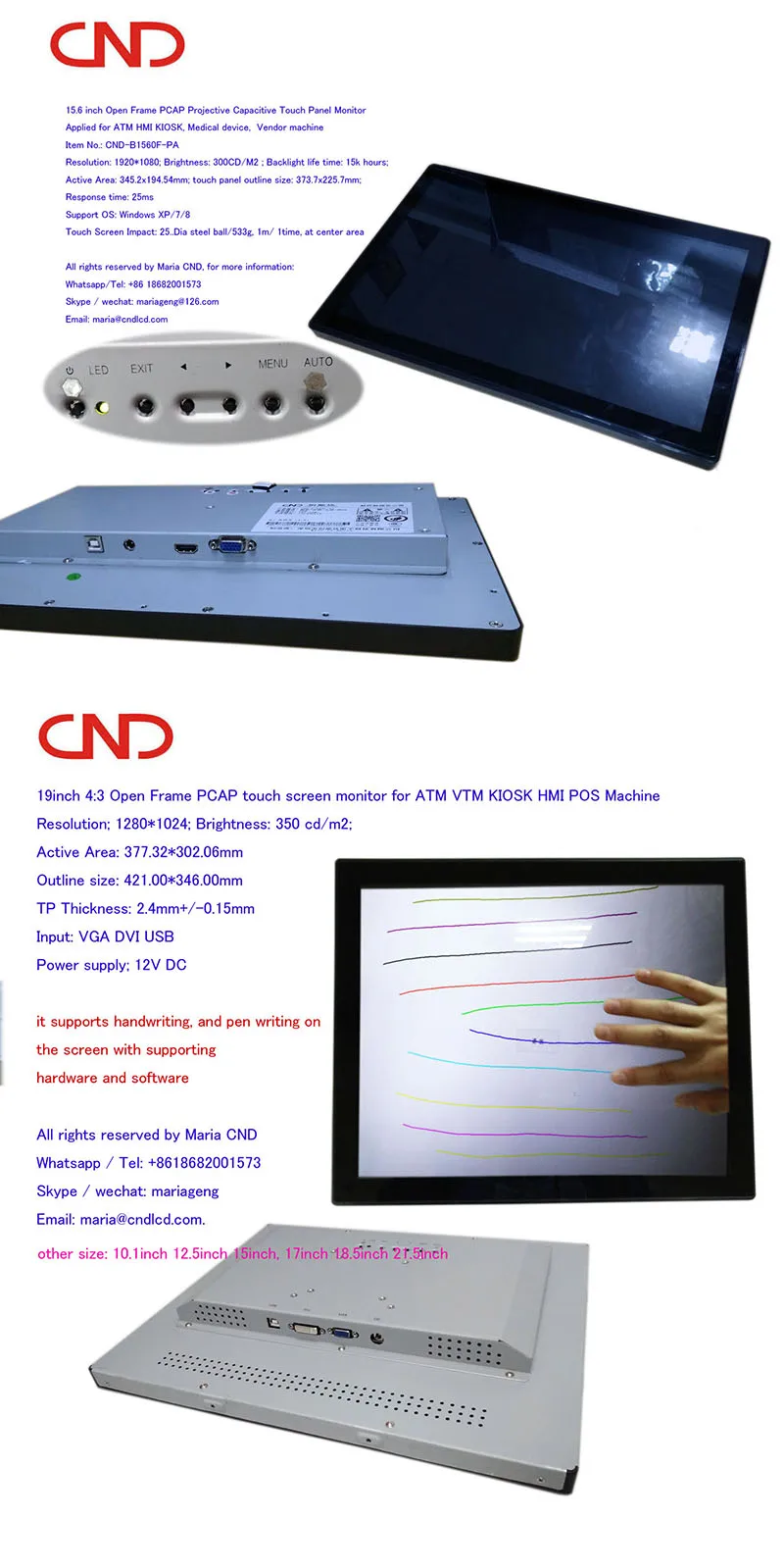

Open Frame Touch screen display
Open frame touch screen digital signage display with android OS RK3288
Open Frame touch screen monitor for HMI KIOSK self-terminal service Financial machine
Company Information
FAQ
Q: Who we are? what's our Brand?
A: We are CND Electronic Technology (ShenZhen) Co., Ltd.
Q: Where are you located? How can I get there?
A: Our office is in Shekou Nanshan Shen Zhen, very close to ShenZhen Bay Port. it takes just 0.5h from HK to ShenZhen Bay.
Q: What's delivery time? what's the shipping methord?
A: 3 days for some items in stock; and 15 days if out of stock, shipment via sea or air as customer requested.
Q: What's our core product and services?

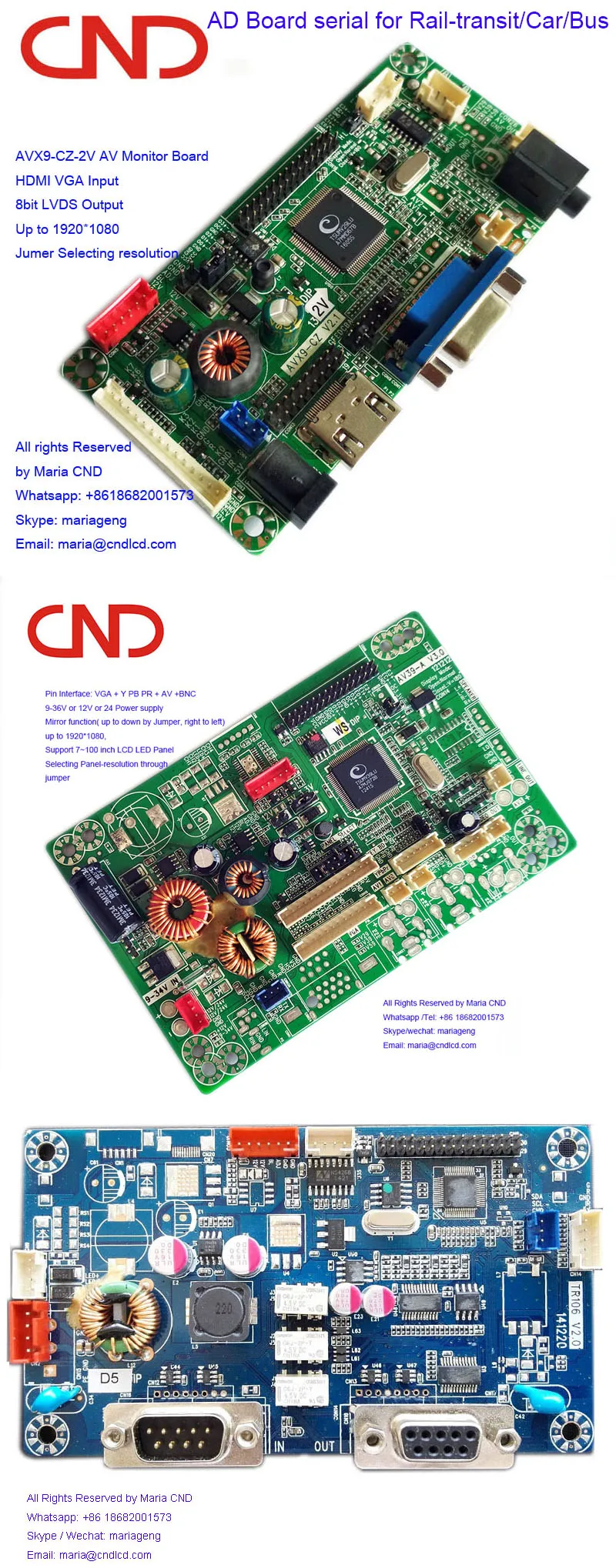

A: Open Frame Touch Monitor, TV Mother boards, HD / Full HD / QHD /UHD AD board, Android board, Smart LCM
Q: What are our product applied in, and who is our Customer?
A: by far, our AD board solutions have applied in:
- Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc
- Mobile-TV of High-speed Railway Train for CRRC, and for subway train;
- Monitors of industrial control, for instance Security-montoring
- Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.
Q: What are our capability and advantages?
A: We've been proud that
- CND is the only AD board solution company whose 2K board have been sold more than 100K.
- CND is the first company developed UHD 4K board solutions.
- CND is the first one who have passed Freesync Cetification.
- CND is the first one developed Type-C 4K *2K board.
- Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...
- Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
CND is the best choice for LCD / LED main board solutions, and Open frame Touch Monitor Solutions, Android board Solutions, with over 12 years professional experiences both in hardware and software design, we provide one-stand services for both hardware and software. and CND has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
