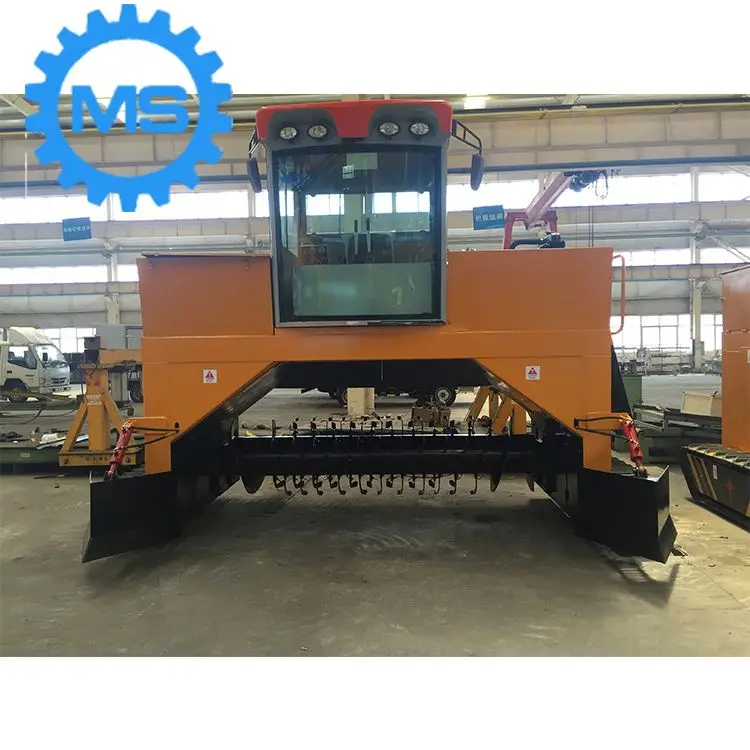

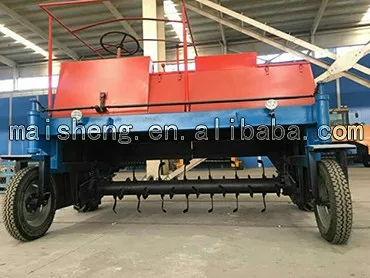

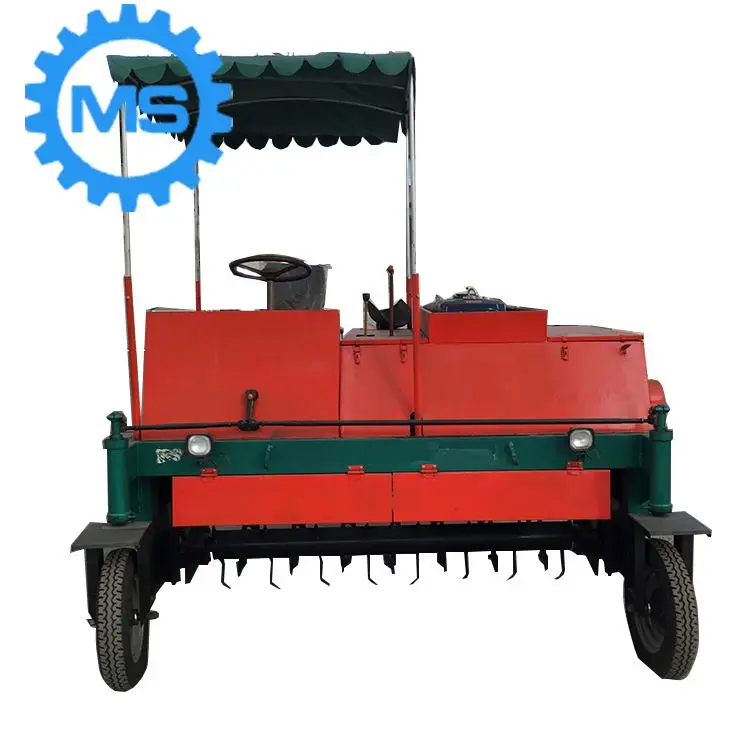

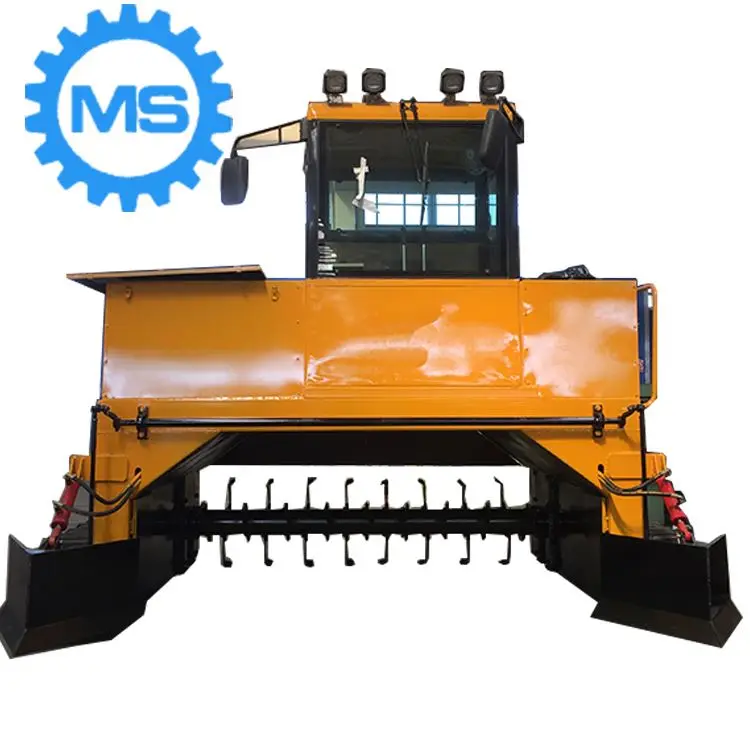

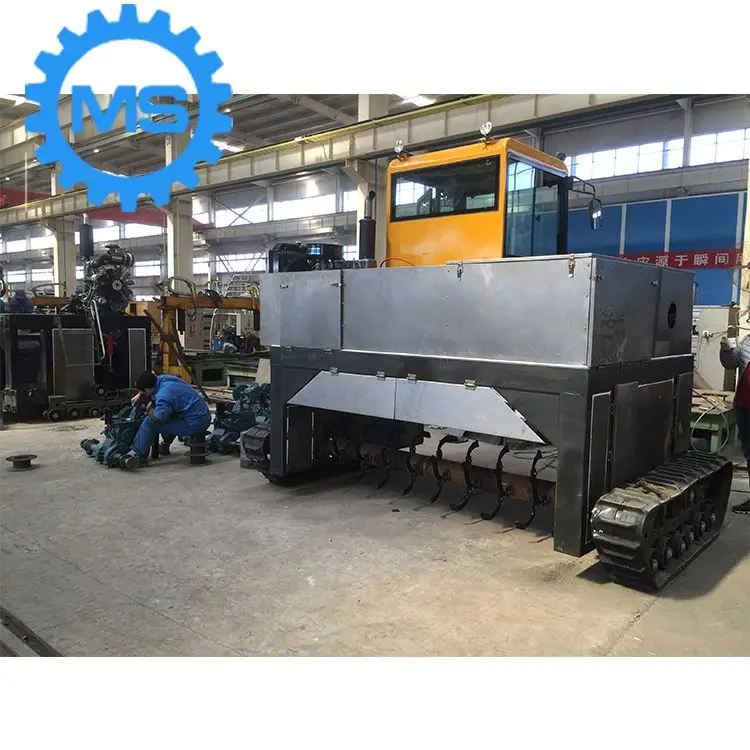

CE Approved EU Standard Organic Waste Compost Fertilizer Machine/ Compost Windrow Turner

Organic Waste Composting Machine is the main machine in the organic fertilizer production. It adopts four-wheel drive design which only needs one person to drive and the operation is very easy. When the machine starts to work, it straddles the strip-type compost heap and the rotary cutter shafts under the rack stir and mix the material. The operation can be completed not only in the open area but also in the workshop and greenhouse. One of the machine's technical breakthroughs is to integrate the crushing function at the later stage of the material fermentation. With the continuous dehydration of the material, the cutter shafts can effectively crush the caking formed during the fertilizer fermentation. Thus the production does not need to equip an additional crusher, the crushing efficiency is greatly improved and the cost is largely reduced.

SPECIFICATIONS FOR Self Propelled Compost Machine
ZK-2000	Compost Width: 2000mm	Height: 600-800mm	Spacing: 0.5-0.8m
	Max Materials Size: 250mm	Power: 30hp	Rotary Speed: 2200 r/min
	Capacity: 300-500 m3/h	Running Speed: 50m/min  Forward 3 gear, back 1 gear
ZK-2300	Compost Width: 2300mm	Height: 800-1000mm	Spacing: 0.8-1m
	Max Materials Size: 250mm	Power: 51/62hp	Rotary Speed: 2200 r/min
	Capacity: 500-700 m3/h	Running Speed: 50m/min Forward 3 gear, back 1 gear
ZK-2600	Compost Width: 2600mm	Height: 1000-1300mm	Spacing: 0.8-1m
	Max Materials Size: 250mm	Power: 116hp	Rotary Speed: 2200 r/min
	Capacity: 800-1000 m3/h	Running Speed: 50m/min Forward 3 gear, back 1 gear

Main Features

1.Advanced drum design ensures variable drum speed and maximum aeration, CO2 release.



2.Reasonable knife structure makes average blending,crushing effect and is simple to maintain.



3.Professional manufacturing craftsmanship,standard spare parts-convenient to fix or change.



4.Adjustable turning capacity 400-1000m³/h.



5.Small space occupation, flexible button to raise or lower down turner drums.

Certifications

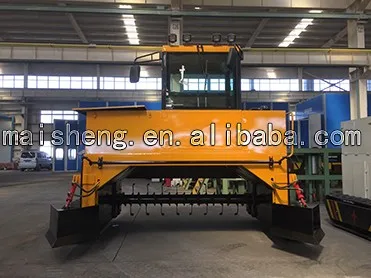

Detailed Images

Machine Parts

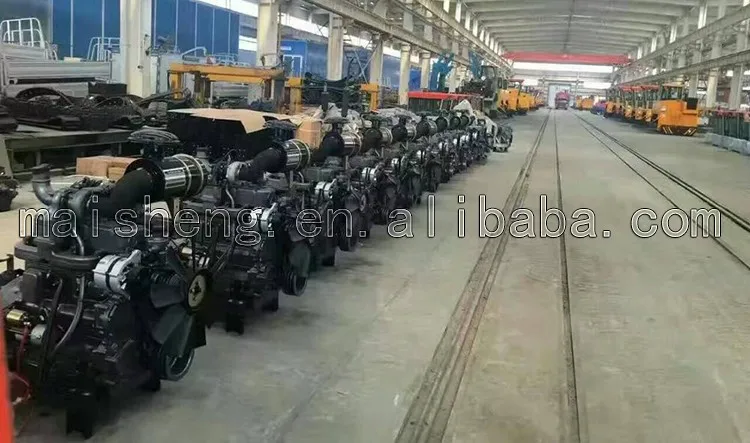

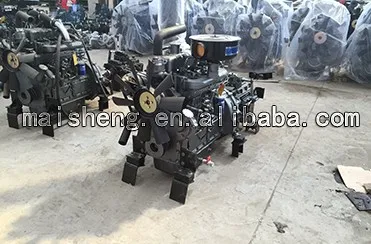

Name: Diesel Engine

Brand: HuaiChai

Original: Chinese

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits

Main Features

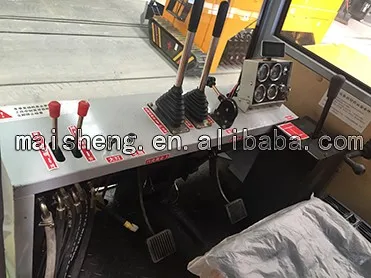

Name: Driving Cabine

convinent advance and back control system, easy operation and air conditioner added

Machine Parts

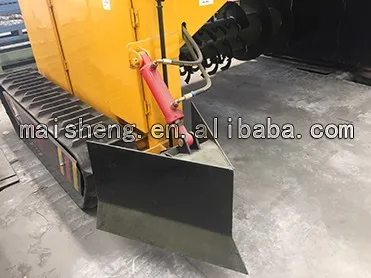

Name: Hydraulic auxiliary

easy height adjustment, better working on the raw materials and fully break the massive

Main Features

Name: Belts

Better belts and long using time

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

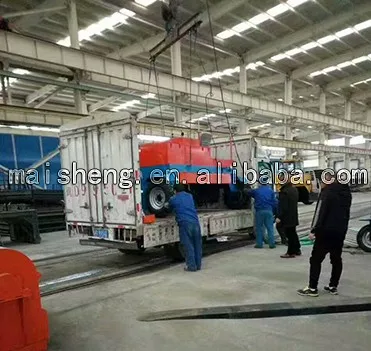

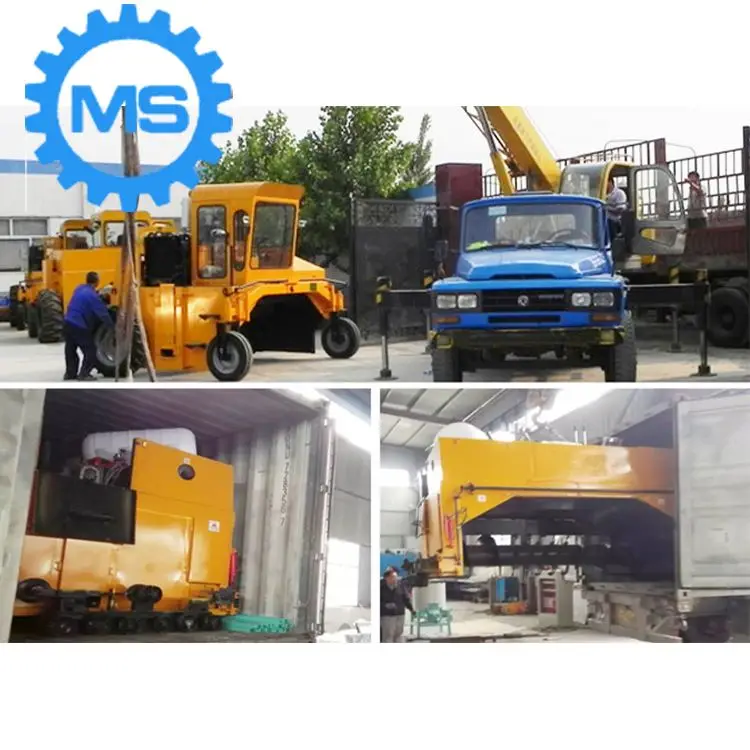

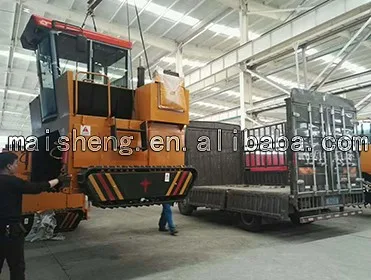

Packing & Delivery

Packaging
Size	310 (L) * 210 (W) * 160 (D)
Weight	1. 2T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	400 (L) * 300 (W) * 260 (D)
Weight	2.3T
Packaging Details	The normal package is free packing, will directly into the 40ft container
