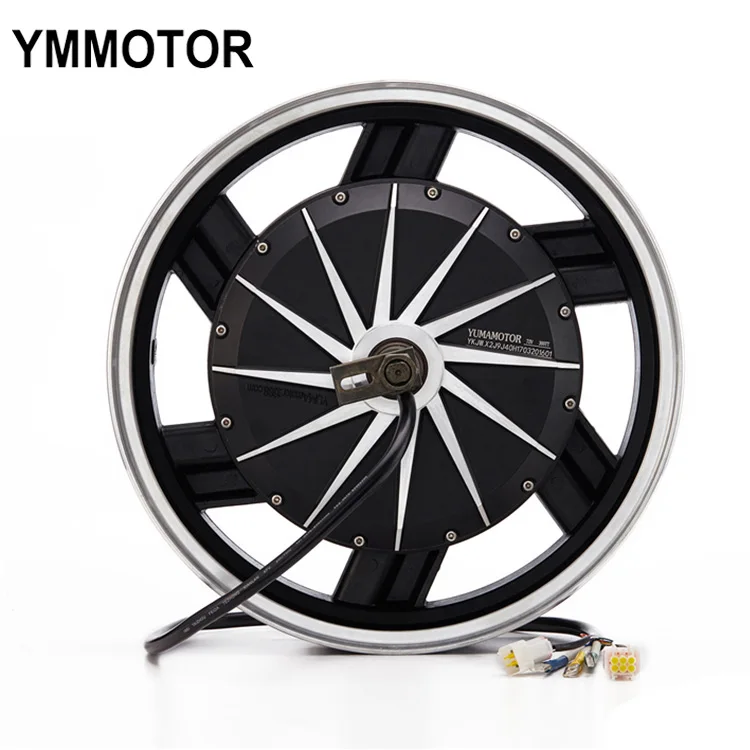

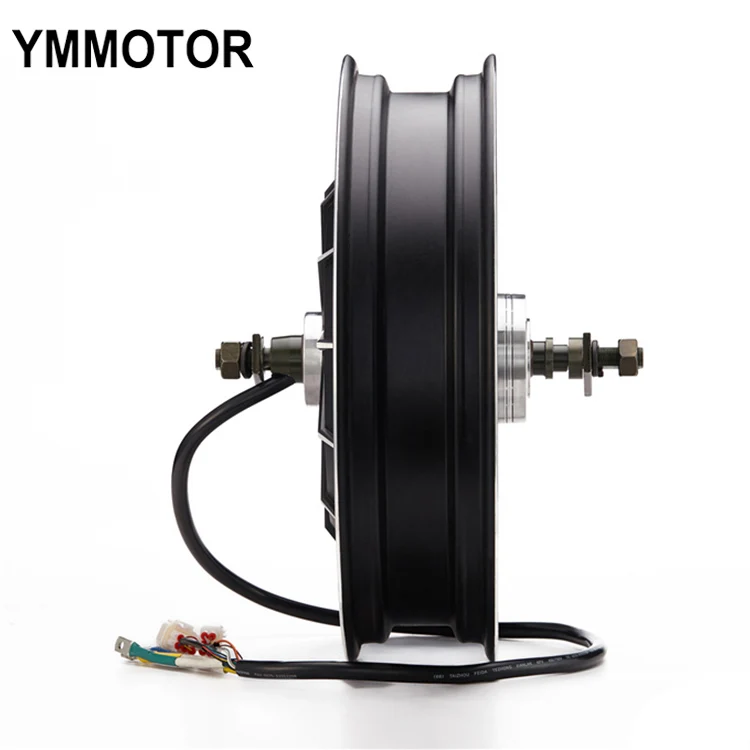

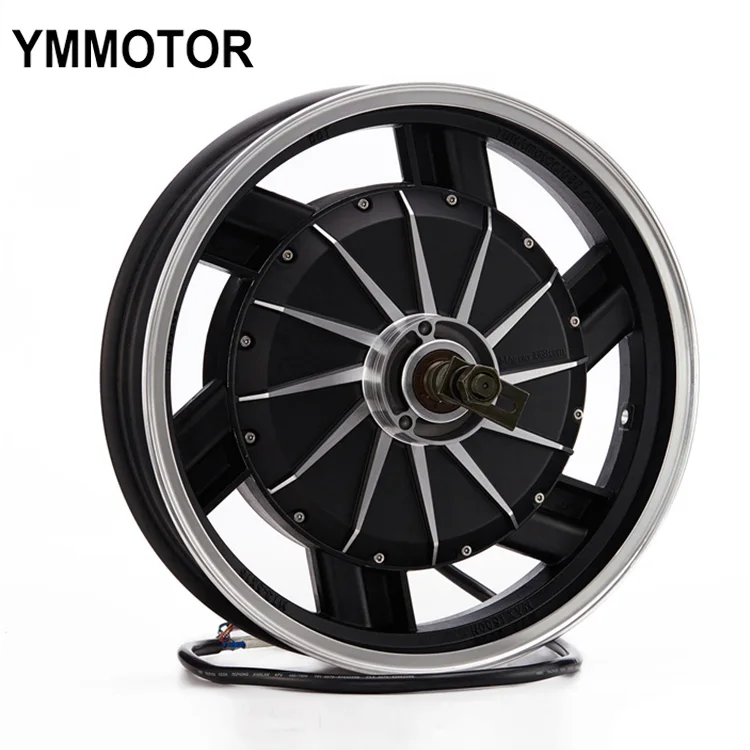

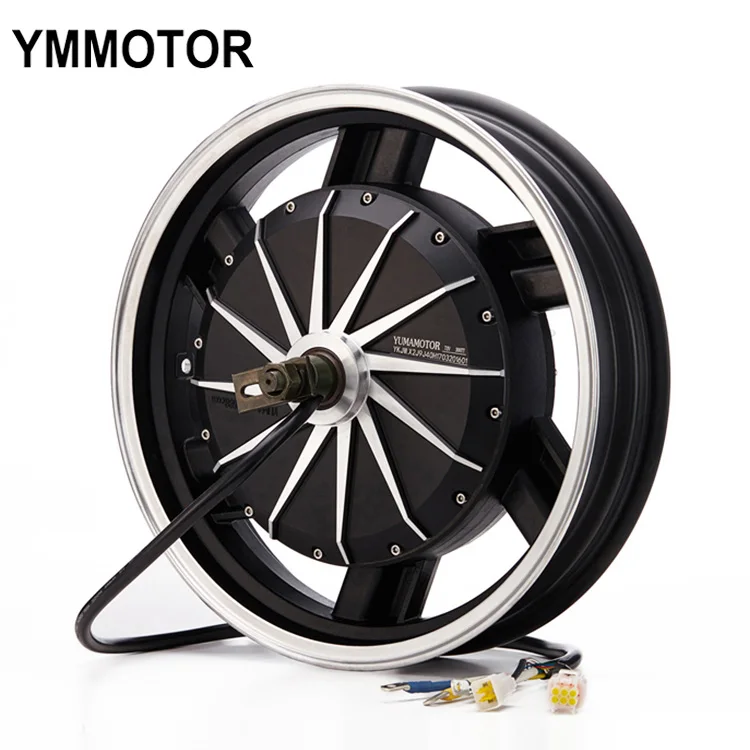

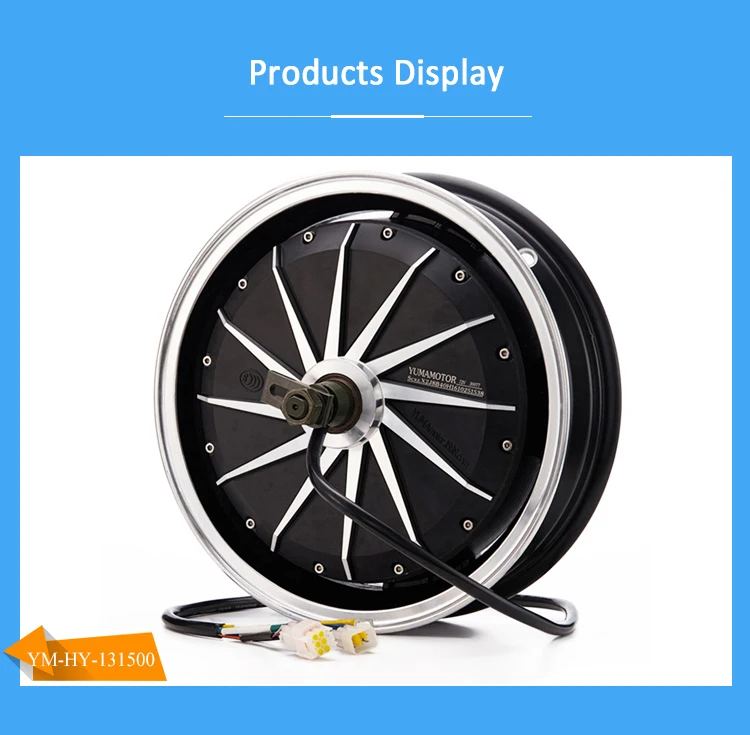

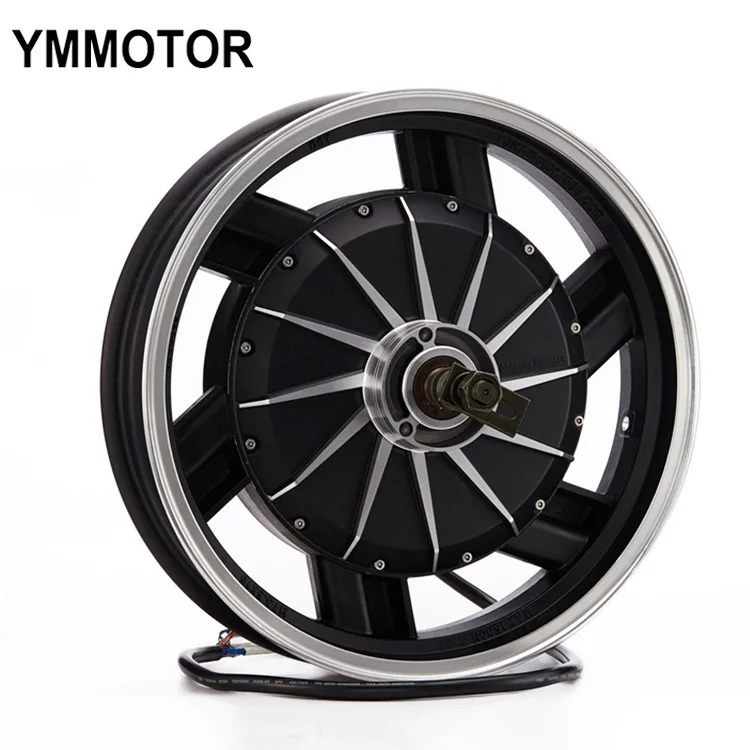

Powerful Brushless Motorcycle Starter Motor 16 Inch 5000W 72V Electric Motor DC Brushless Three Phase Electric Bicycle 1 Pcs 93%

Product Overview

Description

Yuma Motor could work 120 ℃ in half an hour without damage.

Suggestion (Setting of Controller)

When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.

When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.



More Yuma Motor Informaiton:

Optional Appearance

Motor Details, drawing, performance curve (refer to attachment in PDF).

For more information, please feel free to contact with us.





Yuma Motor Specification:



Motor Type	Brushless Direct Current Motor(BLDC Motor)
Axle Configuration	Double
Wheel Rim	16 inch
Rated Speed	110km/h
Voltage	72V
Magnet Height	50mm
RPM	1350
Brake System	Disc Brake
Hall Sensors	2
Hall Sensor Phasing	120°
Number of motor phases	3
Max Efficiency	93%
Rated Out Power	6000w
Number of Pole Pairs	28
Cross Section of Phase Wire	16 square
Waterproof Grade	IP54
Color	Black/white etc.
Package	Carton
