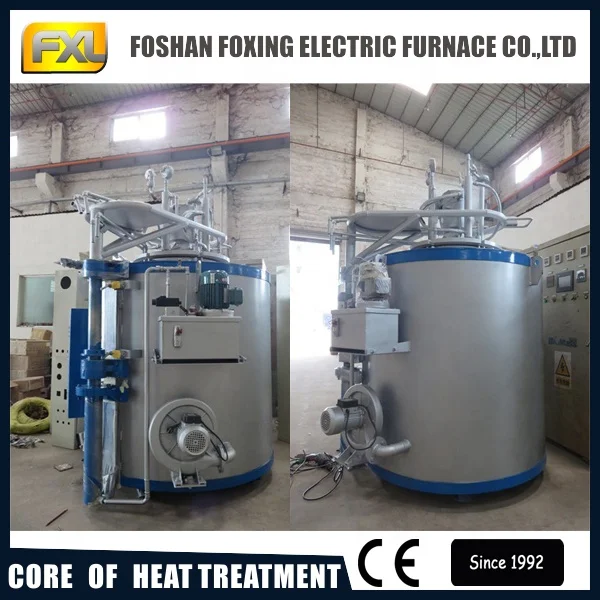

Industrial Electric Pit Type Gas Nitriding Furnace,
- Category: >>>
- Supplier: Foshan Foxing Electric Furnace Co. Ltd.
Share on (60827608704):
Product Overview
Description
Product Description
Product Application
Pit type furnace is cycle type furnace, apply to the pole, long axial parts heat treatment. The Wells of the furnace body is cylindrical, by special crane installed vertically within the charging heating workpiece. Pit type furnace is usually placed below the ground plane in the shop, also have placed above the ground plane, or each half of the under ground plane.
Feature:
1.Electric furnace has large fan device, furnace temperature uniformity.
2. Electric furnace more area and control, further improve the uniformity of furnace temperature.
3. The zone in the hearth stainless steel inlet bucket.
4. Furnace cover open-close used crane lifting or automatic hydraulic opening and closing mechanism, and with a guide column, ensure furnace cover opening and closing smoothly;
5. Furnace cover with furnace adopts high temperature resistant fiber cotton production, furnace heat preservation performance is good, save energy and reduce the production cost.
6. No pollution, good environmental benefits.
model | rated power (kw) | rated temperature(℃) | rated voltage(v) | phase | muffle size(mm) | effective working height(mm) |
FXL-30-6 | 30 | 650 | 380 | 3 | Φ450*1240 | 700 |
FXL-45-6 | 45 | 650 | 380 | 3 | Φ650*1540 | 1000 |
FXL-60-6 | 60 | 650 | 380 | 3 | Φ800*1540 | 1000 |
FXL-75-6 | 75 | 650 | 380 | 3 | Φ1000*1540 | 1000 |
FXL-90-6 | 90 | 650 | 380 | 3 | Φ1200*1740 | 1200 |
Our Service
FAQ
1.How many years Have your company in the heat treatment furnace manufacturing.
Our factory was build in 1991. Have 30 years in manufacturing of heat treatment furnace. We have a great technical team with rich experience.
2.Your machines have exported to which country?
Our furnaces have been exported to more than 60 countries. Such like Turkey, Spain, France,Malaysia,India,Pakistan,Bangladesh,Uzbekistan,Mexico,Ghana,Saudi Arabia......
Wish you will join us too!
3.If we buy the machine from you, will you offer the operate training?
Yes, If the customers need, we will send engineers for furnace installation and testing,And also will offer the professional operate training for the working. we will offer the details operate manual and the drawings for learning first. So please don't worried about the using of the furnace.
4.If we don't know the heat treatment process, Can you help us?
Yes, of course. We are member of the Guangdong heat treatment association, we always have meeting to discuss the newest technical of the heat treatment process. And our engineers is have rich experience. So we will offer the best suggestion of the heat treatment technical.
5.What is the quality warranty period of your furnace?
After completion of equipment installation and testing, within a year, if there is any quality problems in equipment, we will provide free spare parts to you.
