20181210 Electric large size heat treatment Bogie Hearth Car Bottom Furnaces
Product Show
Product Description
Main technical parameter
Item
Data
Rated voltage
380V
Design temperature
1000℃, 1200℃, 1400℃, 1600℃, 1700℃, 1800℃
Heating rate
≤0.1-30℃/min(can be adjusted arbitrarily)
Heating element
High quality U type silicon stick / High quality U type molybdenum bar
Control accuracy
± 1℃
Temperature control
Microcomputer control, PID adjustment, intelligent microcomputer control, 50 stage programmable temperature control curve, no need to watch(automatic heating, heat preservation, open the door to cut power)
Side-opening and the furnace door can be rotated 360 degrees
Heat dissipation mode
A double layer resistance tropical air cooling system
Surface temperature
≤42℃
Spare parts
2 heating rods, 2 rods, 1 crucible tongs, 1 pair of fire gloves, 1 copy of the instruction and 1 copy of certificate of conformity
Application
The equipment is widely used in universities, research institutes, industrial and mining enterprises such as powder, military, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractories, building materials, chemicals, metal sintering and metal heat treatment Other experiments and production.
Technical characteristics
1.Auto-Control PID adjustment 3 temperature zone electric trolley type annealing furnace has advanced technology, independent research and development of energy-saving, environmentally friendly new electric furnace, the device has the design technology, elegant appearance, advanced structure and reasonable, easy to operate, the shell is made of high quality cold-rolled steel, precision CNC machining, luxury, Beautiful two-color imported epoxy powder electrostatic spray process from processing, high temperature, corrosion-resistant, long-term fade.
2.High temperature furnace The furnace has a uniform temperature field, double the surface temperature of the furnace body close to room temperature, rise, Paul, cooling rate can be adjusted, etc. Furnace imported high temperature composite fiber material built by CNC technology, thermal shock resistance , Strong resistance to cold and heat, good corrosion resistance, no collapse, no crystallization, no residue, no pollution, long service life.

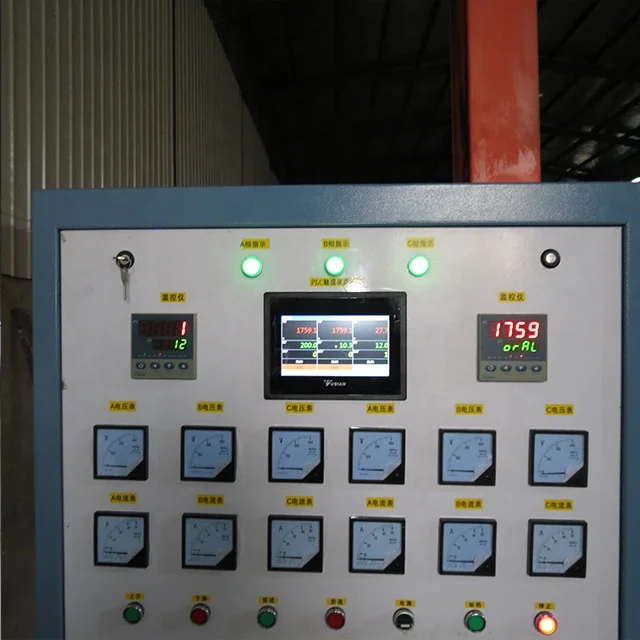

3.The control system uses microcomputer intelligent adjustment technology, with PID regulation, automatic control, self-tuning function, 50 sections of programming, and can be programmed a variety of heating, thermostat, cooling program, temperature control accuracy, high energy saving, high stability.
4.Protection device using independent protection: (over-temperature, over-voltage, super-current, broken even, power, leakage, short circuit, etc.).

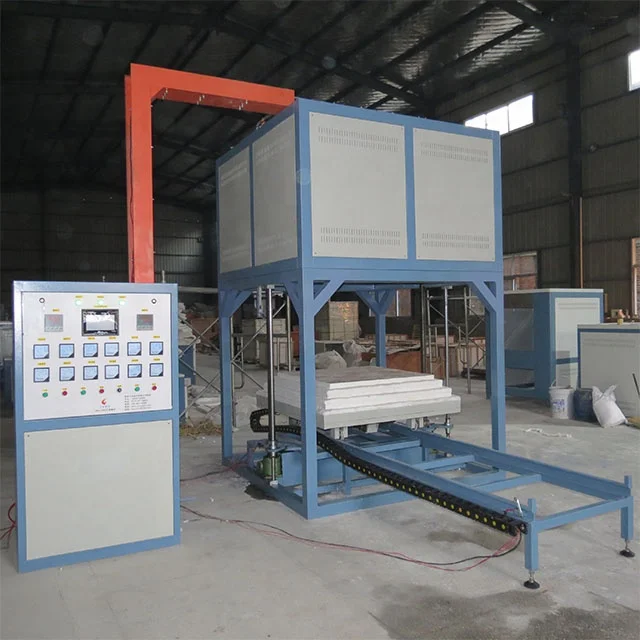

5.Furnace table roller electric furnace can be pulled out of the body, convenient and pick and place materials to improve work efficiency.
6.In addition, through our independent research and development of control software, electric furnace and computer associated single or multiple furnace can be achieved remote control, start the electric furnace, stop the electric furnace, set the temperature program, temperature program storage, view the history curve, print Historical curve and so on.
Our products mainly include high temperature muffle furnace, frit furnace, vacuum atmosphere furnace, tube furnace, box furnace and vertical furnace, etc. These products are widely used in universities, research institutes, industrial and mining enterprises forexperiment and production of powder, military, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractory materials, building materials, chemicals,metal sintering and metal heat treatment.
We continually develop the new products, and have developed a series of energy-saving JNL furnace, furnace products with more excellent conditions of fast heating, high energy, high precision, high stability, good thermal insulation performance, full microcomputer control, programmable automatic warming, cooling, heat preservation, furnace surface temperature near room temperature etc.
In recent years, Liyu has passed ISO 9001:2008 quality management system certification in 2015, and in product safety, we passed the CE certification.
Sincerely welcome new and old customers to visit and negotiate.
Our Services
Packaging & Shipping
FAQ
Q: Can I use our country's plug?
A: Yes, we can provide following standard plugs in different countries.
Q: Usually I only need 900℃ to conduct my experiment, can I have a furnace with max temperature of 1000℃?
A: Yes, we can custom-made the furnace according to your need.
Q: How about the temperature/time control?
A: the furnace's temperature and time is controlled by PID touch panel,it is a programmable control type.Easy to operate.
Q: How about the delivery period?
A: The delivery period is depends on the order quantity, in ordinary we have 1~3 sets in stock.It can be delivery within 10 working days.
