Product Overview
Description
Product Intriduction
CO-NELE portable concrete plant(mobile concrete plant) is an innovation movable (by trailer) concrete mixing plant designed to fulfill a variety of applications. It is mobile so it's an ideal model for distance construction projects like roads, bridges, ports and any other small-scale projects.
The mobile concrete plant is very suitable for short term or medium term projects to produce plastic concrete, dry hard concrete, etc.

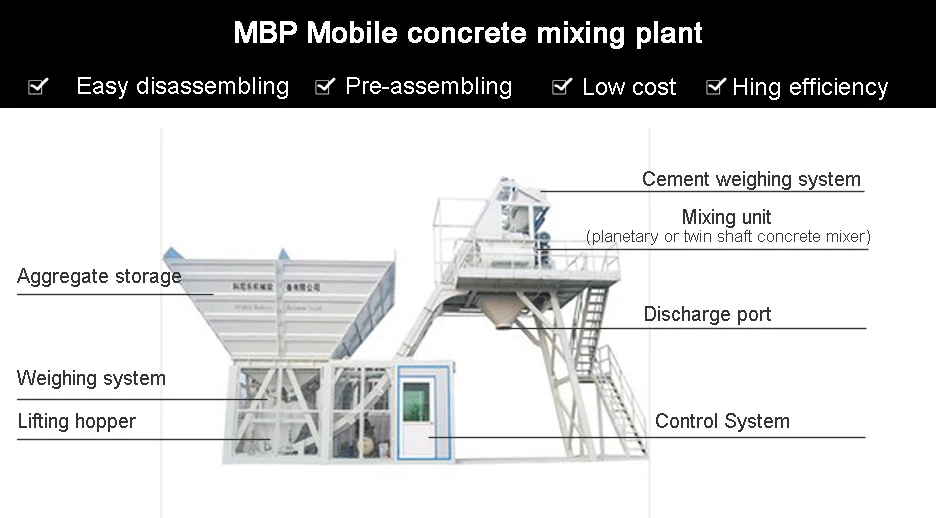

MBP series mobile concrete plant consist of the following conmponents: mixing platform,twin shaft concrete mixer/planetary concrete mixer,aggregate storage hoppers,aggregate weighing system,aggregate weighing system,aggregate skip hoist,water weighing system,cement weighing system,control cabin and so on.
MBP series mobile concrete plants are applicable to all type of ready-mix concrete and concrete precast production.
Apply to the mixers
MBP series batching plants apply to the following mixers: twin-shaft mixer JS1500/1000, JS2250/1500, JS3000/2000, or planetary mixer MP1500/1000, MP2250/1500.

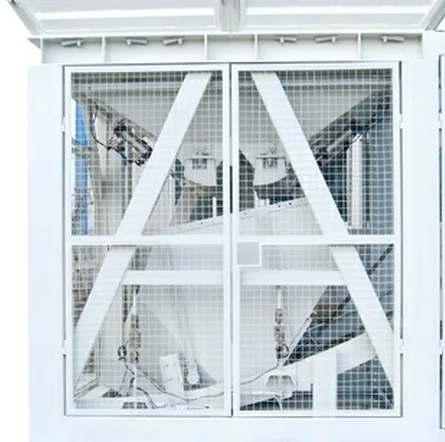

Weighing system
The weighing of water, aggregates and cement takes place separately, simultaneously and with autonomous and independent phases through load cells applied to supports that ensure the biggest
Additives can be loaded together with water.
Aggregates storage
The aggregate storage capacity is from 50 m3 to 100m3
The mixing group
The mixing group is the heart of the MBP batching plant : the MP planetary mixer and the JS twin-shaft mixer can mix various types of top quality concretes with continuous process control.
Pre- wiring
The MBP series batching plant is completely pre-wired in order to meeting the requirements of speed, versatility and compactness. This operating solution sensibly reduces the plant installation and commissioning times.

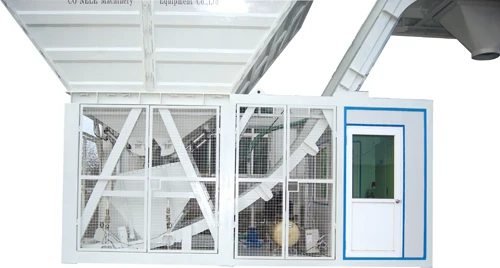

control cabin
The control cabins is connected with the main frame work together. Control panel is installed in the cabin. All the equipment is trial run before delivered. It needn’t disconnect and connect the cables

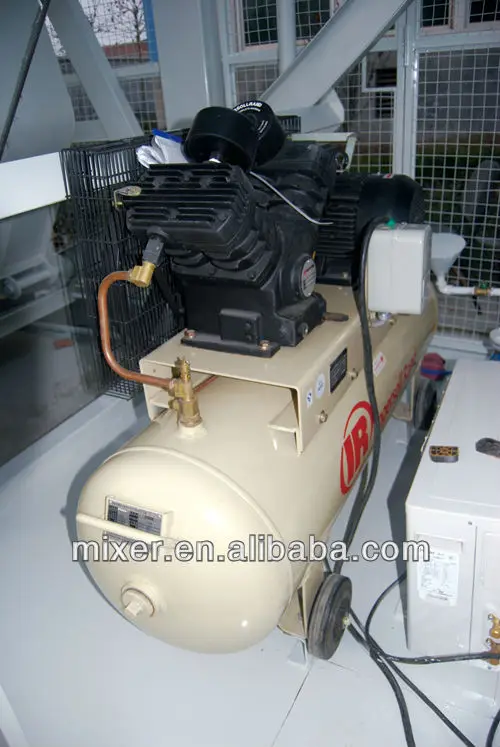

The compressor is connected with the main framework together also. It needn’t disconnect and connect when they are transported.
Feeder skip
The skip, fitted with a gravity discharge gate, rests on a rail along which a weighing system is installed. Through this device, the aggregates are weighed and transported into the mixer.

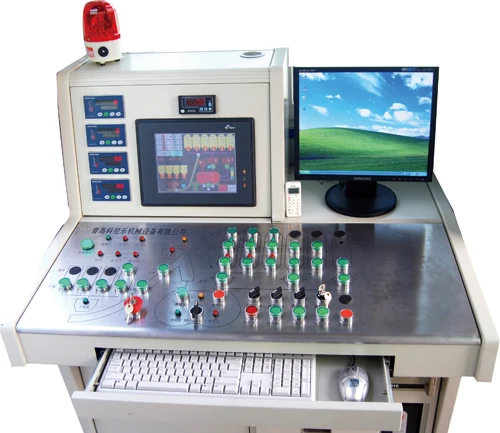

Control system
Co-nele control system is the ideal means to automate the standard operation of the concrete batching plants. His architecture is flexible, versatile and structured mainly for the operating management of the process of ready-mix concrete.
Configuration
The hardware standard configuration includes high precision batching meters, management and monitoring system (PLC), an operator terminal with functional keyboard and LCD display, an application-oriented/operating software available in English and Chinese languages, on request, a printer.
Technical data of the mobile concrete batching plant
Item | Type | |||||
MBP08 | MBP10 | MBP15 | MBP20 | |||
Output(theoretical) | m3/h | 30 | 40 | 60 | 80 | |
Discharging Height | mm | 4000 | 4000 | 4000 | 4000 | |
Mixer Unit | Dry filling | L | 1125 | 1500 | 2250 | 3000 |
Output | L | 750 | 1000 | 1500 | 2000 | |
Mixing power | kw | 30 | 37 | 30*2 | 37*2 | |
weighing and feeder skip | Drive power | kw | 11 | 18.5 | 22 | 37 |
Medium speed | m/s | 0.5 | 0.5 | 0.5 | 0.5 | |
Capacity | L | 1125 | 1500 | 2250 | 3000 | |
Weighing precision | % | ±2 | ±2 | ±2 | ±2 | |
Cement weighing system | Capacity | L | 325 | 425 | 625 | 850 |
Weighing precision | % | ±1 | ±1 | ±1 | ±1 | |
Liquid weighing systemS | Capacity | L | 165 | 220 | 330 | 440 |
Water weighing precision | % | ±1 | ±1 | ±1 | ±1 | |
Admixture weighing precision | % | ±2 | ±2 | ±2 | ±2 | |
Cement screw conveyor | External | mm | Φ168 | Φ219 | Φ219 | Φ273 |
Speed | t/h | 20 | 35 | 35 | 60 | |
Power | kw | 5.5 | 7.5 | 7.5 | 11 | |
Control mode |
| Automatic | Automatic | Automatic | Automatic | |
Power | kw | 53 | 69 | 97 | 129 | |
Weight | T | 15 | 18 | 22 | 30 | |

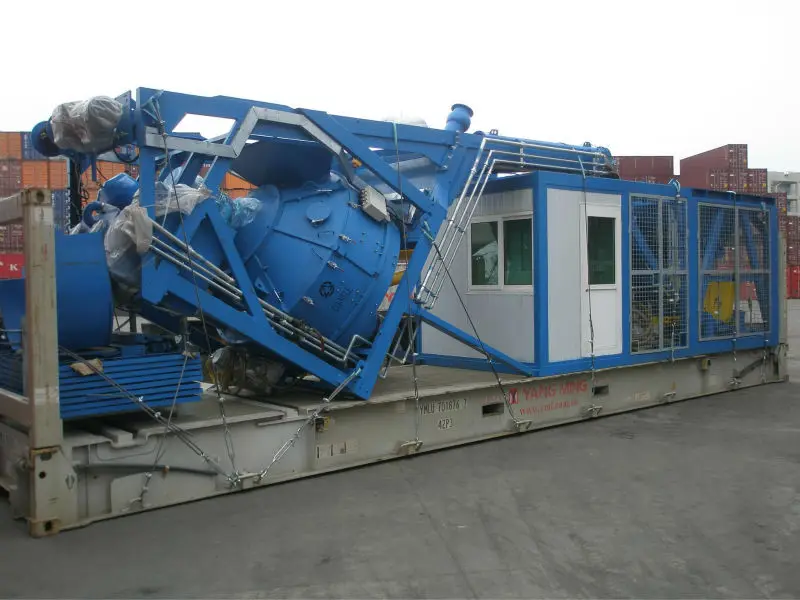

Packaging & Shipping
