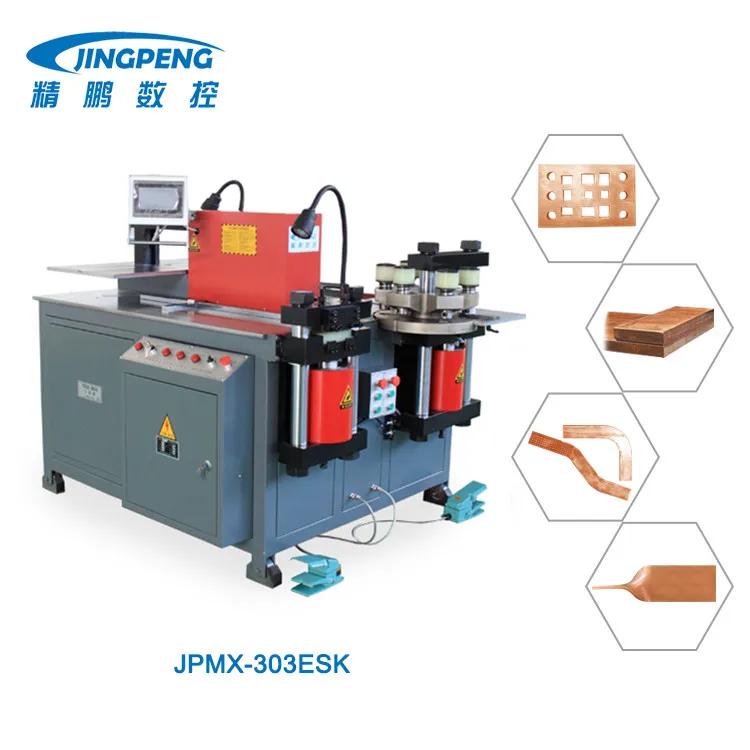

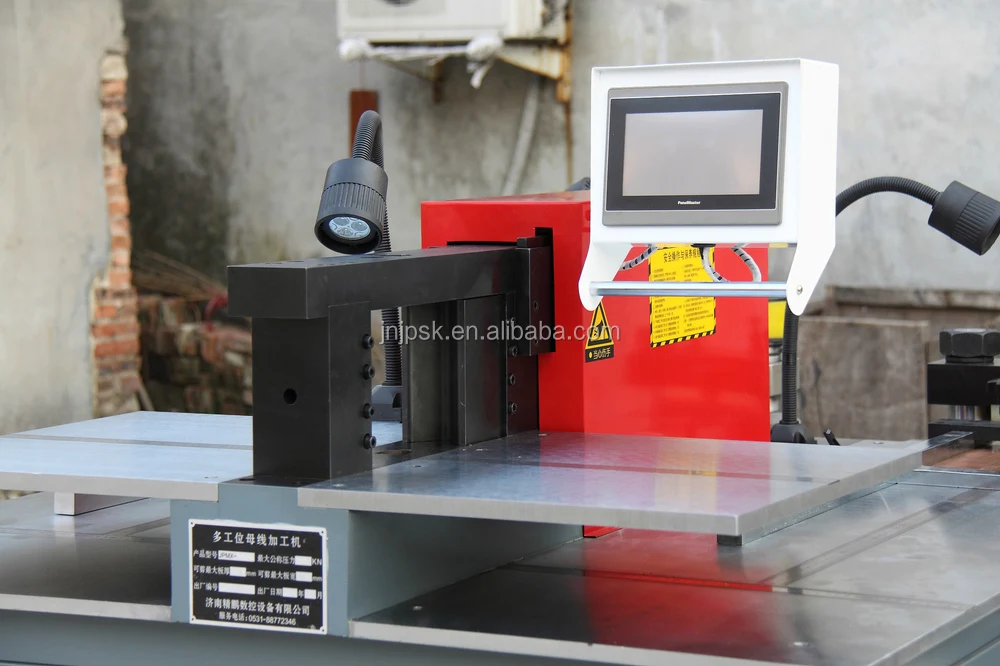

2018 Easily Operated 3 in 1 Hydraulic Busbar Machine For Bending Punching Cutting Functions

Product Overview

Description

2018 Easily Operated 3 in 1 Hydraulic  Busbar Machine For Bending Punching Cutting Functions

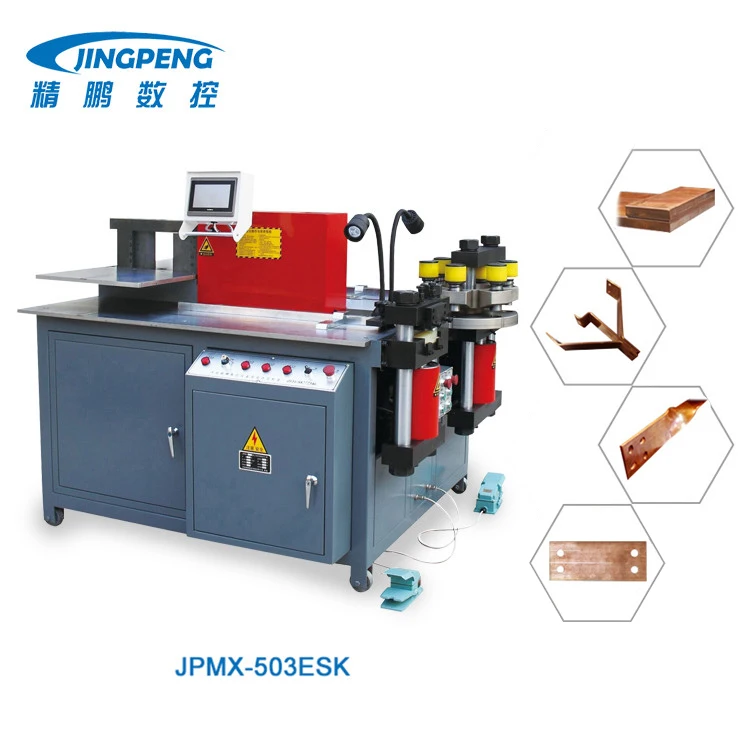

JPMX-303ESK	JPMX-503ESK

Detailed parameter:

Cutting,Punching (round hole,oval hole,square hole,etc.),horizontal bending,Vertical bending , Embossing, Pressing Cable joint, Twisting(Numerical Control of Angle).

Three units may work simultaneously ,respectively and do not effort each other.

function	item		model
			JPMX-303ESK	JPMX-503ESK
punching	Max.punching force	kn	300	500
	punching diameter	mm	4.3-25	4.3-34
	Max.thickness	mm	12	16
	Max.width	mm	150	200
shearing	Max.shearing thickness	mm	12	16
	Max.shearing width	mm	150	200
horizontal bending	Max.bending force	kn	300	500
	Max.width	mm	12	16
	Max.thickness	mm	12	16
vertical bending	Max.width	mm	100	120
	Min.angle	°	90°	90°
out dimension	mm		1780*1380*1420	1850*1500*1550
power	kw		3*4	3*5.5
weight	kg		1400	1950
bending precision	bending precision	°	±1°	±1°
	repeat bending precision	°	±0.3°	±0.3°

Advantage of the busbar machine:

1.  Warranty : one year guarantee for whole machine ( not including spare parts)

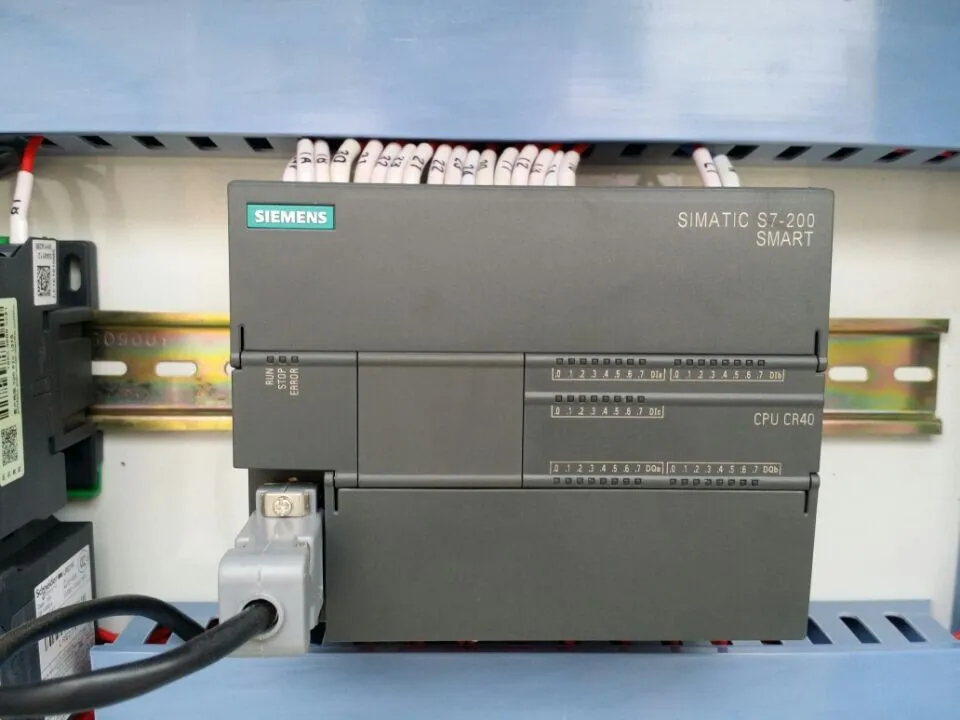

3.  PLC is from Siemens.

4.  We can do OEM as per clients request.

5.  We have after-sales service team and professional technicians who can gurantee the professional guidance after sales.

6. With Certification of CE&ISO 9001.

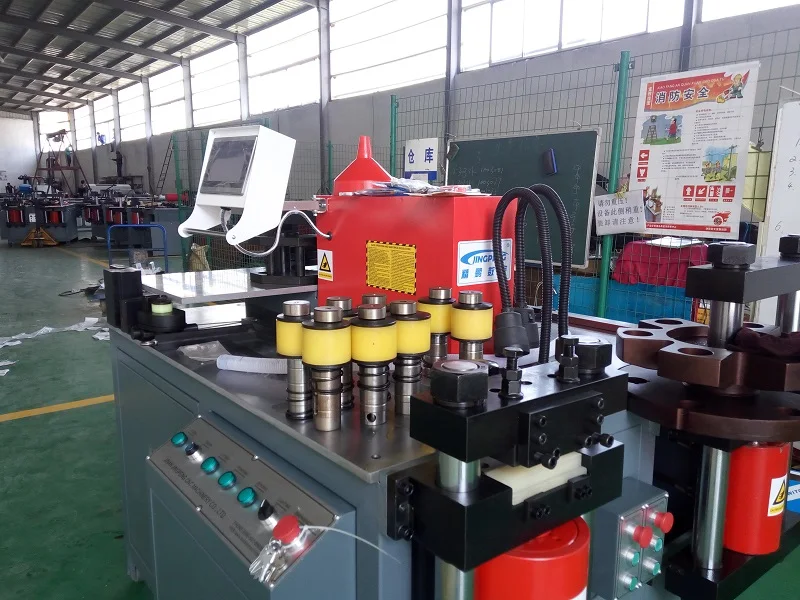

Three working units:

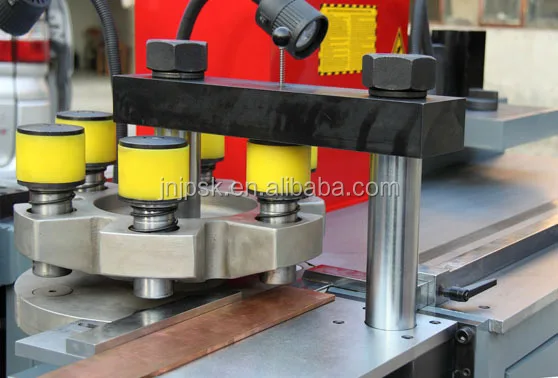

1.Punching unit:

  Max. punching pressure: 300Kn

  Hole diameter: 4.3-25mm

  Max. thickness: 12mm

  Max. width: 160mm

  Punching heads: 6 sets mounted on the machine (from 4.3~25mm)

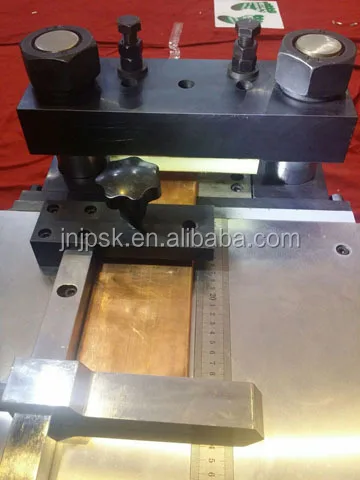

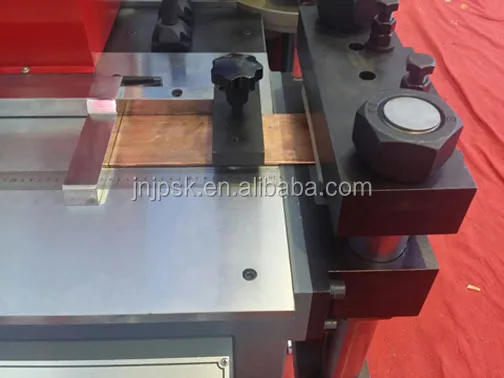

2.Shearing unit:

  Max. cutting thickness: 12mm

  Max. cutting width:160mm

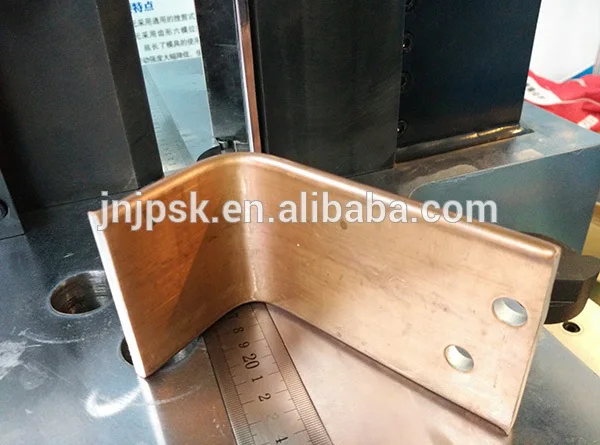

3.Bending unit:

(1)Vertical bending:

Max. bending width: 120mm (10mm thick copper)

Min. bending angle: 90°

 (2)Horizontal bending:

 Max. bending pressure: 300KN

 Max. bending width:160mm

 Max. bending thickness: 12mm

 Equipped with two bending tools: R30 and R50

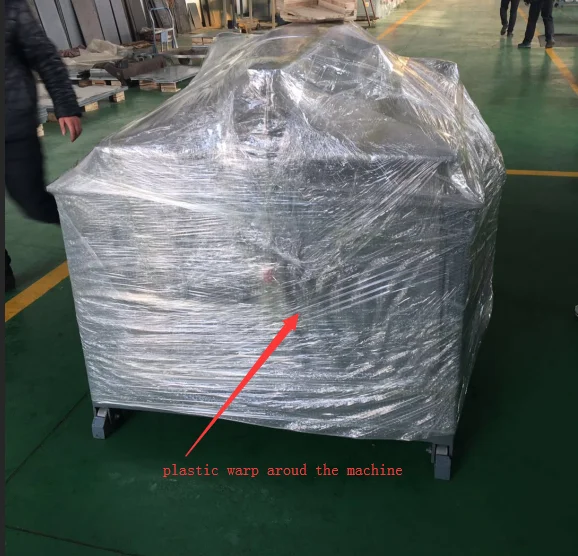

2.Secondly,the machine must be packed in a wood case.

1.What's your payment terms?

40% deposit by TT,the balance must be paid when the goods are ready for loading before shippment.

2.  What is your delivery time?

Usually within 7-15 days after the deposit.

3.  What is your power supply?

We will adjust according to your countries power supply. No problem.

4.  What is your Min. order quantity?

One set. Our customers can be end users, retailers and wholesalers.

5. Are all the labels and instuctions of the machine in English?

Yes. the labels on the machine and the manuel books are all made in english version.

6.What's your company ablity of this machine?

About 100 sets for a month.

7.How about your after-sale service?

Shelf life :1 year machine warranty and 24 hours 400 service hotline.

8.Do you accept factory inspection?

Absolutely,welcome to our factory.because we are the direct manufacturer.
