Fully Automatic Travelling Rotary Head Cutting Machine
- Category: Apparel Accessories Machinery >>>
- Supplier: Guangdong Honggang Intelligent Equipment Co. Ltd.
Share on (60827713413):
Product Overview
Description
Fully Automatic Travelling Rotary Head Cutting Machine
Why choose us?
1. We are a factory, and the price is favorable.
2. We have a strict QC system.
3. We offer a free after-sales service for 1.5 years.
4. Our engineers are available to service machinery overseas.
5. Our machines have been sold to over 40 countries.
Product Description
The computer-controlled cutting machine can rotate and cut at any angle during cutting, and it is suitable for shoes, masks, and other materials cut with a small knife die. Because of the flexibility of cutting, it is more suitable for mass production in factories, and the work efficiency is doubled compared with the original machine.

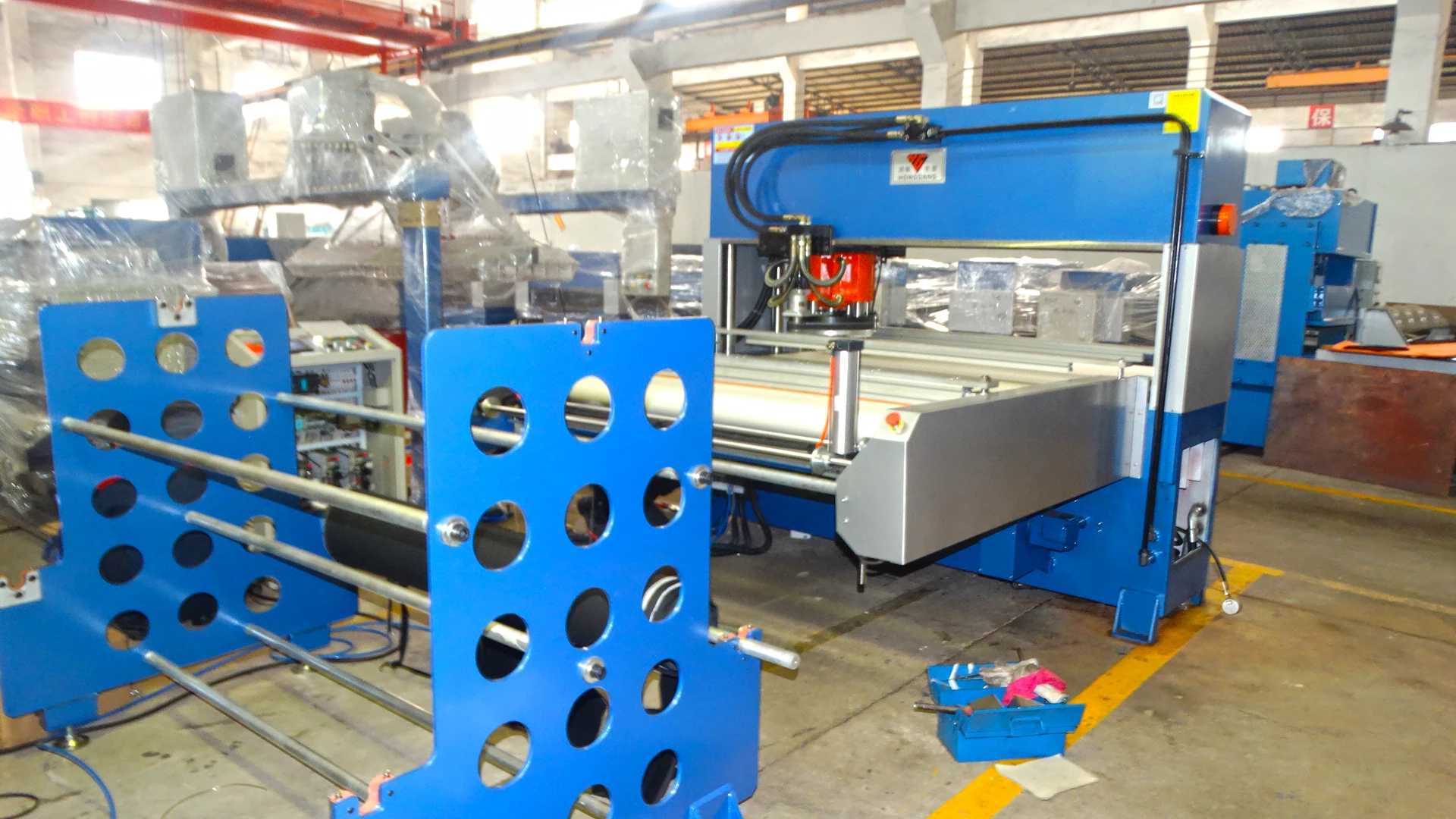

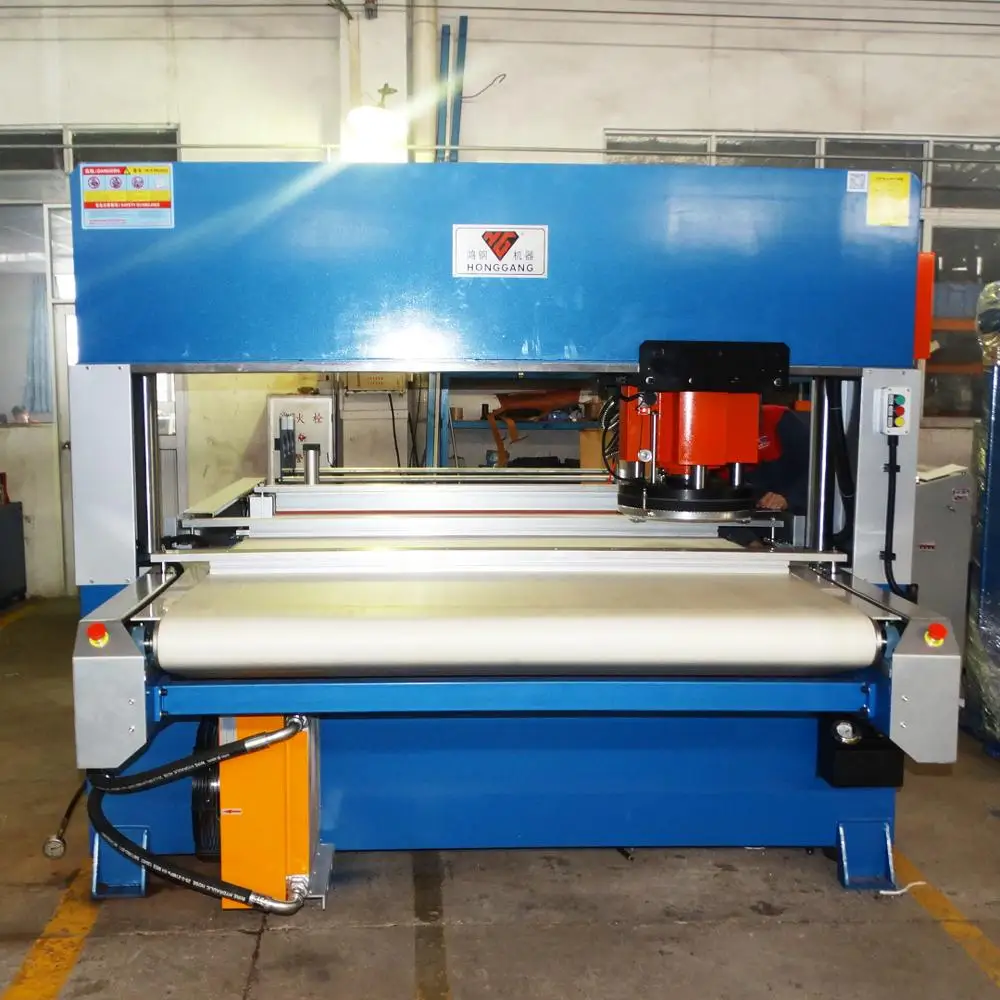

Detail of traveling head cutting machine:
Specification
| Model | HG-CA30T |
| Cutting Force | 30 tons |
| Dimension D*W*H(mm) | 3000*2200*1900mm |
| Cutting area | 2000*610mm |
| Cutting belt width | 1600mm |
| Moving Cutting Plate W*D(mm) | 300*300mm |
| Motor (Kw) | 4 |
| Stroke (mm) | 40-160mm |
| Net Weight | 3500kg |
Machine Features
1. Fully Automatic Travelling Rotary Head Cutting Machine is used for the cutting of all kinds of small knife molds for leather, shoes(sole, insole,shoe-pad, upper of the shoe), cloth, masks, toys, etc. in the industry, and is suitable for large-scale cutting factory operations.
2, Double oil cylinders, precision four-column auto-balancing link structure, which can guarantee uniform cutting depth of each cutting position.
3. The input and output of the material are conveyed on the conveyor belt, and the die-cutting of the material is also automatically performed on the conveyor belt.
4. The device with cutting board and fixed mold make the operation more convenient.
5. Special specifications of the product can be customized.
6. The traveling head can rotate freely at any angle of 360°.
Application&Samples
Mainly used in a variety of leather, rubber, cardboard, fabric, chemical fiber, non-woven fabrics and other multilayer materials.
Advantage:
1. The machine adopts a walking head frame and the operation is very firm.
2. The cutting point setting is simple and effective.
3. This machine has a two-hand operation function and is very safe.
4. The motion cutting is controlled by the cross switch and the travel switch to ensure safety.
5. Motion cutting can be automatically moved to improve work efficiency.
6. The machine can add accessories to save labor.

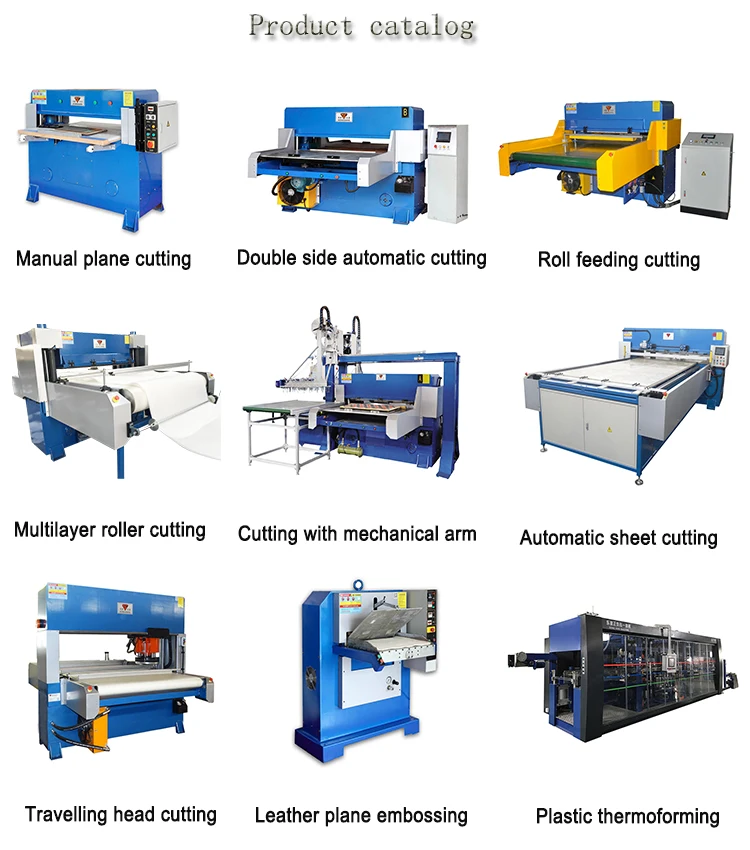

Products categories
Production Process:
Our Service
1. During the first year, all parts are for free, except the consumables and artificially damaged.
2. We will supply operation video for installation, we can also solve your problems through email, photos and some communicate software.we also can provide oversea service.
3. You are also welcomed to our plant for training. We will responsible for the restaurant and meals, the training is for free.
4. We manufacture many embossing machines and hydraulic cutting machines. Such as four-column plane cutting, gantry, roller cutting. Please find more info on our website.
5. We welcome you to come to visit our plant, give us your suggestions, we will try our best to satisfy you.
2. We will supply operation video for installation, we can also solve your problems through email, photos and some communicate software.we also can provide oversea service.
3. You are also welcomed to our plant for training. We will responsible for the restaurant and meals, the training is for free.
4. We manufacture many embossing machines and hydraulic cutting machines. Such as four-column plane cutting, gantry, roller cutting. Please find more info on our website.
5. We welcome you to come to visit our plant, give us your suggestions, we will try our best to satisfy you.
FAQ
1)What's your after-sales service?
->Engineer available to serve machines overseas; Email and calling service in working hour; 24 hours door to door in domestic.
2)Can we test our material by your machine free?
->Yes, please contact us to send your material.
3)Are you a factory or trading company?
->We are a factory and manufacturer
4).What is the guarantee of product quality?
->We offer our customers a one-year free maintenance service. In general, our technical staff will identify the cause of the problem based on customer feedback.
