Электрический шаттл печи керамические волокна модули с sus 310s якорь

Product Overview

Description

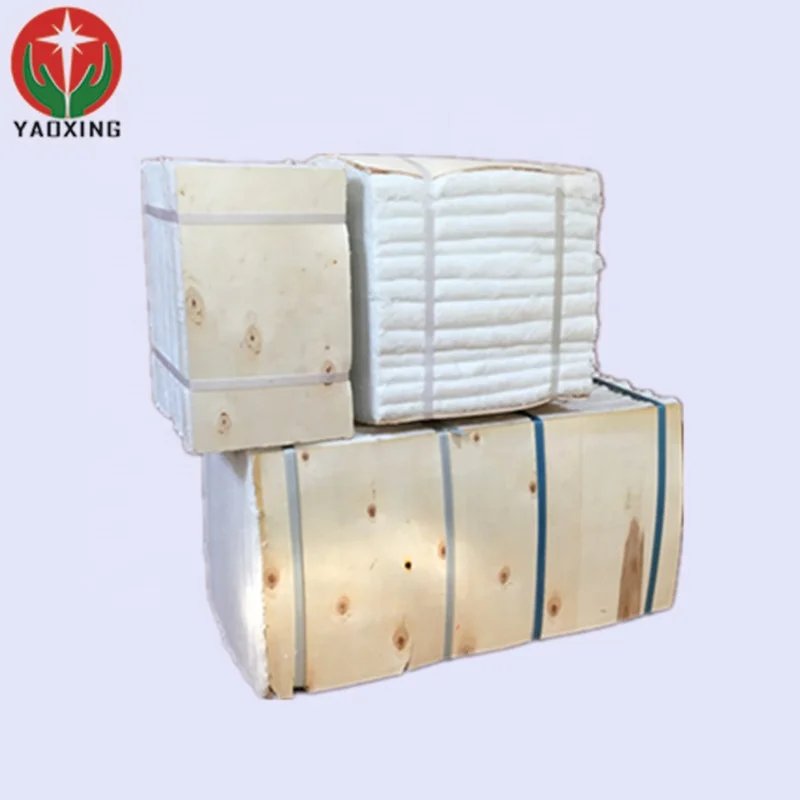

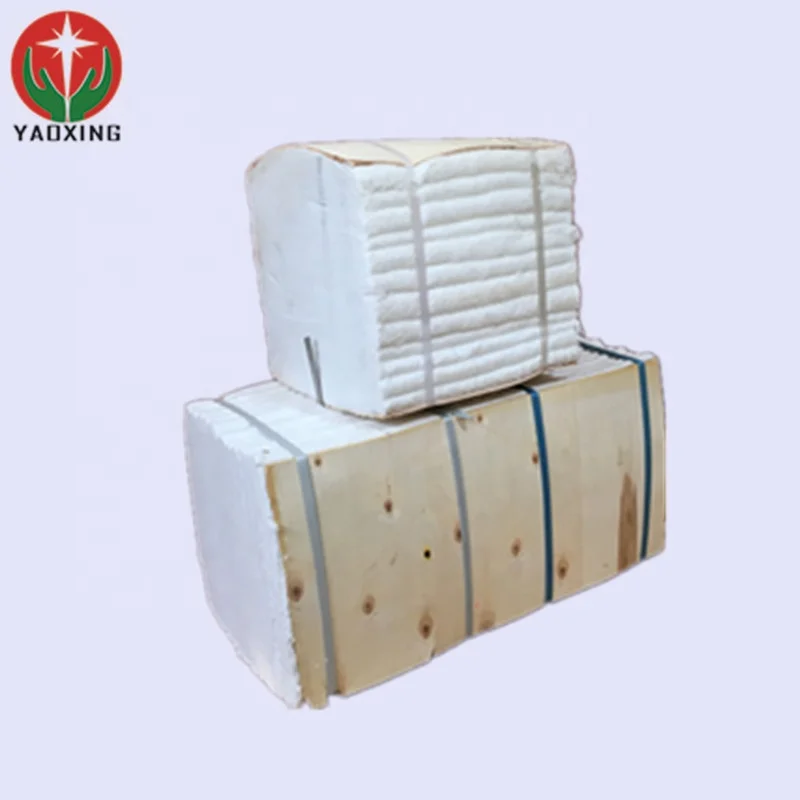

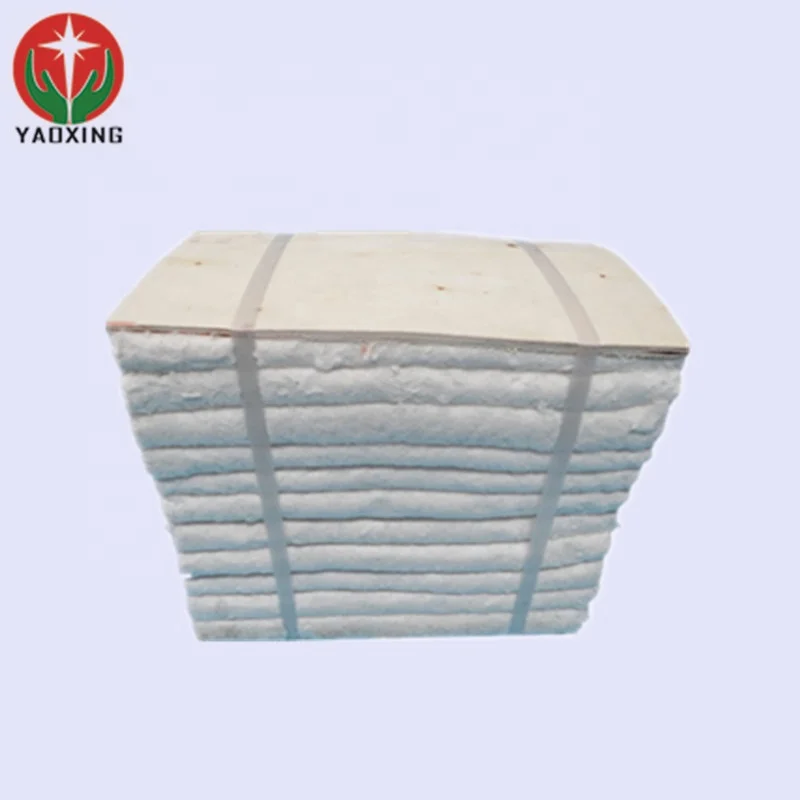

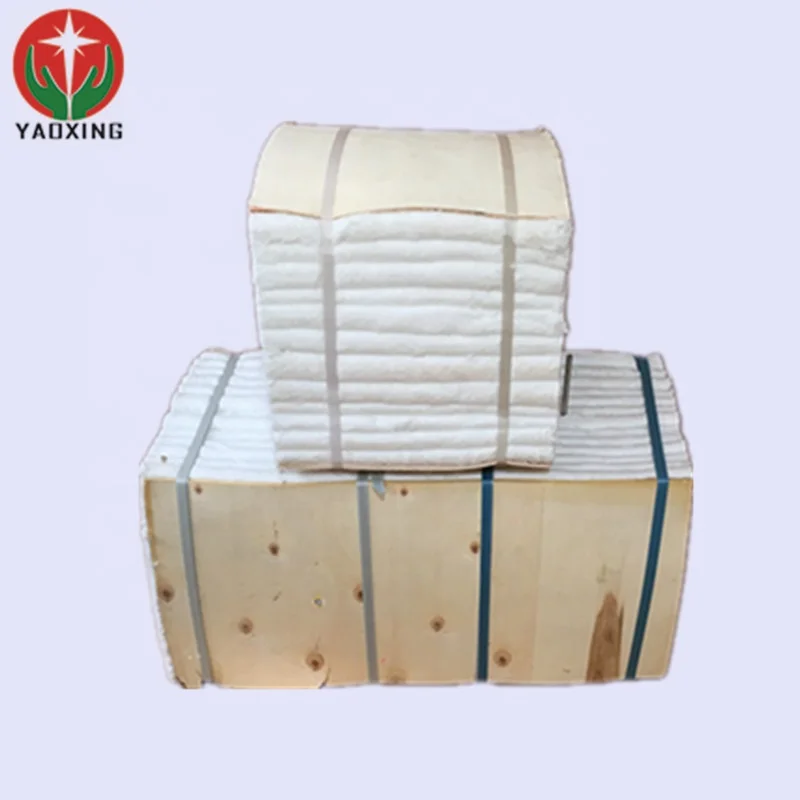

1200c 300mm ceramic fiber module

Product Series:

1.1050 Ceramic Fiber Module YXTX-189

2.1260 Ceramic Fiber Module YXTX-289

3.1260 Ceramic Fiber Module YXTX-389

4.1400 Ceramic Fiber Module YXTX-489

5.1400 Ceramic Fiber Module YXTX-589

Characteristic:

Ceramic fiber folded module not only used in furnace, but also brought following benefit with ended custom:

1.Folded blanket will impact tight with each other in differently way without gaps after release from packing.

2.Elastically fiber blanket can withstand mechanical force.

3.The elasticity of fiber blanket could make up distortion of furnace casing and with gaps between modules.

4.Because of the light weight, the decalescence capability is low as the insulation materials.

5.Low thermal conductivity can save much energy.

6.Excellent thermal shock resistance capability.

7.Can be betaken immediately as soon as being installed, for there is no need to be dried and maintained.

8. The Anchor system should be far away from the hot surface of the modules and kept in the lower temp.





We are a professional team of furnace insulation construction.

We have rich experience in construction of tunnel kilns,car furnace,pit furnace,drop tube furnace,melting aluminium furnace cover,furnace door and so on.

And ourceramic fiber blankets ,ceramic fiber modules,refractory anchors and other related furnace refractory materials are exported to Malaysia,Indonesia,Vietnam,

Tajikistan and so on.Even more important,we can provide you the professional instructor in your construction site.So,choosing us is our best opportunity to exchange

the international experience of furnace construction with each other.Sincerely hope we can have a pleasant cooperation in the future.

Classification Temperature	1050	1260		1400
Code	YXTX-189	YXTX-289	YXTX-389	TXTX-489	TXTX-589
Shrinkage on Heating (%)	950℃×24h≤-3	1000℃×24h≤-3	1100℃×24h≤-3	1200℃×24h≤-3	1350℃×24h≤-3
Theoretical Density (kg/m3)	200±10
Shot Content (φ≥0.25mm)(%)	≤15
Theoretical Thermal Conductivity (W/m·k)	0.050-0.060(200℃)
	0.095-0.120(400℃)
	0.160-0.195(600℃)
Al2O3 (%)	≥44	≥45	≥45	52-55	38-40
Al2O3+SiO2 (%)	≥96	≥97	≥99	≥99	-
ZrO2 (%)	-	-	-	-	15-17
Al2O3+SiO2+ ZrO2 (%)	-	-	-	-	≥99
Fe2O3 (%)	≤1.2	≤1.0	≤0.2	≤0.2	≤0.2
K2O+Na2O (%)	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Specification (mm)	300×300×200,According to your requirements

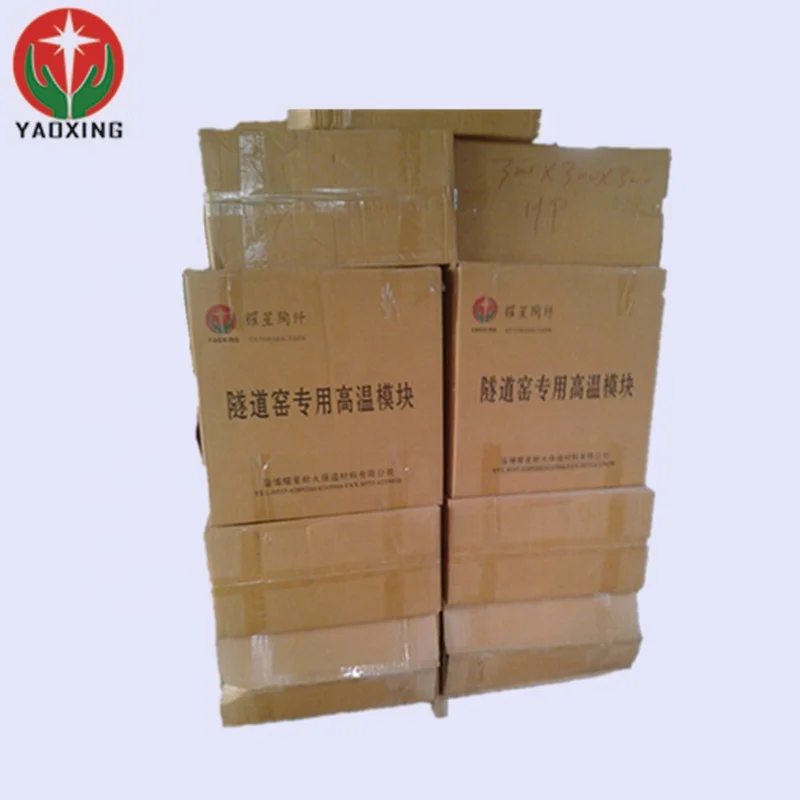

Package	Woven Bag/Carton
Quality Control System	ISO9001-2000 ,ISO14001-1996
