Digital Oil Temperature Sensor DS18B20
- Category: >>>
- Supplier: Xian Votesen Electronic Technology Co. Ltd.
Share on (60827783338):
Product Overview
Description
Digital Oil Temperature Sensor DS18B20
Product Description
DS18B20 temperature sensor is composed of DALLAS, Stainless steel probe, cable and connectors. DS18B20 is a commonly used digital temperature sensor, and its output is digital signal. It has the characteristics of small size, low hardware overhead, strong anti-interference ability and high precision.
Characteristic:
1.Digital signal output
1 Wire interface Requires Only one port pin for communication. Requires no external components
2.High Accuracy
Operating temperature range:-55°C to +125°C (-67F to +257F), ±0.5°C accuracy from -10°C to +85°C
3.Data Line Power Supply
Can be powered from data line. Power supply range is 3.0V to 5.5V
4.Fast Response
Thermometer resolution is programmable from 9 to 12 bits.
5.Various Probe Design
Probe dimension :6*30mm or customized
Technical Parameter
Technical Parameter:
Digital chip | 100% Original DALLAS |
Power supply | 3.0~5.5VDC |
Temperature range | -50~+125℃ |
Probe dimension | Diameter:¢6~¢9mm,length:10mm~1000mm |
Cable length | 0.5M,1M,2M or more |
Accuracy | -10~+85℃,the accuracy is±0.5℃ |
Resolution ratio | 9~12 bit,Corresponding distinguish temperature are 0.5℃,0.25℃,0.125℃ and 0.0625℃ |
Probe material | Stainless Steel |
Cable material | PVC, Silicone,PTFE |
Connector | MOLEX,JST,DuPont,CJT,U type etc. |
Connection mode | Black:GND Yellow:DATA Red:VDD+ |
customized for u
The ever-changing DS18B20 gives more options to choose. Varitious connector options and probe can satisify different requirment. Before you order, plesase offer the fllowing information to us.(Please refer to the following figure)
1/probe size ? 2/cable length and width ? 3/Connector Type ?
Detailed Images

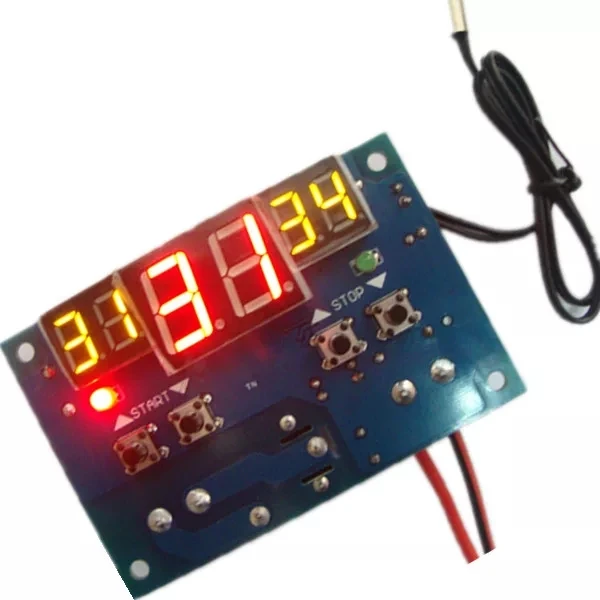

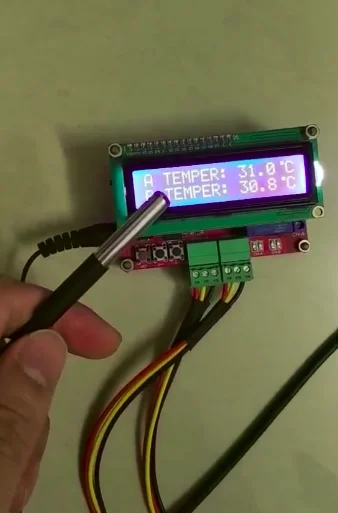

Application
About Us
XI'AN VOTESEN ELECTRONIC TECHNOLOGY CO.,LTD located in XI'AN CITY, one of the three major sensor industry bases in China. Have many years experience on sensor industry. We are not only as product manufactory , but also a professional technical support team which can fully satisfy customer various requirement. Both OEM/ODM production are accepted.
We have been in sensor industrial for over 10 years and are familiar with the quality control , keep high quality and sell over 40 countries like Australia, USA, Canada, Mexico, Netherland, Germany, Russia, Poland, Korea, India etc . Our products have been recognized and trusted by many foreign buyers and can meet the constantly developing economic and social needs.
In here, you will always harvest the best price, passion service and professional guidance. Supply the most satisfaction service to our customer. we supply 7*24hours professional services.
Packaging & Shipping
FAQ
Q: Where physically on the device does the temperature measurement take place?
A: The DS18B20 does not sense temperature directly through the package. For all package types, the DS18B20 senses temperature primarily through the GND pin. Ensuring a good thermal connection between the GND pin of the device and the heat source you wish to measure will provide the best results.
Q: Is there a way to extend the temperature range of the DS18B20?
A: No, there is not a way to increase the range it reads. The DS18B20 reads with an accuracy of ±0.5°C from -10°C to +85°C and ±2°C accuracy from -55°C to +125°C.
Q: Will a conformal coating affect the thermal response of the DS18B20?
A: A thin conformal coating will not affect the thermal response of the device.
Q: Using OneWireViewer, can more than one DS18B20 be logged?
A: Yes, every DS18B20 will have a file where you can store the data. Data will be received from one DS18B20 at a time.
Q: Can you power the DS18B20 from a 3V battery?
A: The DS18B20 can be powered from any source. Since batteries will dip in voltage, a nominal 3V battery may not always supply the minimum 3.0V the DS18B20 requires. We suggest a step-up voltage regulator is used to ensure the device is supplied within its rated voltage range of 3.0V to 5.5V.
