colorful high speed multi cutters paper drinking straw making winding machine
- Category: Straw Making Machines >>>
- Supplier: Ruian,Ruiting,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

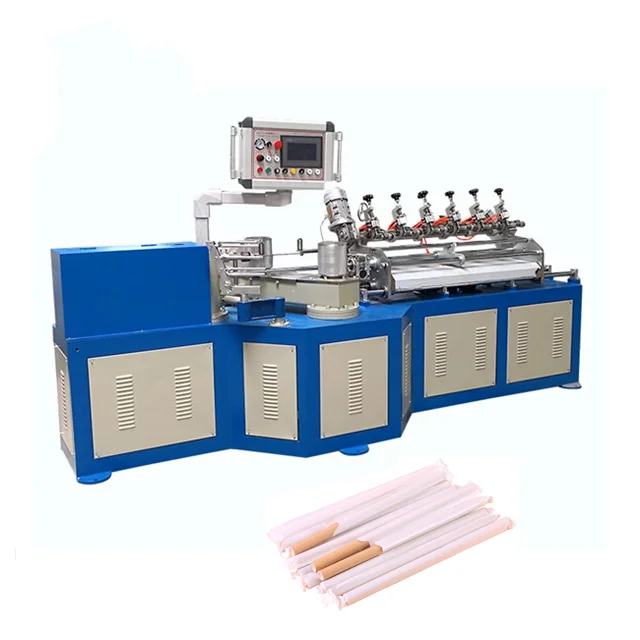

colorful paper straw winding machine
1. Adopt human-machine operation interface, more convenient for operation;
2. T Bar Paper reeling stand , Slitting rolls are easily placed into reel stand
3.Choose Single or double glue coating unit
4. Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)

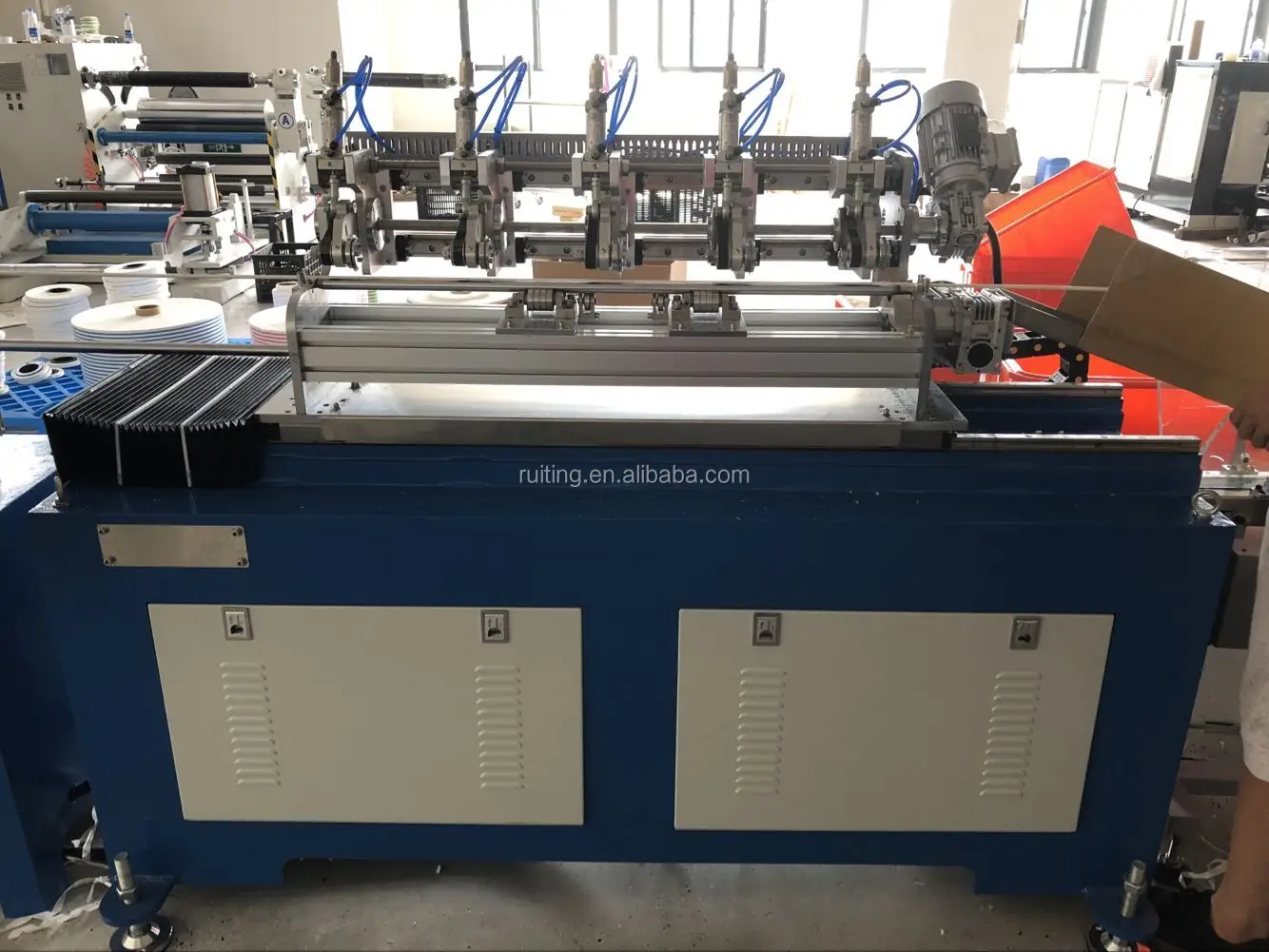

5. Multi-knife System in-line cutting unit controlled by encoder
2. T Bar Paper reeling stand , Slitting rolls are easily placed into reel stand
3.Choose Single or double glue coating unit
4. Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)
5. Multi-knife System in-line cutting unit controlled by encoder
.,cutting final paper tube directly , Servo motor control cutting system.
6. Option device : Full stainless steel body
Inner Diameter | 5-10mm |
Paper Roll | 2-3 Plies |
Thickness | 0.25-1mm |
Cutting Length | 120-820mm |
Hub Wheel | Two Head |
Way Of Fixing Shaft | Clamp |
Production speed | 10-40m/Min (20-30 degree summer 20-40m/min , 0-10 degree Winter 10-25m/min ) |
Way Of Cutting | 58*38*1.5mm Circular Cutting Blade |
Way Of Gluing | Single / Double Side |
Type Of Paper Reel Stand | T-bar |
Blade | 5 Groups 5 |
Paper Reel Stand | 6 Plies T-bar l Paper Reel Stand |
Glue System | 3 plies independent glue tank |
Main Motor | 1.5kwx2 CHINA XINLING |
Inverter | 3.7kw CHINA RIHONG |
Servo Motor | 0.85kw JAPAN YASKAWA |
Control System | China |
Linear Guide System | TAIWAN SHANGYIN |
Operator | 1-2 Persons |
Main Part Dimension | 3250*1100*1450mm |
Overall Dimension | 7200*4800*1500mm |
Weight | 1300kgs |
Way Of Scraping Glue | Independent Glue Box/Polyurethane Scraping Blade |

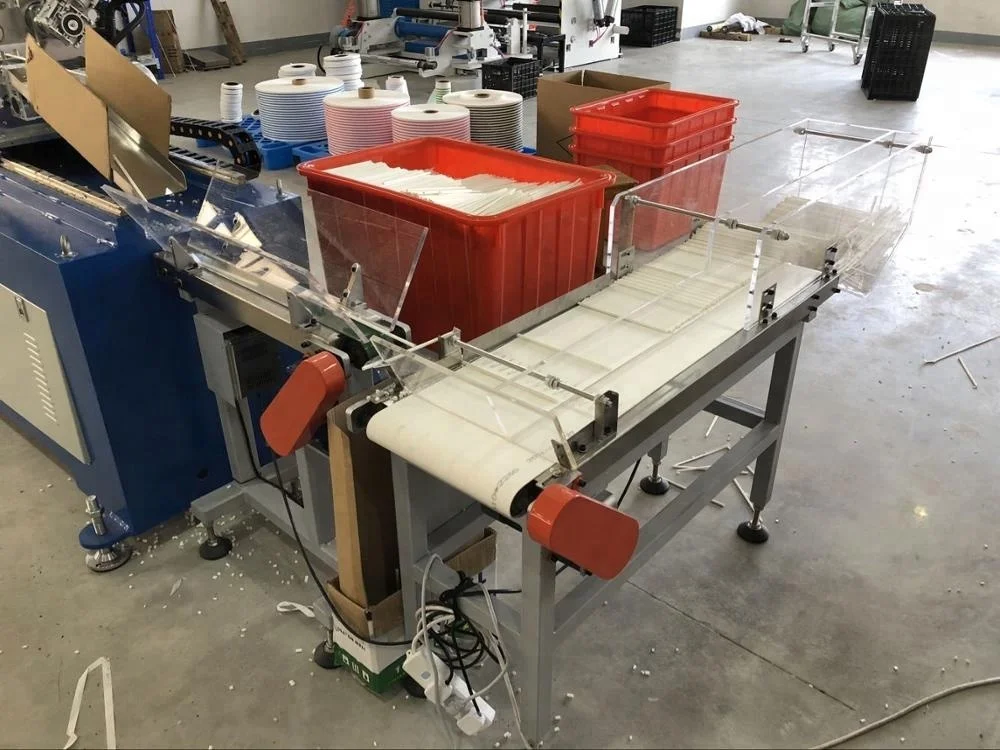

Moving Finished Paper Straw | Automatically |
Lubricating Oil | Automatic Giving |
