High precision 4 axis desktop cast iron wood cnc 4040 6060 small cnc router metal mould cnc machine price
- Category: >>>
- Supplier: Jinan Routerstar CNC Machinery Co. Ltd.
Share on (60827856519):
Product Overview
Description
High precision 4 axis desktop cast iron wood cnc 4040 6060 small cnc router metal mould cnc machine price
High speed mini 6060 cnc wood carving router for wood, plastic, cnc woodworking engraving machine for small business
Product Description
video:
https://youtu.be/rQm72O6BDac

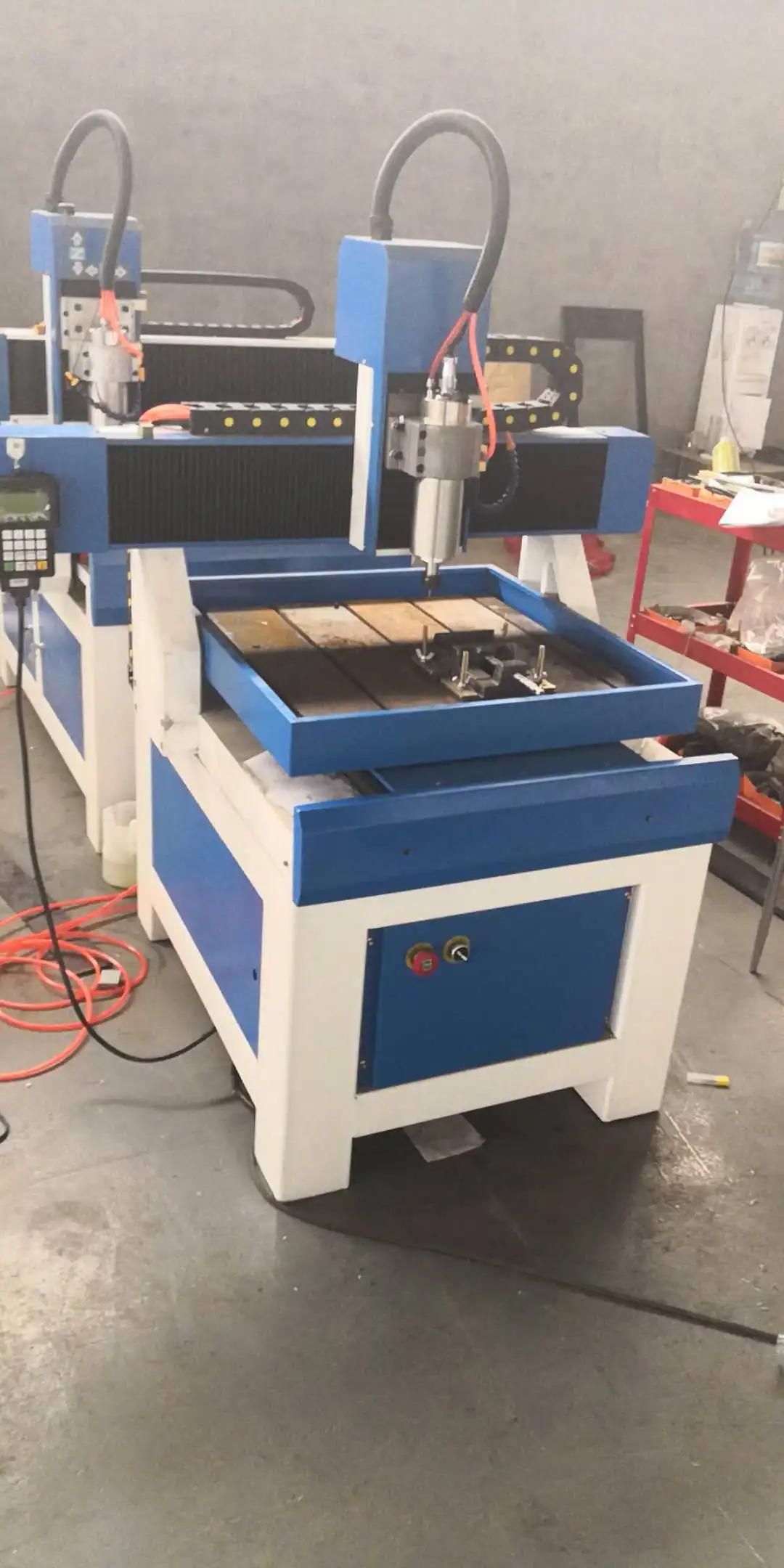

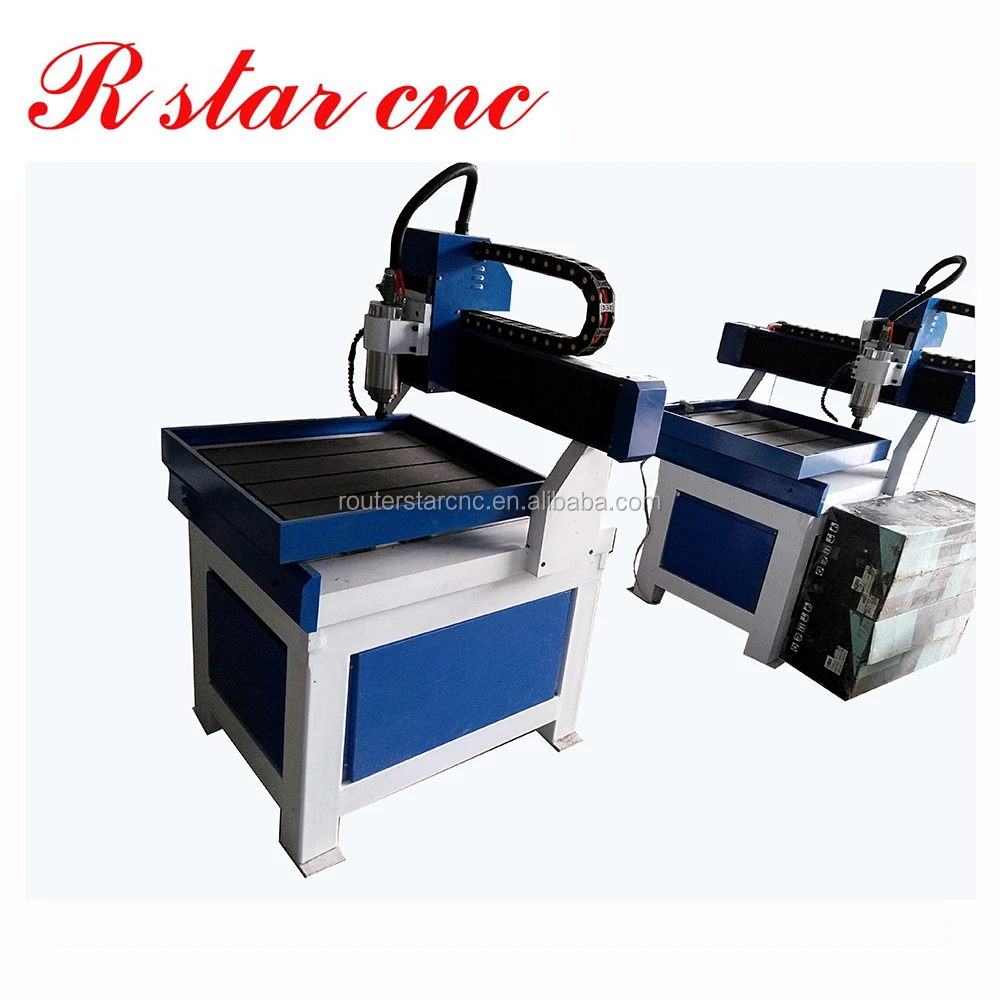

1. machine pictures:

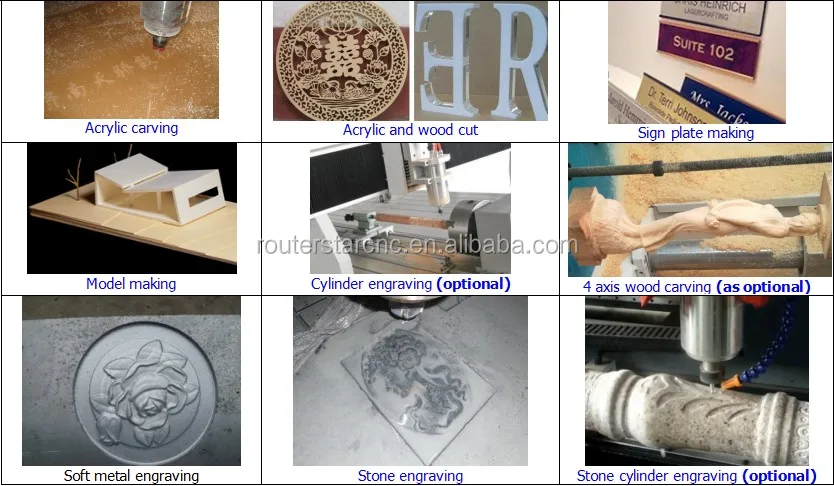

2.Application:
1. Advertising industry: Acrylic, two-color board, PVC Board, aluminum-plastic plate carving cutting, all kinds of signs, badges, seat signs, copper, type, font, all kinds of signs, trademarks and other materials.
2. Crafts industry: Man-made stone crafts, souvenirs engraved various types of text, graphics.
3. Mold Processing: Building model, physical model, bronzing mold, high-frequency mold, micro-injection mold, shoe mold, badge, embossing mold, biscuits, chocolate, candy molds.
4. Seal industry: can be in the horn, plastic, organic board, wood, storage pad and other materials easily engraved seal

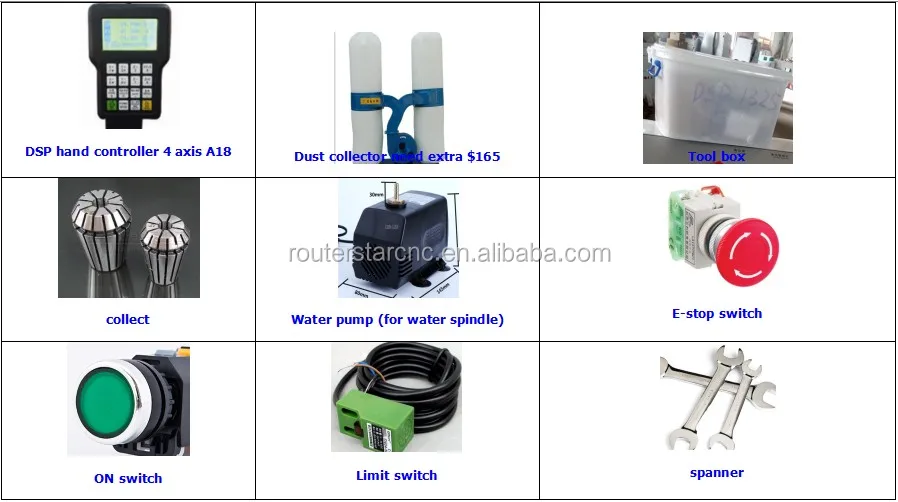

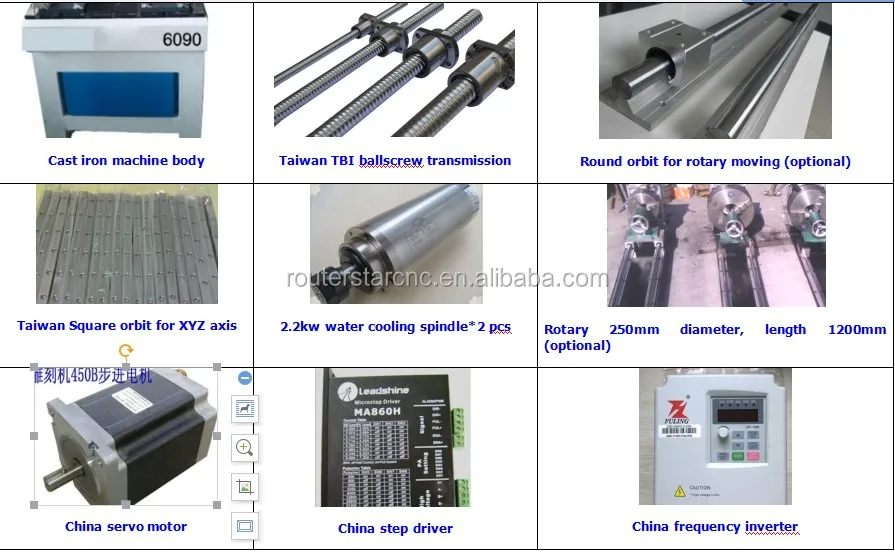

3.Machine details:
4.Parameters:
Model number | RS-3020 | RS-3030 | RS-4040 | RS-6060 | ||
Size | Processing length | 200mm | 300mm | 400mm | 600mm | |
Processing width | 300mm | 300mm | 400mm | 600 | ||
Z axis | 80m m | 80mm | 80mm | 80mm | ||
Package size | 55*50*90 | 55*55*90cm | 65*65*90cm | 85*85*90cm | ||
N. weight | 160kg | 170kgs | 200kgs | 240kgs | ||
G. Weight | 190kg | 200kgs | 230kgs | 270kgs | ||
configuration | Machine body | Cast Iron machine body | ||||
Driving Motor | Step motor 450A | |||||
Driver | Step driver Leadshine | |||||
Transmission way | XYZ axis adopt Taiwan TBI ballscrew | |||||
Orbit | Original Taiwan square orbit | |||||
Control system | NC studio control system | |||||
Carving spindle | 2.2kw water cooling (1.5/3/4.5kw as optional) | |||||
Dust collector | Without (if add need extra charge $160) | |||||
Parameter | Processing accuracy | 0.01mm | ||||
Max carving speed | 5000mm/min | |||||
Max moving speed | 15000mm/min | |||||
Reposition accuracy | 0.03mm | |||||
Suitable voltage | AC220V 50/60HZ | |||||
Control box | Advertising cutter | 1 case | ||||
Pressure plate |
| |||||
Limit switch | 1 pcs | |||||
E emergency switch | 1 pcs | |||||
ON/OFF switch | 1 pcs | |||||
Water pump | 1 pcs | |||||
collect | 2 pcs | |||||
5. samples:
6. working samples:
https://www.youtube.com/watch?v=8XZiiHo6Q68 3020 model
//youtu.be/1YSxon4-_sM 6090 portable type
https://youtu.be/ExzQuJRqWuo 6090
https://www.youtube.com/watch?v=rQm72O6BDac 6090
https://youtu.be/krpObc5ZgaY 6060
Our Services
1. All detailed consulting service before sale.
2. 12 month quality guarantee time after sale, the machine main parts(excluding the consumable parts) broken which is not caused by manmade, we will send you a new one for free during the guarantee term(but need you help return back the old part).
3. Free training at our factory.
4. will supply you parts at cost price.
5. 24 hours on line service each day, free technique support all lifespan.
our staff can come to your place for training or adjust
