Шаровой кран dn50 для водной системы с электроприводом 2 дюйма
- Category: Ball Valves >>>
- Supplier: Weihai Forward Hydraulics Co. Ltd.
Share on (60827861183):
Product Overview
Description
Product Description

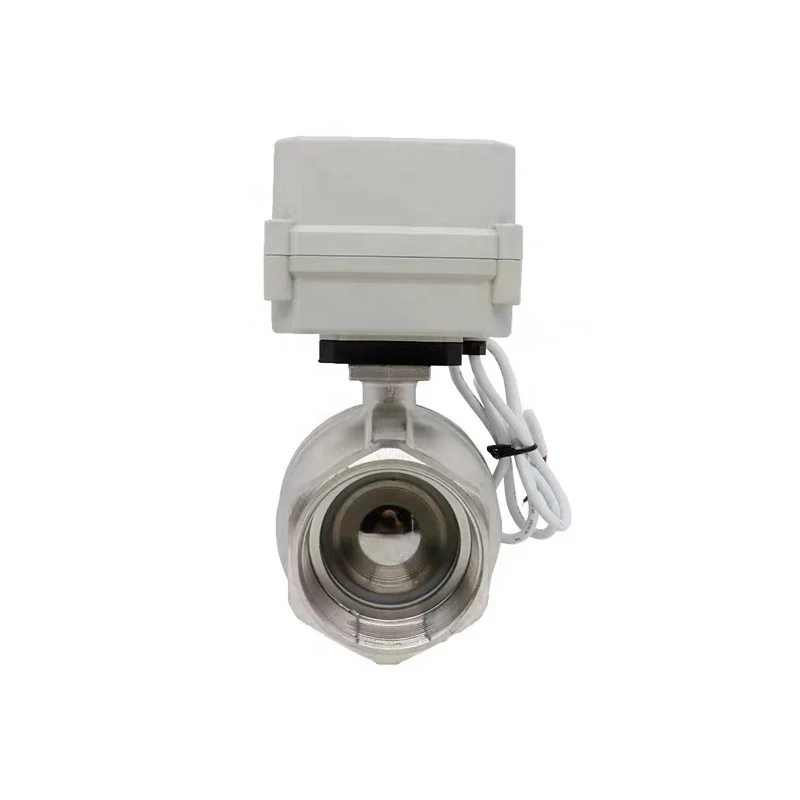

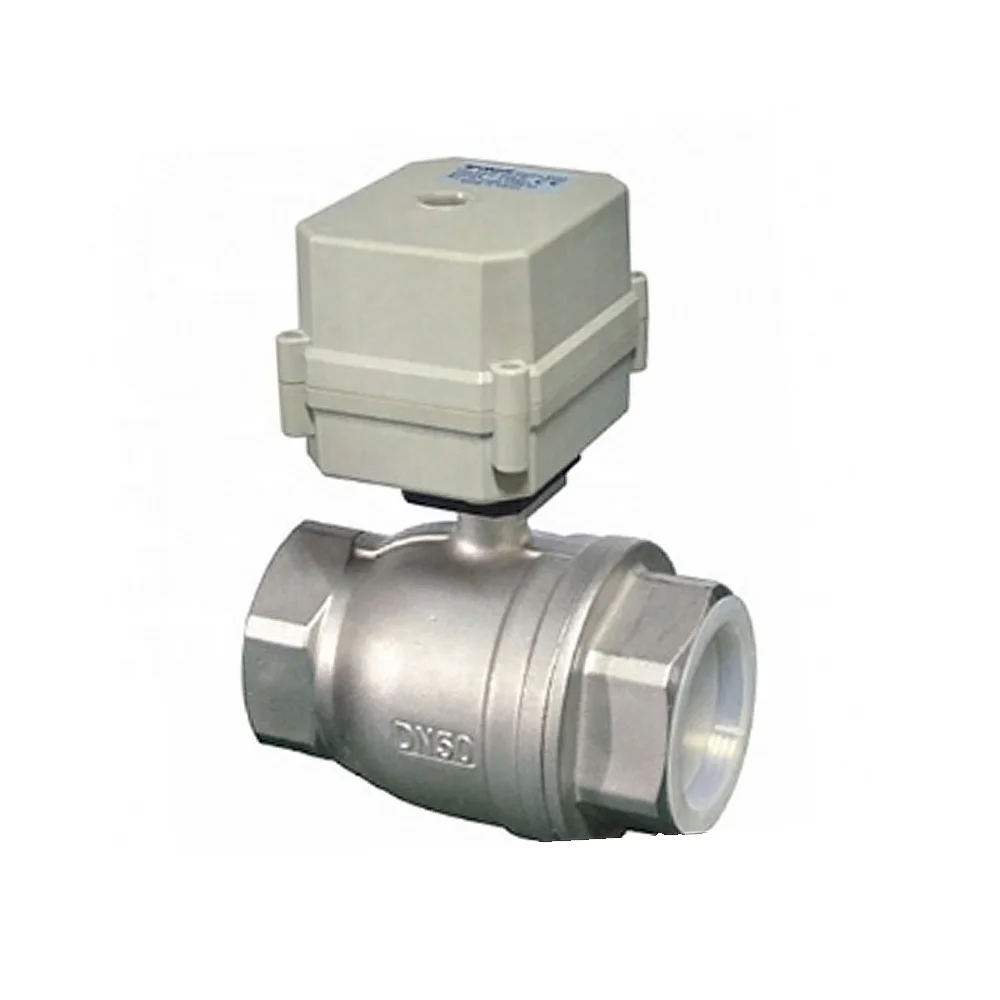

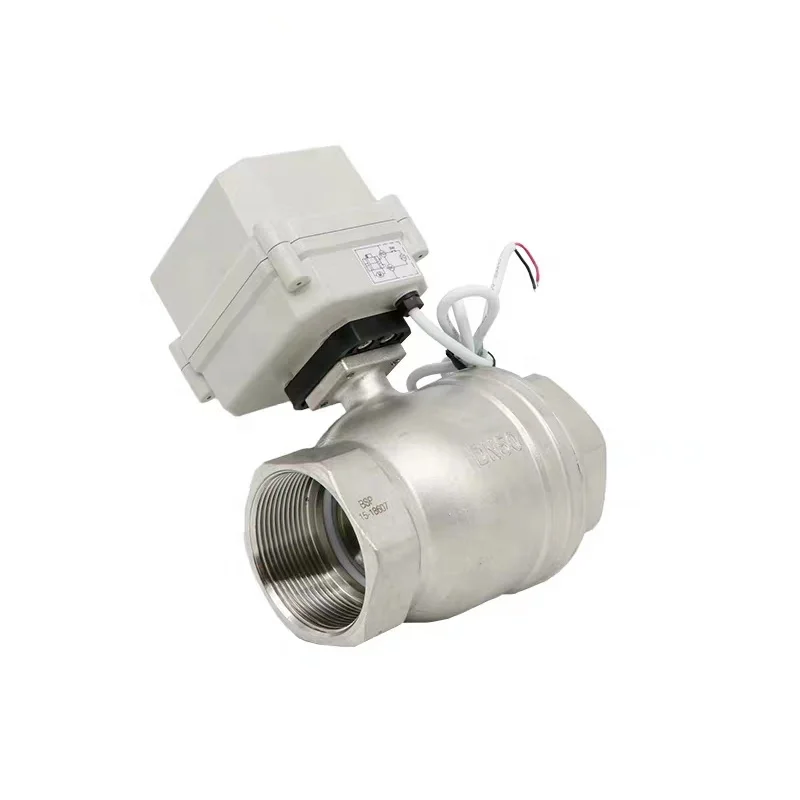

dn50 2" electric motorized flow control ball valve for water system
Forward series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life
time,intelligent control, high torque actuators, low noise, no leak, and many other features.
time,intelligent control, high torque actuators, low noise, no leak, and many other features.
Product Features
dn50 2" electric motorized flow control ball valve for water system
1 | Mini size and perform reliably for small equipment | ||||||
2 | Easy to install | ||||||
3 | All metal gear | ||||||
4 | Long life time —70000-100000 circles | ||||||
5 | Floating seal structure, good sealing,protection class IP67 | ||||||
6 | Low working current, suitable for battery supply set | ||||||
7 | Manual override is safe and convenient | ||||||
8 | Passed CE certification and NSF61-G certification | ||||||
Applications
1 | IC card water meters, heat energy meters, solar instrument. | ||||||
2 | The central air conditioning fan coil, fire sprinkler | ||||||
3 | Water saving irrigation, automatic control system, industrial mini automatic control equipment. | ||||||
4 | Agriculture Irrigation equipment | ||||||
5 | Drinking water equipment, Water heater, washing machine, AHW etc. | ||||||
Parameters Table
Product size | NPT/BSP 1-1/4''/NPT/BSP 1-1/2' /NPT/BSP2'' | ||||||
Maximum working pressure | 1.0MPa | ||||||
Circulation medium | Fluid, air | ||||||
Rated voltage | DC12V/AC/DC24/AC110-230V （Optional） | ||||||
Wiring control methods | CR201/CR202/CR303/CR401/CR501/CR502/CR7-04 （Optional） | ||||||
Working current | ≤1A | ||||||
Open/close time | ≤13S | ||||||
Life time | 70000 times | ||||||
Valve Body material | 304 Stainless steel | ||||||
Actuator material | Engineering Plastics | ||||||
Sealing material | EPDM & PTFE | ||||||
Actuator rotation | 90° | ||||||
Cable length | 0.5m,1.5m, （Optional） | ||||||
Max. torque force | 10N.m | ||||||
Environment temperature | -15℃～50℃ | ||||||
Liquid temperature | 2℃～90℃ | ||||||
Manual override | NO | ||||||
Indicator | Yes | ||||||
Protection class | IP67 | ||||||

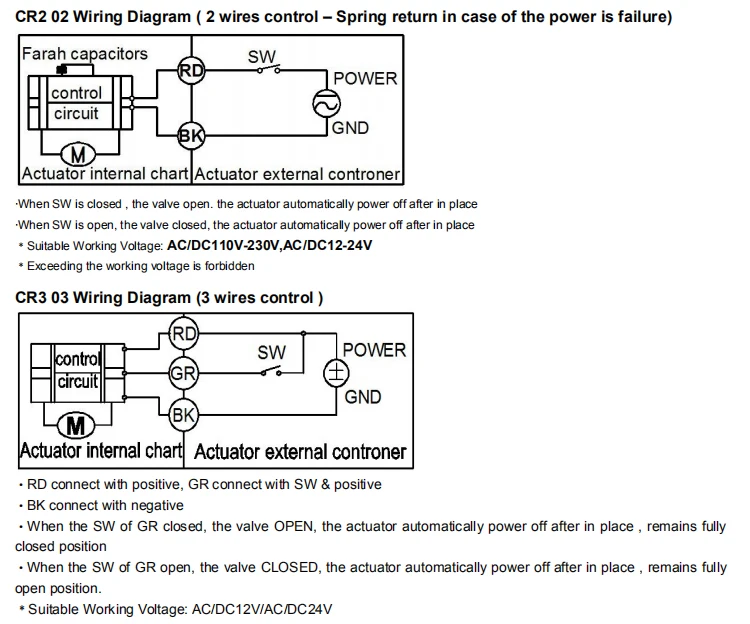

Wiring diagram
Contact us
Packing and shipping
Packing
Inner box per pc+Standard export carton+Export pallet+Plastic film wrapped
Delivery
3-4 days if having spare parts stock;15-30 days if no stock.Sample order or small order will be finished in 7-8 days.
Can the product be labeled our own brand?
Yes,we'd like to accept labeled your own brand if you need when batch order.
How long is the guarantee period of products?
1 year for products.And we'd like to offer lifelong technical service for free if you need.
Do the products have relative Certificates?
Yes.Our products have CE,NSF61-G,Rohs ect.
