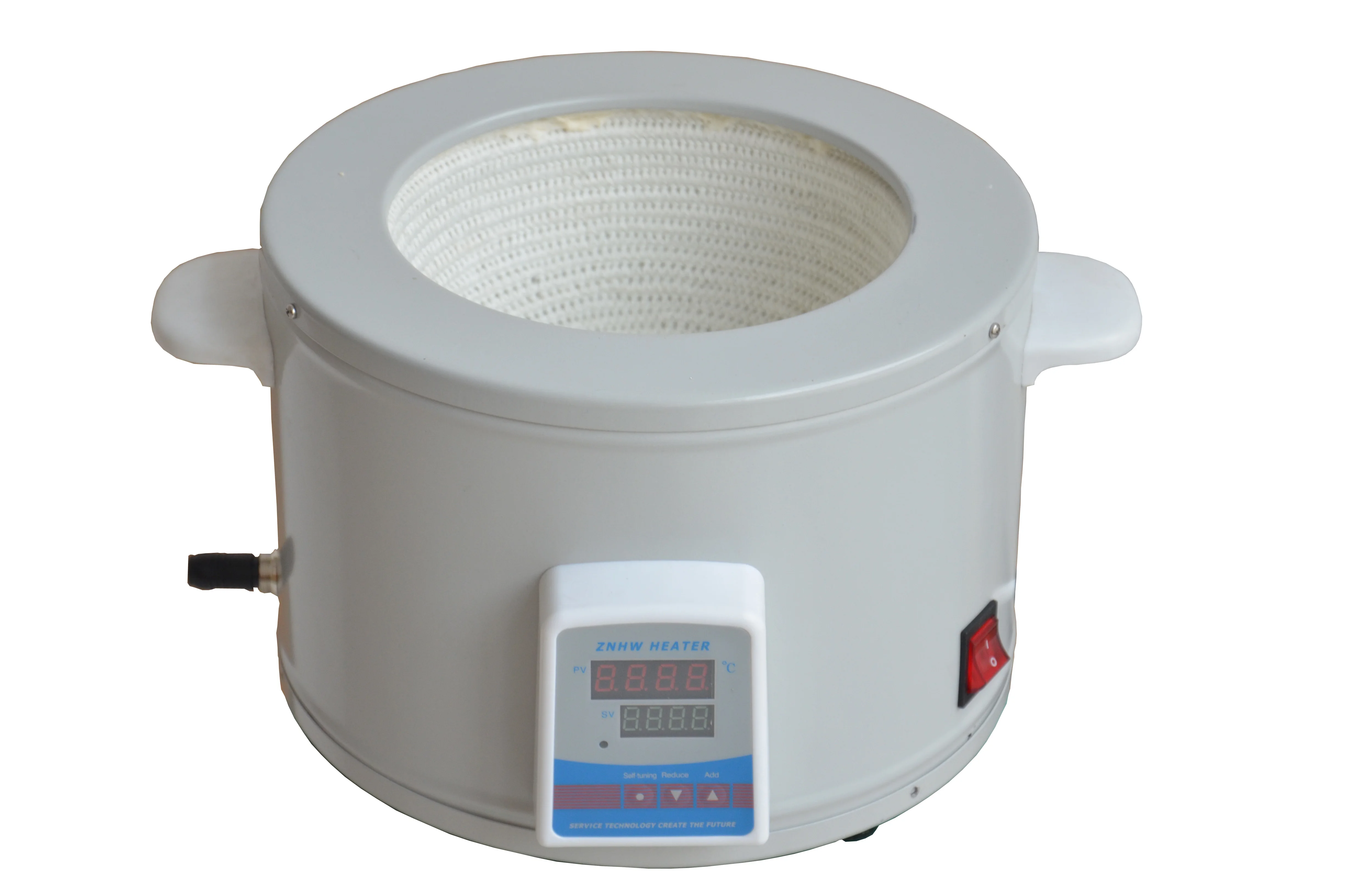

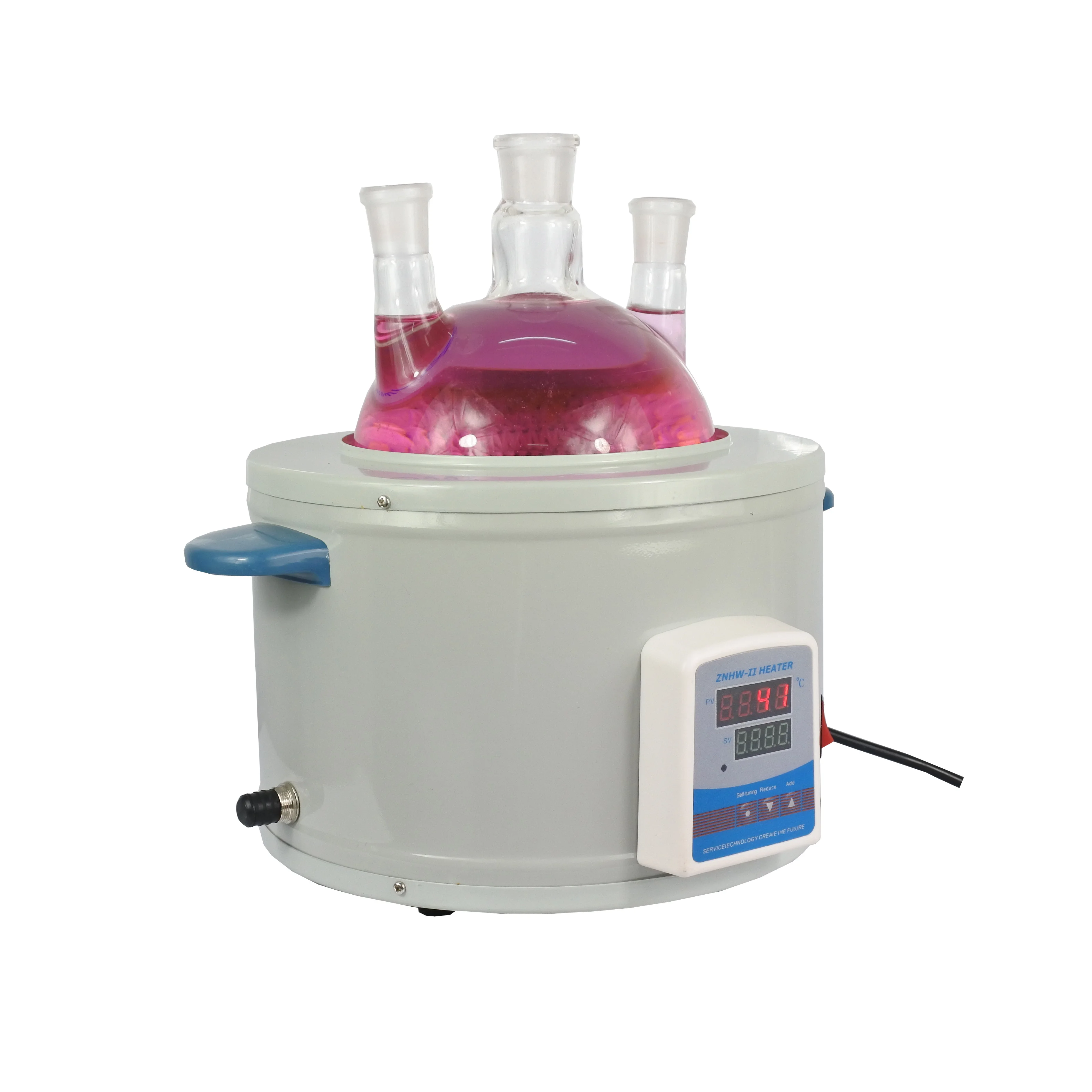

5000ml New Design Temperature Constant lab heating mantle

15 series mantles sizes available from 50 ml to 50liter

PID Control .  Inner and Outer Temperature sensor /probe Control .

Built-in temperature control maintains element temperature from

ambient to 380°C !

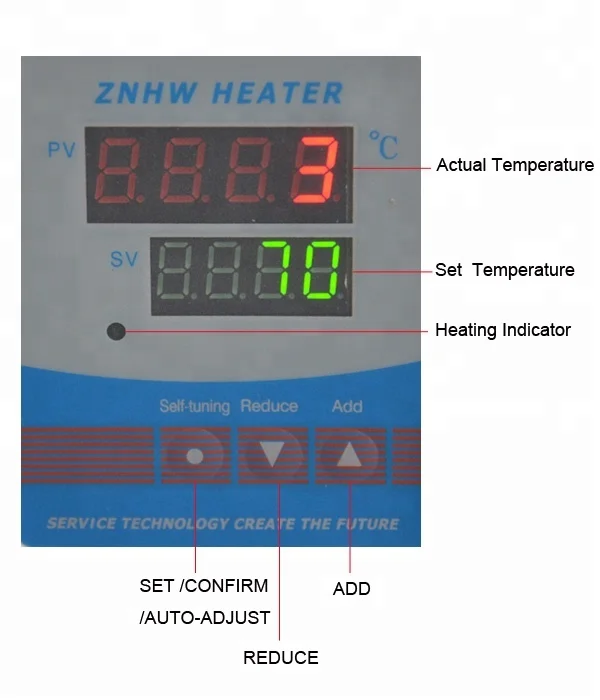

Digital Display for Temperature Reduce and Add  : intelligent constant temperature,inner and outer sensor . Shows set-point temperature. Display is easy-to-read and provides repeatable and accurate results every time as your request

Temperature Control Accuracy ± 1°C.

Please inform us if you also need flask together with heating mantle

Model

ZNHW-II

Capacity

2000ml

3000ml

5000ml

10000ml

20000ml

50000ml

Voltage

160- 240V,50Hz /60Hz , 110v- 130 ,50/60Hz.

Power

650W

730W

1100W

2100W

3000W

6000W

Temp Rang

Ambient to 380 degree

Working Time

Continue

Exterior Dimensions

Φ27.5×19

Φ30×20

Φ34×23

Φ40×26

Φ48×30

Φ58.5×47.5

Net Weight

2.93±0.1

3 ±0.2

4.55±0.4

6.85±0.5

8.35±0.2

28.2±0.5

Shell Material

Superfine Metal , anti-aging, anti-corrosion

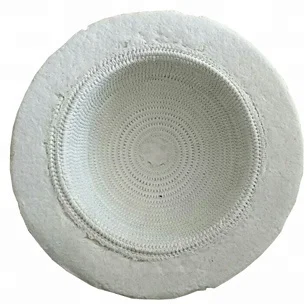

Insulating Course Material

Environmental Alumina Silicate Fiber

Insulating Barrier Material

Alkali-free glass fiber . Max Temperature Resistance 450°
