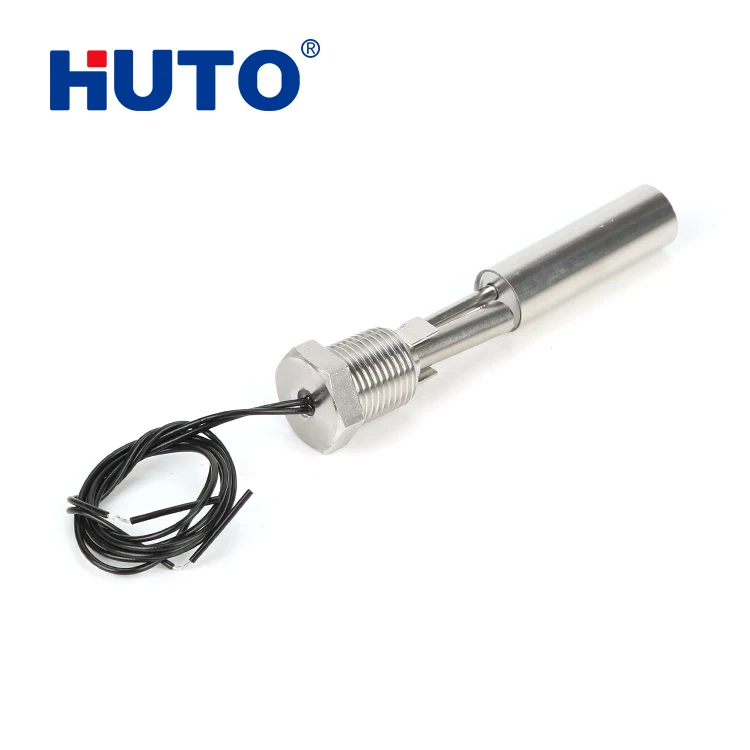

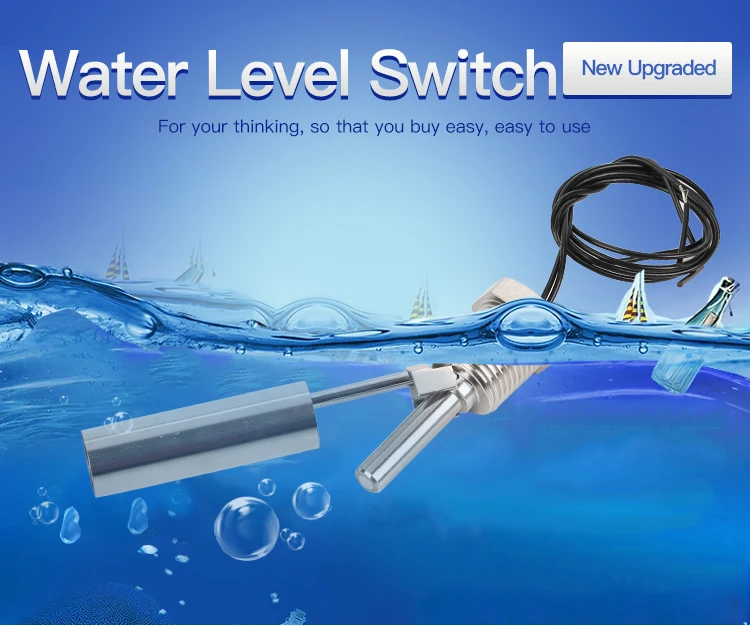

magnetic stainless steel automatic float level switch for oil fuel tank

Product Overview

Description

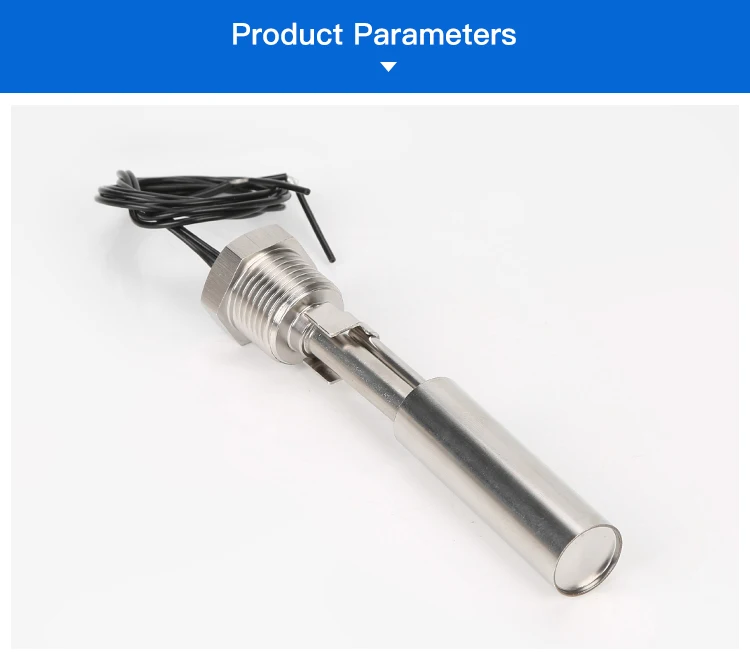

Parameter Detail:

production name :		stainless steel float switch
production model :		HT-304-5
max voltage:		220V AC
max current:		0.5A
temperature:		-10℃~125℃
thread:		NPT1/2
reed switch:		OKI

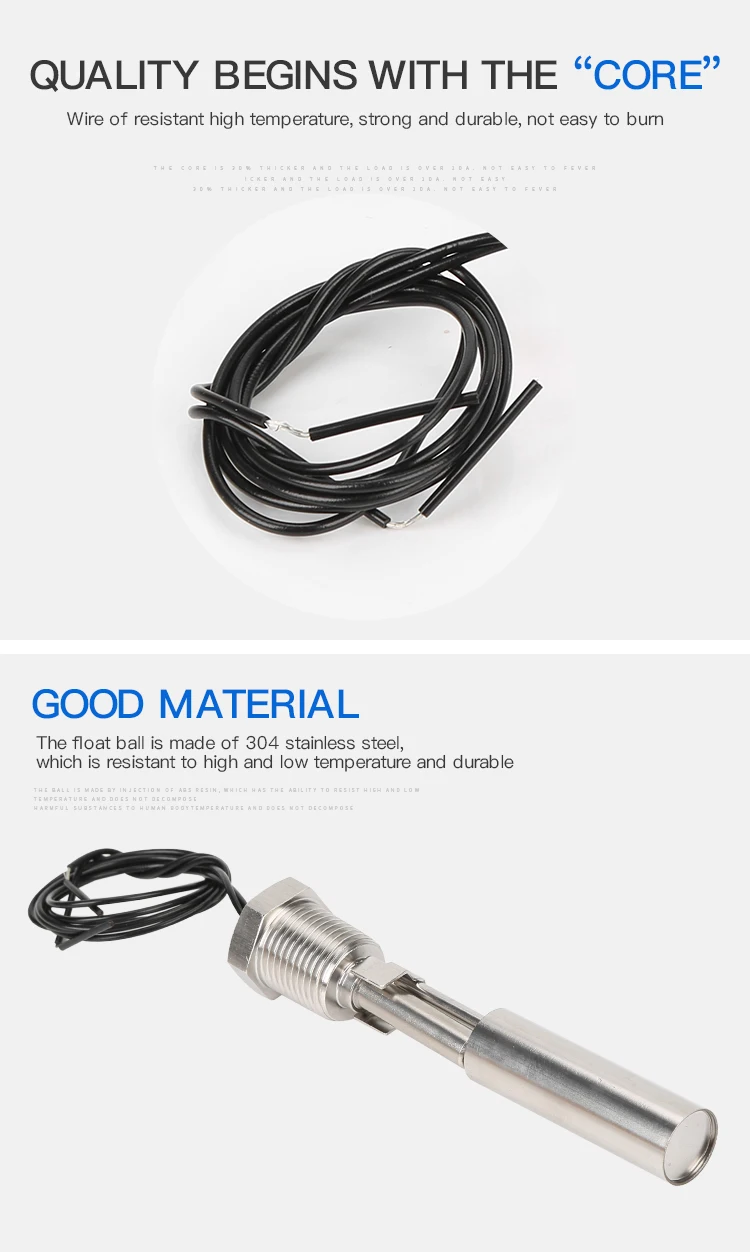

material:		304SS



Production Detail:

 1.Float level switch is widely used in water tank level auto control system, start up and close down the water pump or electric valve on the basis of liquid level.

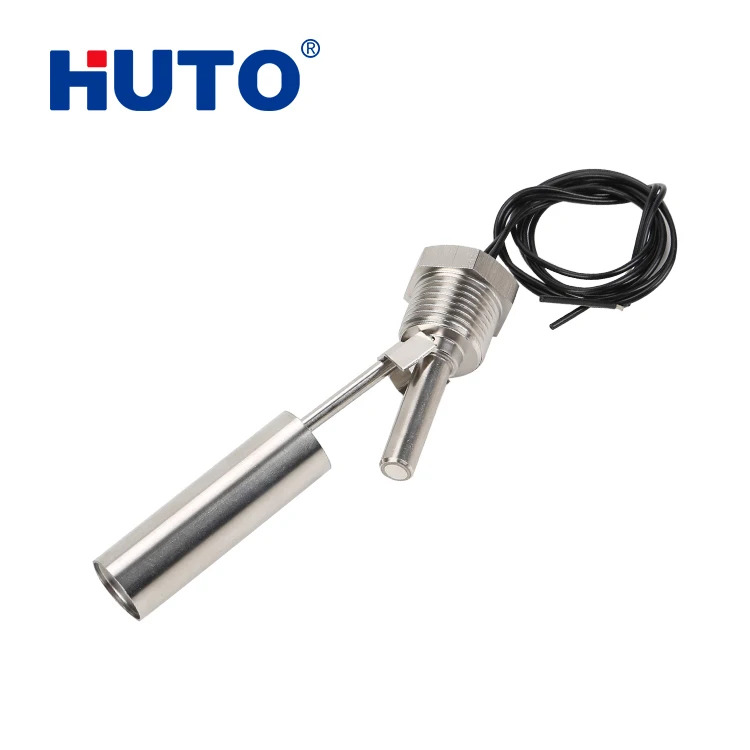

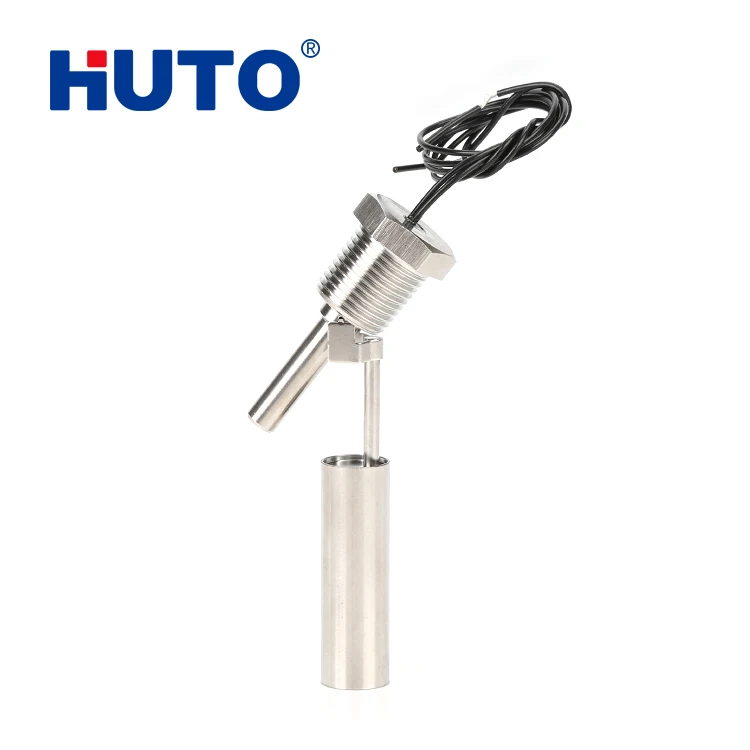

 2.Vertical installation switch can be mounted on the top or bottom of liquid tank; side installation switch can be mounted on the wall of liquid tank.

3.Switching type definition:
NO: Normally open, mounted switch on the top of tank, switching ON when float are rising .
NC: Normally close, mounted switch on the top of tank, switching OFF when float are rising.
