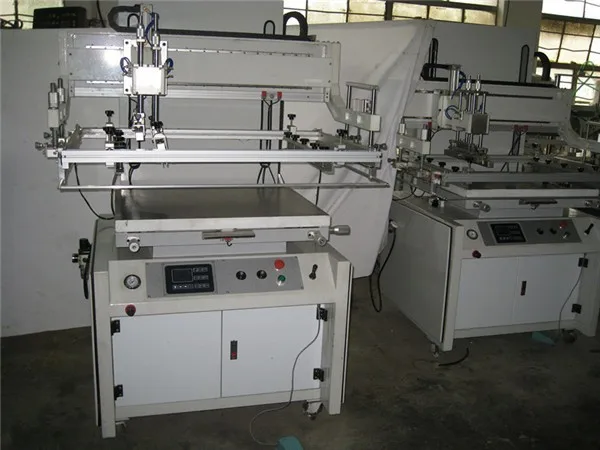

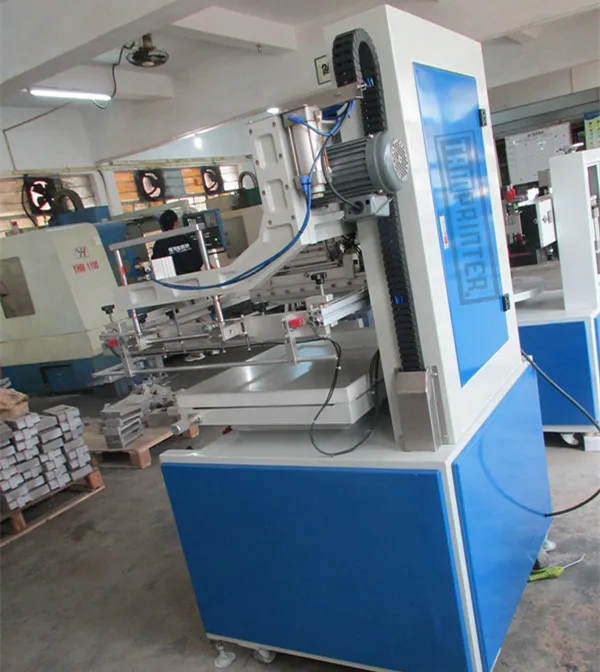

Vertical high precision flat screen printing machine for film buttons
- Category: >>>
- Supplier: Shenzhen Tamprinter Printing Machinery Co. Ltd.
Share on (60827937416):
Product Overview
Description
Technical parameters:
Common keys screen printing machine
Model No. | TM-D2030 | TM-4060C | TM-D4060 | TM-5070C | TM-D5070 | TM-6090C | TM-D6090 |
Drive type | X Common motor /Z Cylinder | X /Z Cylinder | X Common motor /Z Cylinder | X /Z Cylinder | X Common motor /Z Cylinder | X /Z Cylinder | X Common motor /Z Cylinder |
Printing area | 100X150mm | 400X600mm | 500X700mm | 600X900mm | |||
Table size | 250X280mm | 500X700mm | 600X900mm | 700X1000mm | |||
Max frame | 250X320mm | 650X720mm | 750X920mm | 800X1200mm | |||
Printing thickness | 0~40mm | 0~40mm | 0~ 50mm | 0~ 50mm | |||
Overlay accuracy | 0.05~0.08mm | 0.05~0.08mm | 0.05~0.08mm | 0.05~0.08mm | |||
Platform precision | About +/-0.04mm | About +/-0.04mm | About +/-0.06mm | About +/-0.075mm | |||
Printing pressure | 4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 | |||
Air pressure (mpa) | 0.5~0.6(Mpa) | 0.5~0.6(Mpa) | 0.5~0.6(Mpa) | 0.5~0.6(Mpa) | |||
Air consumption | 35L/min | 35L/min | 35L/min | 35L/min | |||
Printing speed | 1000pcs/h | 960pcs/h | 800pcs/h | 600pcs/h | |||
Power | 220V/1.5KW | 380V/1.5KW | 380V/1.5KW | 380v /2.3kw | |||
Dimensions (LXWXH)mm | 850X600X1350mm | 980X820X1580mm | 1330mmX1000mmX1750mm | 1500X1070X1750mm | |||
Weight | 200kg | 280kg | 420kg | 480kg | |||
Application:
For the Nameplate, Display Glass, light guide, lens window, membrane key switches.
Features:
(1).Printing transmission is driven by the electric motor, synchronous belt drive, action sensitive, even speed and can be adjusted.

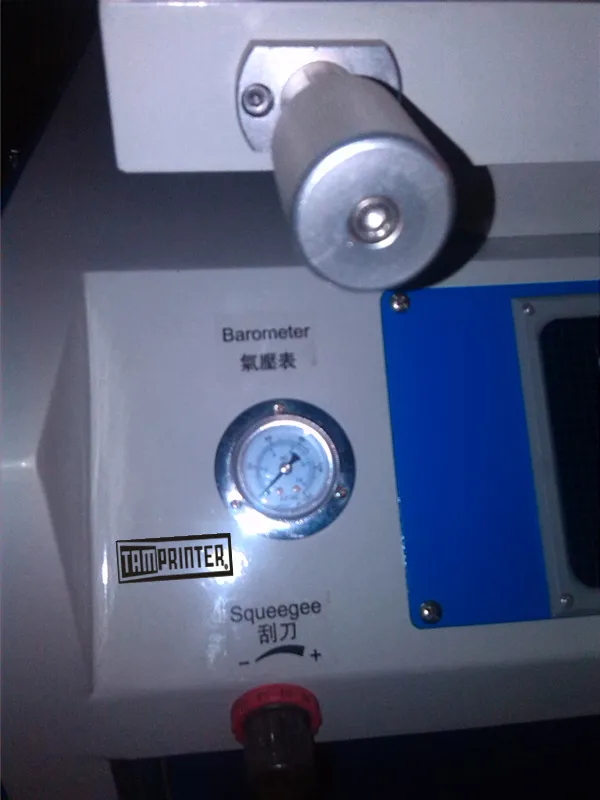

(2).Machine up and down is driven by the electric motor, frequency control, smooth operation, scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
(3).Vacsorbing to fix printing stocks.
(4). The worktable has a vernier regulation system (can move left and right, forward and backward) that makes registration more correctly and simply.
(5). With security devices to make the head printing stop on the upper part position that is more reliable and safer.

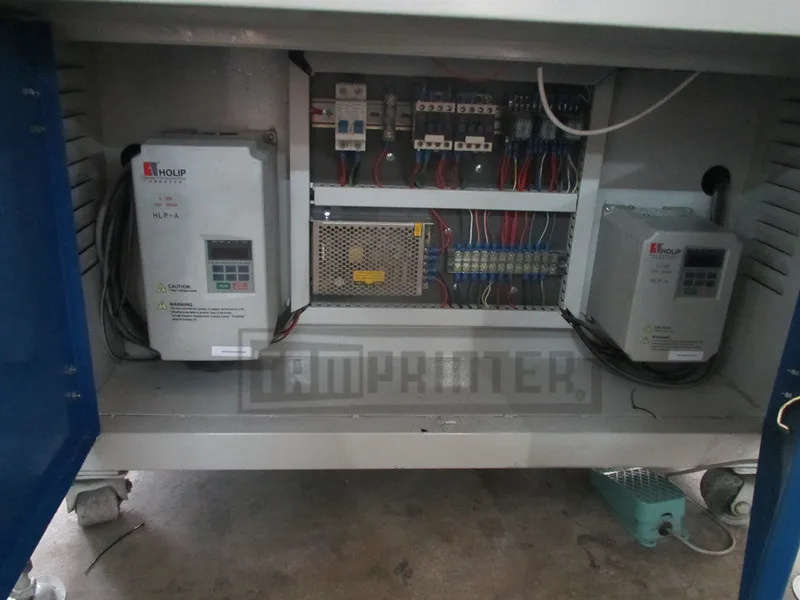

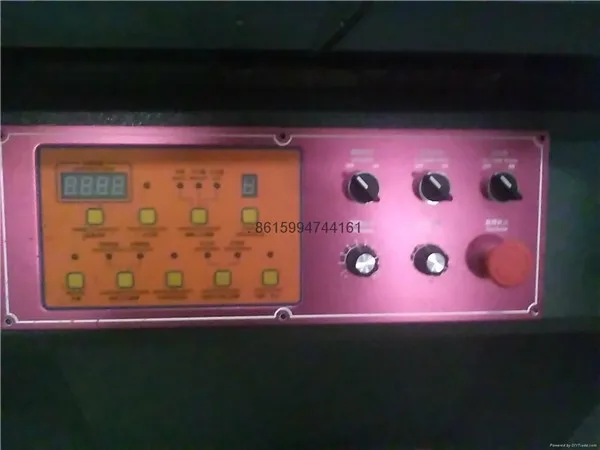

(6).The electronic control unit (ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain.
