PM20L 020 20mm captive linear actuator lead screw linear stepper motor bipolar customized small motors

Product Overview

Description

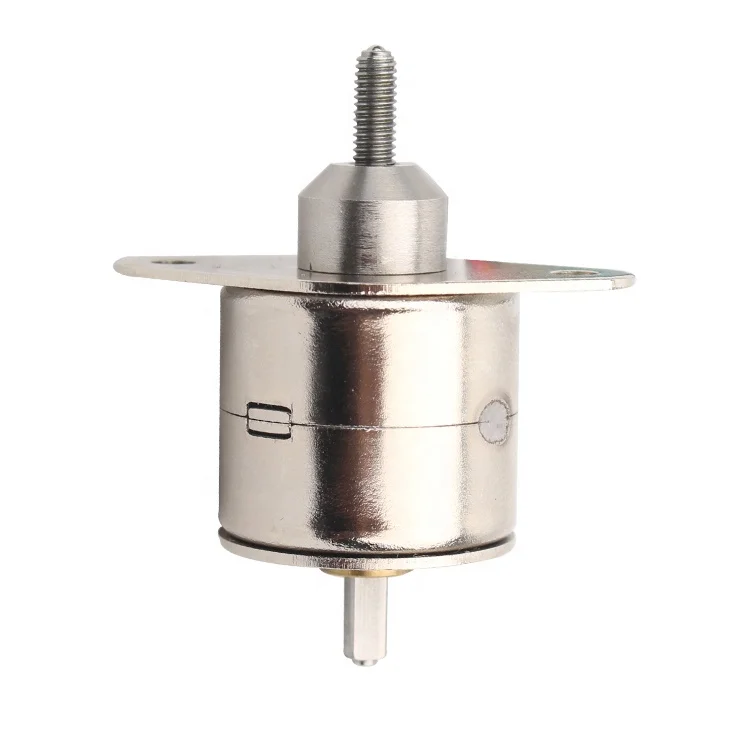

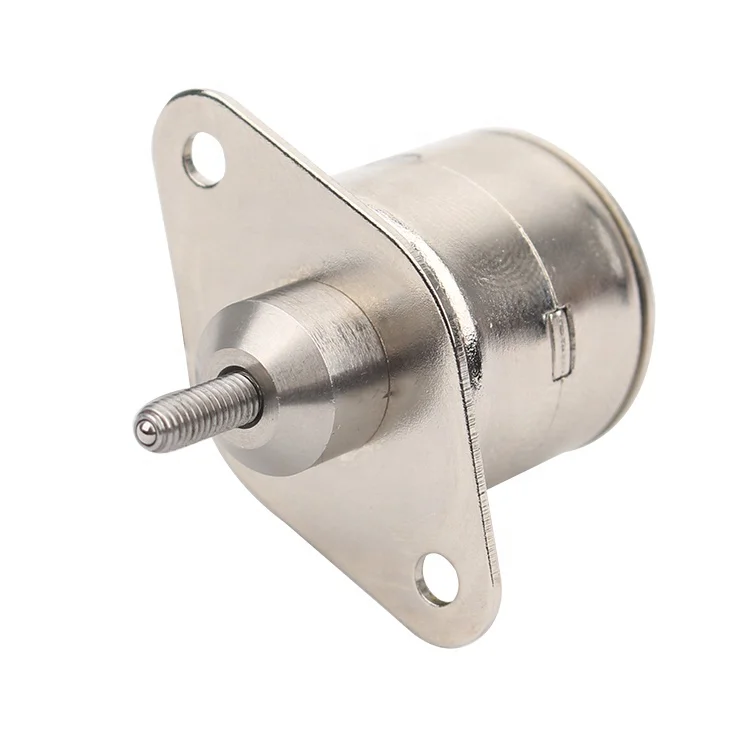

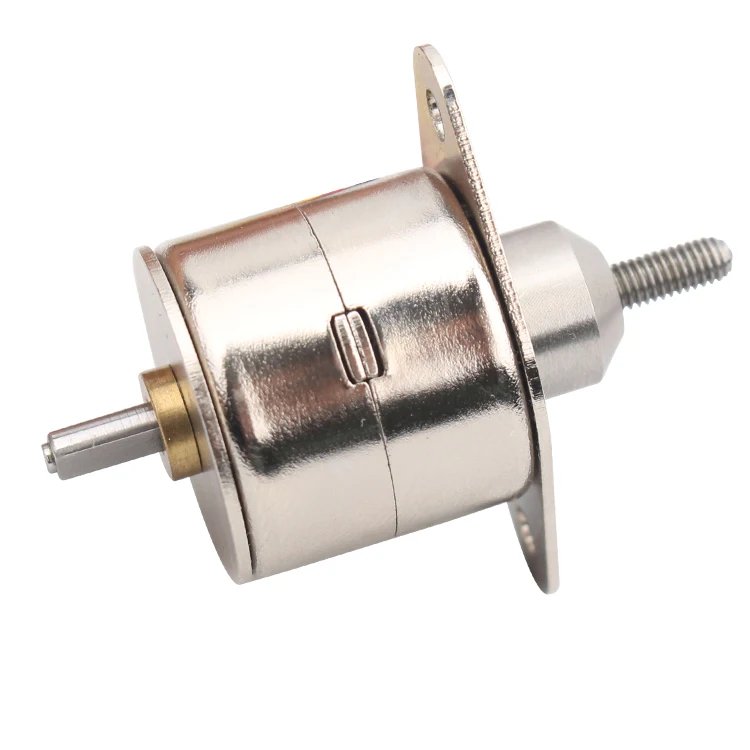

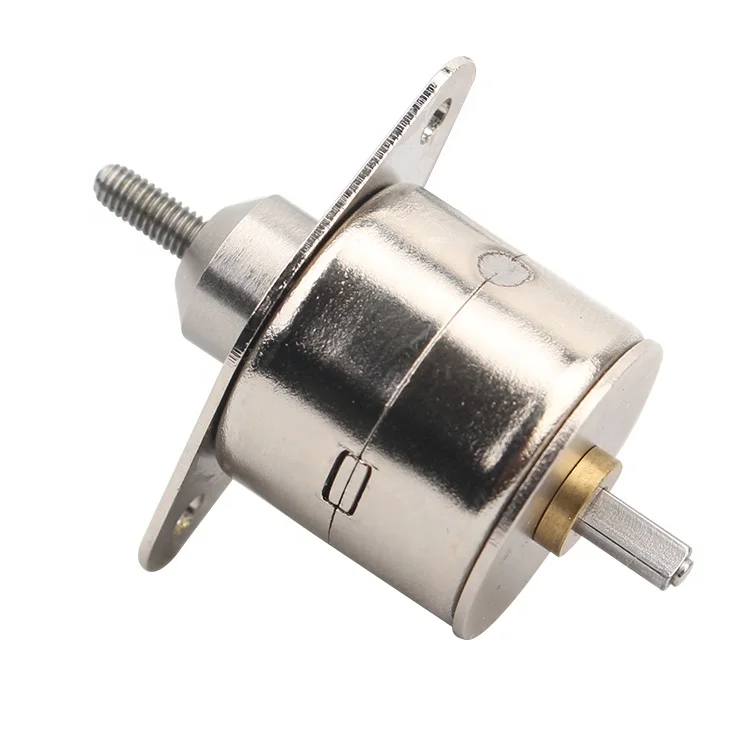

 20mm captive linear actuator lead screw linear stepper motor



PM20L-020 is a Stepper motor  whit a lead screw,  when rotor running CW or CCW,the lead screw will go forword or backword. at the same time ,the lead will rotating.

motor stepper step angle is 18 degree, lead pitch is 0.5mm, when motor stepper rotate one step, the lead move 0.025mm



This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.

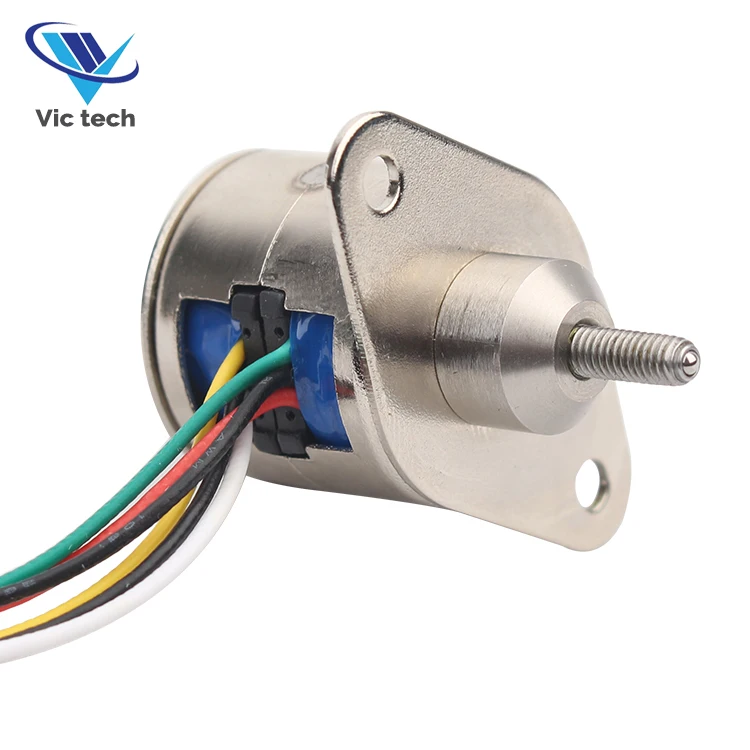

At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!



PRODUCT NAME	PM20 6v Linear stepper motor
MODEL	PM20L-020
RESISTANCE	21Ω±10%
Pull in frequency	670PPS
THE MARK THRUST	600g
inductance	4.5REF (mH)

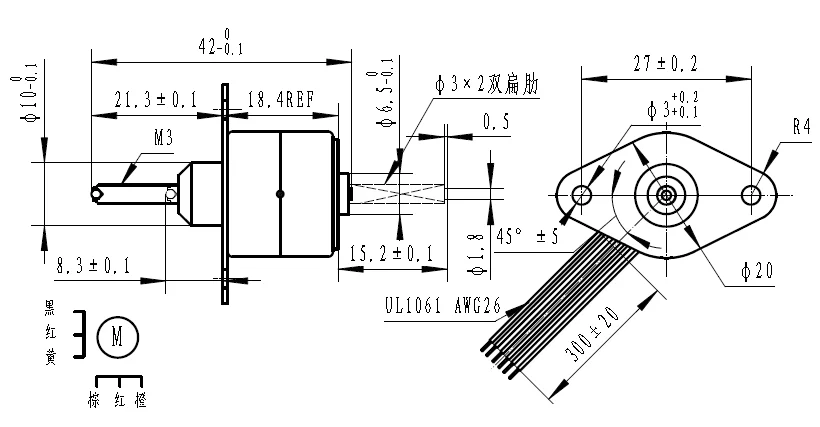

Mounting pitch	27±0.2 mm
Mounting aperture	φ3mm (Through hole)
Axial height	21.3 mm   8.3mm
INSULATION CLASS	class E
lead wrie	UL 1061 AWG26
OEM & ODM SERVICE	AVAILABLE

bipolar customized small motors
