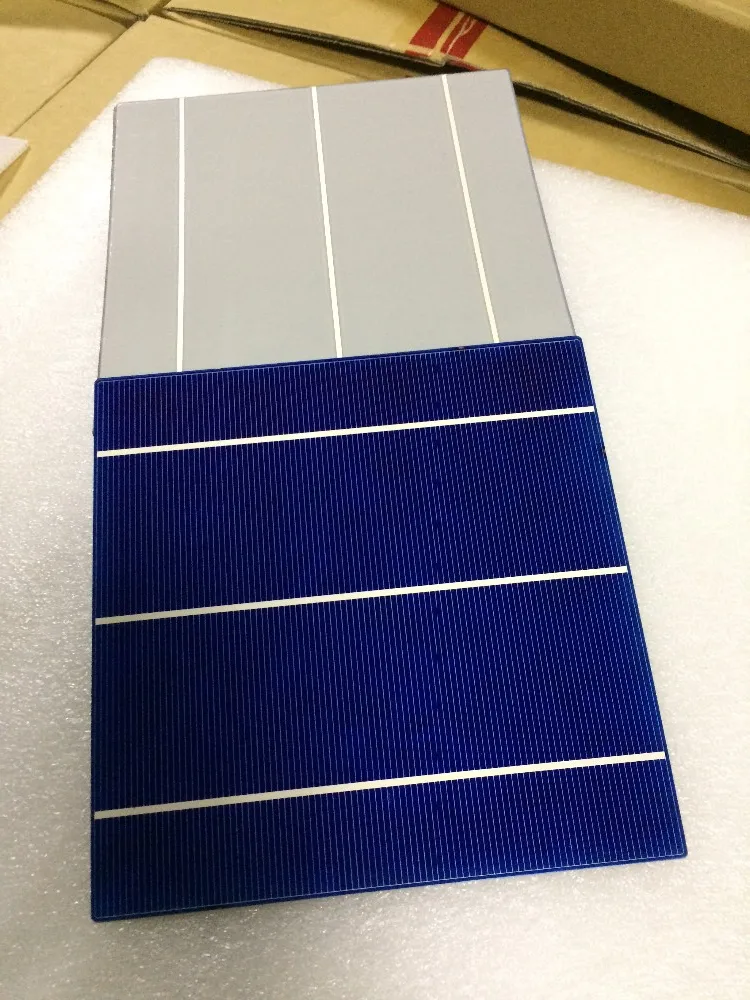

poly photovoltaic solar cells 156x156 3BB

Share on (60827960685):


Price:RUB 4,459.63

Quantity:


Product Overview

Description

poly photovoltaic solar cells 156x156 3BB



 Physical Characteristics



Itempoly photovoltaic solar cells 156x156  3BB
Materialpolycryalline silicon
Dimension156.76mmx156.75mm±0.25mm
Diagonal/
Thickness(Si)

200±20 μm/180±20μm

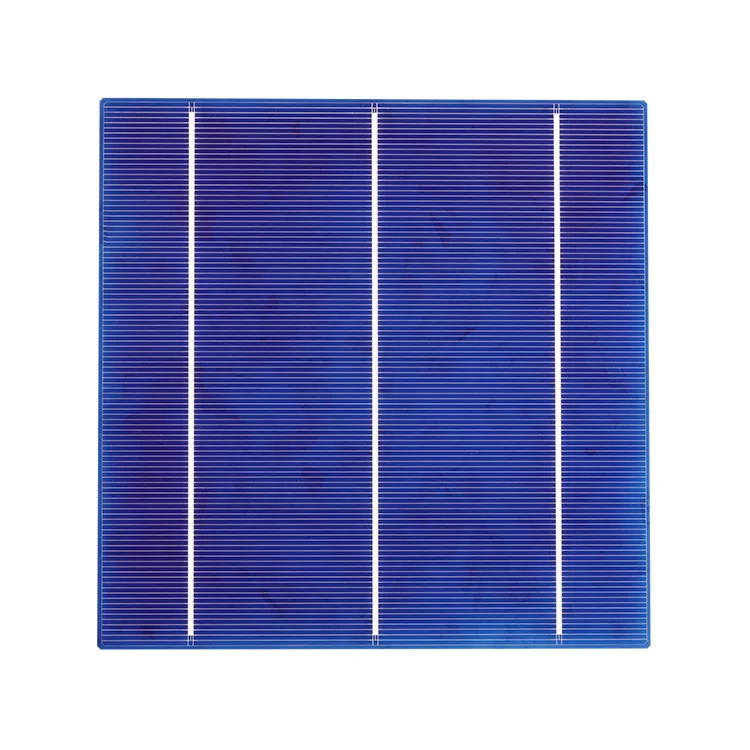

Front(-)

Blue anti-reflecting coating (silicon nitride)

1.4mm wide bus bars

Distance between bus bars: 52mm

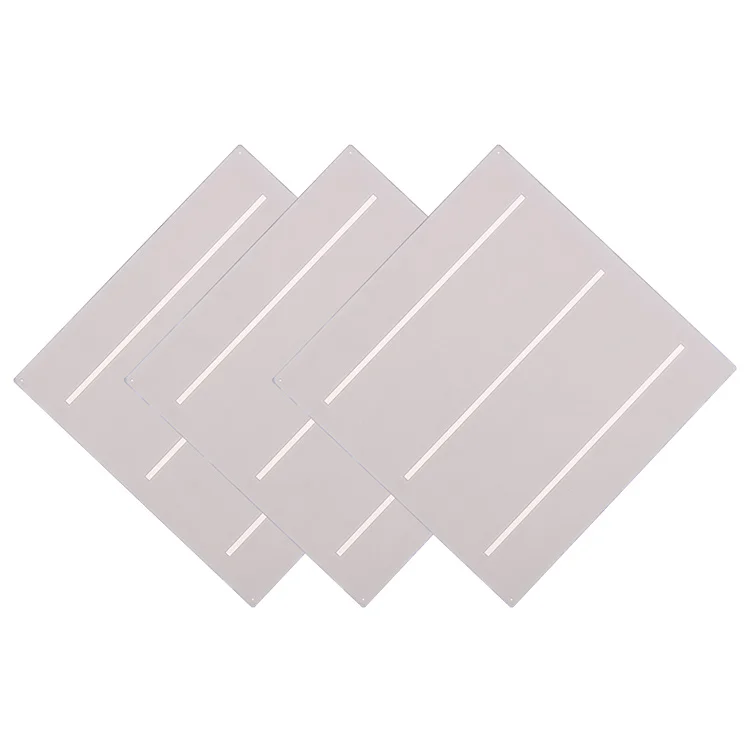

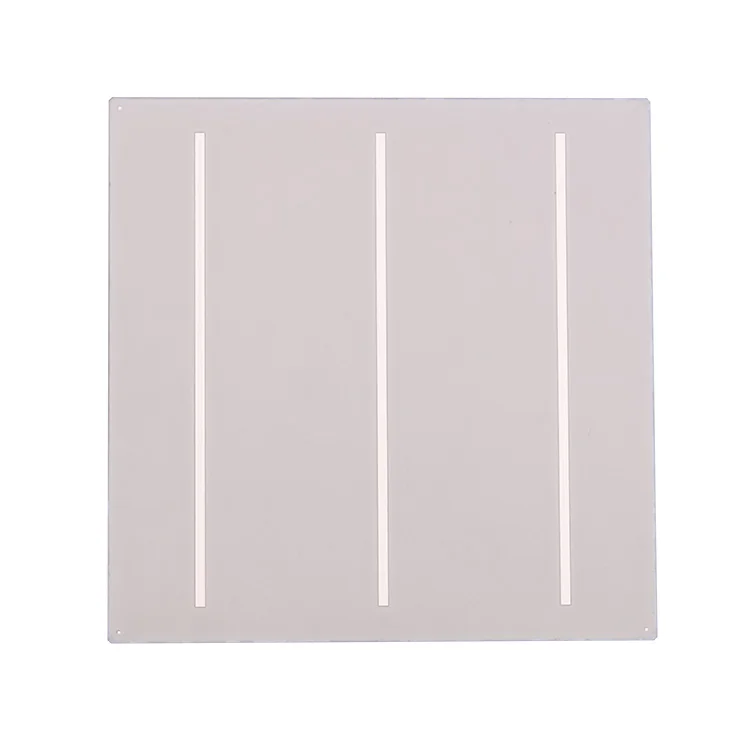

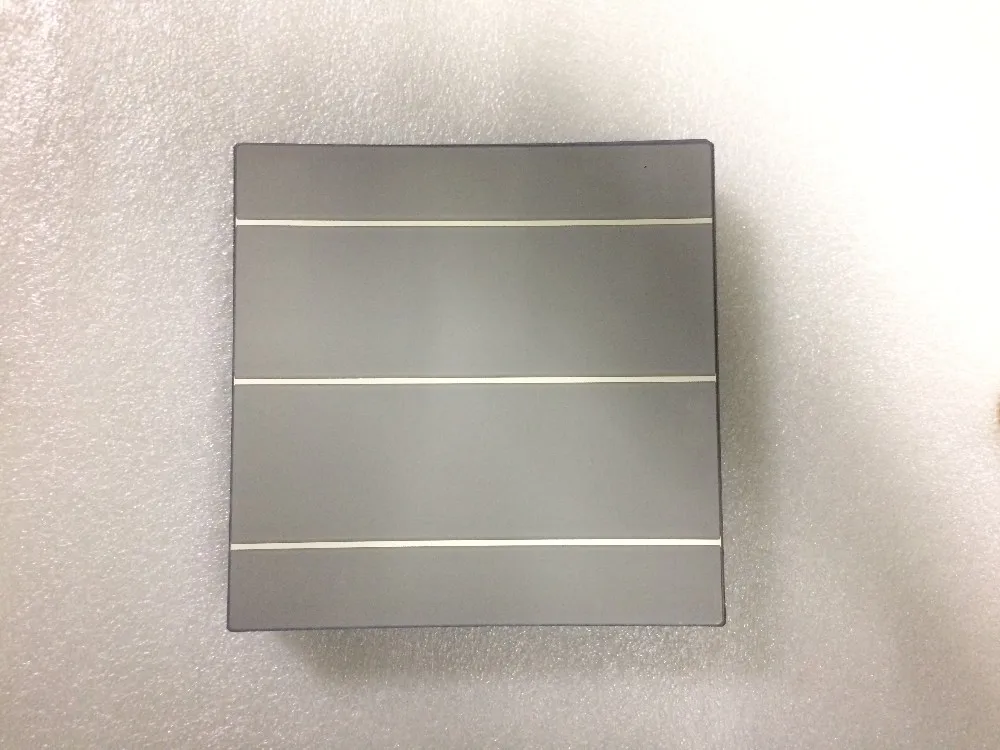

Back(+)

Aluminum back surface field

2.5mm wide soldering pads

Distance between bus bars: 52mm





 Electrical Characteristics





Efficiency code17401750176017701780179018001810182018301840
Efficiency(%)17.4%17.5%17.6%17.7%17.8%17.9%18.0%18.1%18.2%18.3%18.4%
Pmax(W)4.2744.2994.3244.3484.3734.3974.4224.4474.4714.4964.520
Vmp(V)0.5170.5190.5200.5230.5250.5270.5280.5290.5300.5310.532
Imp(A)8.2678.2838.3158.3148.3308.3438.3758.4068.4368.4678.496
Voc(V)0.6100.6120.6140.6170.6200.6220.6230.6240.6250.6270.628
Isc(A08.7638.7808.8148.8128.8298.8448.8788.9118.9428.975

9.006

 Data under standard testing conditions(STC): 1,000W/ m2 AM1.5, 25℃, eff. tolerance : average + 0.3%/-0.1% absolute.





 Production Process





 Packaging and Shipping
 Solar

poly photovoltaic solar cells 156x156  3BB



poly photovoltaic solar cells 156x156  3BB

Cell Sho
 Our Services




Quick Response
1. Any time and anywhere, reply clients' email and solve all problems happen in the work  at the first time.
2. Remove clients doubts and offer the best solution at the first time.
 3. Give our clients the lastest news of the photovoltaic, update the newest stock informtion.
4. Precision cell efficiency sorting procedures
5. Stringent criteria for color uniformity and appearance
6. Reverse current and shunt resistance screening
7. We always giving our clients the most economical and fastest deliery method.
8. No matter the Air transportation / Ocean shipping /  Internation express, our professional logistic team will ensure cargo transportation Safe and High efficiency
Payment Terms
We can accept payment by T/T, LC, Paypal, Western Union and Trade Assurance in Alibaba.

Company Information



Shenzhen Taihesheng Solar Energy Co.,Ltd is a professional manufacturer & exporter which is concerned with the design, production,and marketing. our manufacturer covers an area of 8000m2 as a high-tech environmental friendly enterprise,which was established in 2009 and specialized in solar industry for providing solar cells ,solar modules , solar panels and solar charger etc application products.

Under strict quality control system. Our products include: 125mm mono solar cell and 156mm poly & mono solar cell,0.1W-300W mono-crystalline and poly-crystalline silicon solar panel.our products approved CE, ISO, RoHS,IEC, TUV,UL certificates, Which are widely exported to Europe,America, Africa, Asia and Middle east countries, we gainded more and more higher reputation from our clients.We also offer OEM,ODM,OBM service as per customer requirement and aim at making a greater contribution to the usage of solar energy in the world.
