Product Overview

Description

soft starter for blender

Product Introduction



XPD series of digital AC motor soft starter is a new international advanced level equipment which adoption of power electronics technology, micro-processing technology and modern control theory design and production.

The product can effectively limit the starting current when the asynchronous motor starts.

Widely used in fans, pumps, transport class and the compressor and other load-type machinery.



Character:

Starting mode

Different starting mode and parameter setting can be selected according to characteristics of the load. The softer starter can optimize the starting effect of the motor to the most extent.

High technology performance

The control circuit is simplified by adopting high performance microprocessor and powerful software support function. Consistent, accurate and quick speed of execution can be obtained without adjusting the circuit parameters.

High reliability

All electric elements of the XPD series  smart soft starter are filtrated strictly, and the master control board has been circle tested for 72 hours at high temperature and vibration tested, and thereby the high reliability of the product can be guaranteed.

Structure optimized

Unique compact modular structure and connecting mode of upper inlet wire and lower outlet wires make the starter more compact and it facilitate the integration and mating of starter.

Set up function of keyboard

Convenient and visualized operation display keyboard can be used to set up and modify the start, stop, operation and protection parameters according to different loads.

Functional description

The XPD series smart soft starter can provide the motor with protective functions of open-phase, overload, over current,excess starting time and three phase current balance degree and so on. Build in 12v power supply,simulating 4-20mA current output,setting up the function of soft stop.

Rated power supply outputted

Actual output current of the smart soft starter can be adjusted within a certain range to make the actual output current of the smart soft starter match with the actual load current if the nominal power of the smart soft starter is larger than the actual load power, and thereby to guarantee the output power of the smart soft starter match with the actual load power.



Function:

* Reduce starting current of the motor and decrease capacity of power distribution to avoid investment in the capacity increase.

* Reduce starting stress and prolong service life of the motor and relevant equipments.

* With Multi-starting mode, wide range current and voltage, the smart soft starter can adapt multi-loading condition and can improve technology.

* Powerful and complete performance,guarantee the reliable operating of load equipment

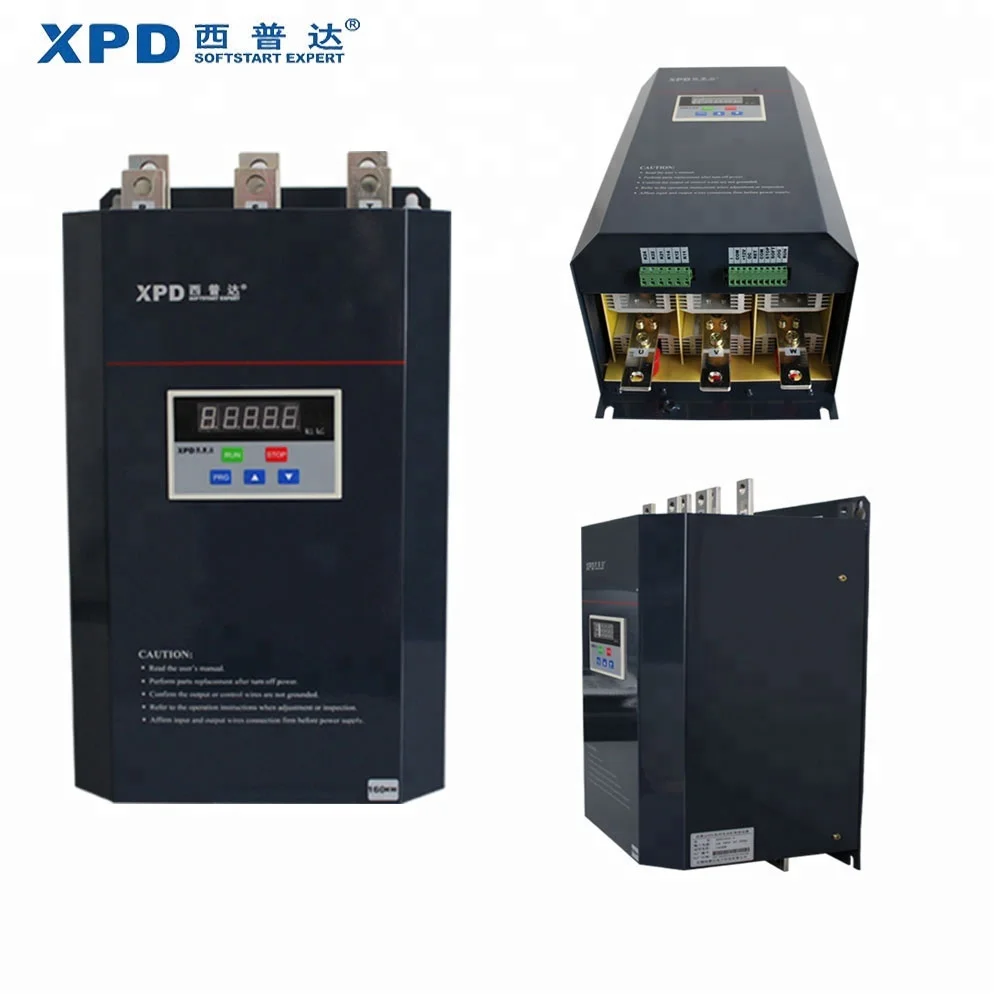

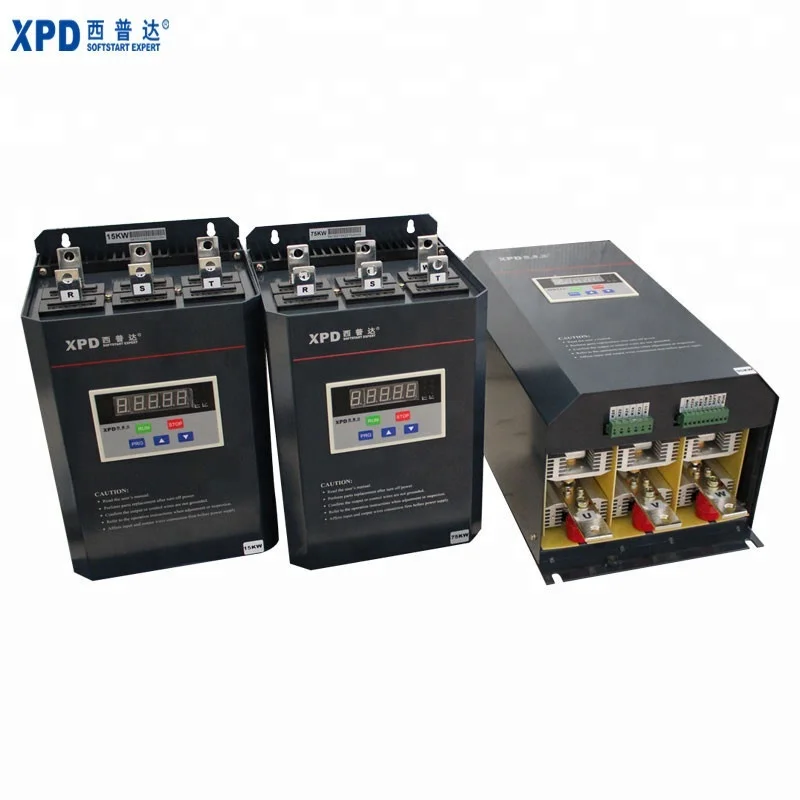

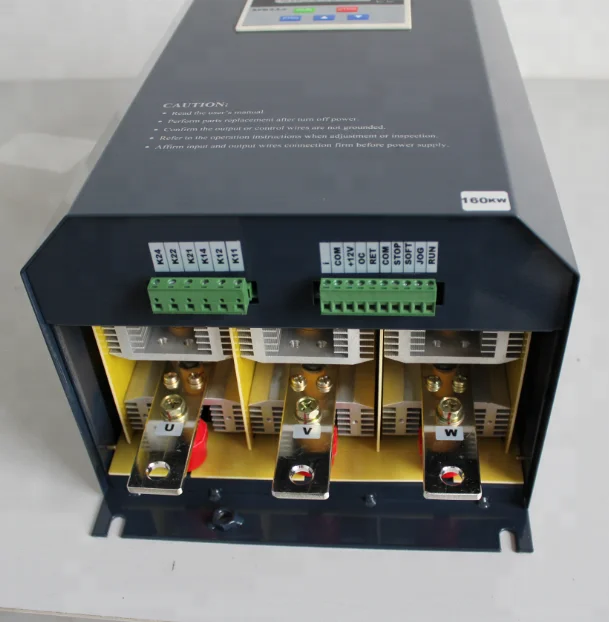

Product Show:

soft starter for blender







Install Model & Overall Dimesion

Model	Adaptive motor	Rated Current	Dimension
	(KW)	(A)	width×hight×thickness
XPD008A-3	7.5	15	206×322×195
XPD015A-3	15	30
XPD022A-3	22	45
XPD030A-3	30	60
XPD037A-3	37	75
XPD045A-3	45	90
XPD055A-3	55	110
XPD075A-3	75	150
XPD090A-3	90	180	260×463×213
XPD110A-3	110	220
XPD132A-3	132	260
XPD160A-3	160	320
XPD187A-3	187	395	300×490×242
XPD200A-3	200	400
XPD250A-3	250	480
XPD280A-3	280	550
XPD320A-3	320	620
XPD400A-3	400	720	472×530×306
XPD450A-3	450	850
XPD500A-3	500	1000
