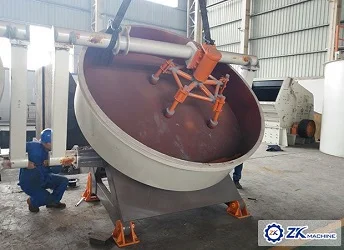

Wet Disc Granulation Equipment/Iron Ore Pellet Machine

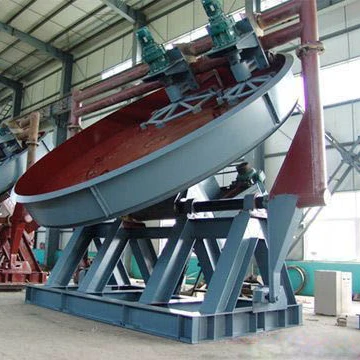

ZK disc granulator is divided into unpowered scraper disc granulator (PQW) and powered scraper disc granulator (PQ). The two kinds of disc granulator are all have the feature of simple structure, convenient operation, the moisture of pellet can be easily control and high hardness. The disc granulator adopts massive structure, the disc bottom reinforced by multiple radiation steel plate. The motor and reducer adopt flexible belt driving, so the life time is increased by the smooth start and low impact.

1.Novel structure with light weight and low height, and convenient process layout;

2.Disc inclination convenient to adjustment

3.Disc granulator composed by disc bottom and section, the section can adjust up and down along disc body, the pellet can’t be strain guarantee by flange at the end of disc section.

4.The scraper device composed by unpowered scraper and powered scraper, which supporting the use of optimized disc when cleaning the bottom and side, then the pelletizing result is very well and qualified pellets can be reached over 90%.

The uniform particle core was made by raw material powder, then sent into the disc, after that the core go along a parabola by centrifugal force, friction force and gravity in the disc, the moisture will go out of the core surface in the rolling process, because of the cohesiveness and plasticity, the core will become bigger with raw powder in the process. The pellet has well intensity because of the material cohesiveness and the natural volatilization of surface liquid film. When the disc inclination, edge height, rotate speed and moisture all fixed, the pellets with different diameter will rolling down from disc edge by different angle cause of different gravity, then discharging from the disc edge by rotating inclined disc body.

Henan Zhengzhou Mining Machinery Co., Ltd (ZK) was found in 1956. After half century development, it becomes a comprehensive modernized enterprise, including the business service such as scientific research, design, develop, manufacture, sales, installation, test and training. The main products of company include: ball mill, rotary kiln, vertical pre-heater, cooler, crusher, metallurgical coke oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, pre-heater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry. The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and region.

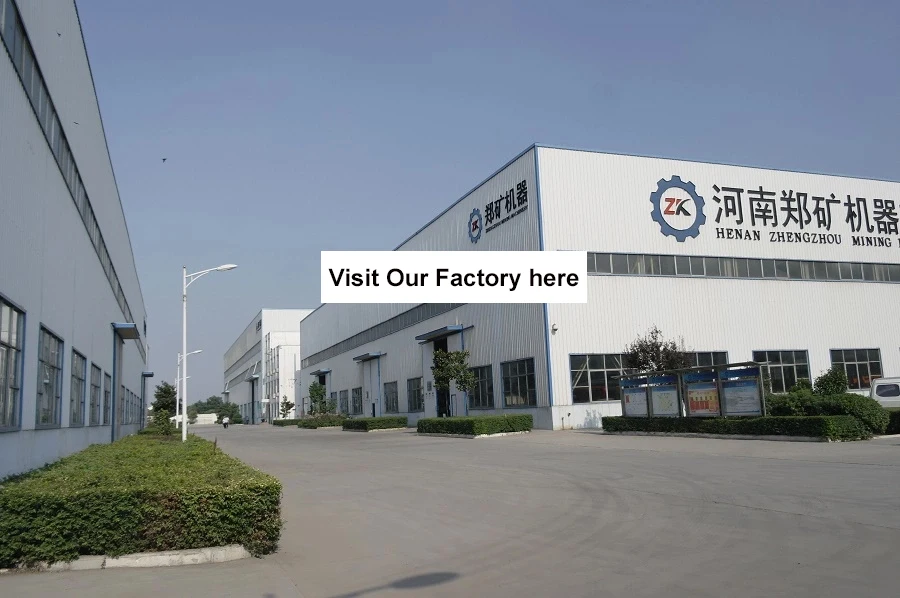

Our factory Outlook

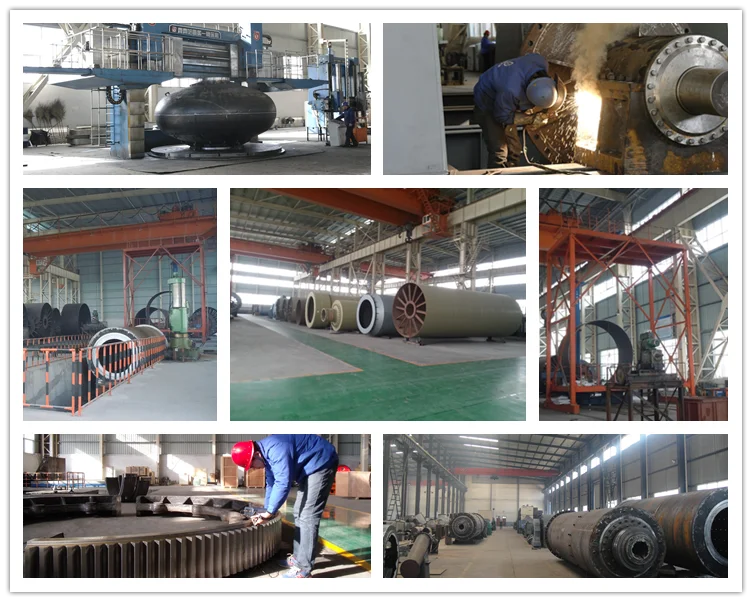

Our specialized high-water product workshop

We have a professional R & D engineers and a strong after-sales team

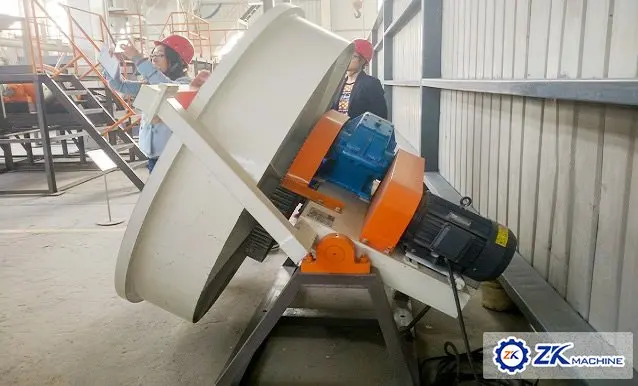

Customers around the world come to visit our factory

Address: Qiaolou caizhai industrial estate, Xingyang, Zhengzhou, Henan province, China.

Welcome to visit our company and factory to learn more about us.

Call our  Tel: +86 371  55902866
