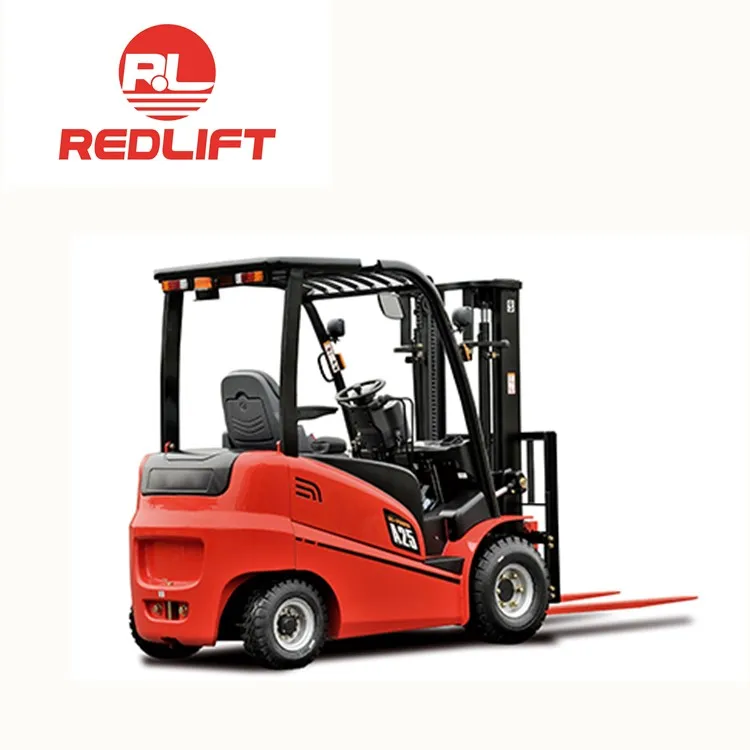

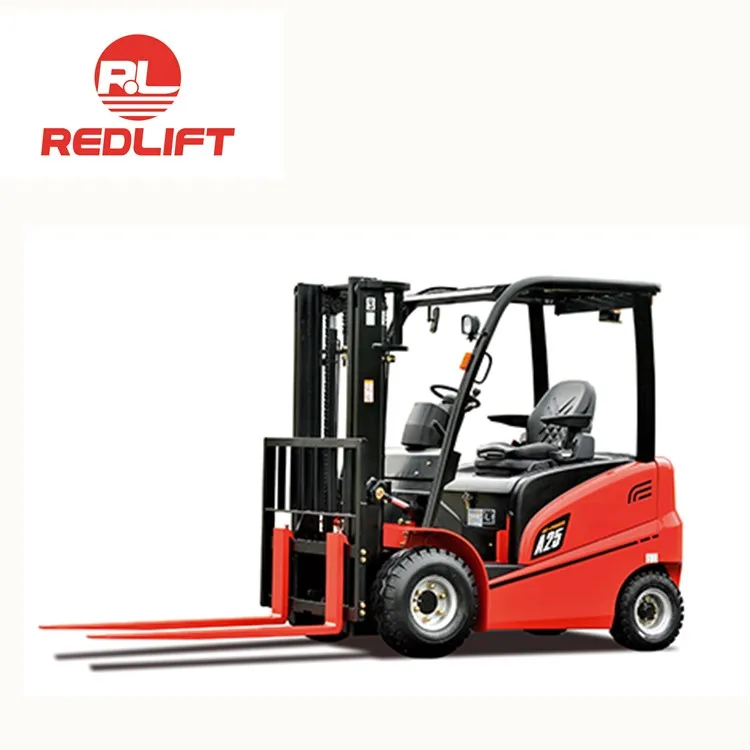

RED LIFT 2.0ton/2.5ton AC/DC 4wheel electric forklift truck battery forklift
- Category: >>>
- Supplier: Hangzhou Reddot Equipment Co. Ltd.
Share on (60828218411):
Product Overview
Description
Product Description

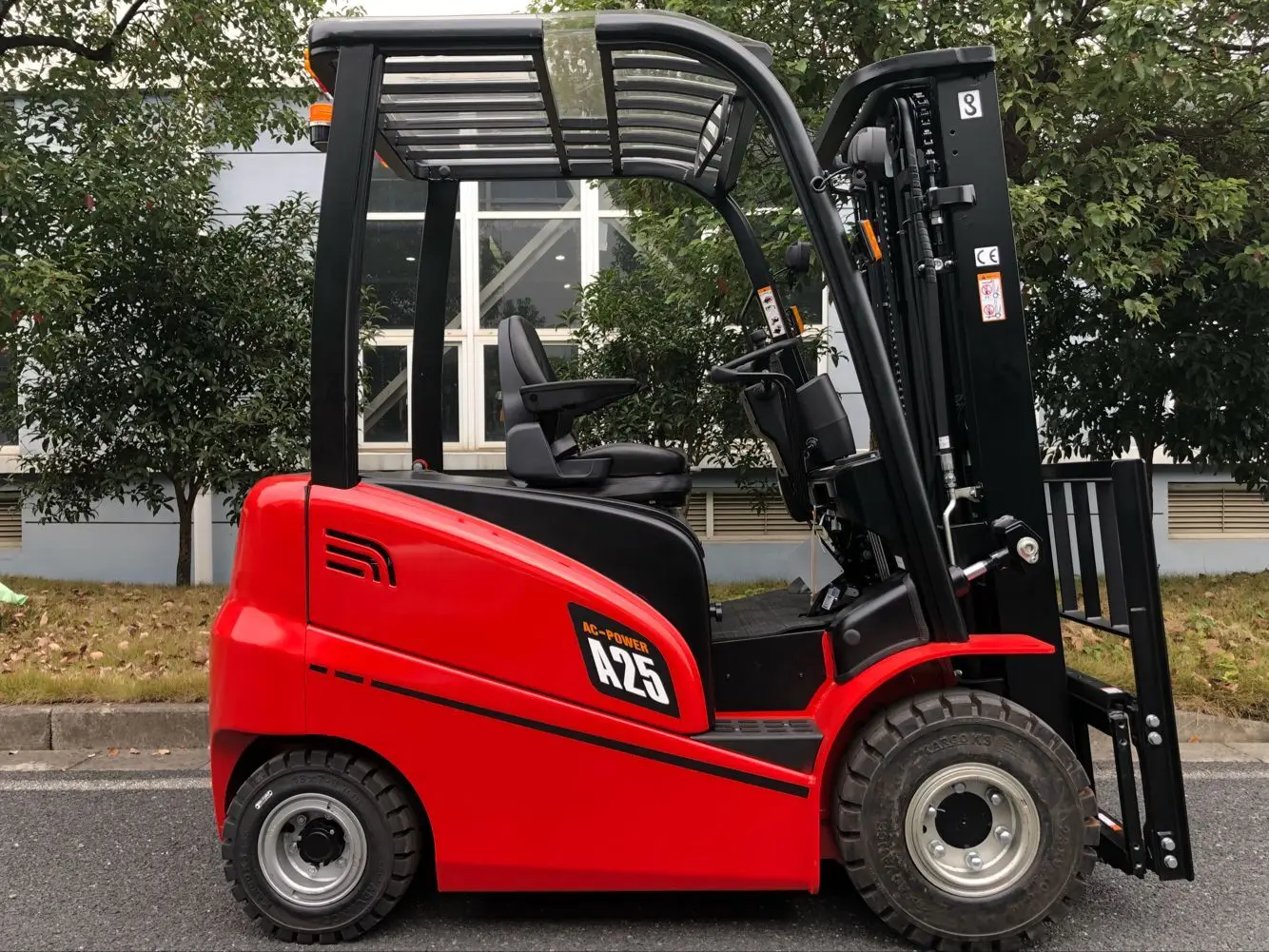

RED-LIFT 4wheel electric forklift truck
| Manufacture | RED-LIFT | RED-LIFT | |
| Model | CPD20 | CPD25 | |
| Power type | AC motor | AC motor | |
| Rated capacity | KG | 2000 | 2500 |
| Load center | mm | 500 | 500 |
| Length to face of fork | mm | 2342 | 2342 |
| Overall width | mm | 1265 | 1265 |
| Standard fork dimension(L*W*T) | mm | 1070*122*40 | 1070*122*40 |
| Mast lowered height | mm | 2070 | 2070 |
| Mast extended height | mm | 4040 | 4040 |
| Overhead guard height | mm | 2075 | 2075 |
| Self Weight | KG | 3700 | 4180 |
| Front tyres | mm | 23*9-10 | 23*9-10 |
| Rear Tyres | mm | 18*7-8 | 18*7-8 |
| Drive motor | AC | AC | |
| Controller | Curtis/Zapi/Kollmorgen | Curtis/Zapi/Kollmorgen | |
| Battery | V/Ah | 48/630 | 48/630 |
Capacity :2000kg/2500kg ; Loading center 500mm ;
Pneumatic tyres ,3mtr 2stage mast as standard
Options: Side shift ,higher mast ,solid tyres ,suspension seat ,cabin ,Bigger capacity battery and so on are all available
Packaging & Shipping
For 2.0ton/2.5ton model
4units in one 20ft container
8units in one 40ft container
Company Information

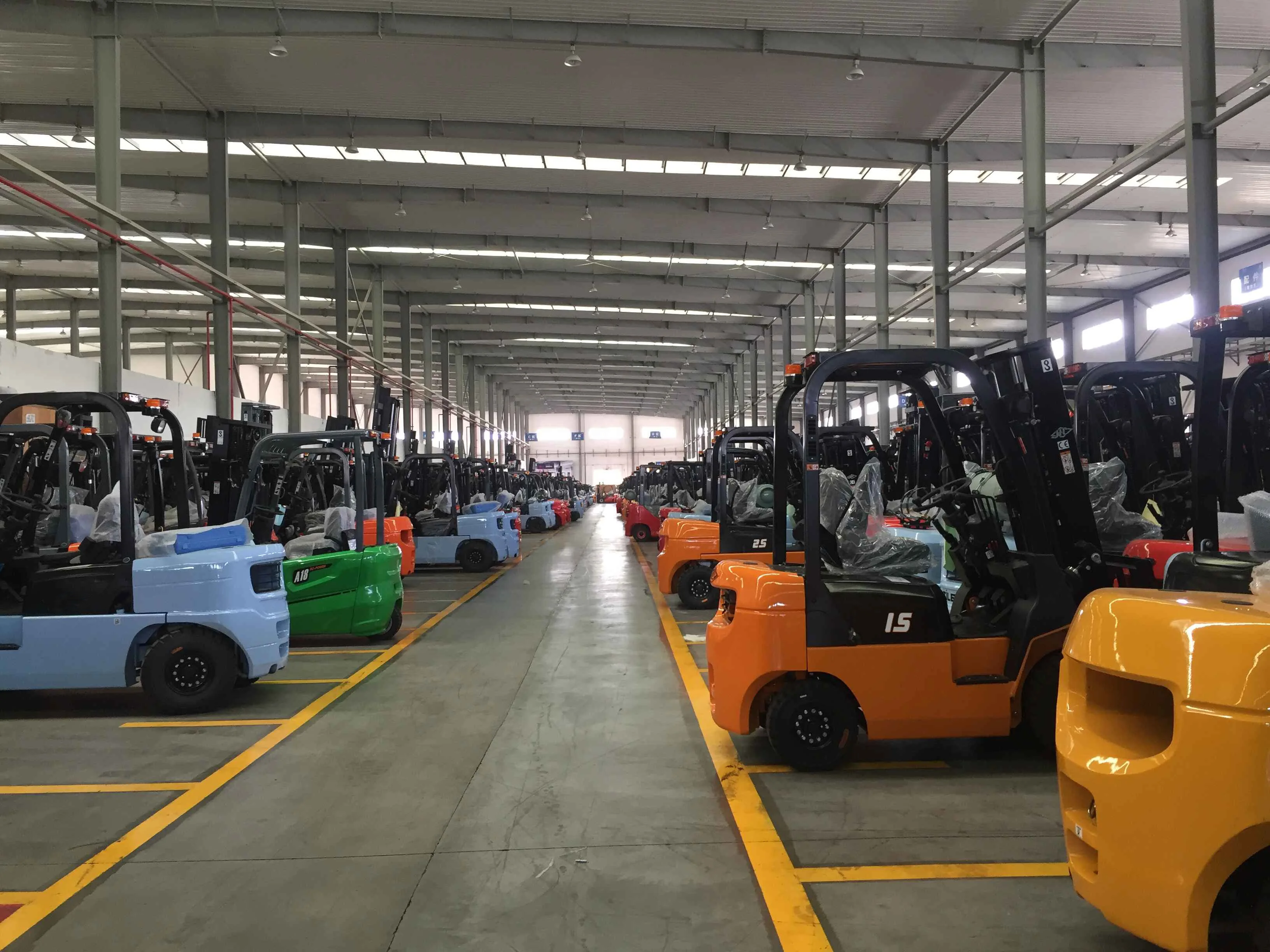

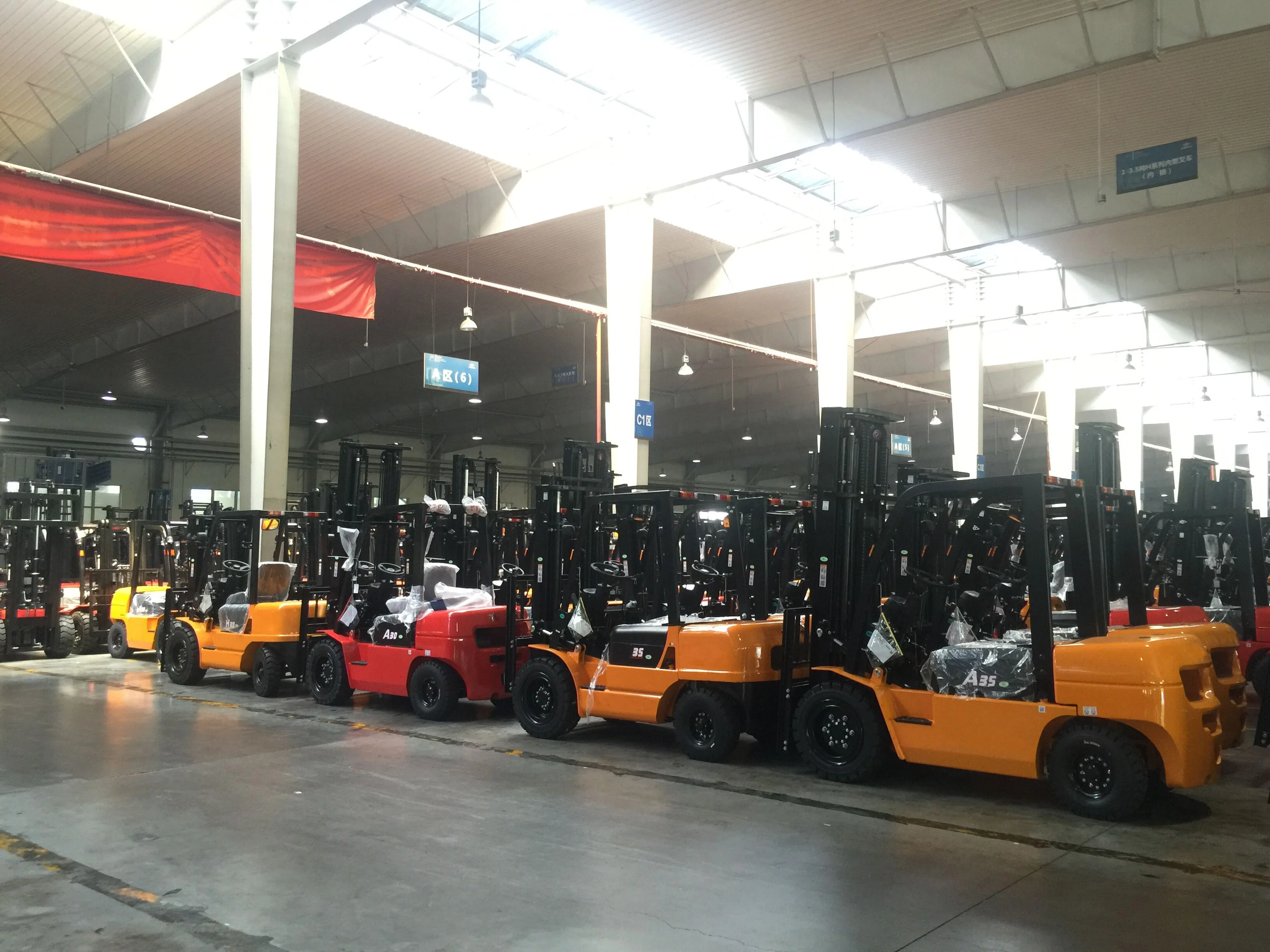

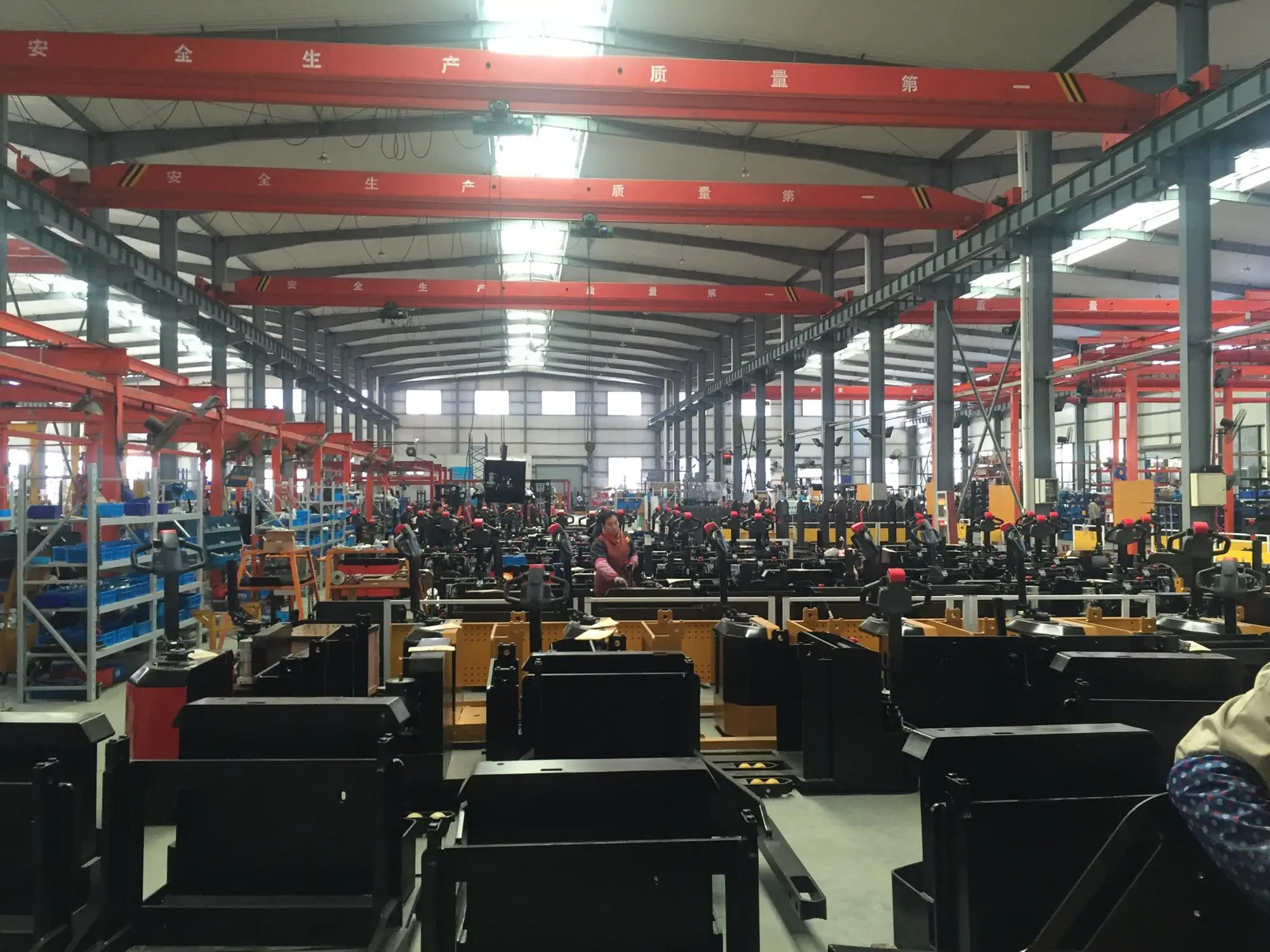

Factory&Warehouse
