Драйвер шагового двигателя 220 ac nema 42, драйвер шагового двигателя 8a arduino
- Category: >>>
- Supplier: Dongguan ICAN Technology Co. Ltd.
Share on (60828252483):
Product Overview
Description

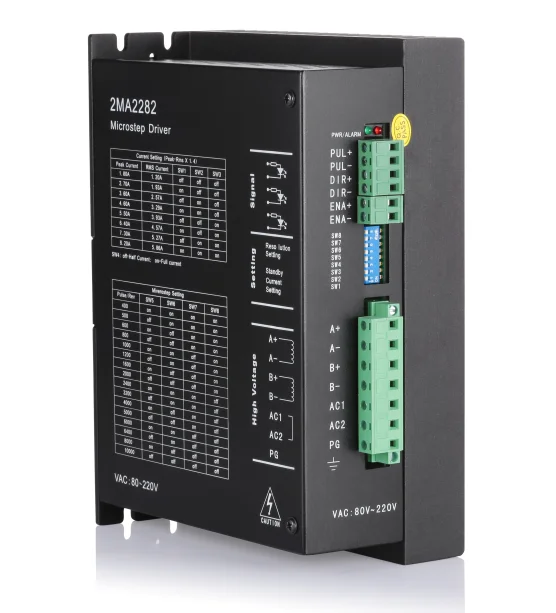

220 ac nema 42 stepper motor driver, 8a stepper motor driver arduino
Product Description
Features
| ♦ Maximum output current: 8.2A ♦ Maximum input voltage: 220VAC ♦ Self-test function ♦ low noise, low vibration ♦ Alarm signal output(O.C) | ♦ Pulse, direction, enable 5~24V input ♦ Support PUL/DIR and CW/CCW modes ♦ Maximum number of subdivision: 10000 ♦ Microstep emulation, which provides smoother, more reliable motion. |
Driver interface and wiring diagram
| Item | Function |
| PUL+ | Pulse control signal: effective pulse falling edge, |
| PUL- | |
| DIR+ | Direction control signal: High and low level pulse signals, |
| DIR- | |
| ENA+ | Enable control signal: When effective(high level 5~24V), |
ENA- | |
| ALM+ | Alarm signal output(OC). The maximum voltage is 24V, the maximum saturation current is 100MA |
| ALM- |

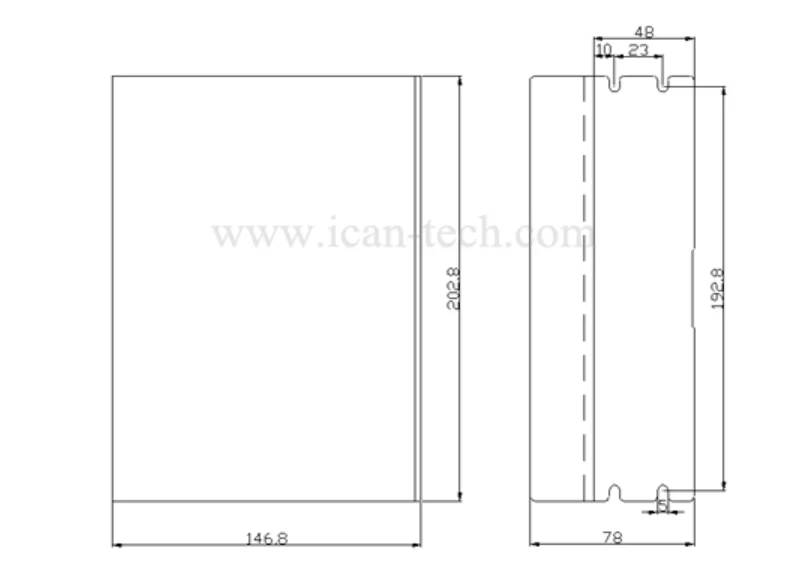

Mechanical dimension
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Company show:

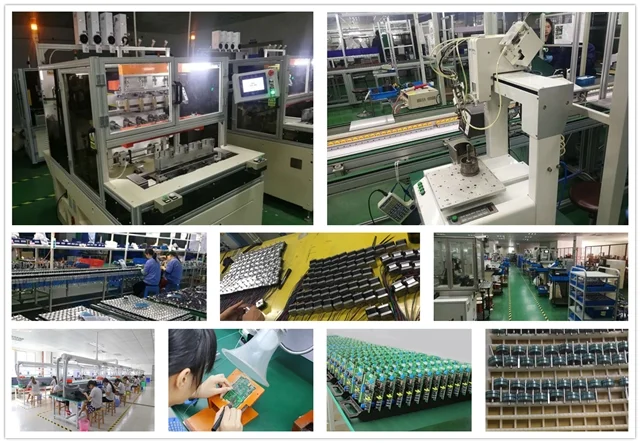

Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.

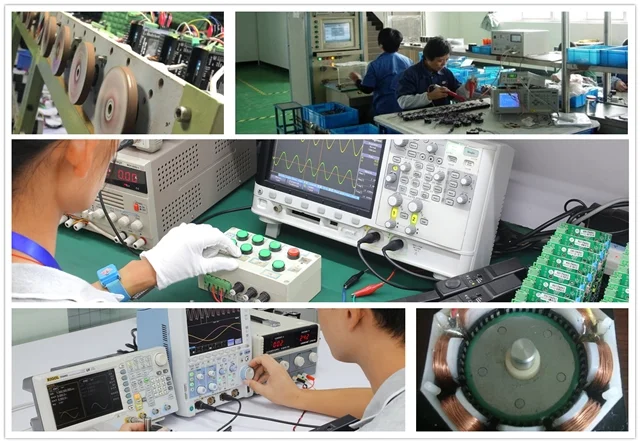

Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
