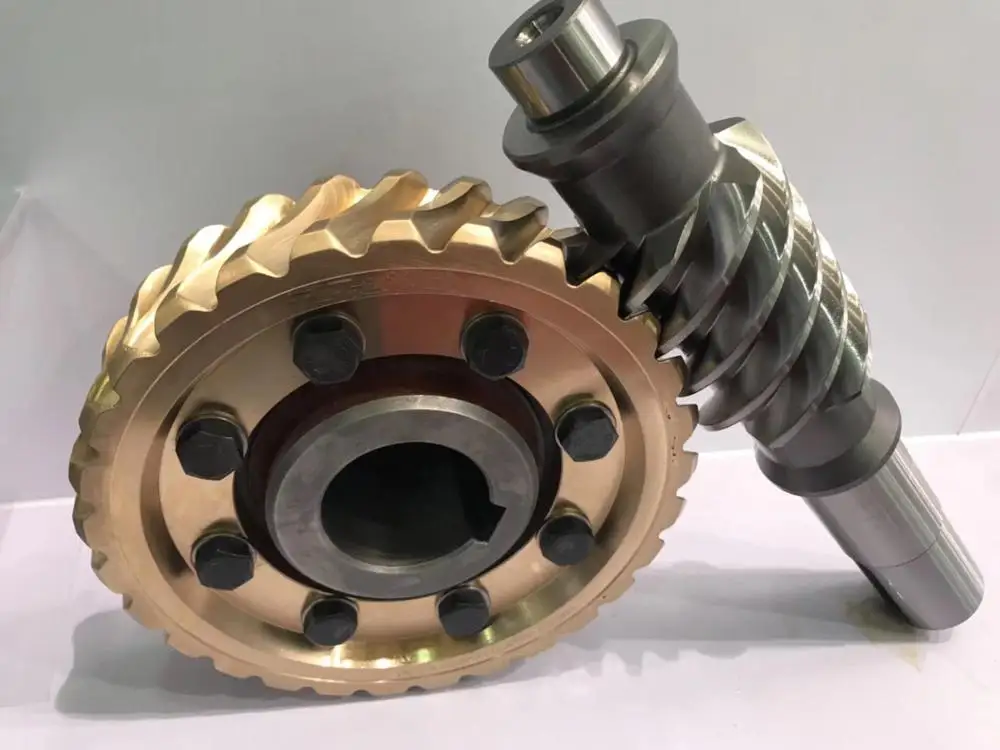

Worm Gears OEM Brass Stainless Steel Worm wheel and gear set suppliers for speed reducer
- Category: >>>
- Supplier: Shanghai Michigan Mechanical Co. Ltd.
Share on (60828270164):
Product Overview
Description
Products Description
Worm & worm gear: A worm drive is a gear arrangement in which a worm (which is a gear in the form of a screw) meshes with a worm gear (which is similar in appearance to a spur gear). a worm drive can reduce rotational speed or transmit higher torque.
Specification | ||
Precision grade | ISO grade 6, AGMA grade 12 | |
Pressure angle | 20° | |
Material | 83600 | |
Heat treatment | _____ | |
Tooth hardness | _____ | |
Reduction ratio | Transverse Module | No. of teeth | Profile shift coefficient | Helix angle | Pitch dia. (C) | Outside Dia. (D) | Face width (E) | Mounting distance (J) |
20 | 2 | 20 | -0.5 | 5°12' | 40 | 44 | 18 | 30 |
20 | 2.5 | 20 | 0 | 4°46' | 50 | 57.5 | 20 | 40 |
36 | 3 | 36 | 0.333 | 4°31' | 108 | 119 | 25 | 74 |
40 | 4 | 40 | 0 | 5°43' | 160 | 172 | 30 | 100 |
50 | 5 | 50 | 0 | 5°43' | 250 | 265 | 35 | 150 |
60 | 6 | 60 | 0 | 5°43' | 360 | 378 | 40 | 210 |
Thank you for reaching out to us for your custom gear requirements. Our Engineering team will review your request and will be in contact within 24 hours. - SMM TEAM | sales(@)shsmm.com
Company Profile
Shanghai Michigan Mechanical Co. Ltd - Concentrate on OEM Transmission Parts for More Than 15 Years.
Mission: Supporting the Further Success of Clients and Partners with Mechanical Solution & Premium Service.
Core Value: Customer First, Integrity, Never Stop Improving.
Mission: Supporting the Further Success of Clients and Partners with Mechanical Solution & Premium Service.
Core Value: Customer First, Integrity, Never Stop Improving.
Related Products
Testing
Gleason 1500GMM Inspection Center
Diameter: 1500
Max Weight:4.5t
Links CNC3906 Inspection Center
Diameter: 600
Automatic Inspection Line
How Do Our Technical And Quality Team Support Our Clients And Partners?
Our english speaking engineers do not simply relay messages. We help both customers and partners to strive for real solutions and we practise Kaizen in every single work.
Quality Warranty : 12 months counting from the delivery of the goods.
Our english speaking engineers do not simply relay messages. We help both customers and partners to strive for real solutions and we practise Kaizen in every single work.
Quality Warranty : 12 months counting from the delivery of the goods.
Product packaging
Inner Package Carton Non-solid Wood Packing Iron box packing
To be packed in new strong case(s)/carton(s), suitable for long distance ocean/air and inland transportation. In addition,we are willing to customize packaging per your request.
Certifications
ISO 9001 certification
ISO/TS 16949 certification
