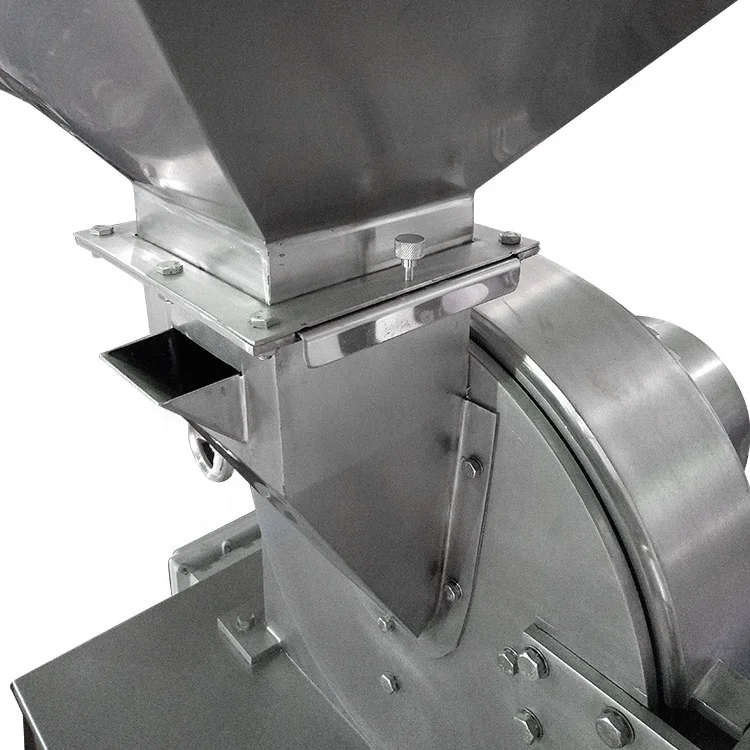

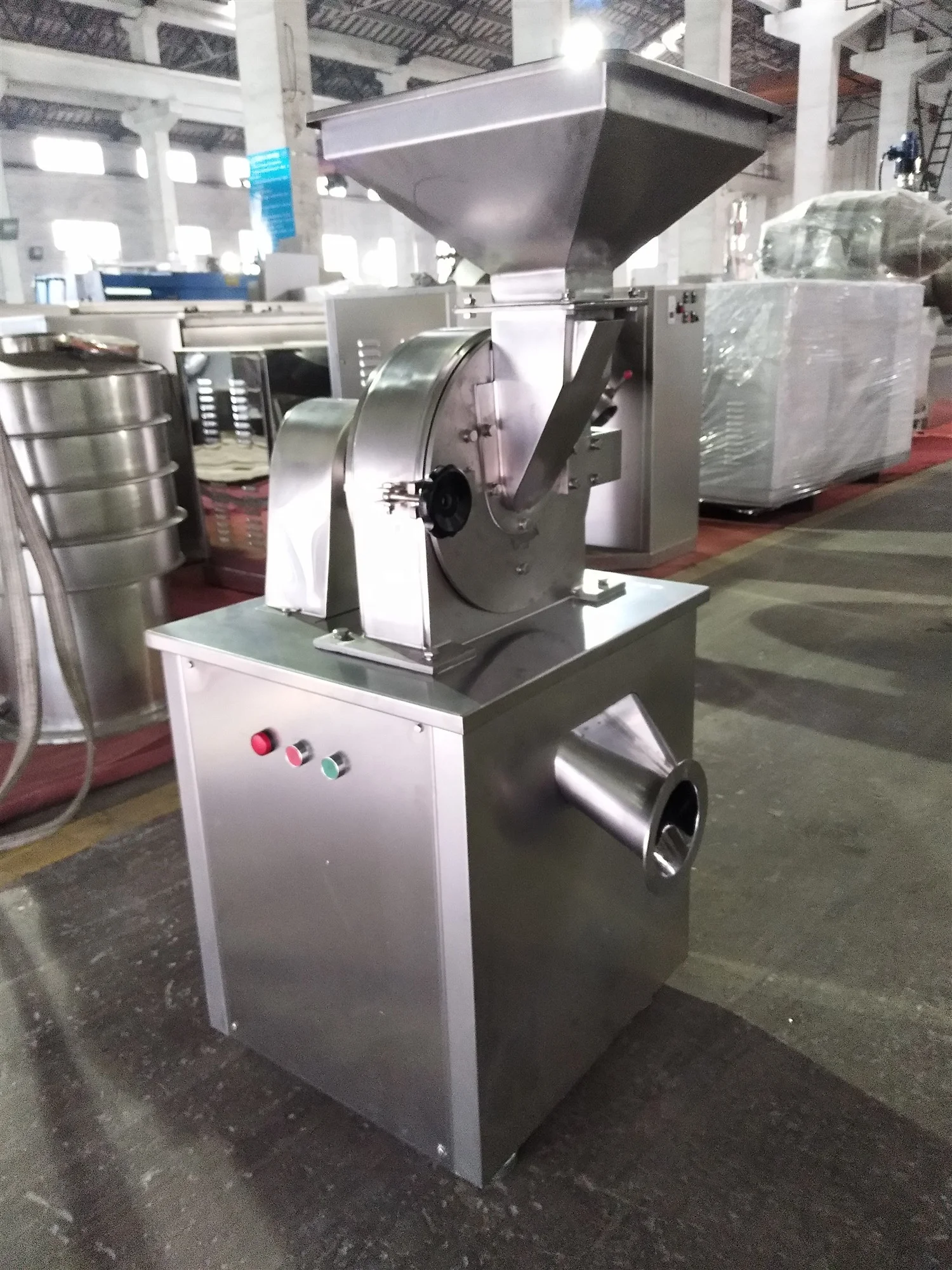

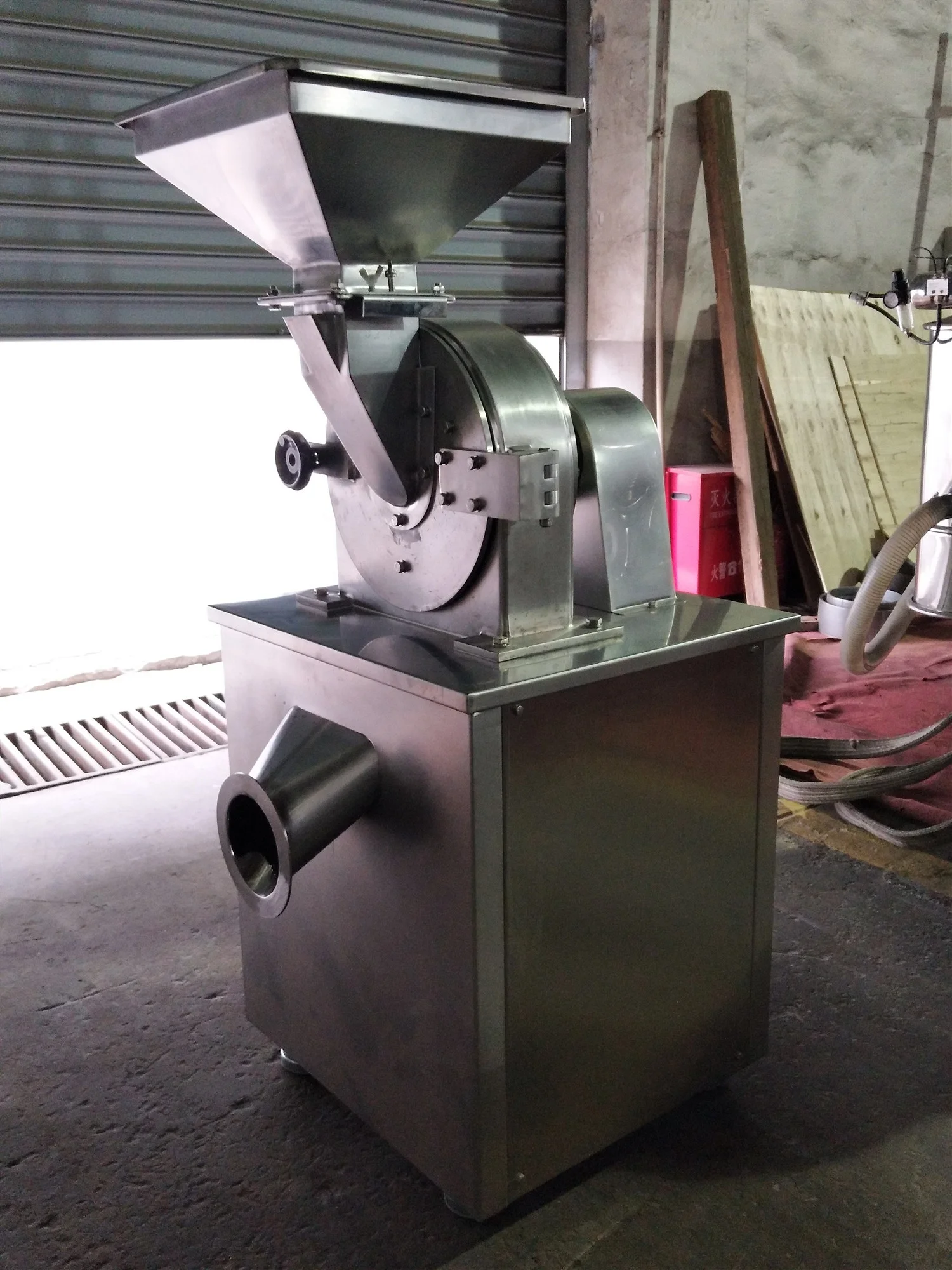

Plastic cryogenic food hammer ultra fine grinding mill

_02

Equipment principle

The universal pulverizer uses the high-speed relative motion of the movable sprocket and the fixed sprocket to make the pulverized material crushed by the combined action of tooth impact, friction and material impact. The machine has simple structure, firmness, stable operation and good pulverization effect. The pulverized material can be directly discharged from the grinding chamber of the main machine, and the particle size can be obtained by replacing the mesh screen with different apertures, and the machine is all stainless steel.

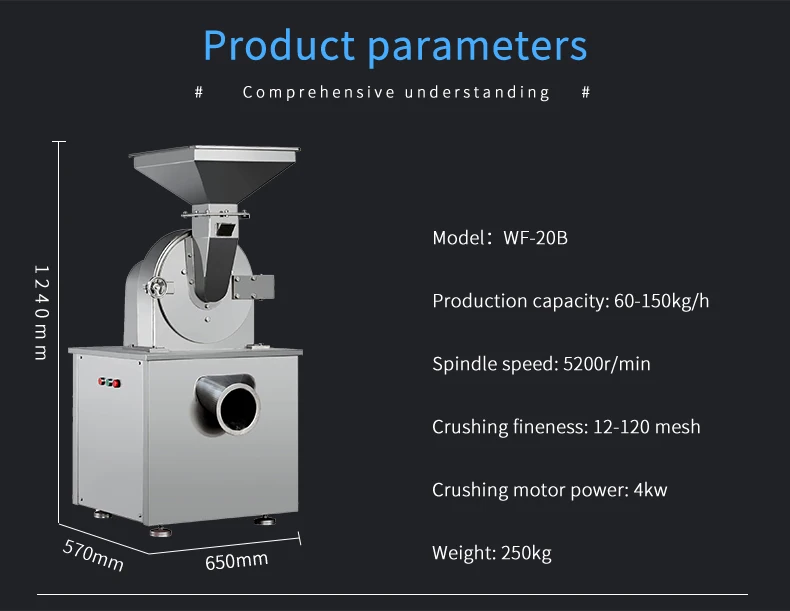

ModelWF-180WF-20BWF-30BWF-40BWF-60B
Capacity(kg/h)5-3060-150100-300160-800300-1500
Spindle rotation speed(r/min)53005200450038002600
Feeding granularity(mm)≤10≤10≤10≤10≤10
Crushing granularity(mesh)12-12012-12012-12012-12012-120
Crushing motor(kw)2.245.57.522
Dimensions(LxWxH)mm520x510x1000650x570x1240700x670x1370900x800x1550900x900x1880
_05_11

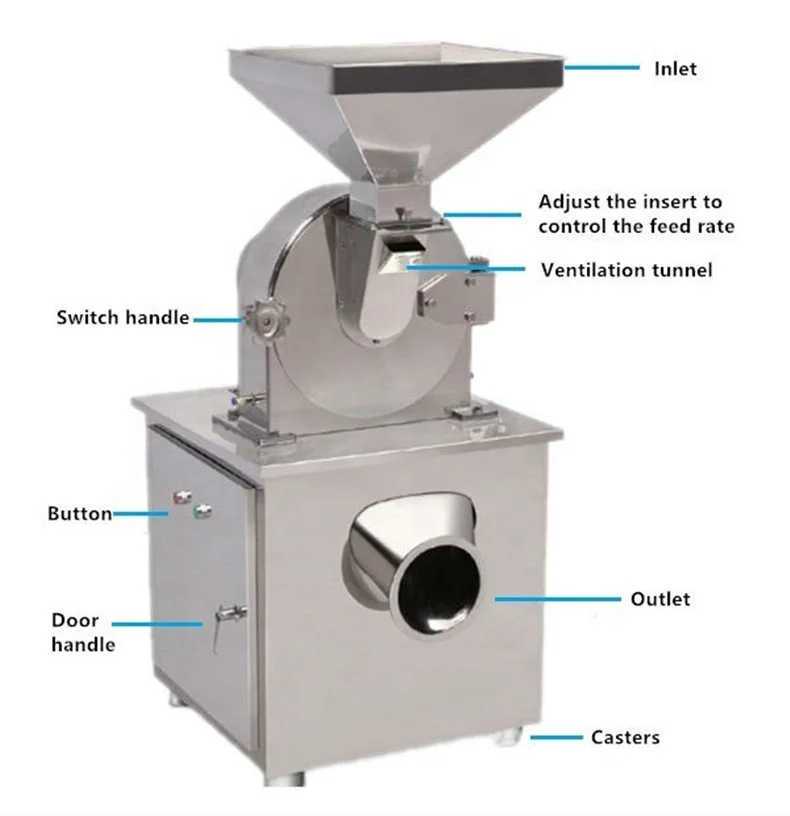

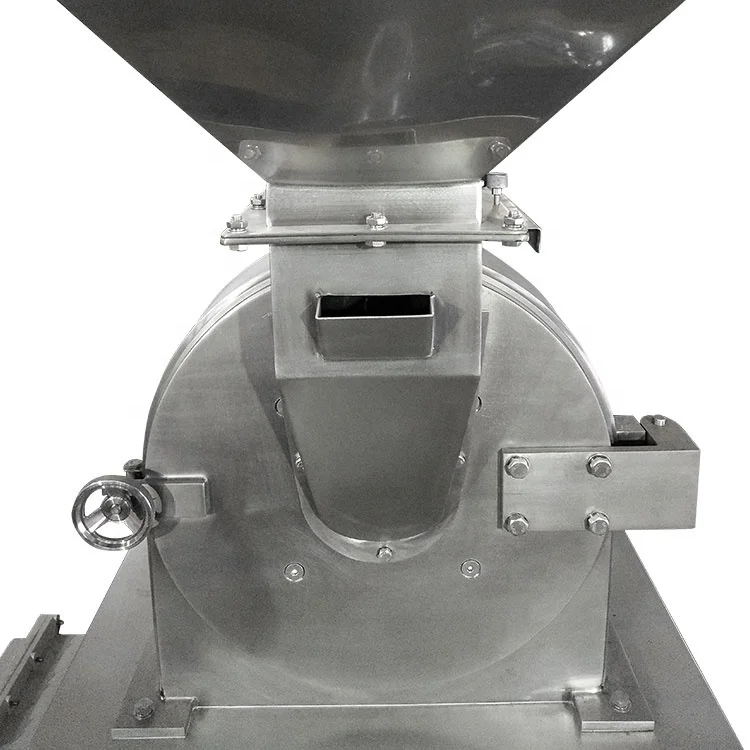

Equipment details

 _06__03_

Equipment superiorit

 _08 _10
