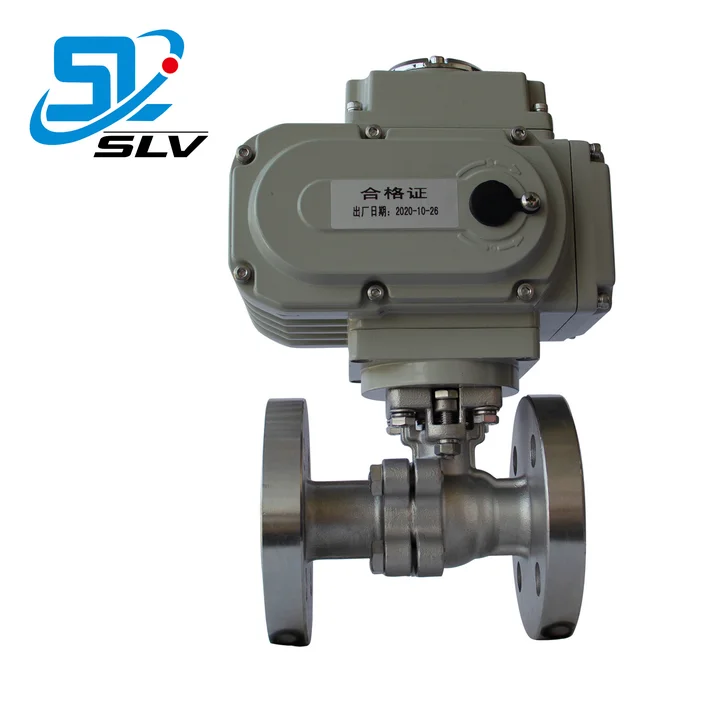

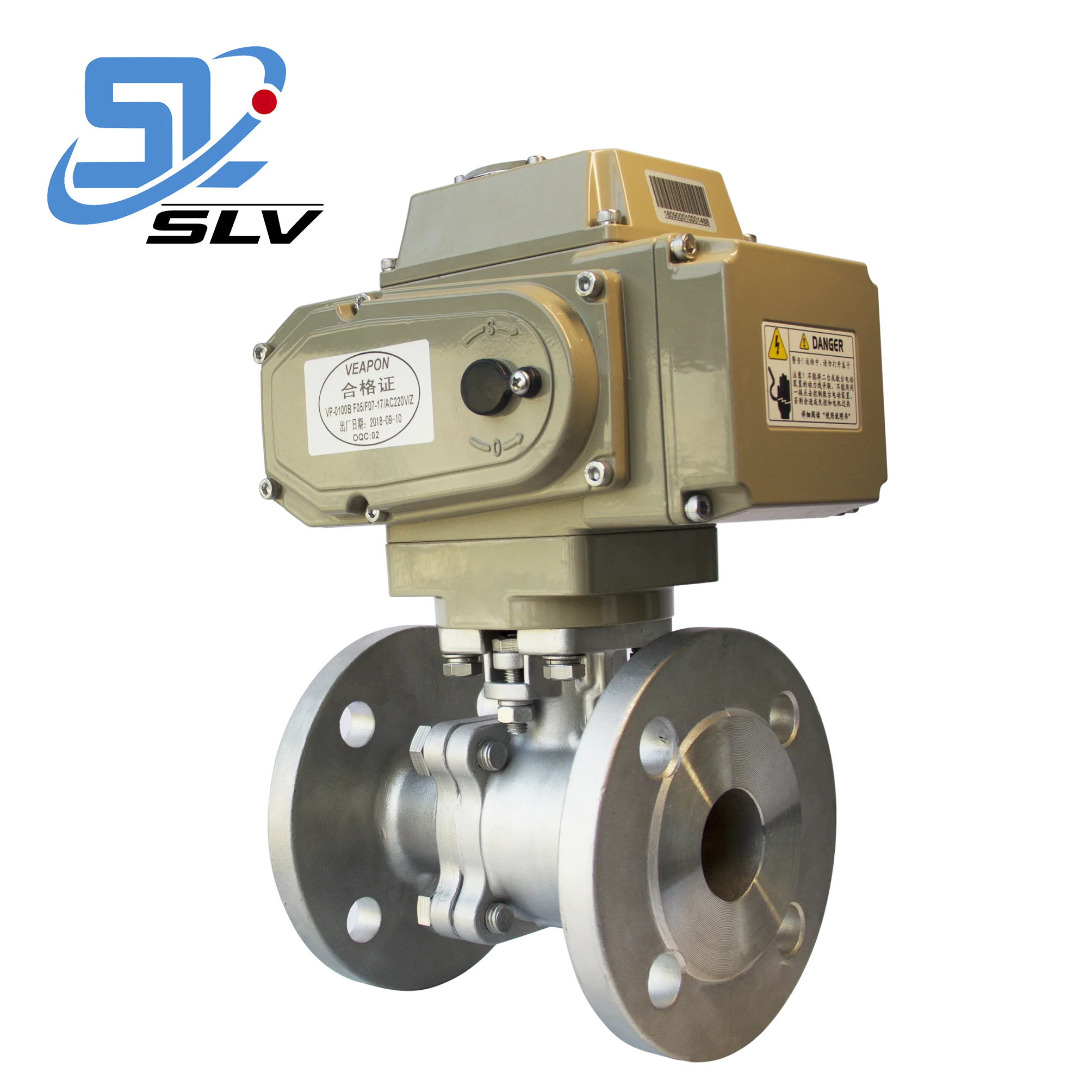

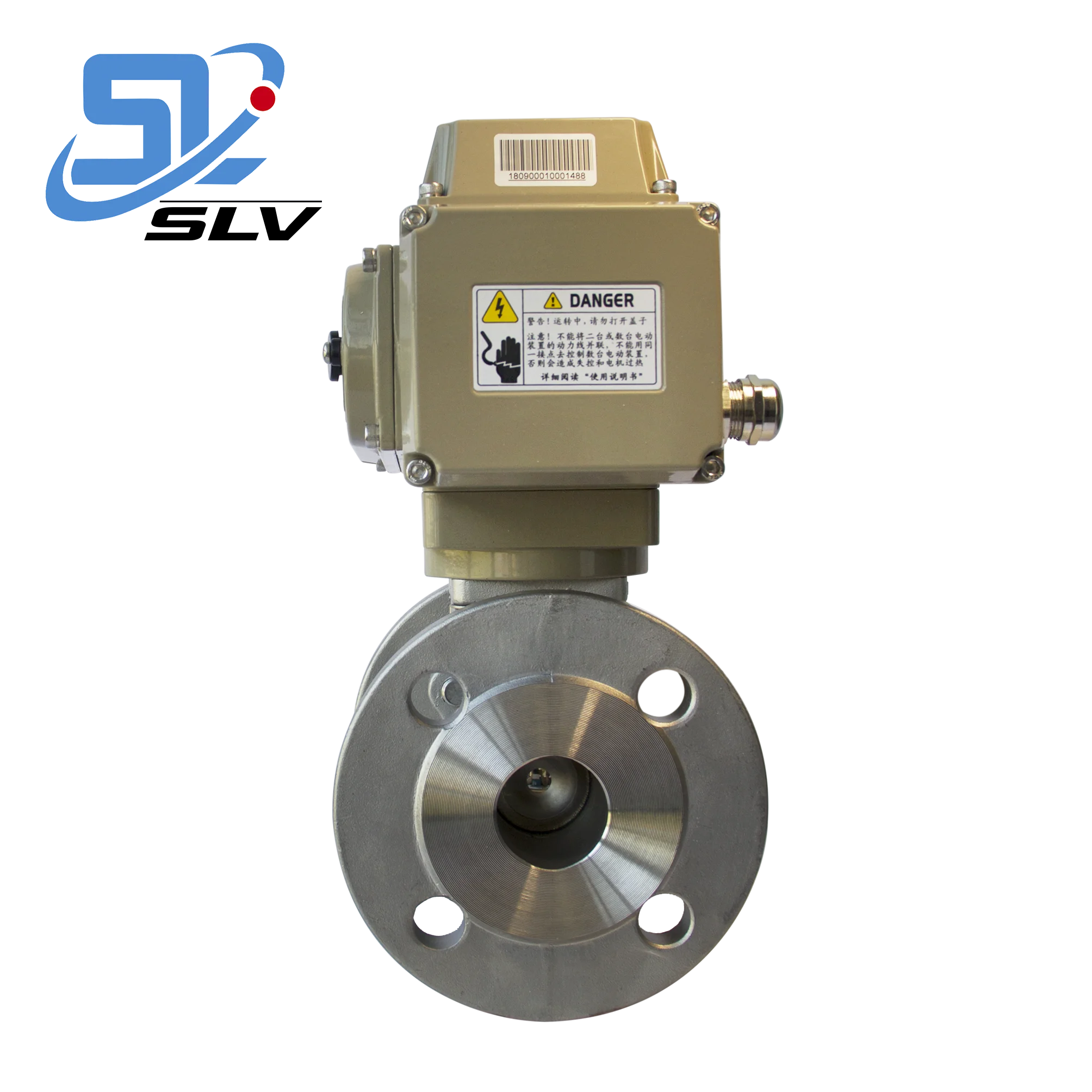

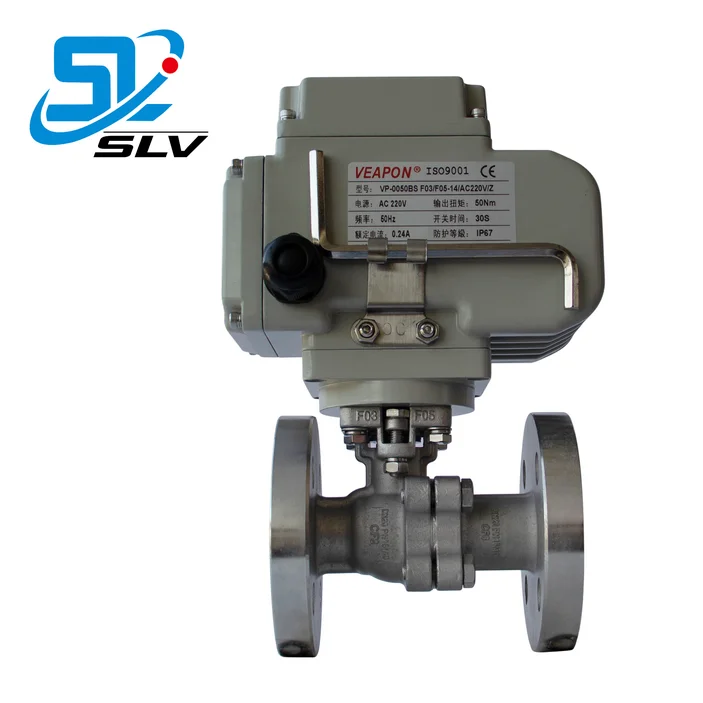

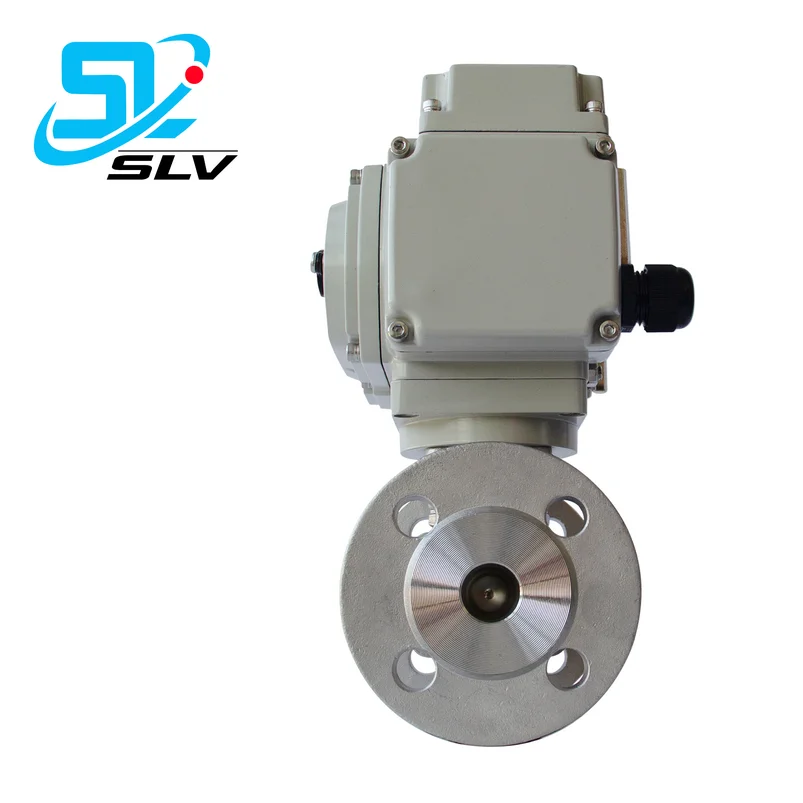

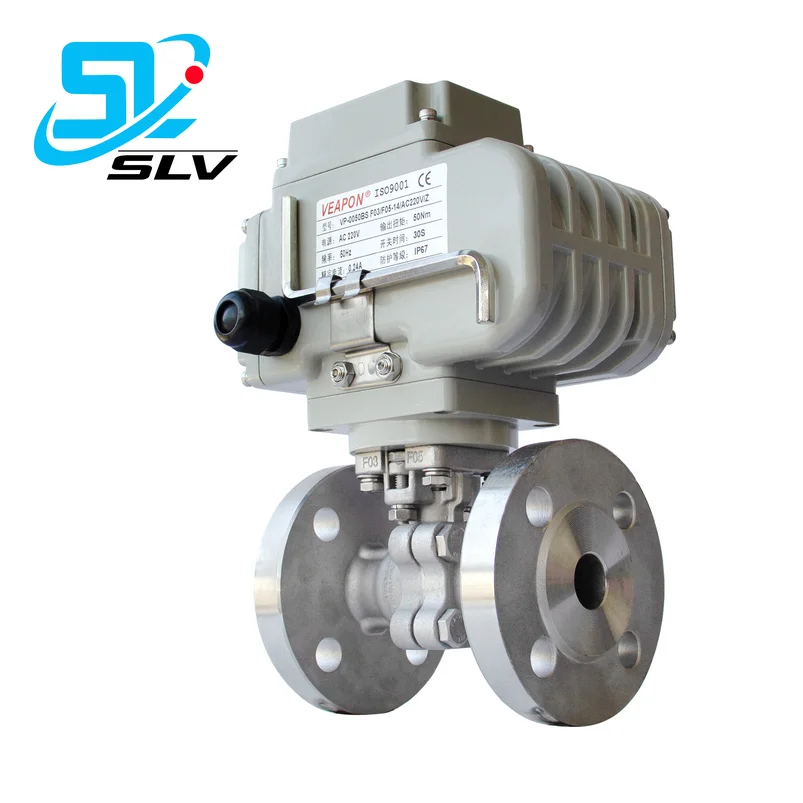

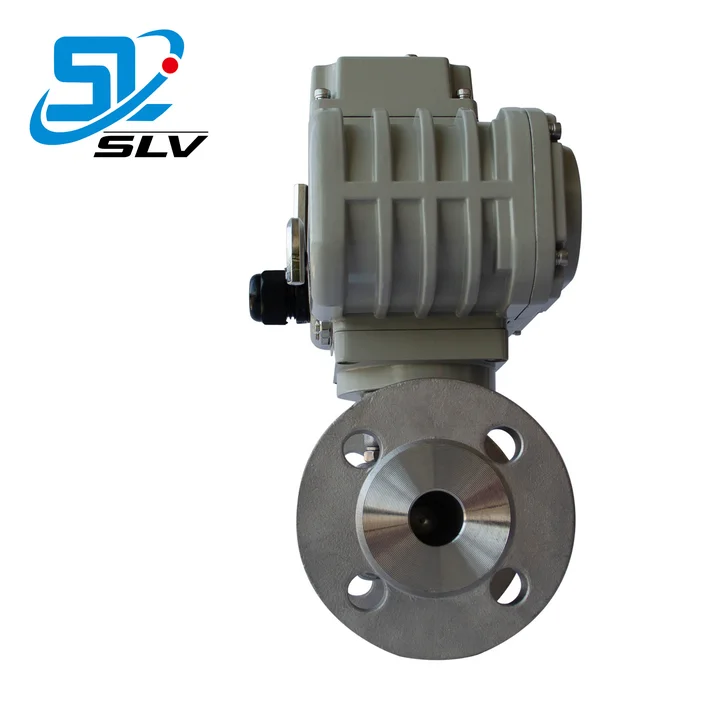

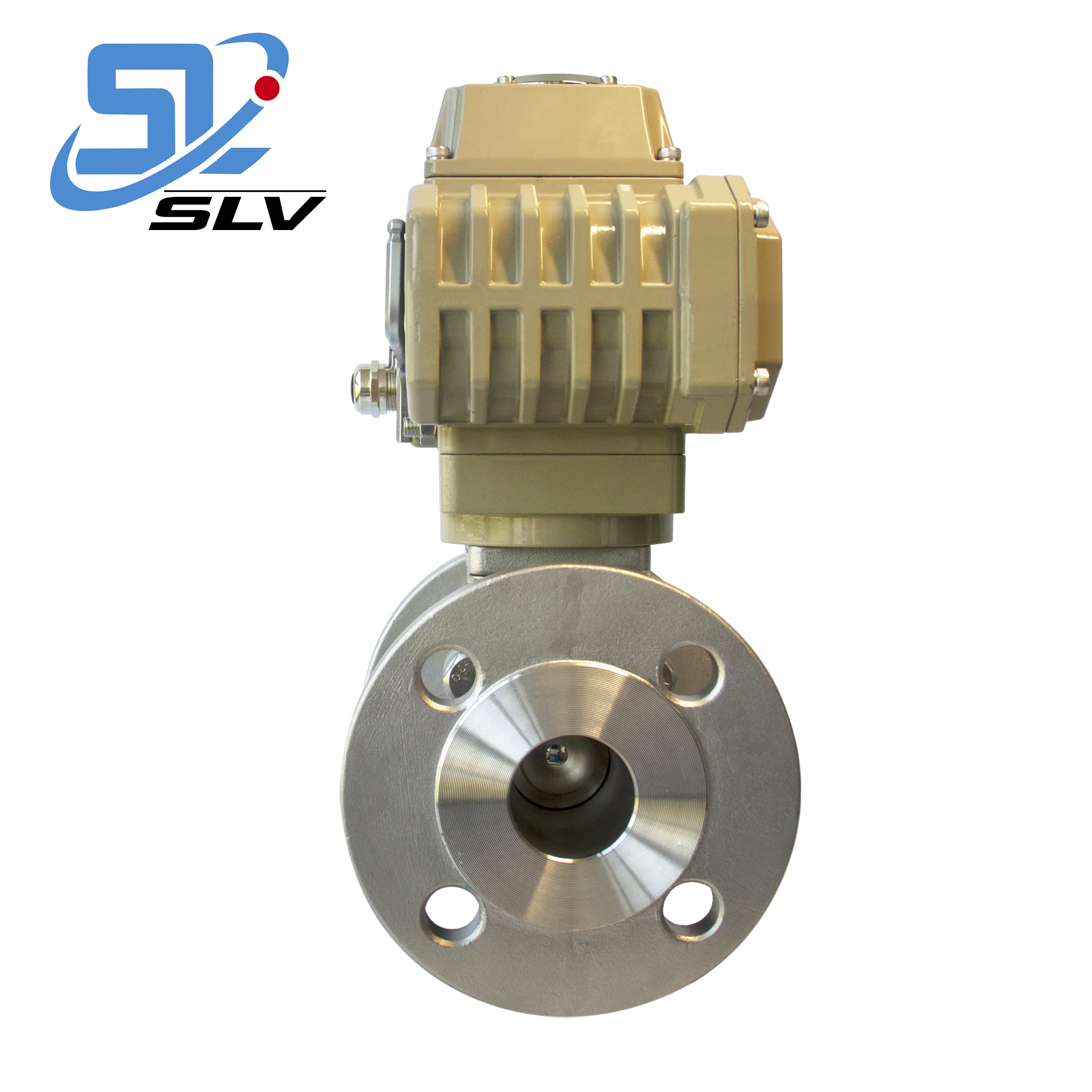

Stainless Steel Flanged Ball Valve with Electric Actuator
Stainless Steel Flanged ball valve with an electric actuator. They are typically used for on-off control or regulate the flow of water or liquid media. Through rotate 90 degrees (quarter-turn) to change the flow diretion. While they typically operate more slowly than valves with a pneumatic actuator, it is often the case that electricity is available and compressed air is not.




Electric Actuator
Power
DC12V, DC24V, DC220V, AC24V, AC110V, AC220V, AC380V
Style
ON/OFF style, intelligent style
Run time
5S to 100S  (According to different size)
Input signal
4-20mA, 1-5V, 0-10VDC, or customize (for intelligent style)
protection grade
IP67
Stainless Steel Ball Valve
Valve Body Material
WCB, SS304, SS316, SS316L, duplex steel
Valve Seat Material
PTFE, RPTFE, HARD ALLOY
End type

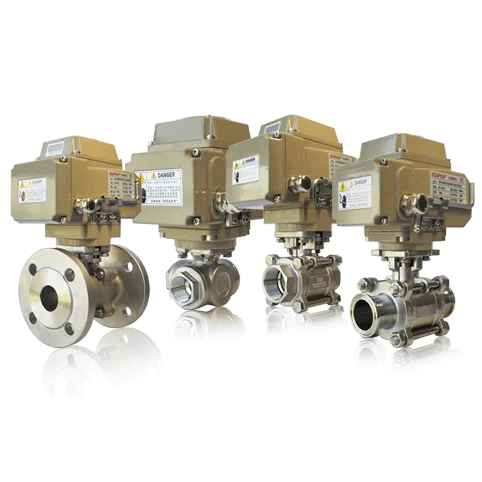

Threaded, Flanged, Socket-welded, Butt-welded, Clamp
Standard
ANSI, JIS, DIN, CNS
Size
1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure
PN16, PN25, PN40, PN63
Certification
ISO9001:2015


Electric Actuator with Manual wrench
Visual Window on Actuator
ISO5211 Mounting Seat


Click herer to Enlarge

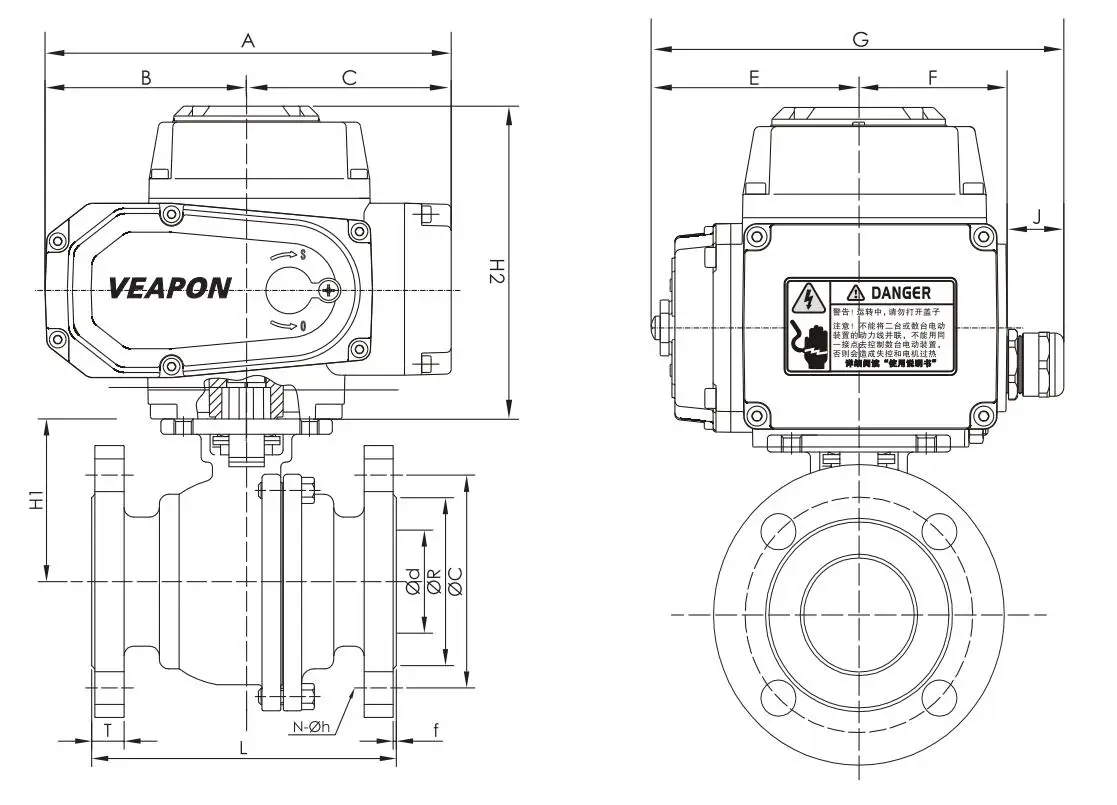

Stainless steel Electric Flanged Ball Valve Size Table


PRODUCT SIZE
A
B
C
E
F
G
H2
J
DN15
165
82
83
70
50.5
140.5
137.5
20
DN20
165
82
83
70
50.5
140.5
137.5
20
DN25
165
82
83
70
50.5
140.5
137.5
20
DN32
165
82
83
70
50.5
140.5
137.5
20
DN40
211.5
97.5
114
77
57
154
168.5
20
DN50
211.5
97.5
114
77
57
154
168.5
20
DN65
259
124
135
103
63
186
203
20
DN80
259
124
135
103
63
186
203
20
DN100
259
124
135
103
63
186
203
20
DN125
259
124
135
103
63
186
203
20
DN150
283.5
129.6
154
107.5
65.5
193
229.5
20
DN200
283.5
129.6
154
107.5
65.5
193
229.5
20


Pnuematic Flanged Ball Valve
Stainless steel ball valve with a pneumatic actuator. They are are typically used for on-off control of water and liquid media compatible with the materials of construction. Through rotate 90 degrees (quarter-turn) to change the flow diretion. Pneumatic valves are designed for quick opening and closing, it is often the case that compressed air is available.
Electric Threaded Ball Valve
Stainless steel ball valve with an electric actuator. They are are typically used for on-off control of water and liquid media compatible with the materials of construction. Through rotate 90 degrees (quarter-turn) to change the flow diretion. While they typically operate more slowly than valves with a pneumatic actuator, it is often the case that electricity is available and compressed air is not.




Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Packing: Carton box for small and light products. / Wooden box for big and heavy products
