Product Overview

Description

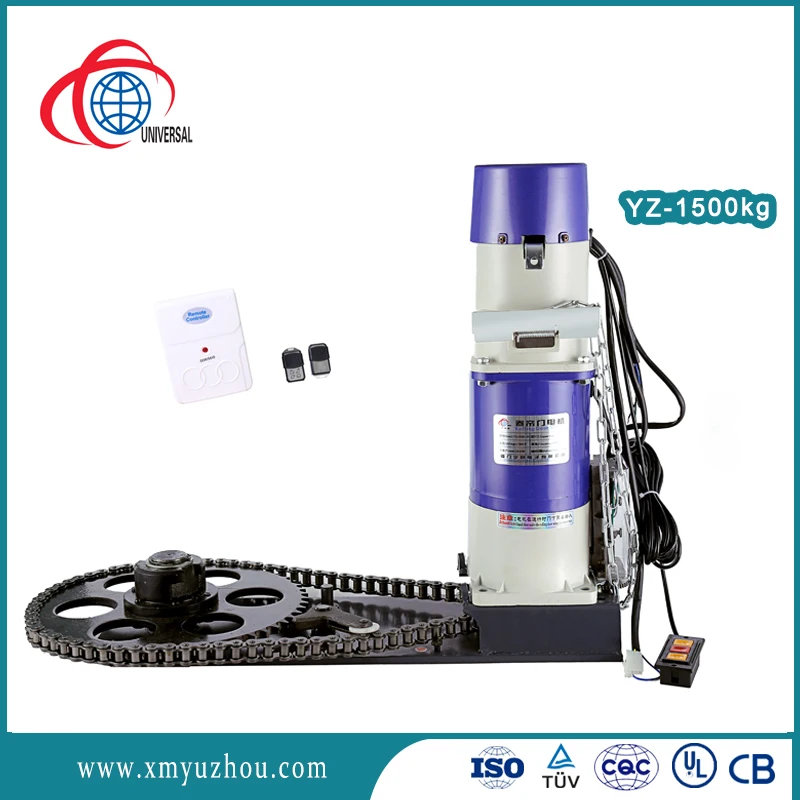

Electric Roller Shutter Motor



Features:

1.Remote control.
2.Low noise,small shaking.
3.With electronic anti-theft apparatus.
4.Good design,advanced structure,strong power.
5.Import electric component,security and credibility.
6.Automatically open or close the doors by pressing relevant buttons.
7.Doors are also workable under the operation of manual control equipment when there is no power supply.



Functions:

1.Overheat protection: The motor is with overheat protect equipment;

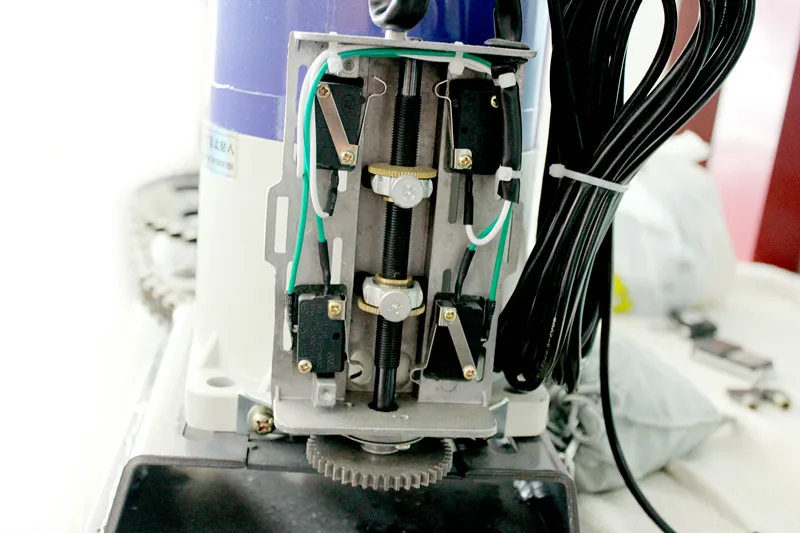

2.Mechanic Limit: Limit switch adjusts to the door position in both "up" and "down" precisely and safely;
3.Remote control: With convenient and stable control function, can be operated by transmitter;
4.Manual button: Up, Stop and Down.You can through the manual button which makes the rolling door open and close.

5. Limit switch unit enables precise adjustment of door in both up and down positions.


Parameters of 300kg~1500kg capacity motors:

Model No.		Max Upgrade Weight
(KG)		Max Upgrade Height
(M)		Power
(W)		Current Rating
(A)		Output Torque (N.m)Rotation(r/min)Chain NO.
220V 50Hz (230V 60Hz)
YZ-300-1P3004.51802.21683.808B
YZ-500-1P50063703.53455.910A
YZ-600-1P60063703.54125.210A
YZ-800-1P80064604.26504.810A
YZ-1000-1P1000108005.88104.212A
YZ-1300-1P1300108005.810503.812A
YZ-1500-1P15001012007.512203.812A
380V 50Hz (380V 60Hz)
YZ-300-3P3004.51800.81684.008A
YZ-500-3P50062501.03455.910A
YZ-600-3P60062501.04125.210A
YZ-800-3P80063701.36504.810A
YZ-1000-3P1000104001.58104.212A
YZ-1300-3P1300108002.010504.212A
YZ-1500-3P1500108002.512203.812A
YZ-2000-3P2000108004.524503.612A

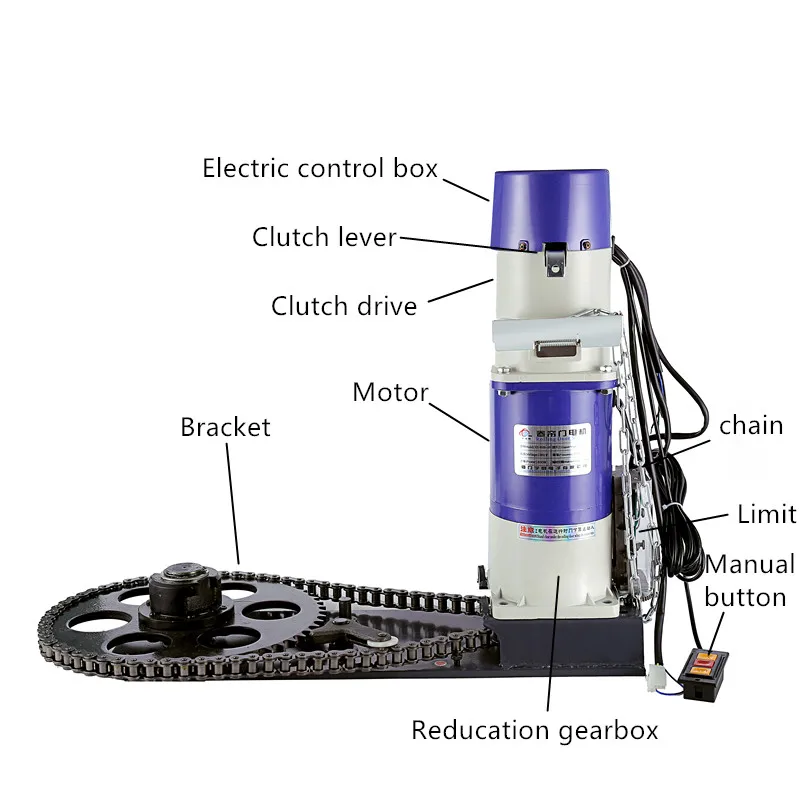

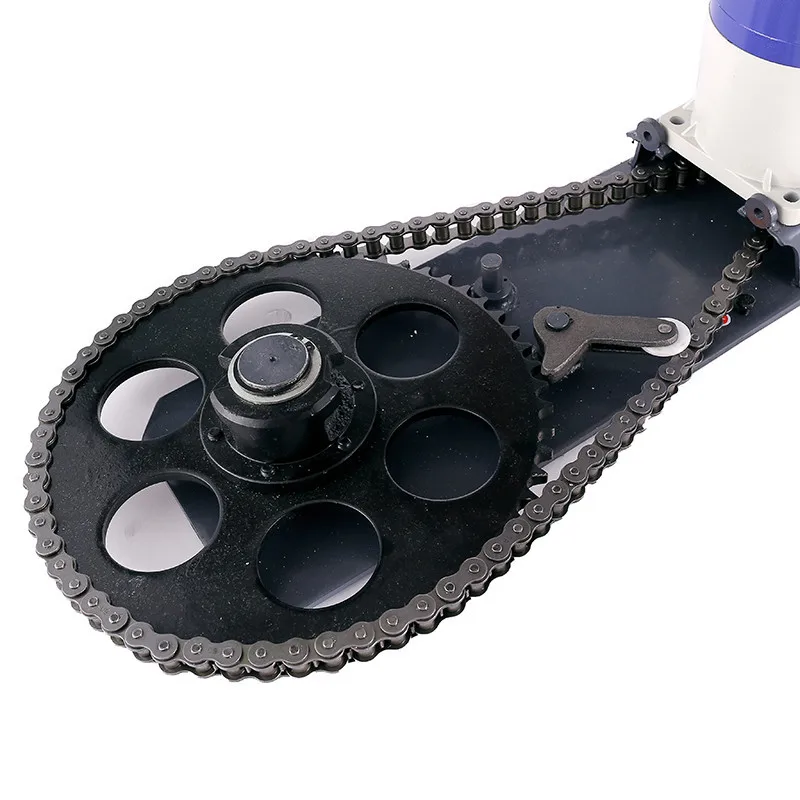

 Motors Details:

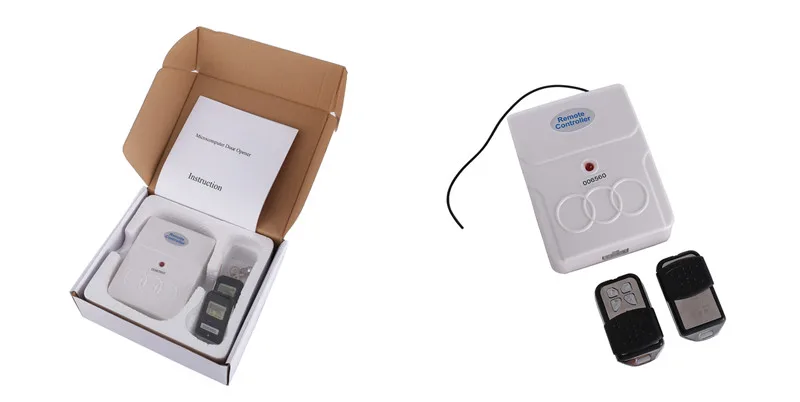

Transmitters:

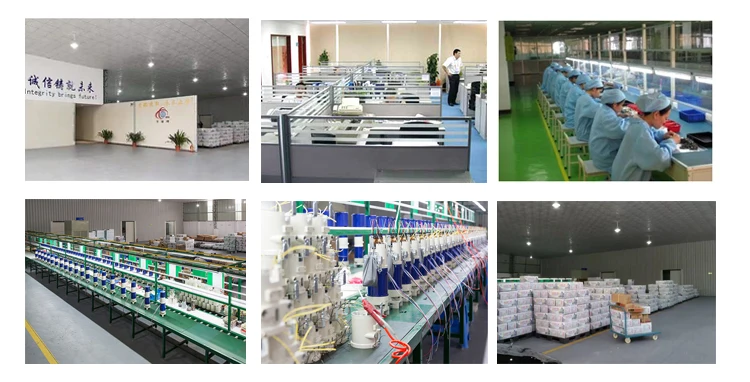

Factory:

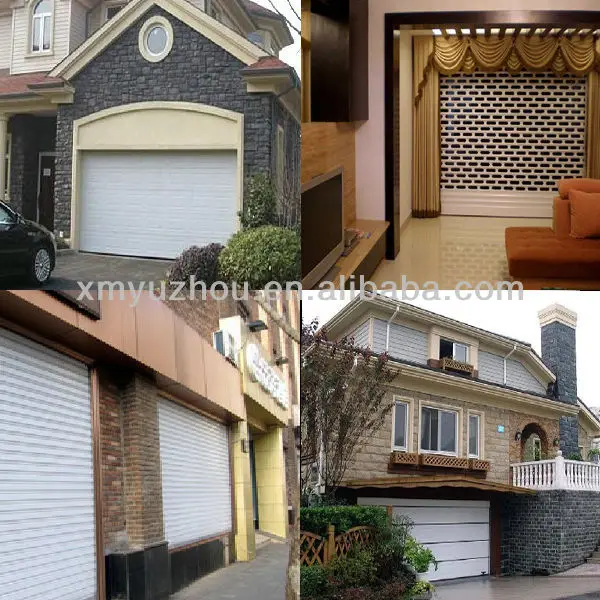

Applications:
widely used in shopping malls, hotels, warehouses, garages, shops, factories and other buildings' rolling door opening and closing.
             Roll Shutter Motor

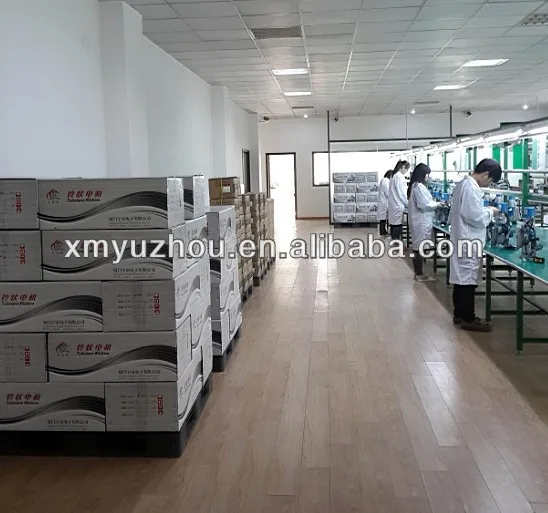

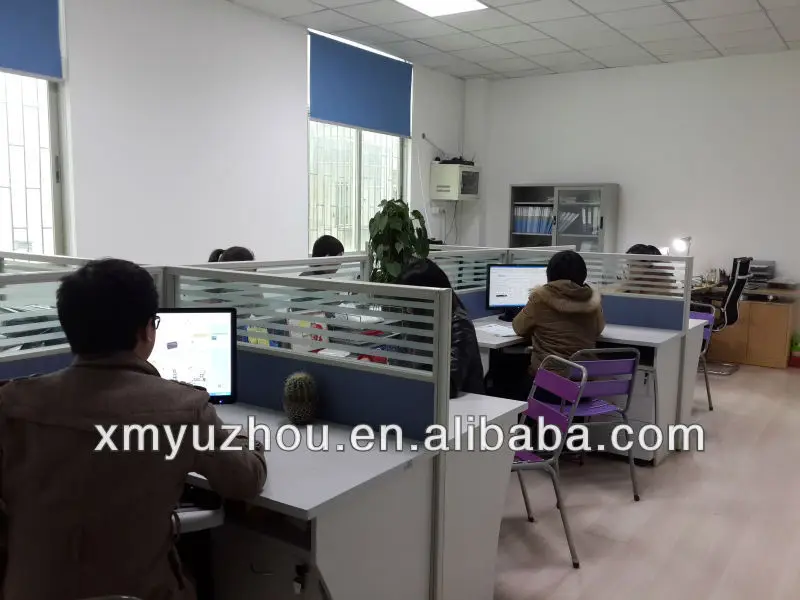

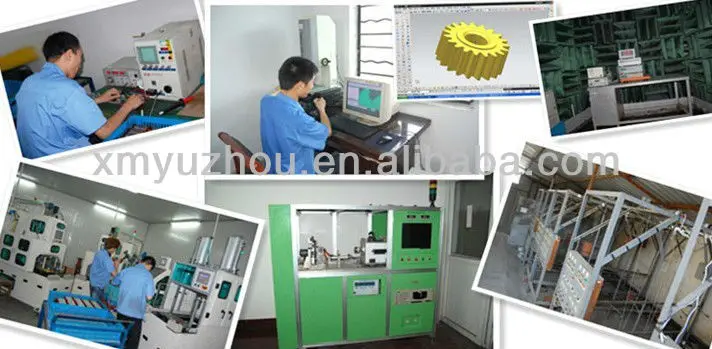

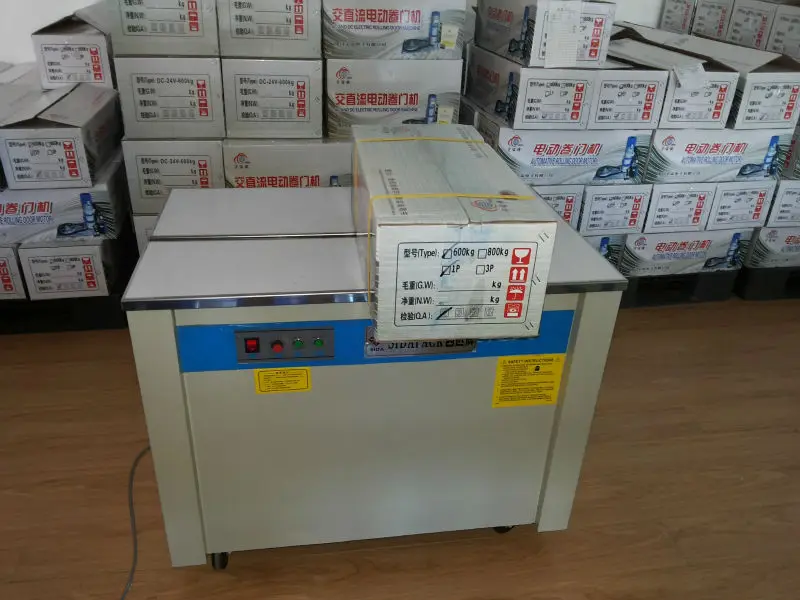

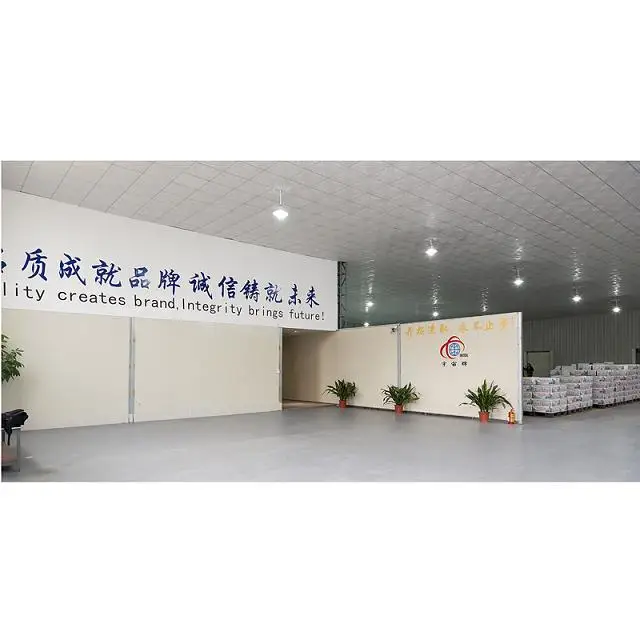

 Factory information:



11.jpg12.jpgphotobank (1).jpgphotobank (8).jpgphotobank (10).jpgphotobank (40).jpgpsb.jpg



FAQ:

Q1: What's your 220VAC 600KG Single Phase AC Electric Roller Shutter Motor Range?

1) AC Motor 1 Phase (110V/220V 50Hz)

2) AC Motor 3 Phase (380V 50Hz)

3)  AC&DC Motor (24VDC 50Hz)


Q2: What's the material of Motor Winding?

-The main material is 100% Copper Wire, and the Aluminum Wire is for optional.



 Q3: Is the contactor or relay in the control panel of motor?

-Relay, usually there are 4 relays in the control panel of the motor.



Q4: How many days will samples be finished? And how about the mass production?

-Generally, within one week for samples making.

-The lead time of mass production will depend on quantity. normally,We finish within 20 days.



Q5: What information should I let you know if I want to get a quotation?

-The Width ,Height and Weight of the Shutter/Door

-The Voltage(220VAC,380VAC or 24VDC)

-The Quantity



 Rolling door installation precautions:

1. Before installing the rolling door, it is necessary to observe whether the rolling door machine is installed horizontally, whether the reel of the curtain is smooth, whether there is a stuck card phenomenon, and if so, it should be handled in time.

2. Before the curtain has not been hung up, adjust the sag of the chain to meet the standard requirements.

3. The cross-section size of the door roller machine in contact with the external power line when it is externally supplied with power has certain requirements and cannot be less than 1 square millimeter.

4. During the installation process, be sure to pay attention to moisture, not to be exposed to rain. After touching the water, it is easy to short-circuit the rolling door appliance, which will cause the rolling door motor to burn out and affect normal use.

5. When connecting the power supply, do not reverse the power supply. When it rises, it will fall. You should immediately stop the machine, coordinate the sequence, and perform normal work. Otherwise it will damage the normal use of the shutter door.





Our Service:
Any inquiry/question will be reply in 24 hours during working days.
Sample order: Available, the customers should charge the sample fee and freight cost.
OEM for customers is available.
Delivery time: 2-4 weeks after order confirmation.
Terms of Payment: T/T, Paypal, Western Union, etc.
Accessory size chosing: 4 inches, 5 inches, 6 inches and 8 inches
Packing: Carton packed fill with foam;
One set in 2 cartons: 1ctn for main motor, 1 ctn for accessories



Terms of Shipping:

· By Express: FedEx/DHL/UPS/TNT/EMS,etc.

· Air/Sea Freight: Goods will be delivered by air or sea according to customer's order.

· Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange the delivery.
