JPMX 503ESK CNC Hydraulic Copper Busbar Processing Machine
- Category: >>>
- Supplier: Jinan Jingpeng Cnc Machinery Co. Ltd.
Share on (60828402489):
Product Overview
Description

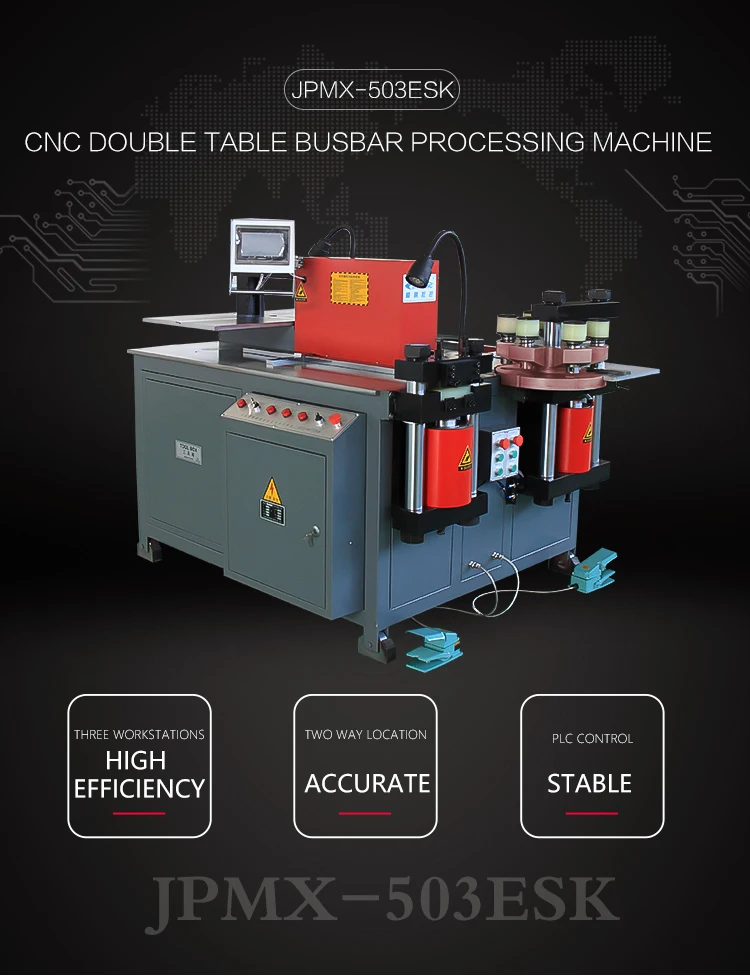

JPMX-503ESK CNC Hydraulic Copper Busbars Processing Machine
This machine has three units: cutting/shearing bending and punching copper and aluminum busbars in different specifications.
The machines will largely improved your working efficiency.
Product Description
Application of CNC Hydraulic Copper Bus Processing Machine

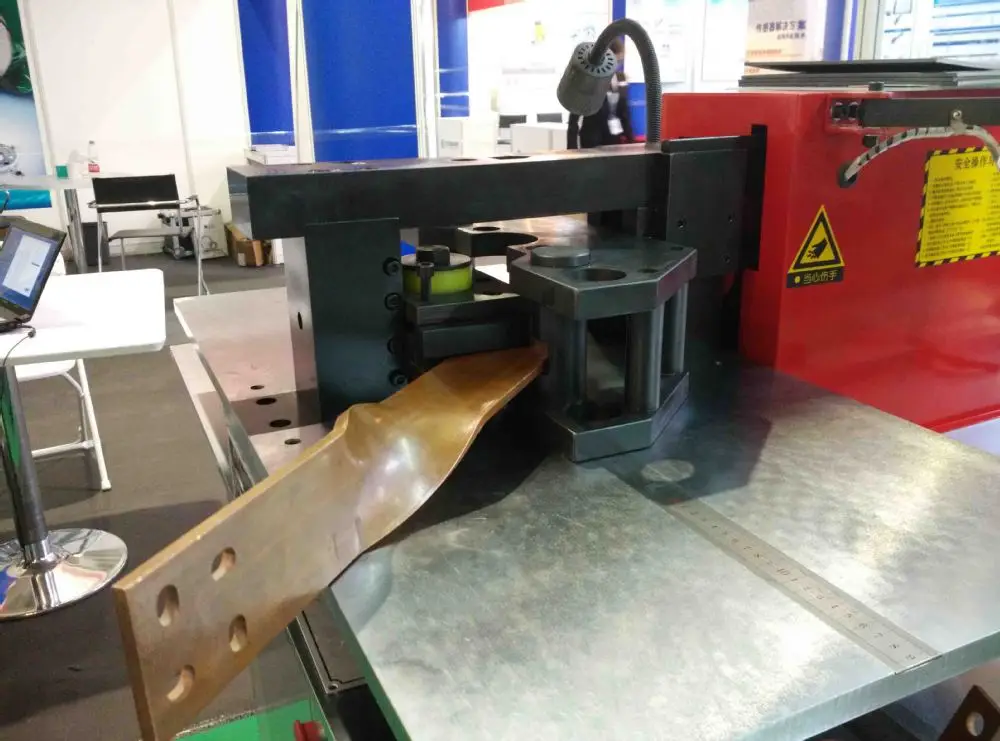

This machine is for copper/aluminum busbar bending, punching and shearing.
This machine is widely used in high-low switchgear manufactuting, electrical control panels building, power station establishment etc.
The technology parameters of CNC Hydraulic Copper Bus Processing Machine
| Function | Item | Model | |
| JPMX-303ESK | JPMX-503ESK | ||
| Punching | Max. Punching Force (KN) | 300 | 500 |
| Punching Diameter Range (MM) | 4.3-25 | 4.3-30 | |
| Max. Thickness (MM) | 12 | 16 | |
| Max. Width (MM) | 160 | 200 | |

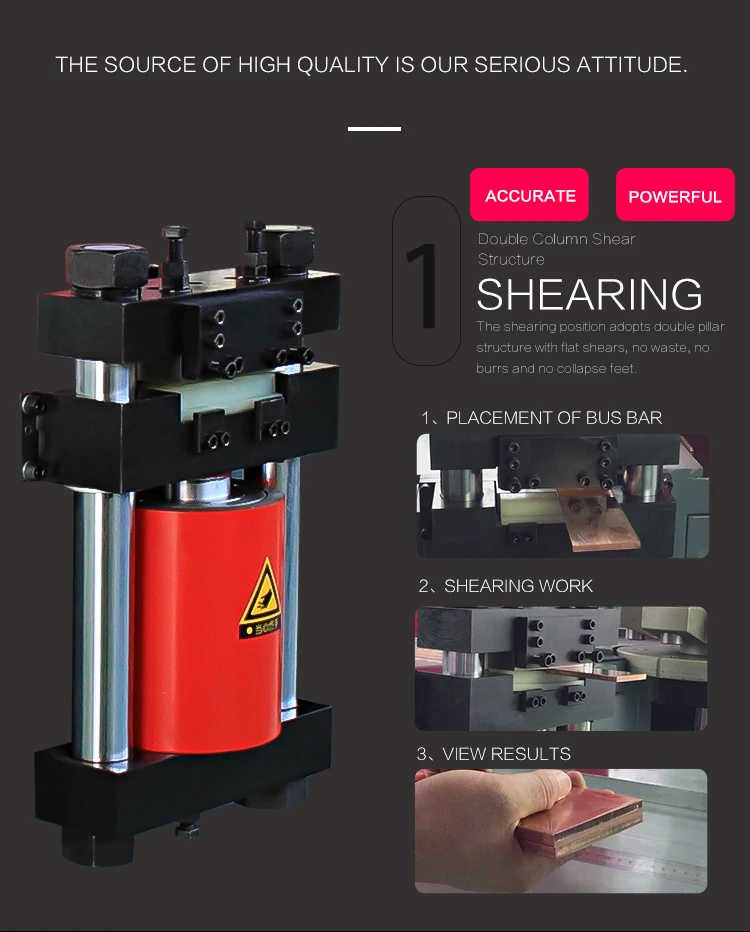

| Shearing/Cutting | Max. Shearing Thickness (MM) | 12 | 16 |
| Max. Shearing Width (MM) | 160 | 200 | |
| Vertical Bending | Max. Bending Force (KN) | 300 | 500 |
| Max. Width (MM) | 160 | 200 | |
| Max. Thickness (MM) | 12 | 16 | |
| Honrizental Bending | Max. Width (MM) | 100(10mm THK) | 120(10mm THK) |
| Max. Angle (Degree) | 90° | 90° | |
| Out Dimension | MM | 1780*1380*1420 | 1850*1500*1550 |
| Power | KW | 3*4KW | 3*5.5KW |
| Weight | KG | 1400KG | 1800KG |
The Accocessories of CNC Hydraulic Copper Busbars Processing Machine
8 sets of punching die. 2 sets of horizontal bending mold 2 sets of vertical bending mold 1 set of U bending mold
1 set of oil filler 1 set of inner hexagon spanner
3 sets of foot switches 1 set of hydraulic system sealing ring
1 set of random tools 2 pieces of Limit Switch
1 piece punching location needle.
Product Features

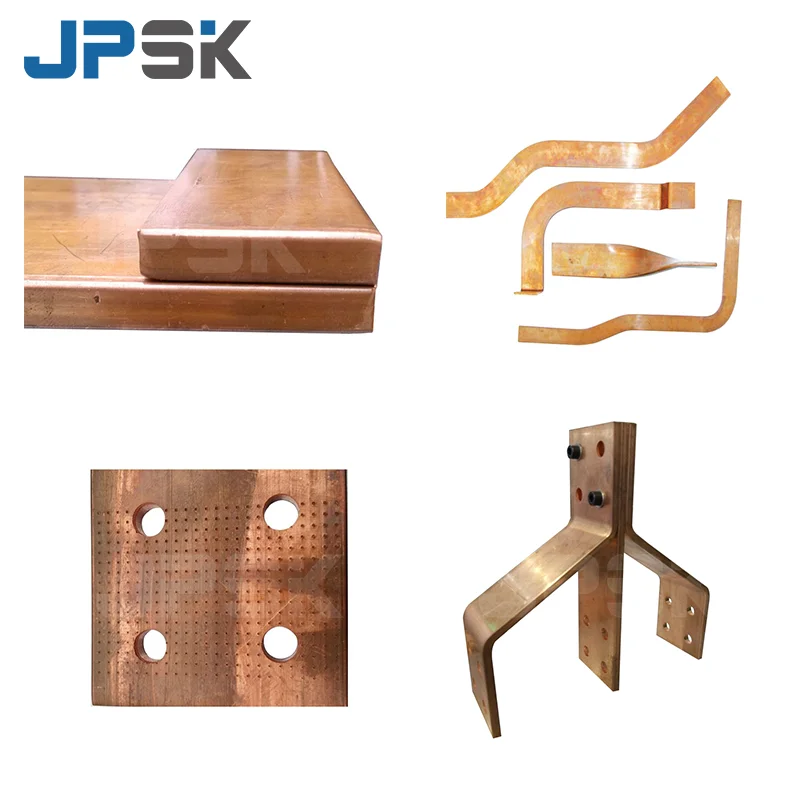

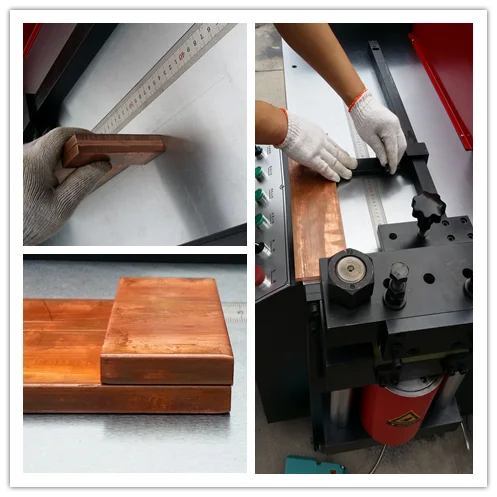

1. The cut surface is smooth and neat, no droop, no burrs, no waste

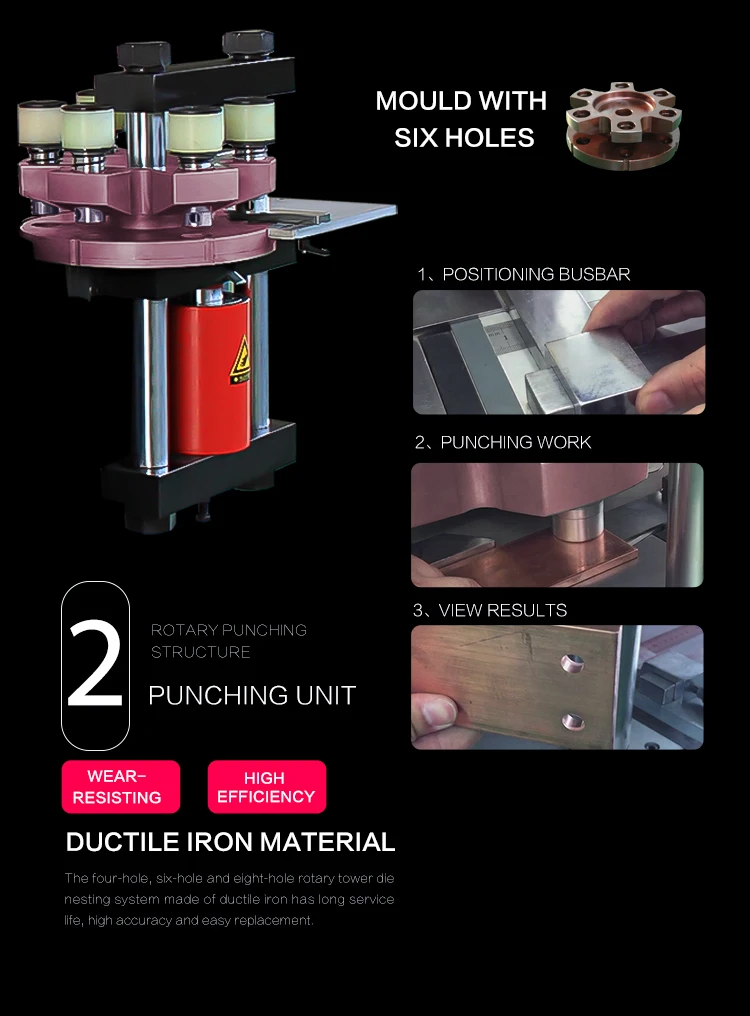

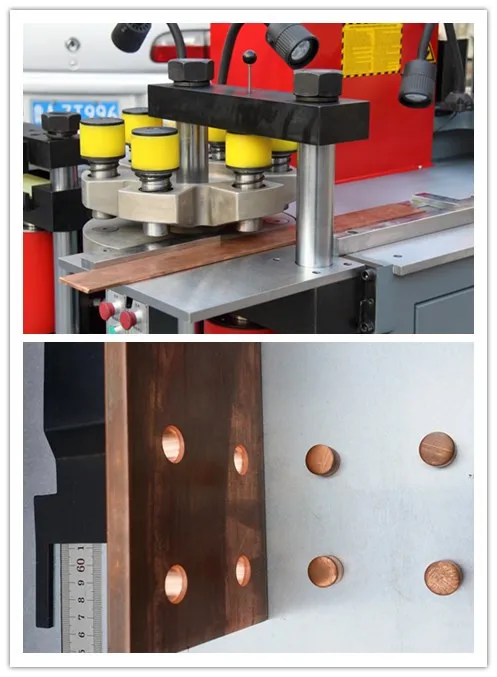

2. Rotary turret punch unit installed 6 dies, less replacing, high efficiency
3. More work space added by double work table, three work positions can be used at the same time
4. Easily to be moved with four castors
5 Manual button and foot switch are optional
6. Adjustable working stroke
7. on users requirement, special mold for special shape

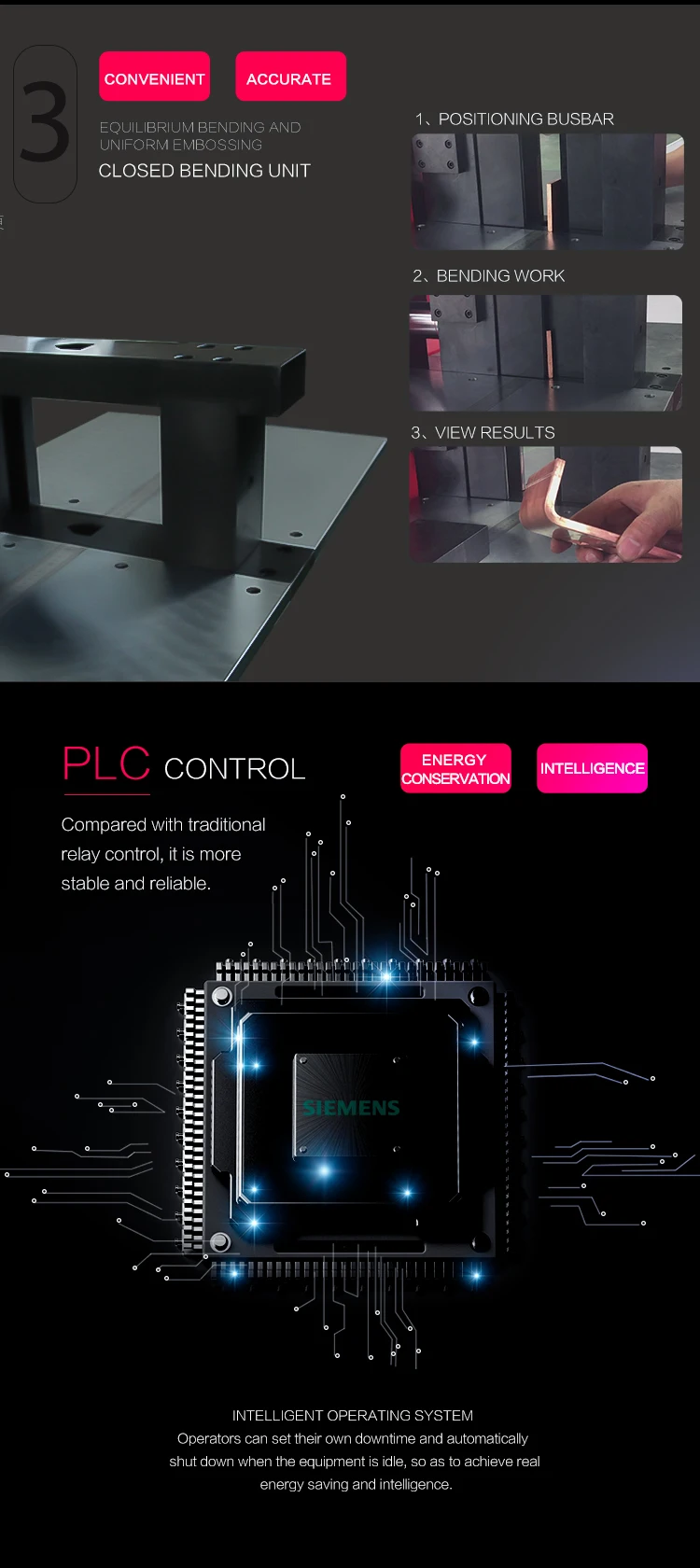

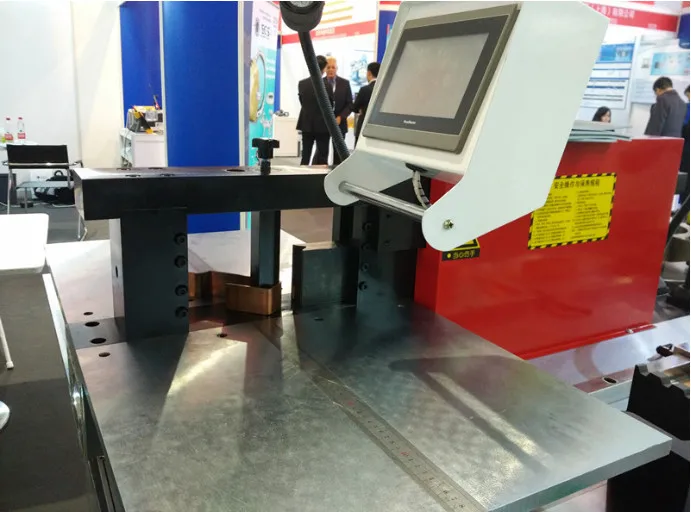

8.Controlling the bending unit by the PLC control system.
Only need to input the busbar thickness and bending angle,the machine will process automatically.
Welcome to visit our company and factory.
And you will realize that our machine is your best choice.
Packaging & Shipping
Firstly, the CNC Hydraulic Copper Bus Processing Machine is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, fasten the CNC Hydraulic Copper Bus Processing Machine into the wood case for safety and against clashing.
Company Information
1. Our quality certificate,
We are professional manufacturer for CNC Hydraulic Copper Bus Processing Machine in China for more than ten years.
Our CNC Hydraulic Copper Bus Processing Machine are approved by ISO & CE certificate, the machine quality is highly respected among customers in North America, Europe and most Asia countries.

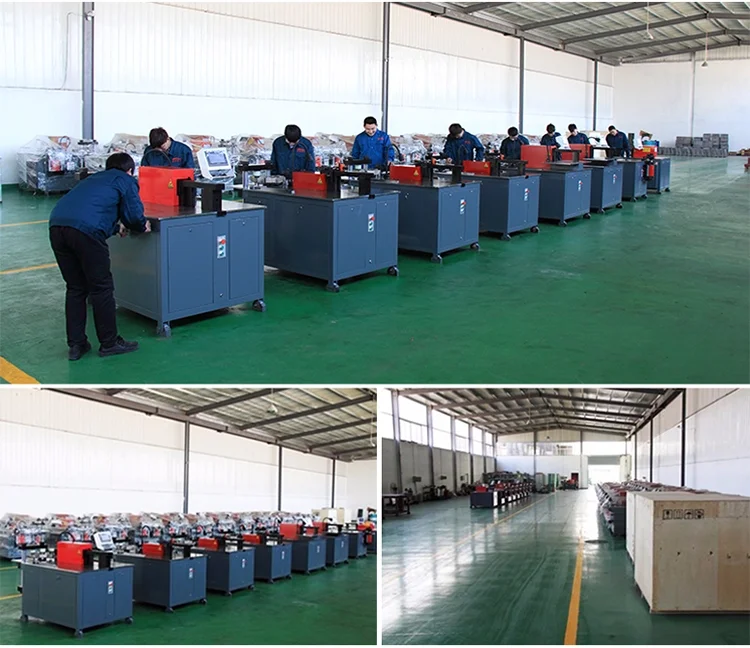

2. Our factory show
FAQ
1. What is your payment terms?
Re: 40% TT as deposit, balance be paid when goods are ready for loading before shipment.
2. What is your delivery time?
Re: Usually within 7-25 days after the deposit.
3. What is your power supply?
Re: We will adjust according to your countries power supply. No problem.
4. What is your Min order quantity?
Re: One set. Our customers can be end users, retailers and wholesalers.
5. Are all the Labels and instuctions of the Hydraulic CNC Copper Busbar Bending machine in English?
Re: Yes. the labels on the machine and the manuel books are all made in english version.
6. Besides this Hydraulic CNC Copper Busbar Bending machine, do you have any other options for me?
Re: We have dozens of options for you:
CNC busbar machine; Non- CNC busbar machine, combined busbar machine,
busbar cutting tools, busbar bending tools, busbar punching tools.
hydraulic pumps, hand pumps etc.
Please contact with us to know more informations!
7. What is your requirement for exclusive / sole agent?
Re: We are looking for sole agent in world market.
We need to test the credit and the monthly quantity of the importers.
If the importer credit is good and reliable. And the monthly order quantity meet local market demand. We will come to further association.
