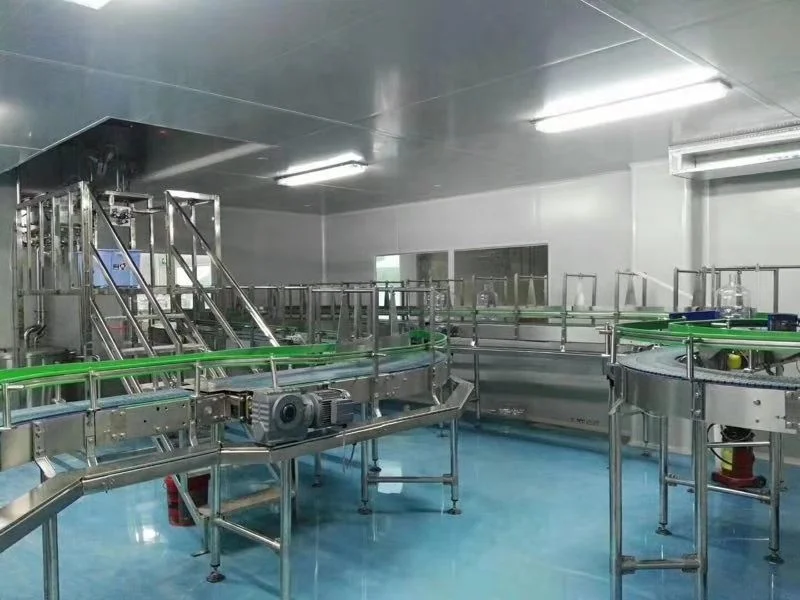

carbonated soft drink rinsing filling capping machine packing line turnkey project

Product Overview

Description

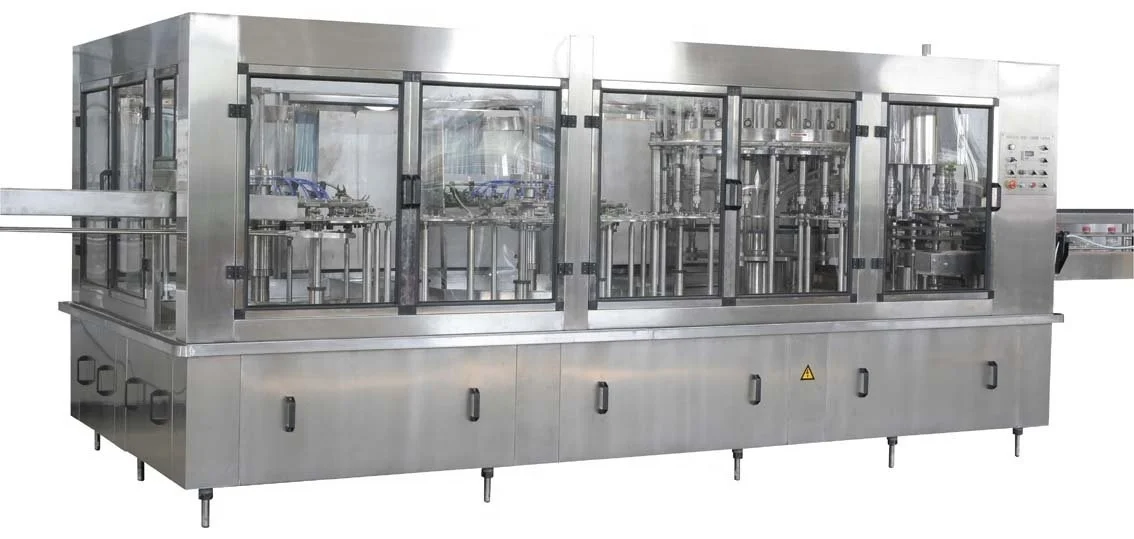

  Monoblock  automatic  carbonated soft drink rinsing, filling, capping machine





This series of Automatic Carbonated Beverage Filling Machine are applied to used in production of PET bottle-packing carbonated beverage such as aerated water, sprite, coca-cola, gas containing juice , it integrates bottle washing, filling and capping into one body of this machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.





Main Feature:

1. This machine has a compact structure, perfect control system, easy to operate and highly automated.


2. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

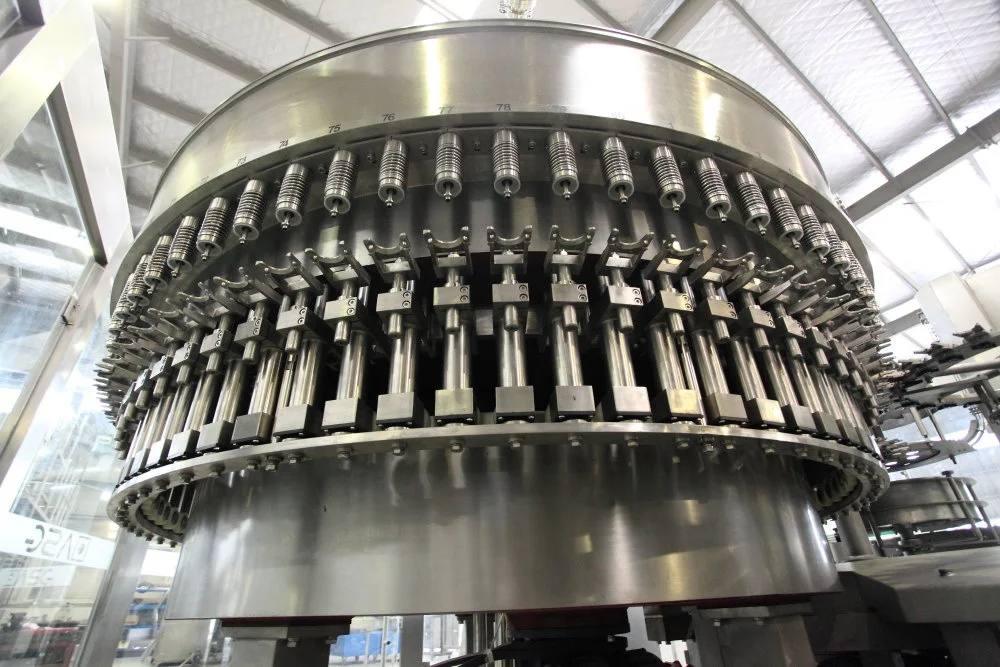

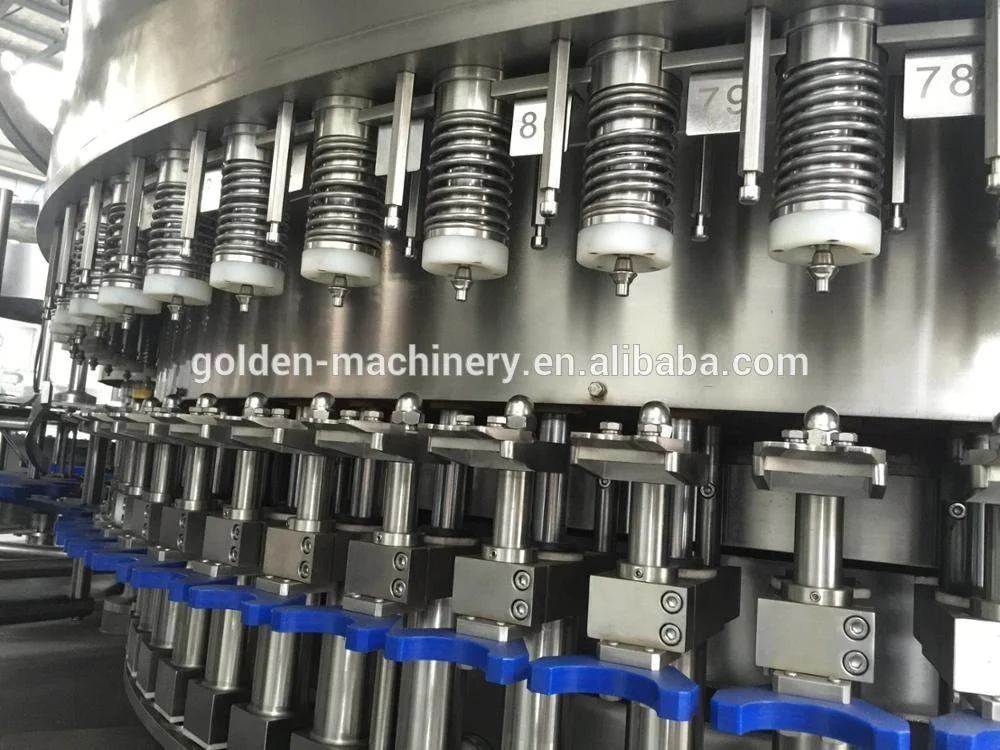

3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.


4. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.


5. This machine has a high efficient cap arranging system, perfect cap feeding and protection device.


6. Equipped with perfect clean management system to ensure the bottle clean.


7. Only by changing the star-wheel, can realize to fill the changed bottle shape.


8. The machine adopts perfect overload protective device can ensure the operator and machine safe.


9. This machine adopts adjustable frequency converter.


10. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.


11. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.


12. The electric components and pneumatic components are all introduced from world famous brand products.









Origin of Main Parts



Item	Part Name	Brand name
1	Frequency converters	MITSUBISHI
2	PLC	MITSUBISHI
3	Touch screen	MITSUBISHI
4	Electricity panel	Well organized
5	Photoelectricity Control parts	OMRON
6	Pump	CHINA





Main Technical parameters



Model:	DGCF16/12/6	DGCF18/18/6		DGCF24/24/8	DGCF32/32/10	DGCF40/40/12
Production Capacity:500ml(b/h)	2000-3000	4000-6000		6000-8000	10000-12000	12000-15000
Filling precision	<5mm (liquid level)
Filling pressure(Mpa)	0.4
Suitable bottle standard:(mm)	Bottle diameter: φ40-φ80, bottle height: 130-280mm		Bottle diameter: φ50-φ100   bottle height: 150-320mm
Suitable cap standard:(mm)	Plastic screw cap, 50-110
Total power(Kw)	5.03	5.03		6.57	8.07	10.07
Overall Dimension (L×W×H, mm)	2100×1500 ×2200	2450×1800 ×2200		2750×2180 ×2200	3600×2200 ×2600	4300×2300 ×2750
Total Weight:(kg)	2000	3500		5500	8000	9500
