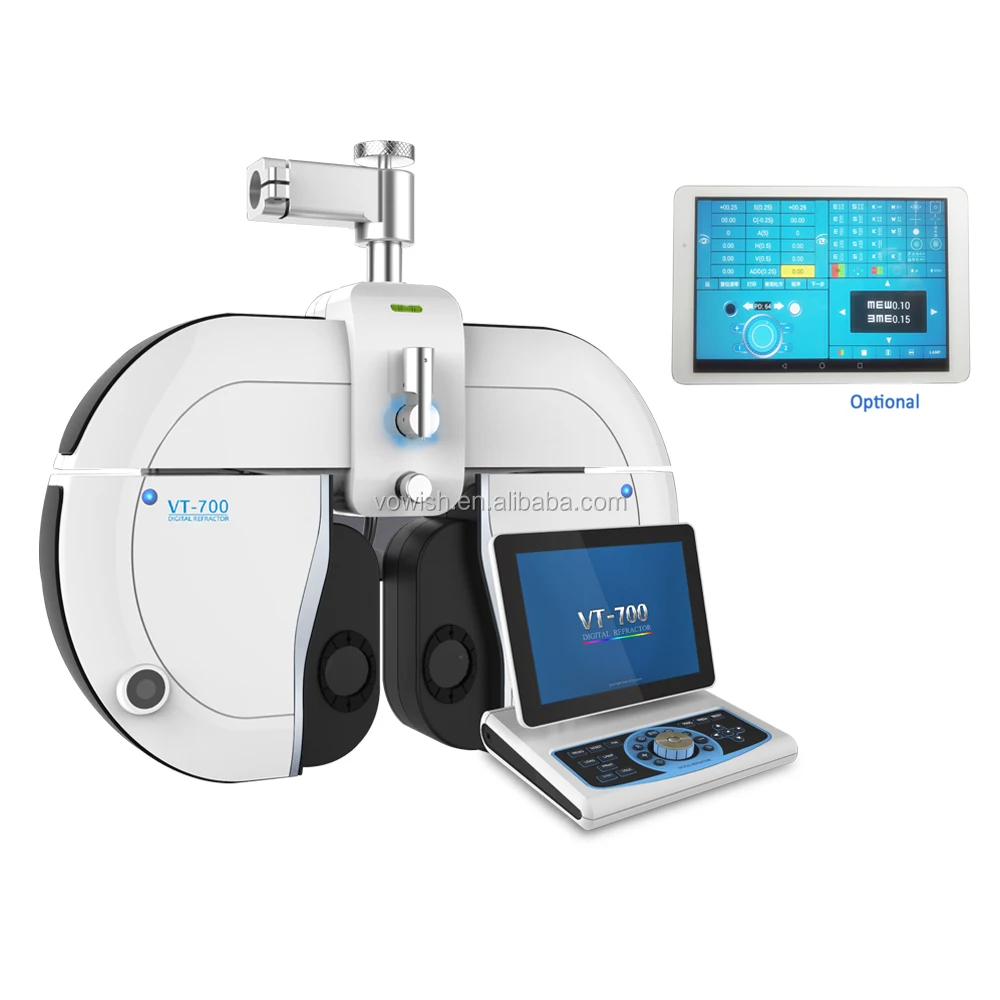

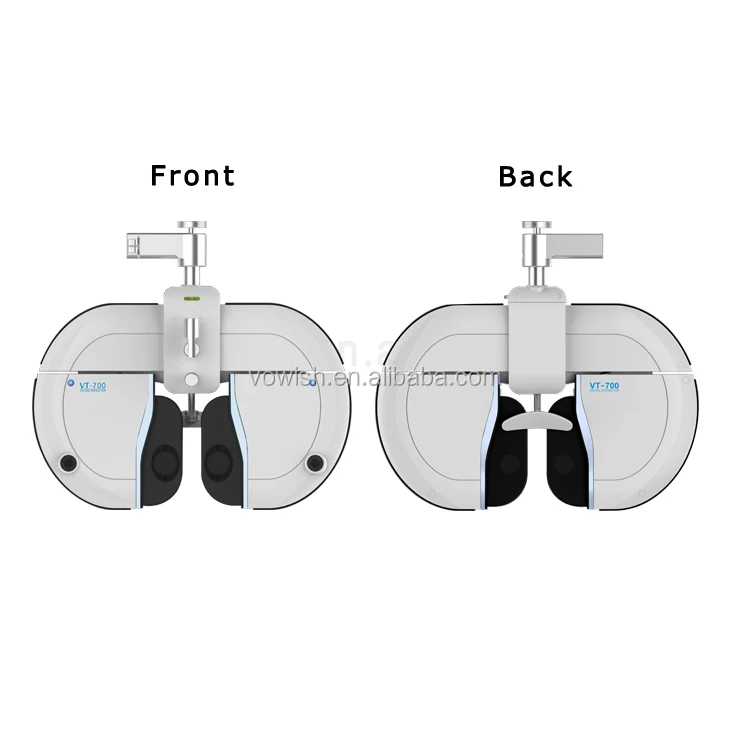

optical view tester VT 700 digital phoropter ophthalmic foropter

Sphere

-29.00D~+26.75D (0.12D/0.25D/0.50D/1.00D//2.00/3.00D)

Cylinder

0.00D~+8.75D (0.25D/0.5D/1D/2D/3D steps)

Axis angle

0~180° (1°/5°/30°/45°steps)

Pupillary Distance

Distant range:45~75mm (0.5/1.00mm steps)

Close range: 50~80mm 0.5/1mm steps

Working Distance

 35-70cm  (step: 5cm)

Rotary Prism

0~20   (0.1/0.2/0.5/1/2 steps)

Cross Cylinder Lens

Jackson cross cylinder 0.25D, Jackson cross cylinder 0.50D

Plane Retinoscope

+1.50D(67cm) +2.00D(50cm)

Auxiliary Lens

Pinhole Lens

1.0mm

Maddox

Right eye (horizon), left eye (vertical)

Red and green lens

RL(Right eye),GL(Left eye)

Polaroid

Right eye (135°,45°); Left eye (45°,135°)

Prism

Right 6 BU, Left 10BI

Solid Suprachiasmatic cylinder

Jackson Cross Cylinder ±0.50D  Axis=90°

Visual degree

32°

Phoropter Size

362mm×299mm×83mm   3.5kg

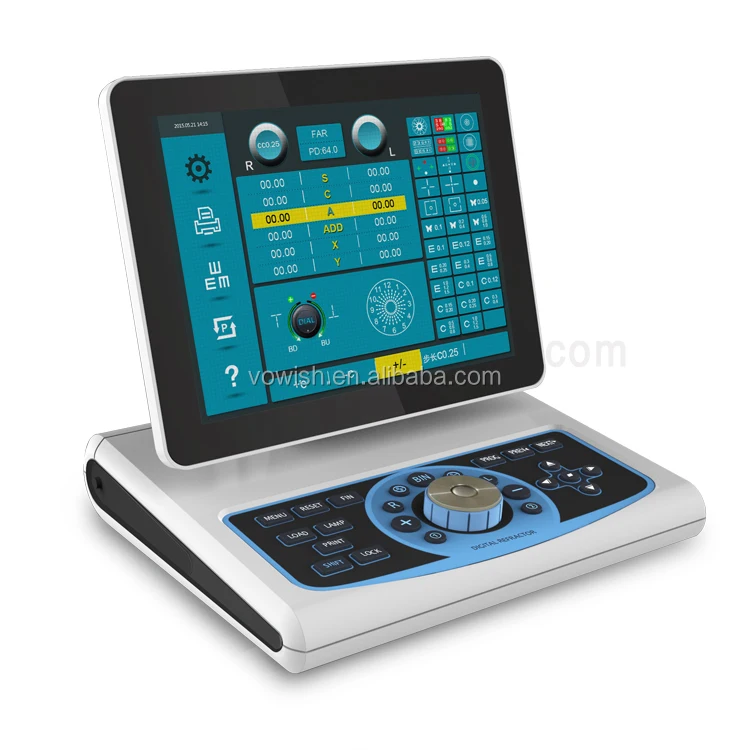

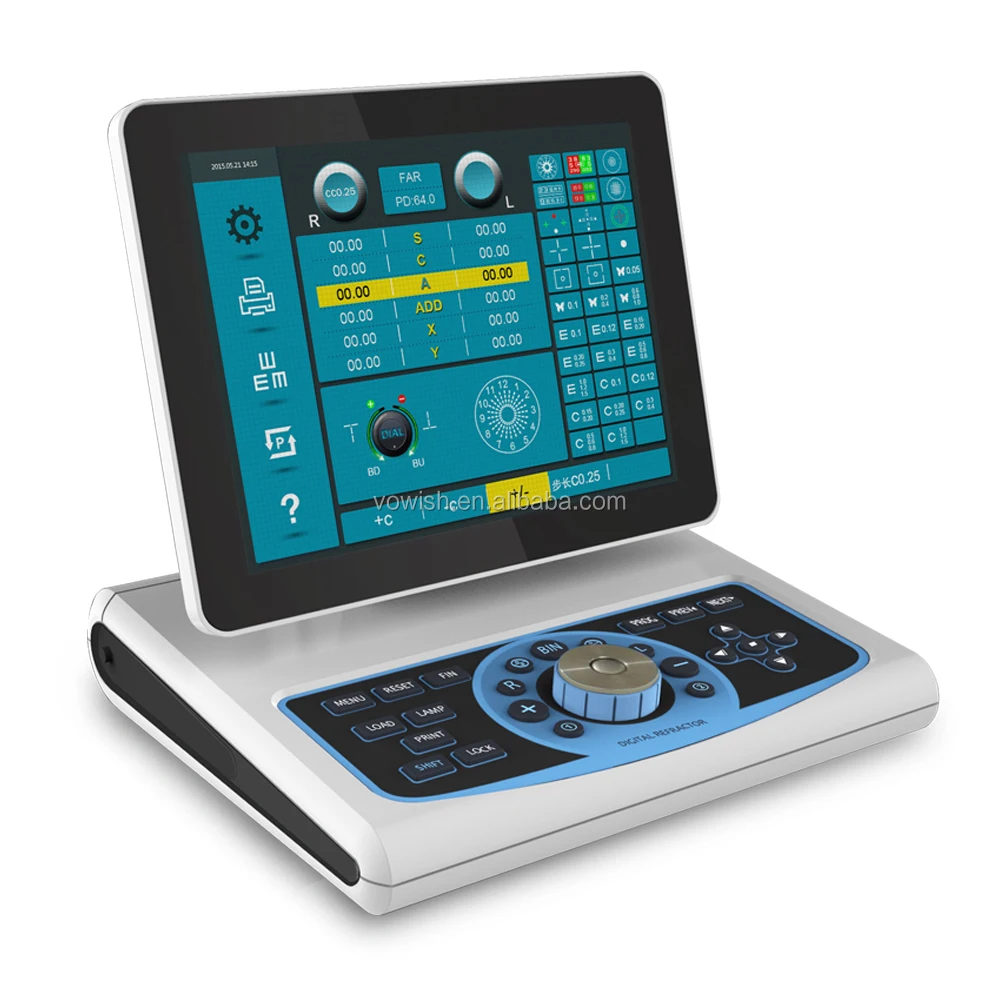

Keyboard Size

215mm×230mm×226mm   1.5kg

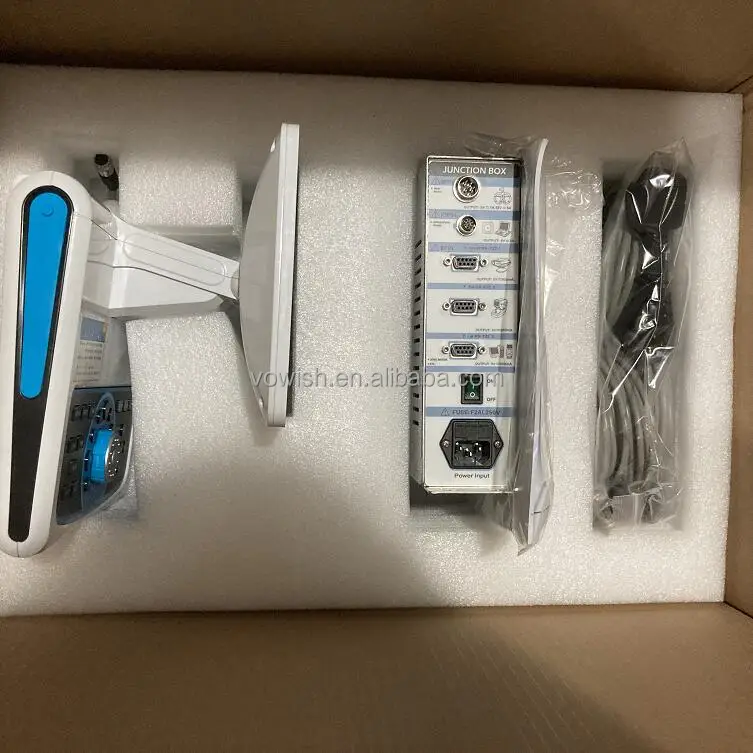

Junction box

266mm×72mm×240mm   1.3kg

Power Supply

AC110V-240V   50/60HZ,90VA

Net Weight

7.1kg
