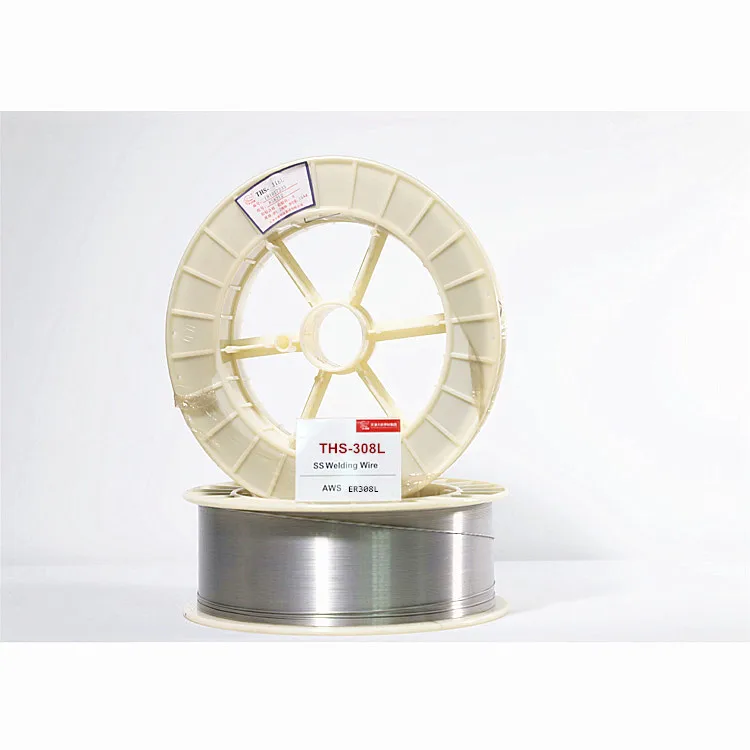

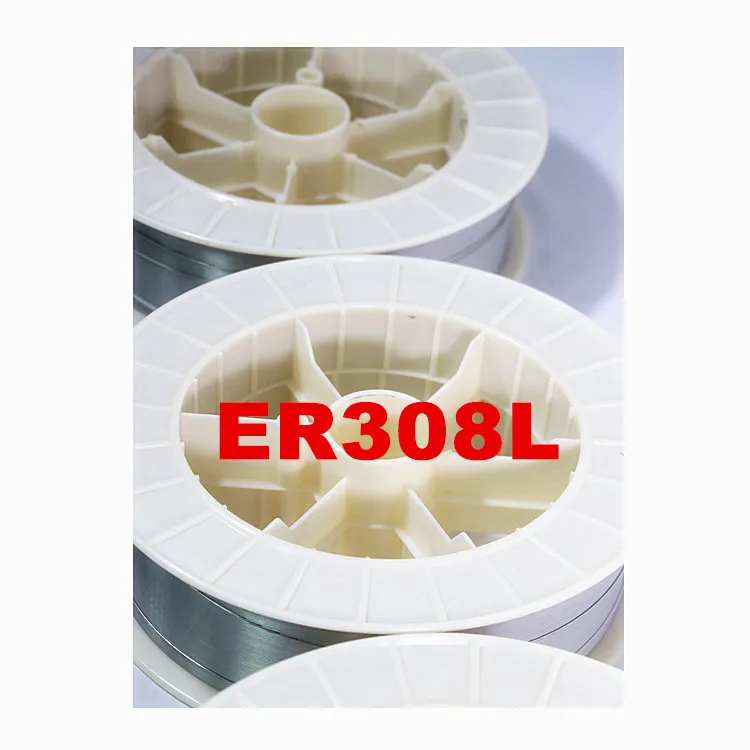

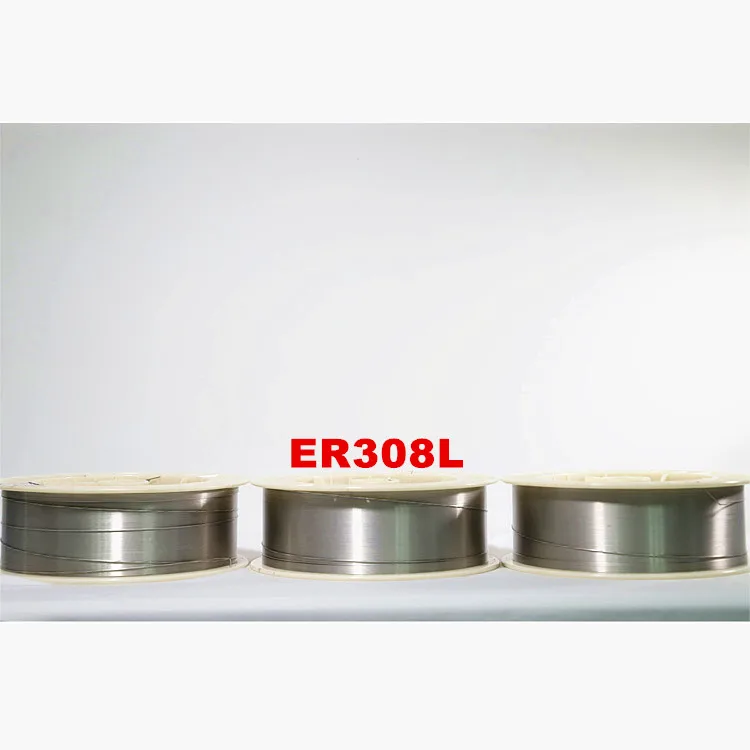

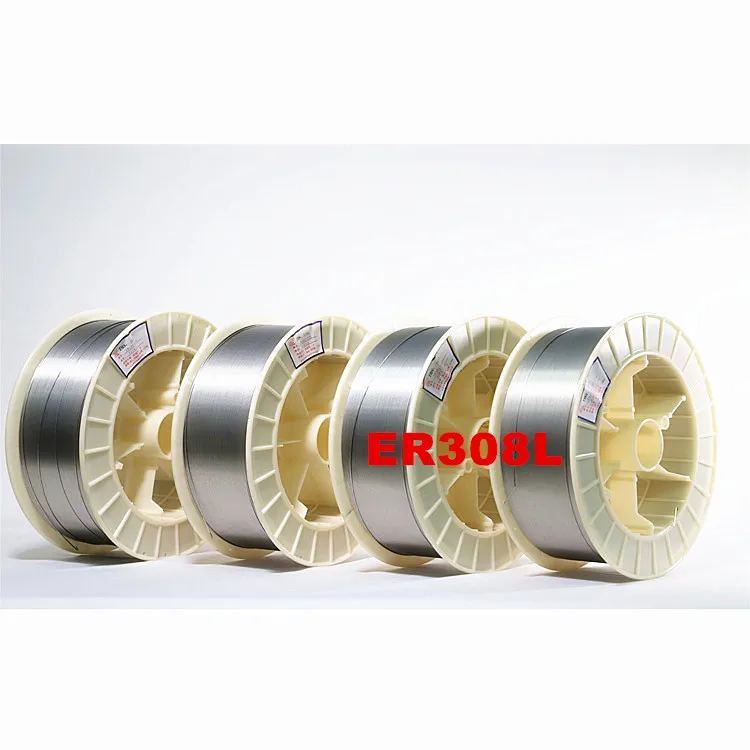

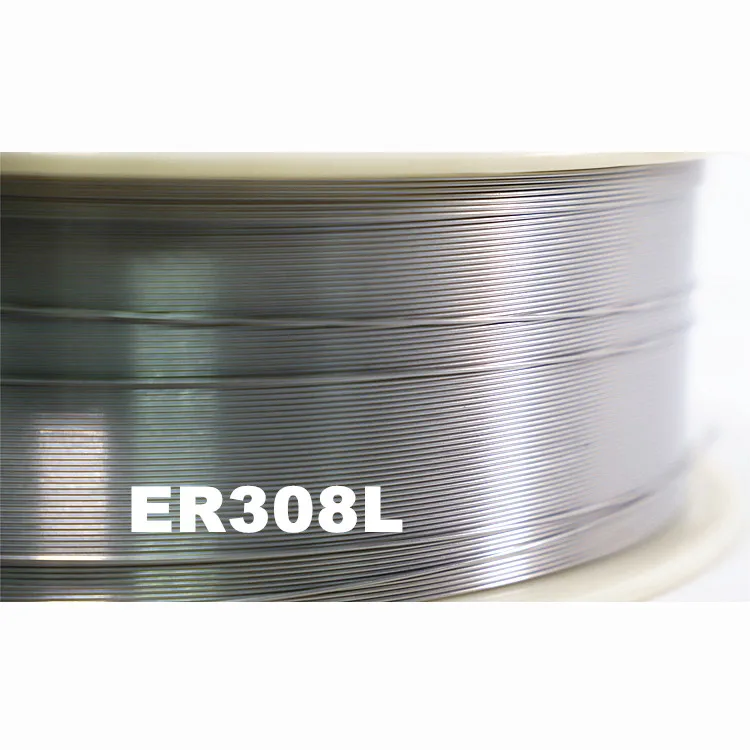

welding wire MIG WIRE THS 308L AWS A5.9 ER308L consumables

Product Overview

Description

THS-308L / THT-308L                     AWS A5.9 ER308L

Stainless Steel Solid Wire                                         GB/T 29713 S308L









Applications:

For the welding of stainless steel as SUS 302, SUS 304 etc.

THS-308L is MIG wire, THT-308L is TIG rod.



Characteristics:

THS-308 / THT-308 are the ultra-low carbon austenite stainless steel solid wires. Have perfect welding performance, stable and soft arc, beautiful appearance. All positions is suitable.



Attention:

1. The rust, oil, water and other impurities of the weld area must be removed before welding.

2. The shield gas should be THS-308L is with Ar+(1%-3%)O2, THT-308L is with pure Ar.



Chemical Composition of Wire:                               (Wt. %)

Items	C	Mn	Si	S	P	Ni	Cr	Mo	Cu
Requirements	≤ 0.030	1.00- 2.50	0.30- 0.65	≤ 0.020	≤ 0.025	9.00- 11.00	19.50-22.00	≤ 0.75	≤ 0.75

Mechanical Properties of All Weld Metal:

Items	Rm/MPa	A/%
Typical Results	590	40



Classification of Society Certification (THS-308L):

Ship Inspection Agency	CCS
Level Of Recognition	304L
