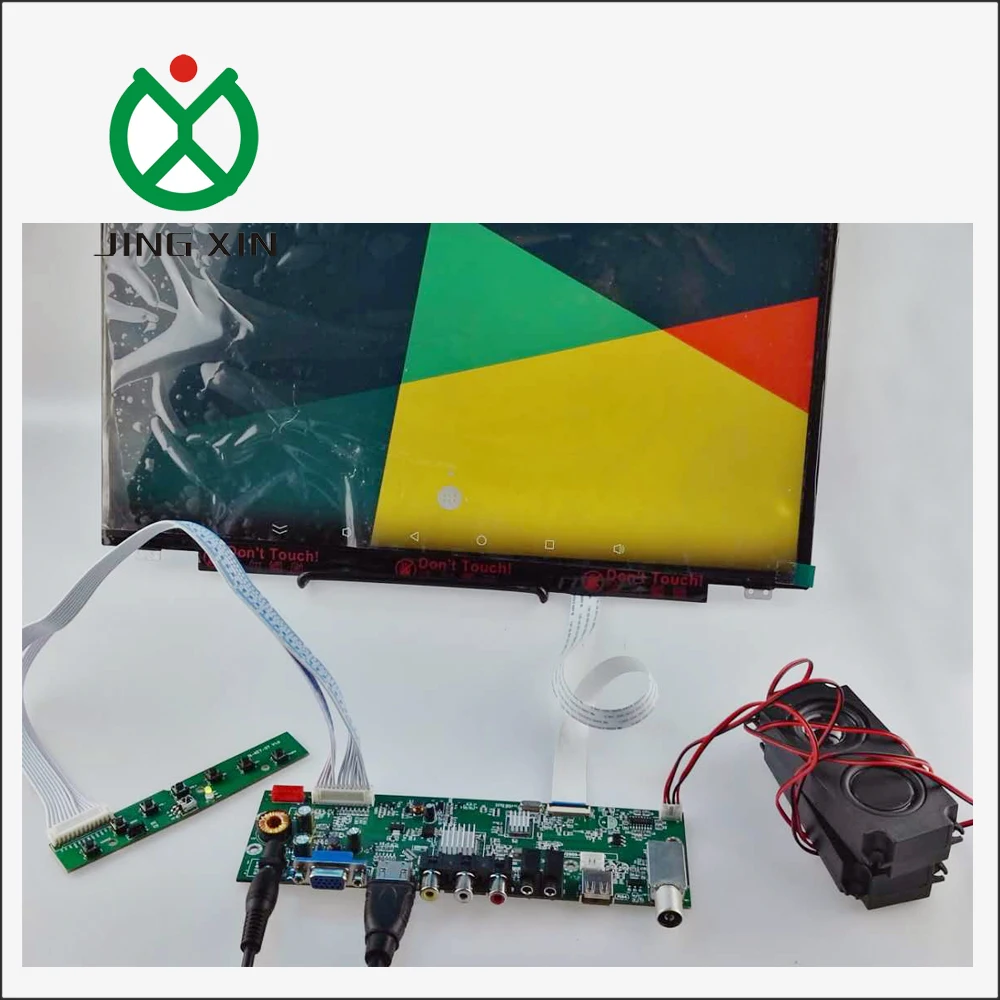

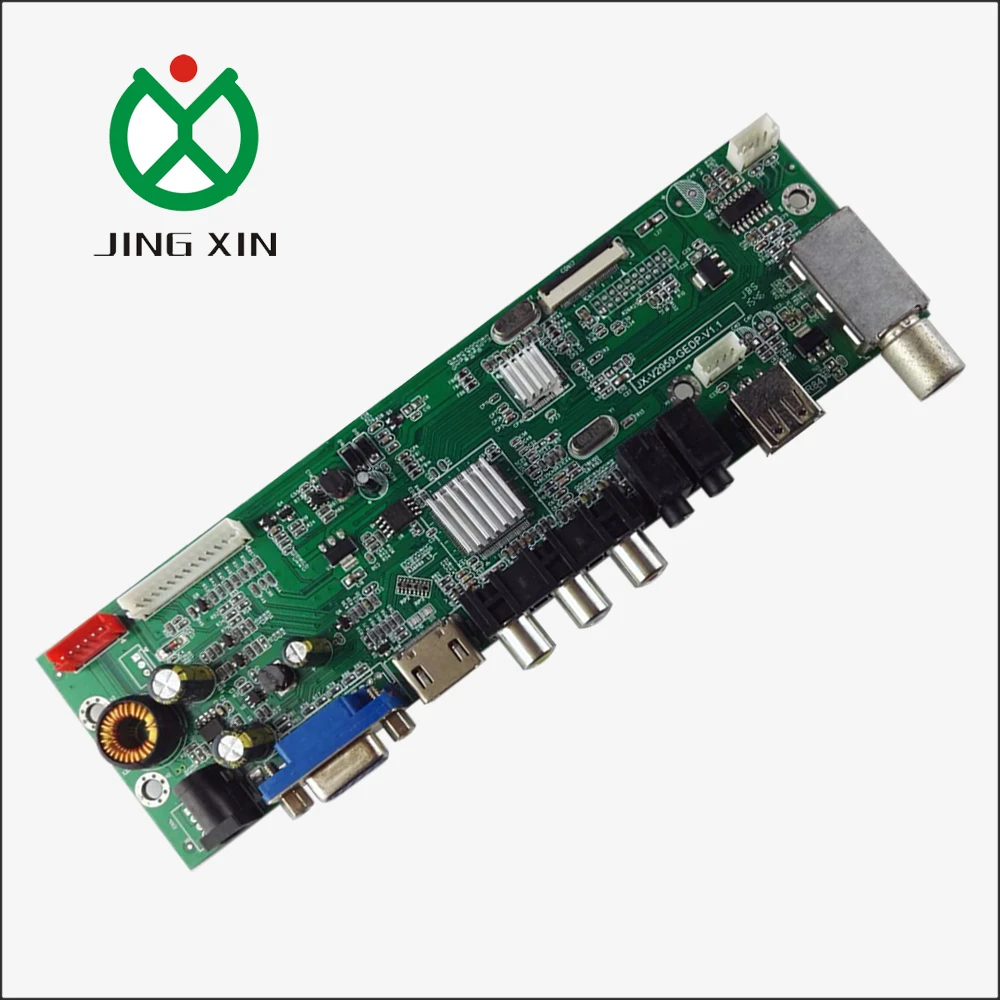

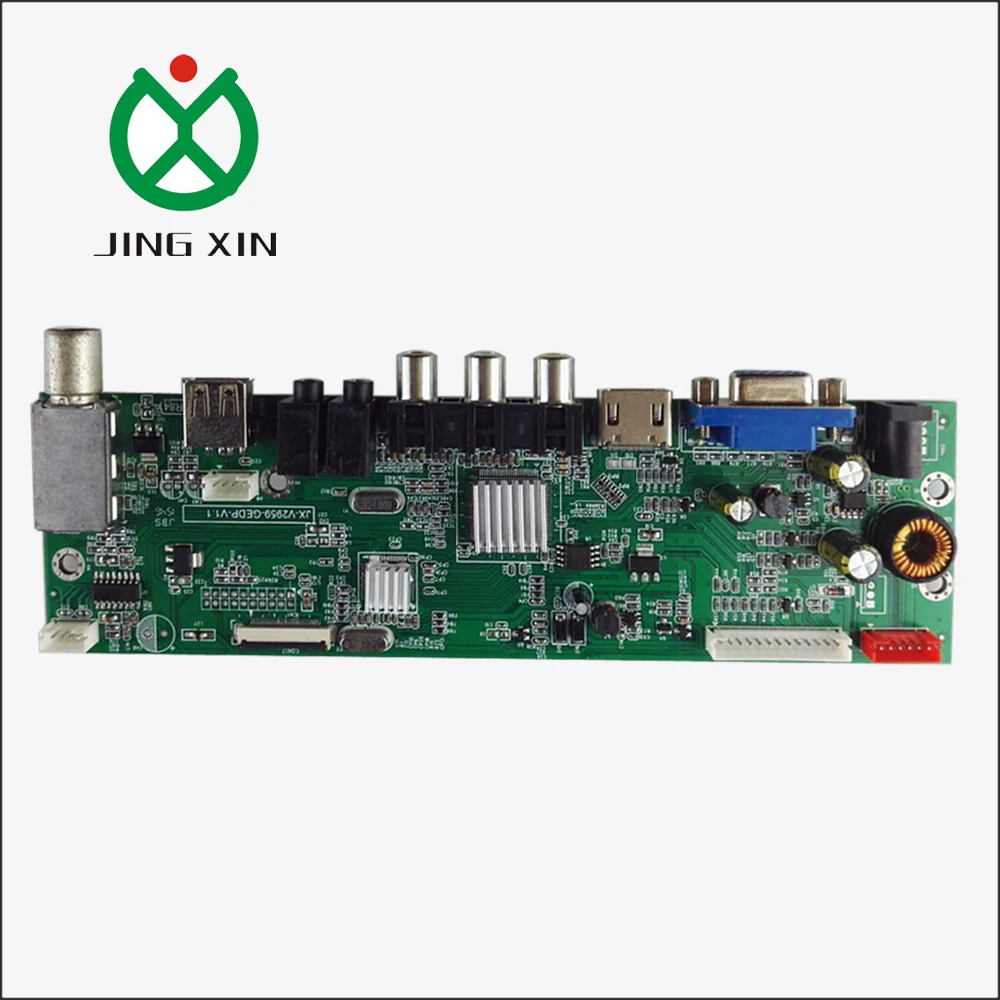

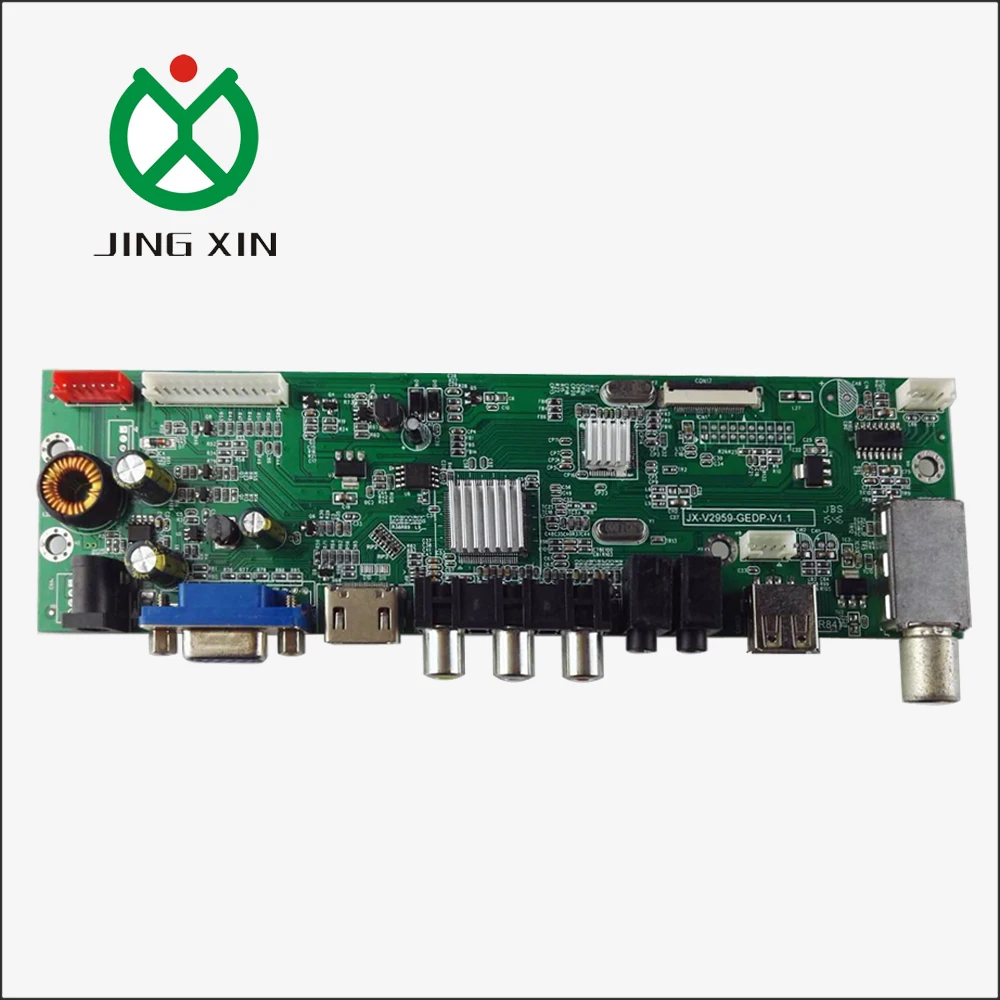

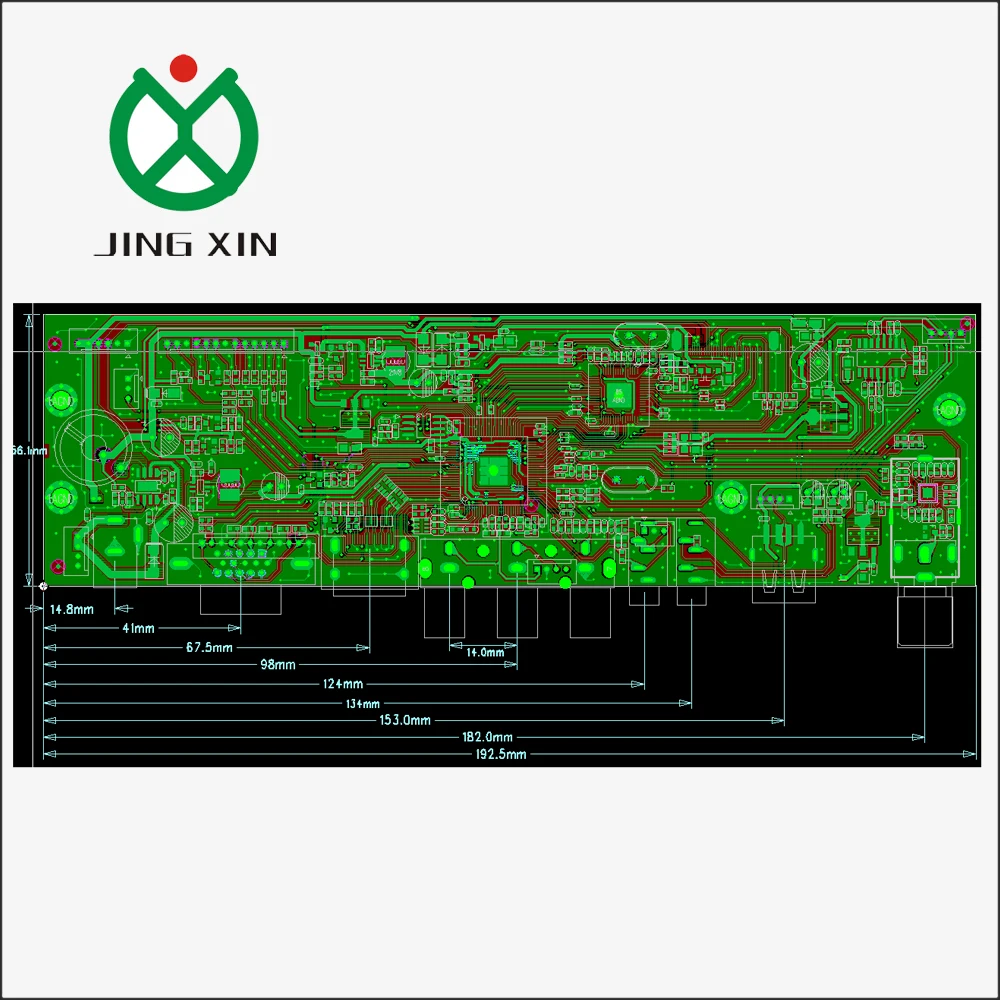

LED LCD digital TV 1080P Universal Mainboard with DVB T T2 C



Performance profile



This is a cost-effective LCD monitor board with a single-chip design. It is designed for display applications.

Plan to solve the 15/17/19/22-inch display application needs.

Since this is a targeted design for LCD applications, it only supports single-channel and dual-channel LVDS interface types, but the board offers a wide variety of socket interfaces to meet the needs of customers.

Independent and enhanced horizontal and vertical scaling to optimize image display quality; also drive various levels and verticals

Straight proportional PANEL, for example: 4:3, 5:4, 15:10 and 16:9; especially when the input image resolution is greater than the PANEL resolution

Yes, it can be reproduced very beautifully.

Support display resolution up to 1920x1080.

Main technical parameters

Vidio input	HDMI		resolution		max 1920*1080
			Video System		PAL/NTSC/SECAM
	CVBS		Video System		PAL/NTSC/SECAM
			Video level		1.0 V P-P ±5%
	PC-RGB		Format		Up to 1920×1080@60Hz
Audio input	CVBS		L/R RCA Input		0.2 ~ 2.0 V RMS
	PC Audio		Earphone Input		0.2 ~ 2.0 V RMS
	THD		1.5~2%
	S/N		80 dB
Speaker	Frequency Response		Frequency Response 100Hz~15KHz @±3dB (1KHz reference signal)
	Max output		2*2.5W(4Ω)THD+N<10%@1KHz (Power Supply: 12V, Audio Input: 0.5V RMS )
Power supply	Input voltage		12V
	Panel voltage select		3.3V/5V/12V
	Backlight voltage		12V
	Standby consumption		<0.5W
OSD language		Chinese English German French Italian Spanish Russian Arabic Persian and so on.
Key function		POWER/MENU/SOURCE/UP/DOWN/LEFT/RIGHT
Comb Filter		3D		De-Interlace		3D
TXT		select		V-CHIP,CC,WSS,VPS		select



Input and output port definition

4.1 DC12V voltage input / output interface

Bit number: CN2/H7/H8

Model: DC-005

H7 pin number symbol function description:

1, VCC DC 12V power input

2, GND ground

H8 pin number symbol function description:

1, VCC DC 12V power input

2, VCC DC 12V power input

3, GND ground

4, GND ground



4.1 DC5V voltage input / output interface

Bit number: CN10/H18

Model: PH2.0-4A

Pin symbol function description:

1, VCC5 5V DC power supply, controlled by STB

2, VCC5 5V DC power supply, controlled by STB

5, GND ground

6, GND ground
