LMR400 coaxial jumper cable LMR 400 cable assembly with N male connector jumper tail
- Category: >>>
- Supplier: Xiamen Dianchang Communication Technology Co. Ltd.
Share on (60828550108):
Product Overview
Description
Product Description

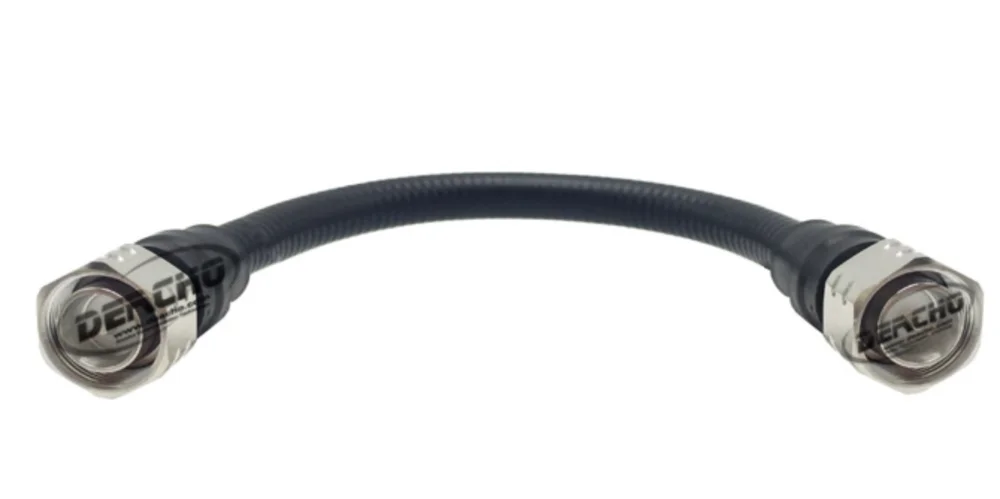

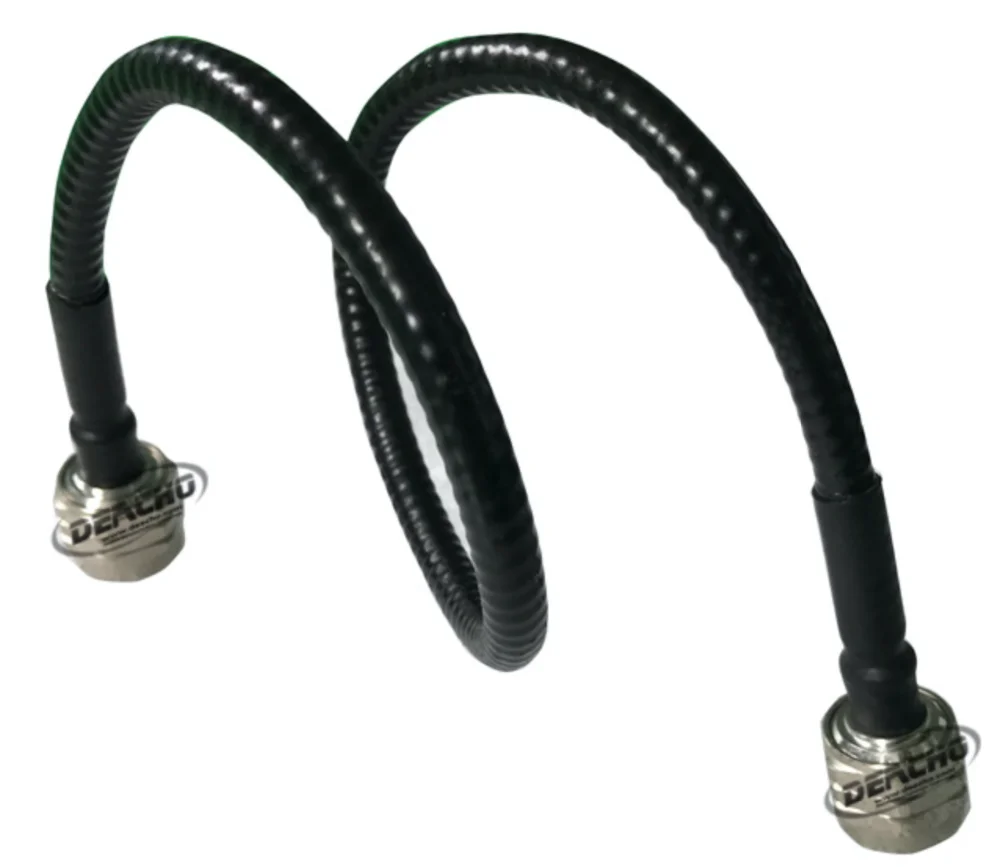

LMR400 jumper cable assembly with N male connector
Description.
Jumper cables are mainly used between main feeders and antennas or between main feeders and system equipment. Jumper cables are used in areas that require extremely small bending radius. Jumper cable is premium soldered, premium molded in factory, assembled with fully soldered connectors. The use of jumpers provides greater flexibility, reduced mechanical stress on antennas and connectors and better accessibility of feeder terminations. Jumper cables offer outstanding electrical performance along with high durability for superior environmental sealing for long life reliability.
Features/Benefits.
Jumper cables are designed and produced to have features as below
● High pull-off strength
● Excellent V.S.W.R performance.
● Low and stable intermodulation.
● Weatherproof
Production Information.

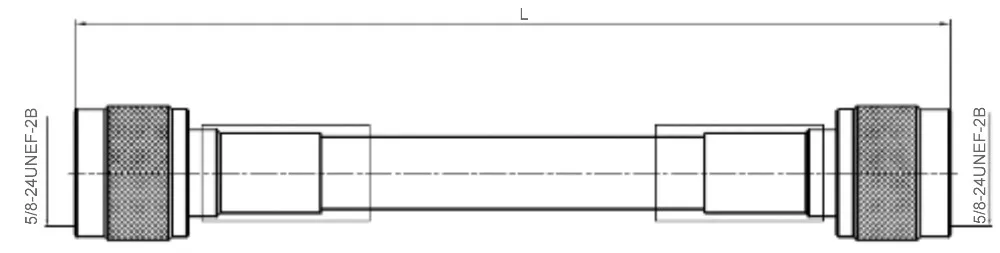

Item No.: JCL400-NM-NM-G08
Cable type: LMR400
Cable length: customizable
Connector A: N male
Connector B: N male
Performance.
Product Description | ||||
Cable | Type | LMR400 | ||
Length | As Per Customized | |||
Connector A | N Male | |||
Connector B | N Male | |||
Connector Pin | Brass / Au Plating | |||
Body | Brass / Ternary Alloy Plating | |||
Insulator | PTFE | |||
Gasket | Silicone Rubber | |||
Electrical | ||||
Impedance | 50 ohm | |||
Frequency | DC-3GHz | |||
VSWR | ≤1.12 | |||
Dielectric withstanding voltage | ≥2500V RMS,50Hz | |||
Dielectric Resistance | ≥5000MΩ | |||
Mechanical | ||||
Mating cycles | Mating cycles ≥500 | |||
Watertightness | IP67 | |||
Rosh-compliance | Full Complianced | |||
Temperature range | -40℃~+85℃ | |||
Related Products
1/2" DIN to 4.3-10 1/2"S 4.3-10 to 4.3-10 1/4"S N to N RG58 N to N
Contact Us
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample support.
* Customized is available.
After-Sales Service
* Installation and technical support.
* Product replacement if have quality problem.
* Customer information is not disclosed.
Company Profile
Packing & Delivery
Our usual packing is export carton with tape and packing belt, pallet packing or other packing is also available by your requirement.
Sample usually delivery by DHL,TNT,FedEx,UPS, batch cargo delivery by air or sea, other transport mode is available .
FAQ
Q1. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment (Conventional products).
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you have another question, pls feel free to contact us.
