Product Overview
Description
Product Description

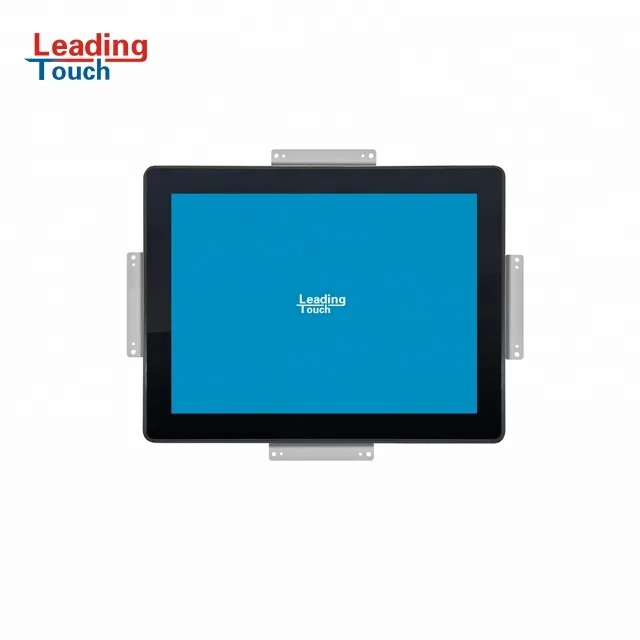

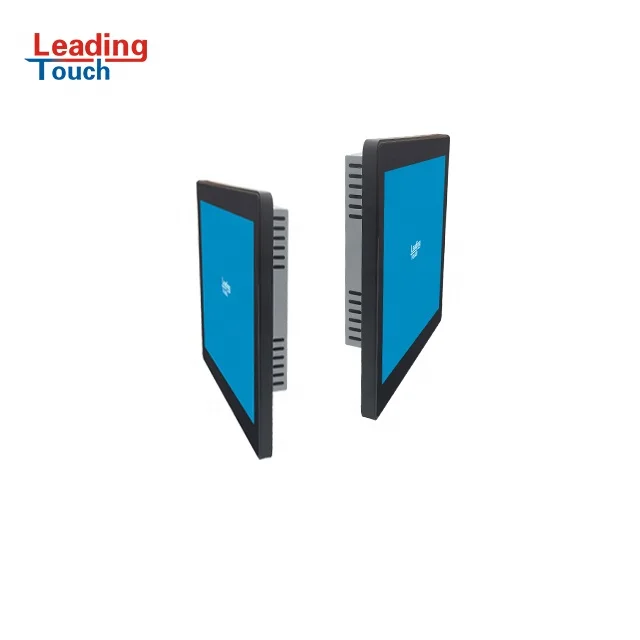

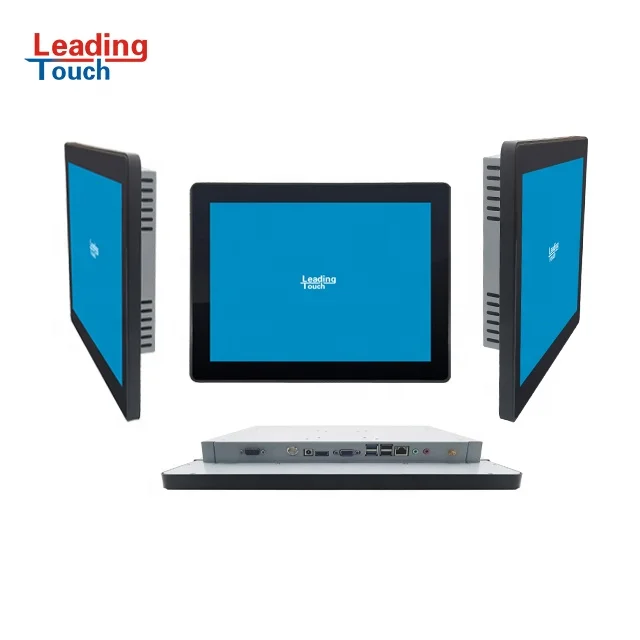

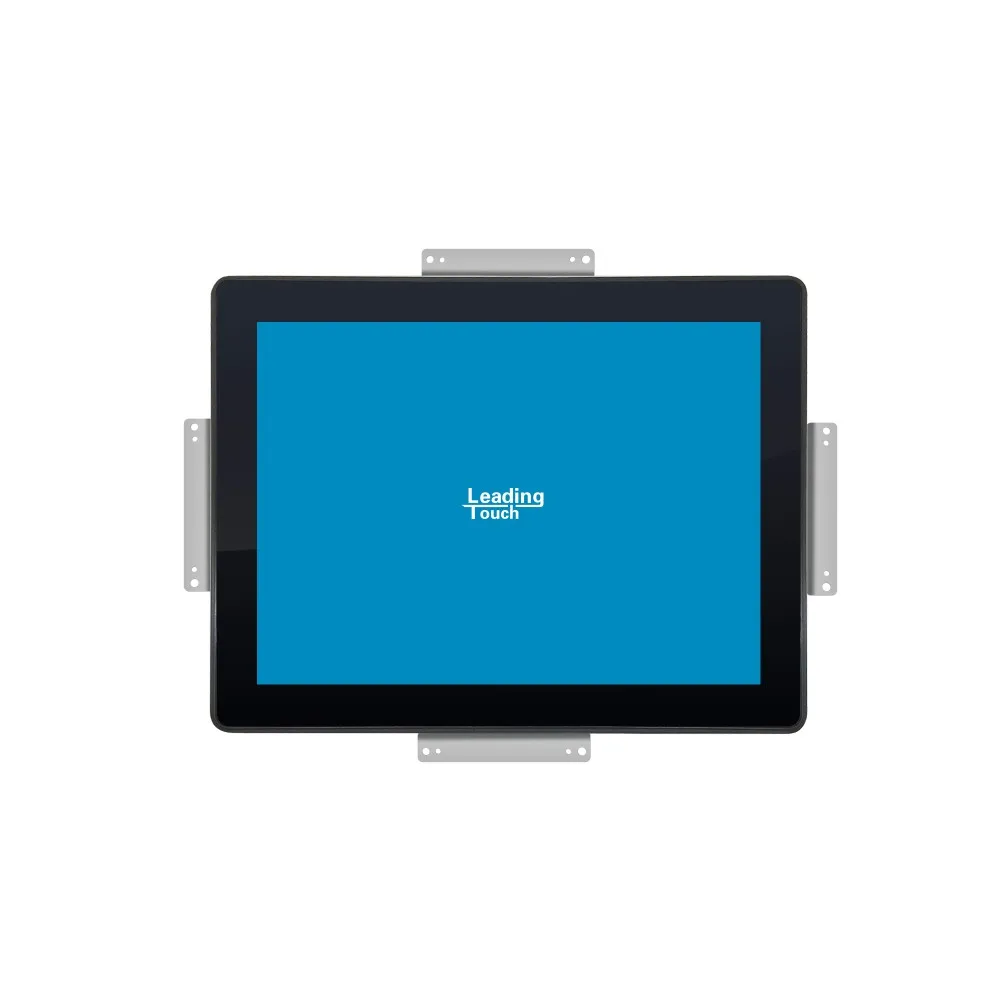

15" All-in-One PCAP Touch Computer
TC-1552 is 15inch project capacitive All-in-one touch computer; Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof, Highlight display with Anti-vandal tempered cover glass meet UL60950, Suitable for outdoor application, which is designed for Kiosks, Interactive Digital Signage, ATM, Gaming, Casino, Industrial, Education, etc., is easily connected and integrated by user.
Features
Zero-bezel flat touch computer, slim housing
10Point multitouch project capacitive touch technology
Aluminum alloy front bezel, meet IP65 waterproof

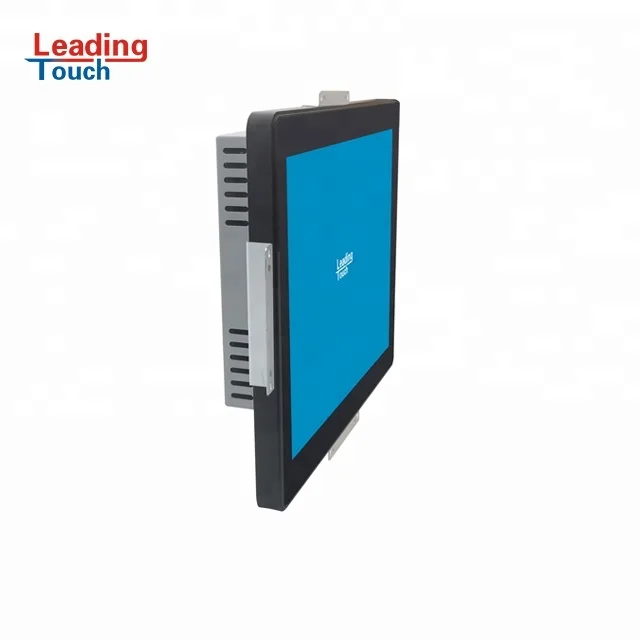

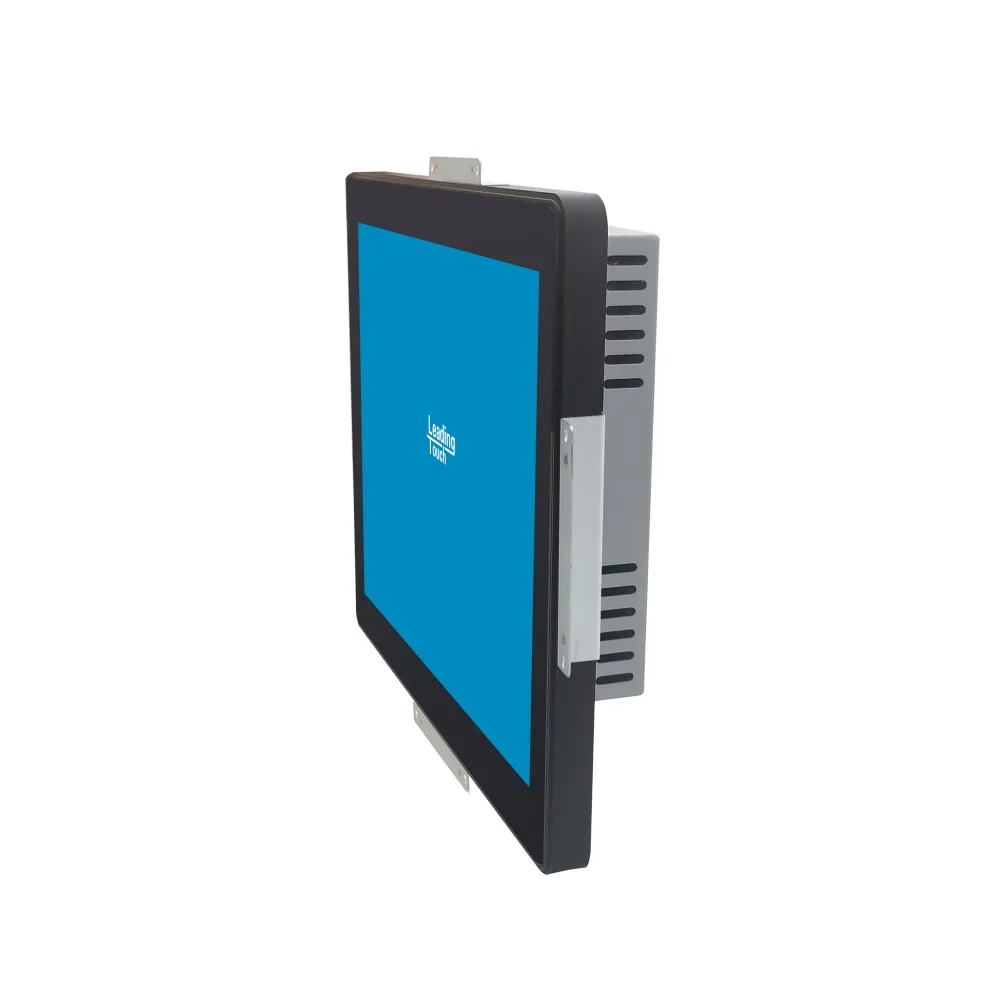

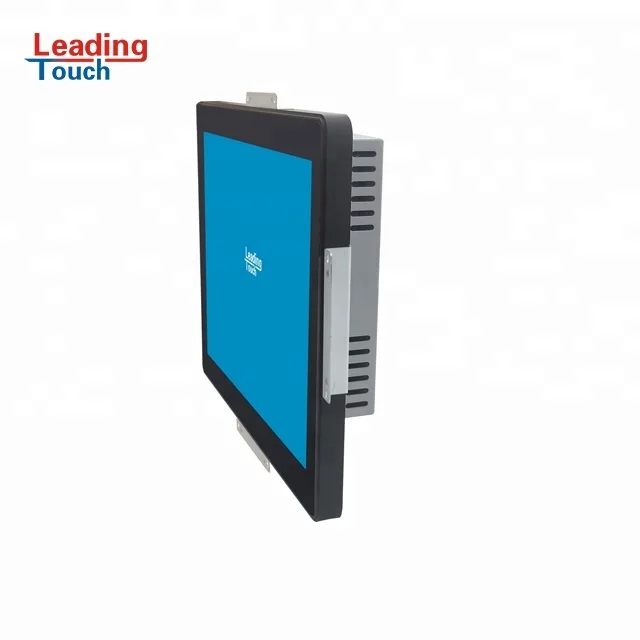

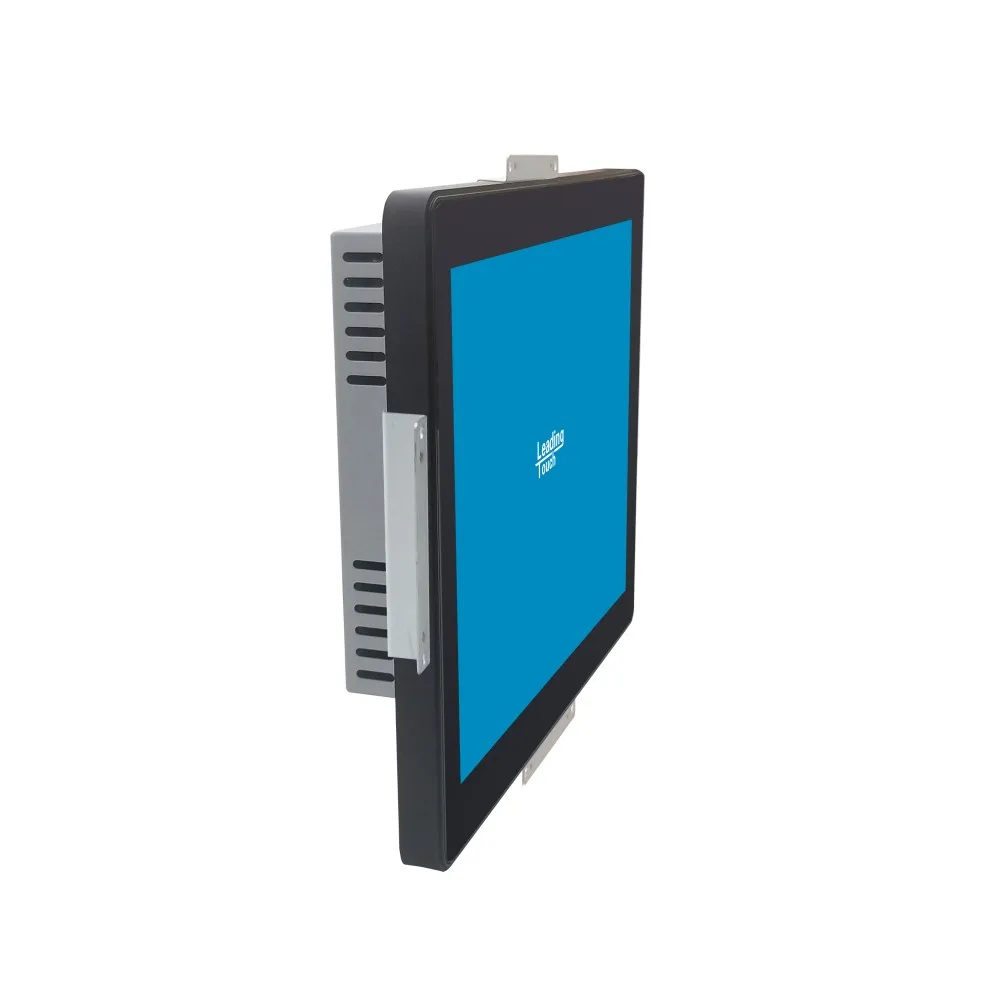

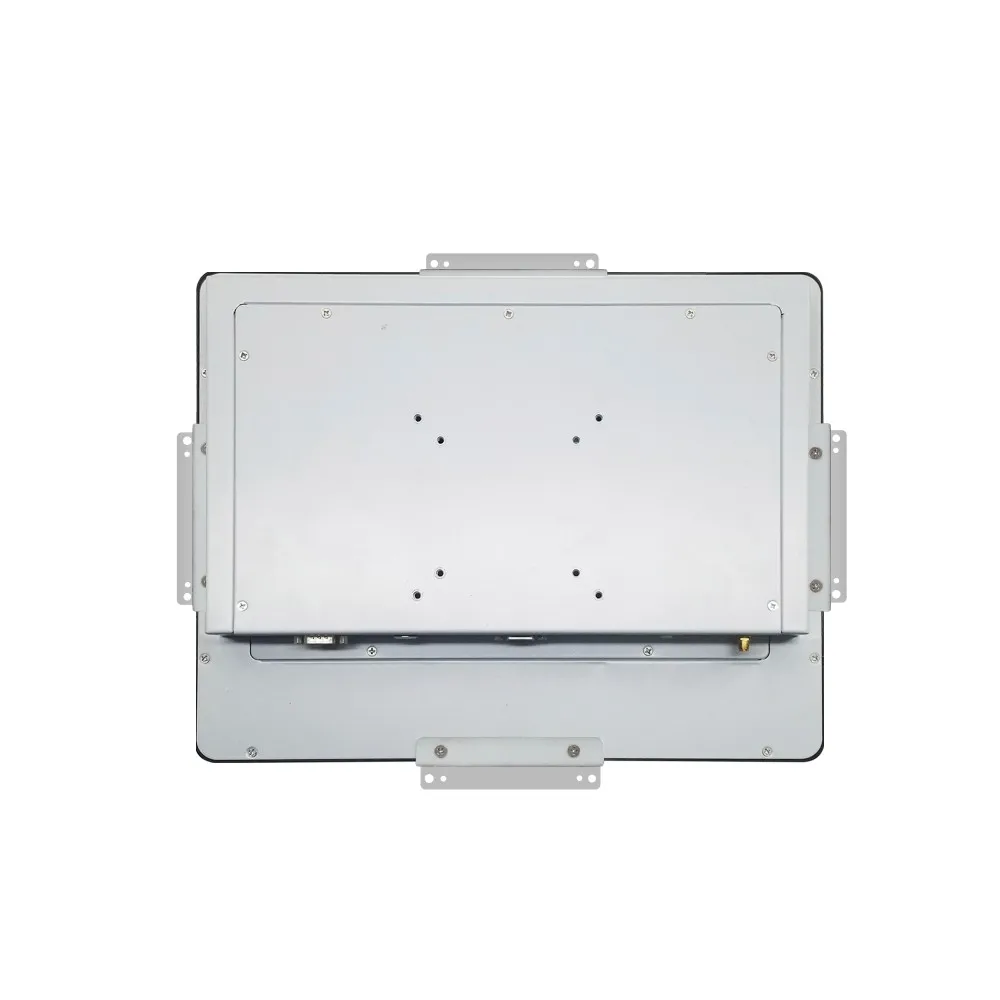

Standard VESA mounting and four side bracket options
High brightness LED panel
3mm Anti-vandal tempered cover glass meet UL60950
Efficient and stable Android computer system
Combinations of features indicate that LeadingTouch Windows All-in-One PCAP Touch Computer is the best choice for you.
Product Model | TC-1552 | ||
Product Description | 15" PCAP All in one Touch Computer | ||
DISPLAY | Display | 15" 4:3 Active Matrix TFT LCD | |
Useful Screen Area | 305mm x 229mm | ||
Optimal Resolution | 1024 x 768 | ||
Number of colors | 16.7 million | ||
Brightness | 450 cd/m² | ||
Contrast Ratio | 800:1 (Typical) | ||
Viewing Angle | Horizontal: ±80°or 160°total Vertical: ±70°or 140°total | ||
CPU | Celeron J1900 1.99GHz(Intel i3,i5,i7 options) | ||
RAM | 4G | ||
Hard Disk | 128 SSD or 500G STAT | ||

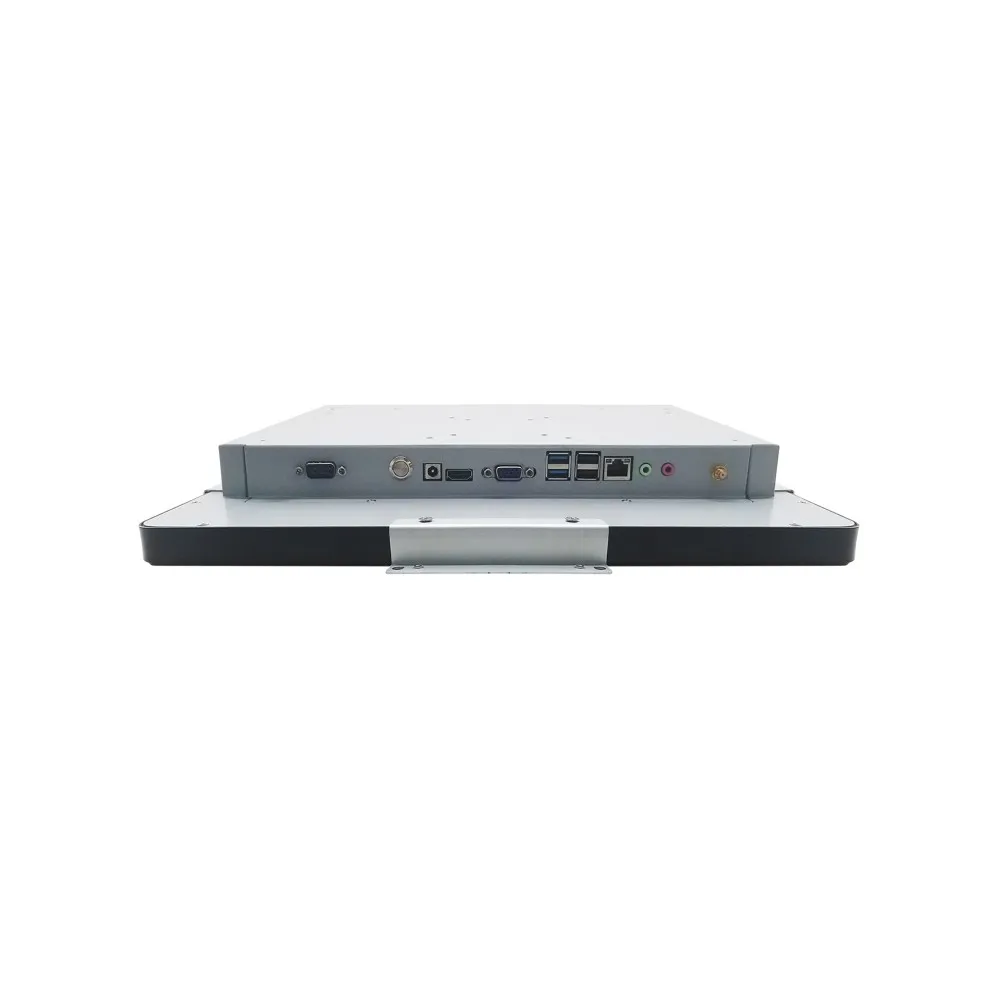

USB and COM Port | 2 x USB 3.0, 2 x USB 2.0,2 x COM(RS232) port | ||
Ethernet Port | 1 x LAN RJ45(Gigabit) | ||
Additional Video Out | 1 x HDMI and 1 x VGA out | ||
Wireless | Wi-Fi 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 4.0 | ||
Audio and Microphone | 1 x 3.5mm line out, and 1 x microphone out | ||
Speaker | 2x 12W internal speakers | ||
TOUCH | Touch Technology | Project capacitive touch technology | |
Response Time | 3ms | ||
Touch Resolution | 32767 x 32767 | ||
Touch Glass | 3mm Anti-vandal tempered glass meet UL60950 IK07 | ||
Sealability | Touchscreen sealed to Aluminum alloy-bezel IP65 | ||
Touchscreen sealed to LCD | |||
MTBF | 50,000 hours demonstrated | ||
Mounting Options | VESA Mount, four-side bracket and stand option | ||
Power Supply | 100-240VAC, 50-60Hz | ||
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | ||
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | ||
Product Dimension | 399.7mm x 326.5mm x 48.8mm | ||
Warranty | 1 year | ||
Agency Approvals | FCC, CE, RoHS | ||
Packing & Delivery
Certifications
Our Company
Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.
Related Products
Windows AIO Touch Computer
PCAP Touch Computer
Infrared Touch Computer
Android All-in-one Touch Computer
PCAP Touch Computer
Infrared Touch Computer
All in one PCAP Interactive Digital Signage
PCAP AIO IDS
PCAP All-in-one Interactive digital SIgnage
Packing&Shipping
FAQ
Q1: Which size do you provide for the PCAP projected Capative All-in-one Touch Computer? A1: Size: 7” 10.1” 10.4” 12.1” 15” 15.6” 17” 19” 21.5” 22” 23.8” 27” Large size： 32” 43” 49” 55” 65”. Customized size available. | ||||||||
Q2: Which kind of the inside computer do you have? A2: Our standard J1900+4G+128G SSD, i3/i5/i7 optional. | ||||||||
Q3: Is it Driver-free? What OS can the PCAP Capacitive touch screen panel support? A3: Yes, it is driver-free. Support Windows, Android, Ubantu, Linux, Mac… | ||||||||
Q4: Is it water proof, anti-vandal, anti-glare, true flat with 10 point multi touch? A4: All are available, pls confirm when you order to us. | ||||||||
Q5: What is your MOQ? Sample in stock? A5: No limited on MOQ, sample testing is ok. Standard size in stock. It can be dispatched to you very quickly. | ||||||||
Q6: What's the time of delivery ? A6: Depends on order quantity and our production schedule. Sample order of standard model; 14-21 days for custom sample order & mass production after payment receipt. | ||||||||
Q7: What paying methods do you accept ? A7: Alibaba Trade Assurance, T/T, Paypal , etc. | ||||||||
Q8: What is our the warranty policy ? A8: One year warranty. 12 months warranty lifetime free maintainance except the human damage and force majeure factor, can be 24-monthes or 36-monthes with extra cost. | ||||||||
