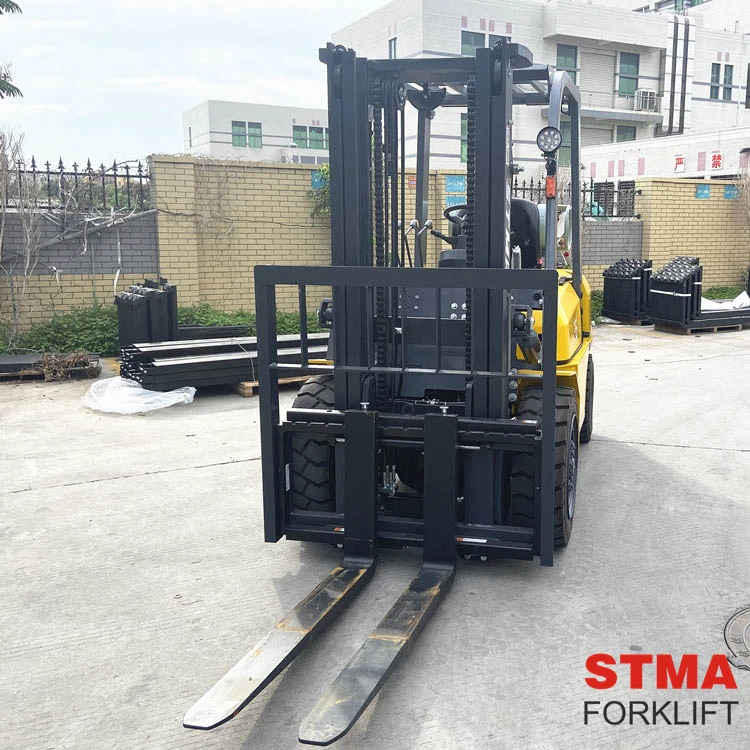

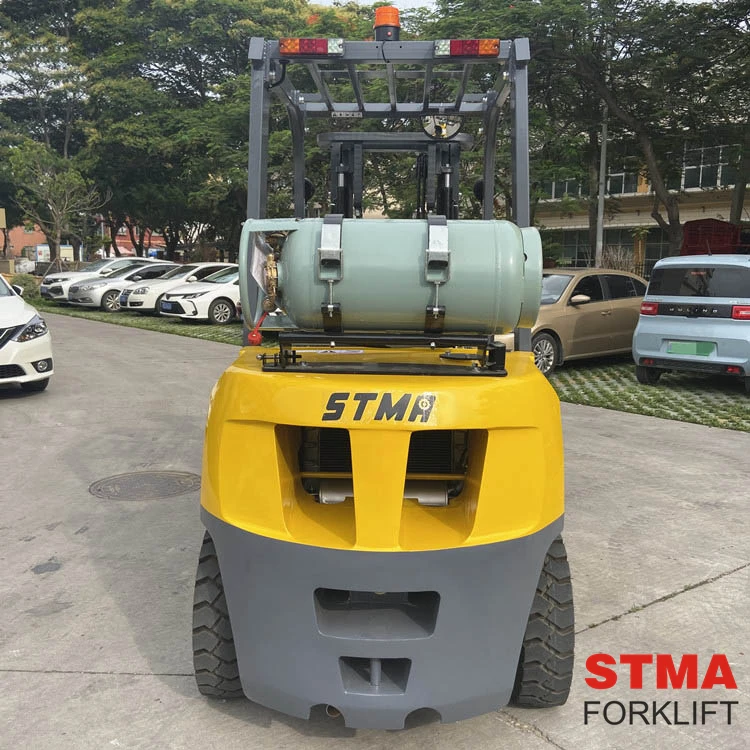

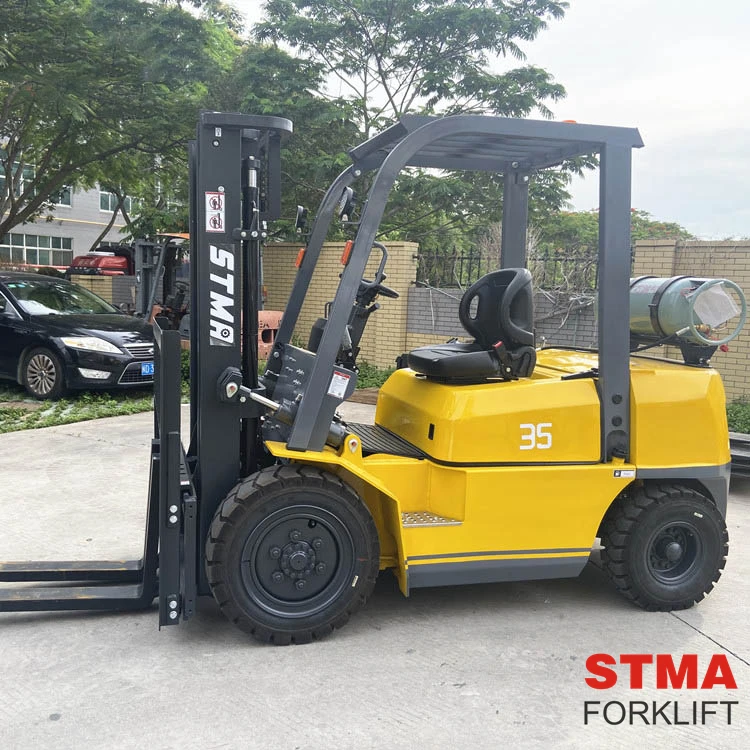

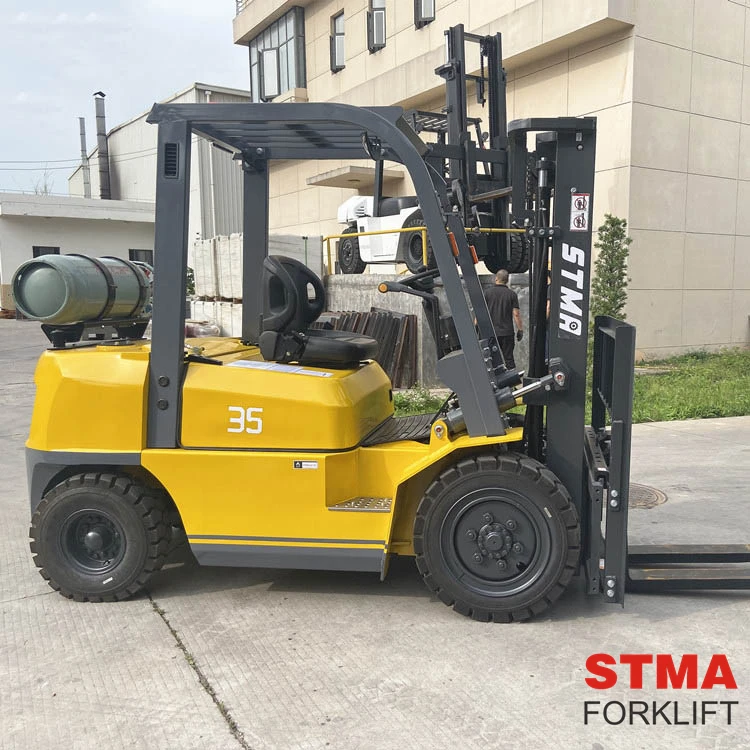

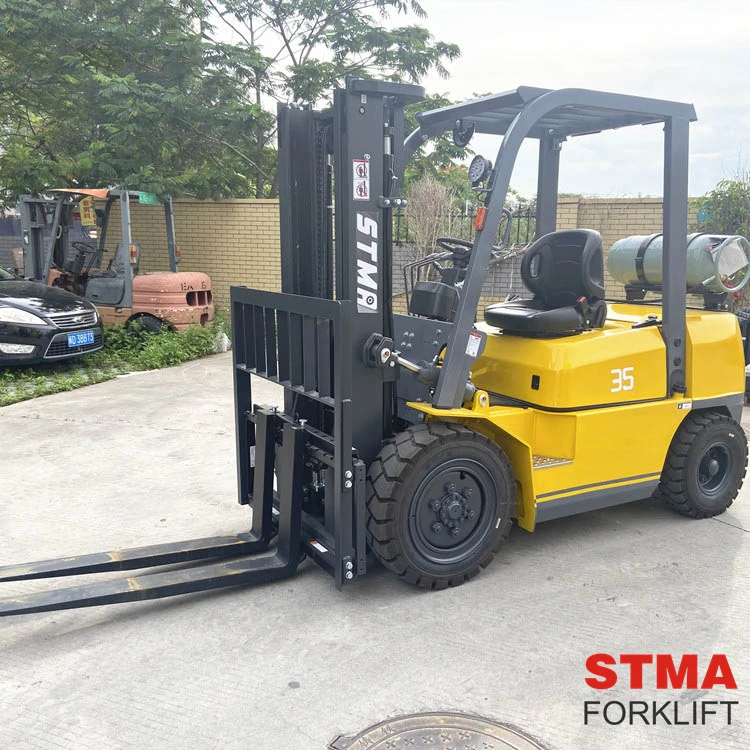

STMA top brand STMA 3.5 ton fork lift truck with 3000mm lifting height
STMA top brand STMA 3.5 ton fork-lift truck with 3000mm lifting height
STMA top brand STMA 3.5 ton fork-lift truck with 3000mm lifting height
STMA top brand STMA 3.5 ton fork-lift truck with 3000mm lifting height
STMA top brand STMA 3.5 ton fork-lift truck with 3000mm lifting height
STMA top brand STMA 3.5 ton fork-lift truck with 3000mm lifting height
STMA top brand STMA 3.5 ton fork-lift truck with 3000mm lifting height

STMA top brand STMA 3.5 ton fork lift truck with 3000mm lifting height

Share on (60828646640):


Price:$12,023.00 - $12,223.00

Quantity:


Product Overview

Description



Product Description


STMA top brand STMA 3.5 ton fork-lift truck with 3000mm lifting height



fork-lift truck

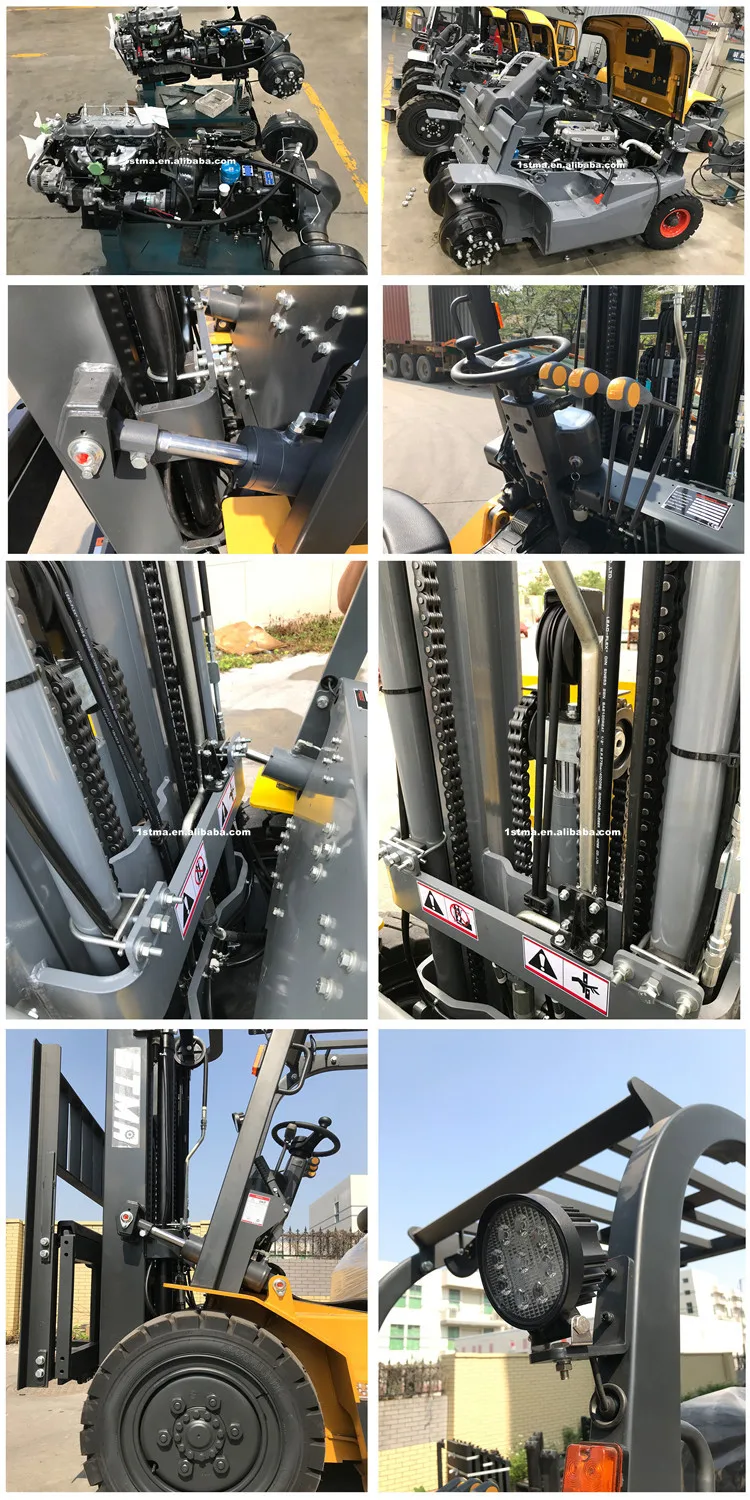

Detailed Image


Features of fork-lift truck

1.LED combined light is assembled on the truck and it is high efficiency, energy saving, brighter and has longer service life.

2.Half shaft sealing technology on drive axle end improves sealing reliability and reduces after sale service cost.

3.Clearance buffering structure on lifting cylinder bottom makes goods lowering stable and improves working safety.

4.Steering axle with big steering angle is dust-proof and water-proof, reliable and has long maintenance interval.







SPECIFICATIONS FOR 3.5 TON LIFT TRUCK


Model
FY35
1
Power Type
Gasoline/LPG
2
Rated Capacity
kg
3500
3
Load Centre
mm
500
4
Lift Height
mm
3000
5
Fork Size (L×W×T )
mm
1070×125×50
6
Mast Tilt Angle (F/R)
Deg
6°/12°
7
Front Overhang (Wheel center to fork face)
mm
490
8
Ground Clearance(Bottom of mast)
mm
120
9
Turning Radius (outside)
mm
2445
10
Min. Intersecting aisle
2235
11
Max.Gradeability (No load/Full load)
%
20
12
Wheelbase
mm
1700
13
Service weight
kg
4675
14
Battery (Voltage/Capacity)
V/Ah
12/90
15
Overall Dimension
Length to face of fork(Without fork)
mm
2700
16
Speed
Overall Width
mm
1225
17
Mast Lowered Height
mm
2125
18
Mast Extended Height(With backrest)
mm
4150
19
Overhead Guard Height
mm
2090
20
Travel (No load)
km/h
19
21
Lifting(Full load)
mm/s
410
22
Tire
Front
mm
28×9-15*
23
Rear
mm
6.50-10-10PR
24
Engine
Model
K25
25
Manufacture
NISSAN
26
Rated output/r.p.m.
kw
37.4/2300
27
Rated torque/r.p.m.
N·m
176.5/1600
28
No.of Cylinder
4
29
Bore×Stroke
mm
89×100
30
Displacement
cc
2488
31
Fuel Tank Capacity
L
70
32
Transmission
Type
Powershift (Manual)
33
Stage FWD/RVS
1/1(2/2)
34
Operating Pressure for Attachment
Mpa
17.5
