Ophthalmic Electric Chair and Stand Unit

Product Overview

Description

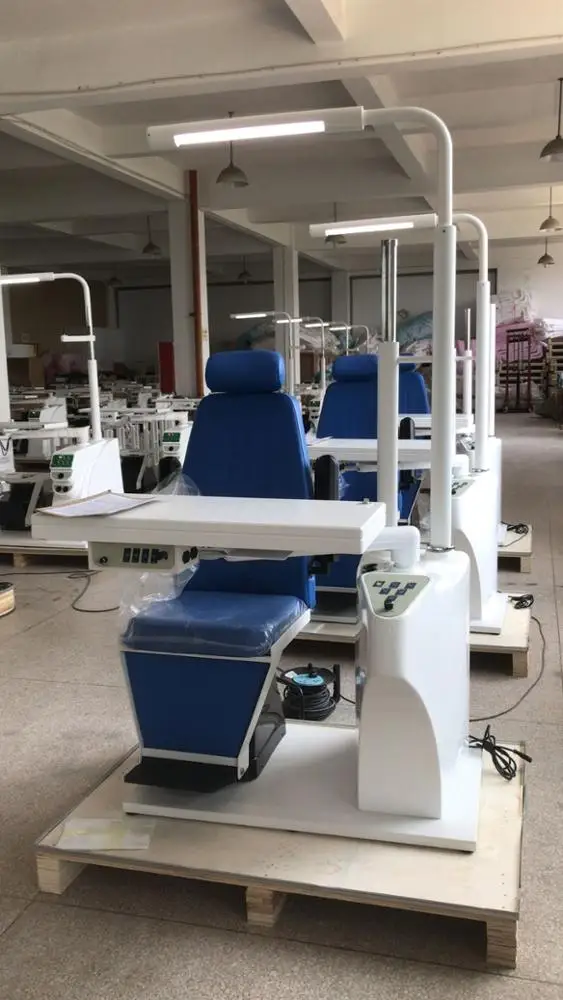

Ophthalmic Electric Chair and Stand Unit

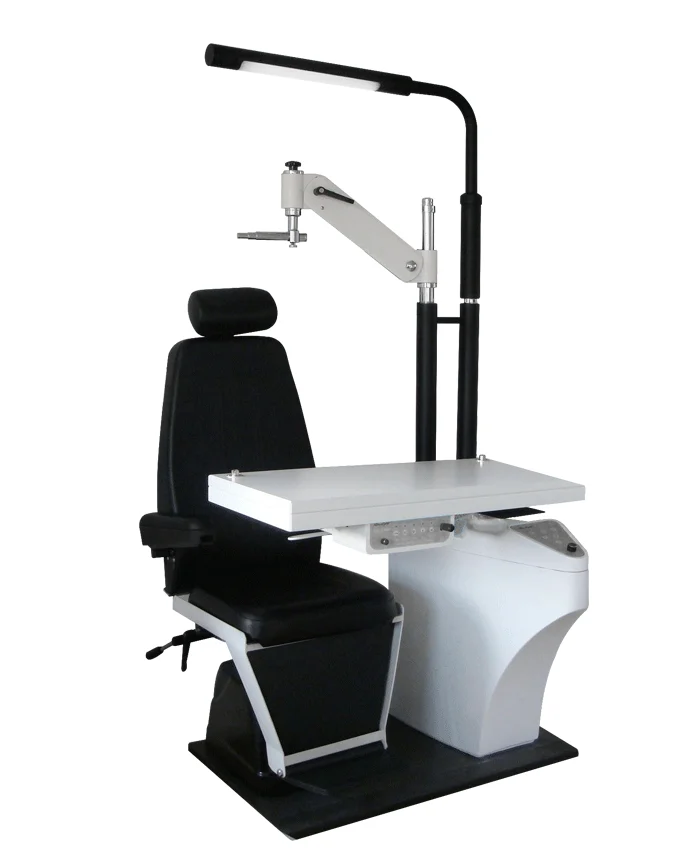

CT360 Features:

Adopt European style in appearance design, simple and fashionable, ergonomic design, universal function and good performance and easy operation.

Sliding table accommodates two instruments and provides with 90 degrees' rotation;

Hand operated phoropter arm can swing up and down, left and right;

Reclining Chair can smoothly lift up and down, forward and backward with low noise.

It can be used with kinds of ophthalmic instruments, and it‘s the ideal choice for hospitals, clinics and optical shops.





Unit size:	1 190*1 055*1850mm
Table Size:	890*405mm
Table rotation range:	90°
Table movable range:	335mm
Swing arm oscillation angle:	35°
Chair rotation range:	60°
Chair up and down range:	540- 690mm
Chair loading ability:	200- 250kg
Chair backrest obliquity:	160
Lamp:	LED (24V, 3W)_
Electric Voltage:	AC220V/1 10V 50/60HZ
Weight:	20Okg

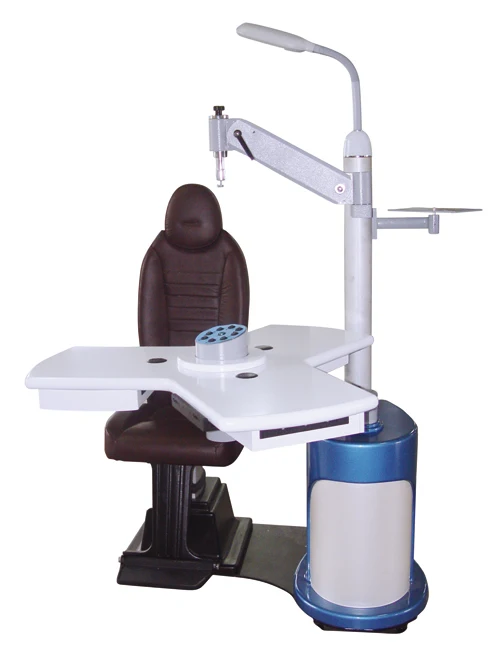

CT-400 Features:

Luxurious design and graceful structure
The Y shape table can rotate and up down, it can holdthree instruments
The control panel on the table can control the table and chair up and down

Specification:

Unit size:	1100*1120*2100mm
Table Size:	440*550mm
Table rotation range:	360
Table up and down range:	100mm
Swing arm oscillation angle:	30
Chair up and down range:	150mm
Chair loading ability:  180kgAdjustable backrest range:	18O
Electric Voltage:	AC220V/1 10V 50/60HZ
Weight:	150kg

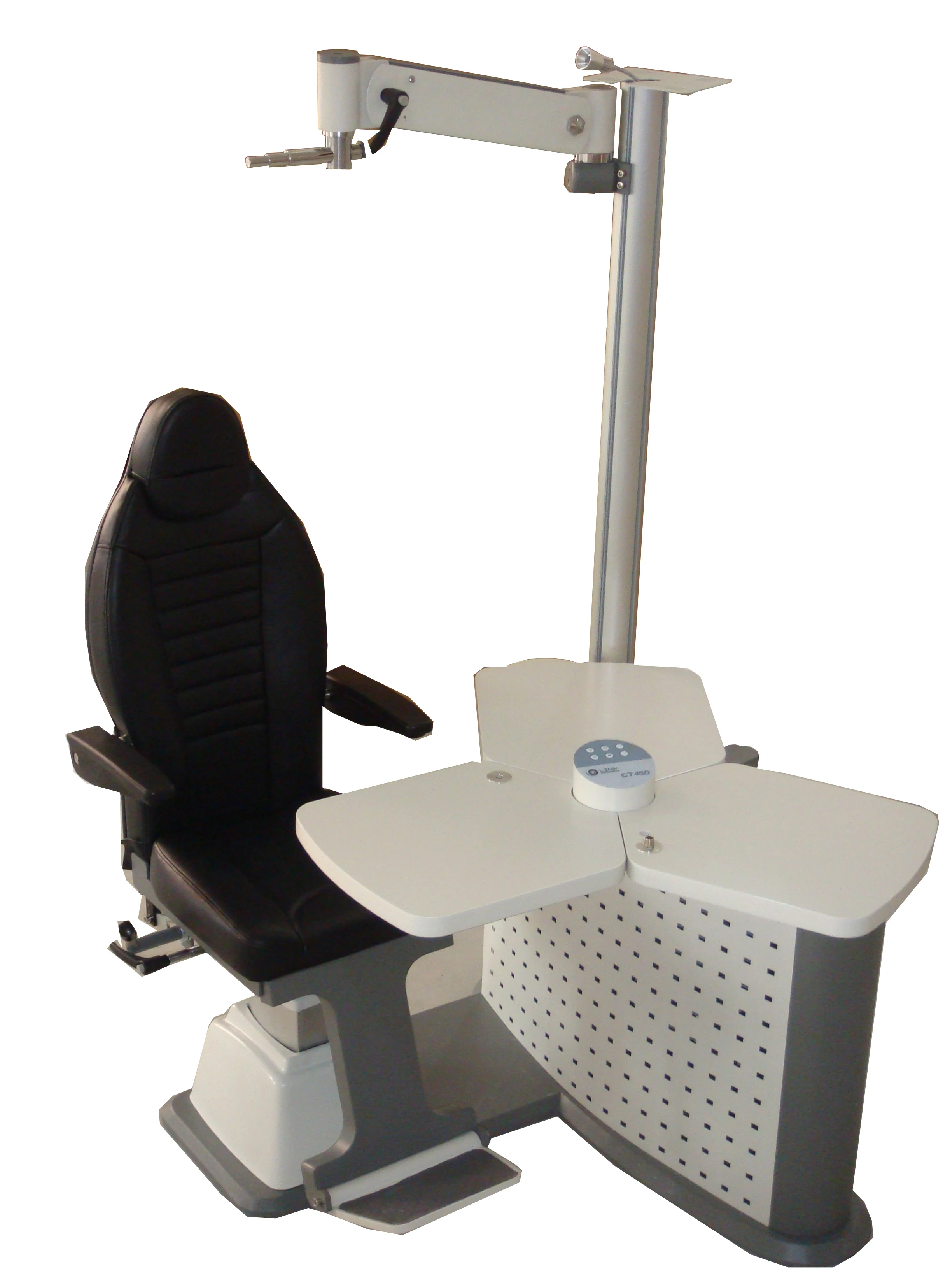

CT 450 Features:
Adopt European style in appearance designing;
Human- oriented design, complete functions makes operation be more conveniently;
The chair could up and down, rotate left and right, and with tiltable backrest.

Specification:

Unit size:	1200 1055* 1850mm
Table Size:	400x490mm
Table rotation range:	360°
Swing arm oscillation angle:	35°
Chair up and down range:	540- 690mm
Chair loading ability:	200- 250kg
Adjustable backrest range:	160°
Lamp:	LED (24V, 3W)
Electric Voltage:	AC220V/1 10V 50/60HZ
Weight:	200kg
