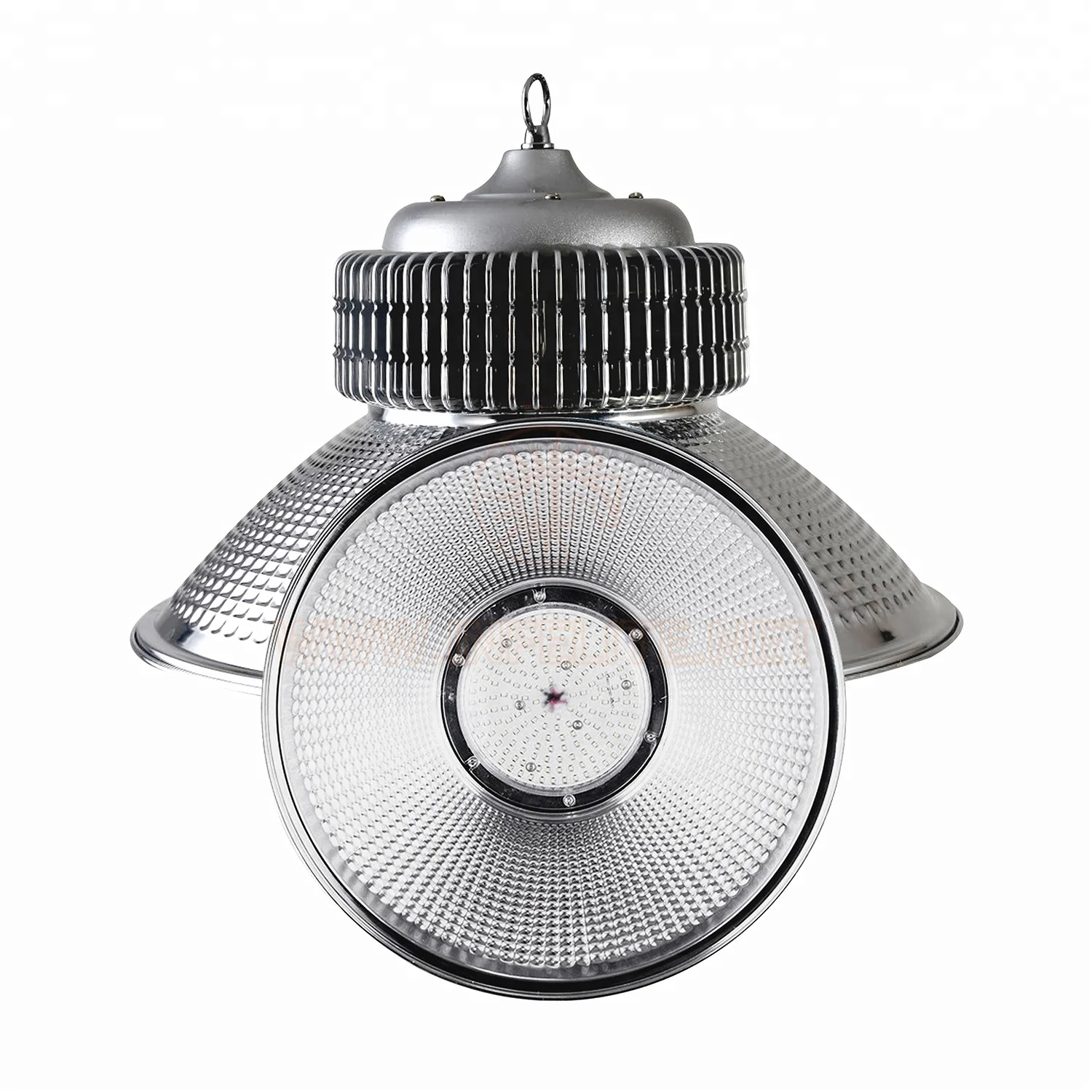

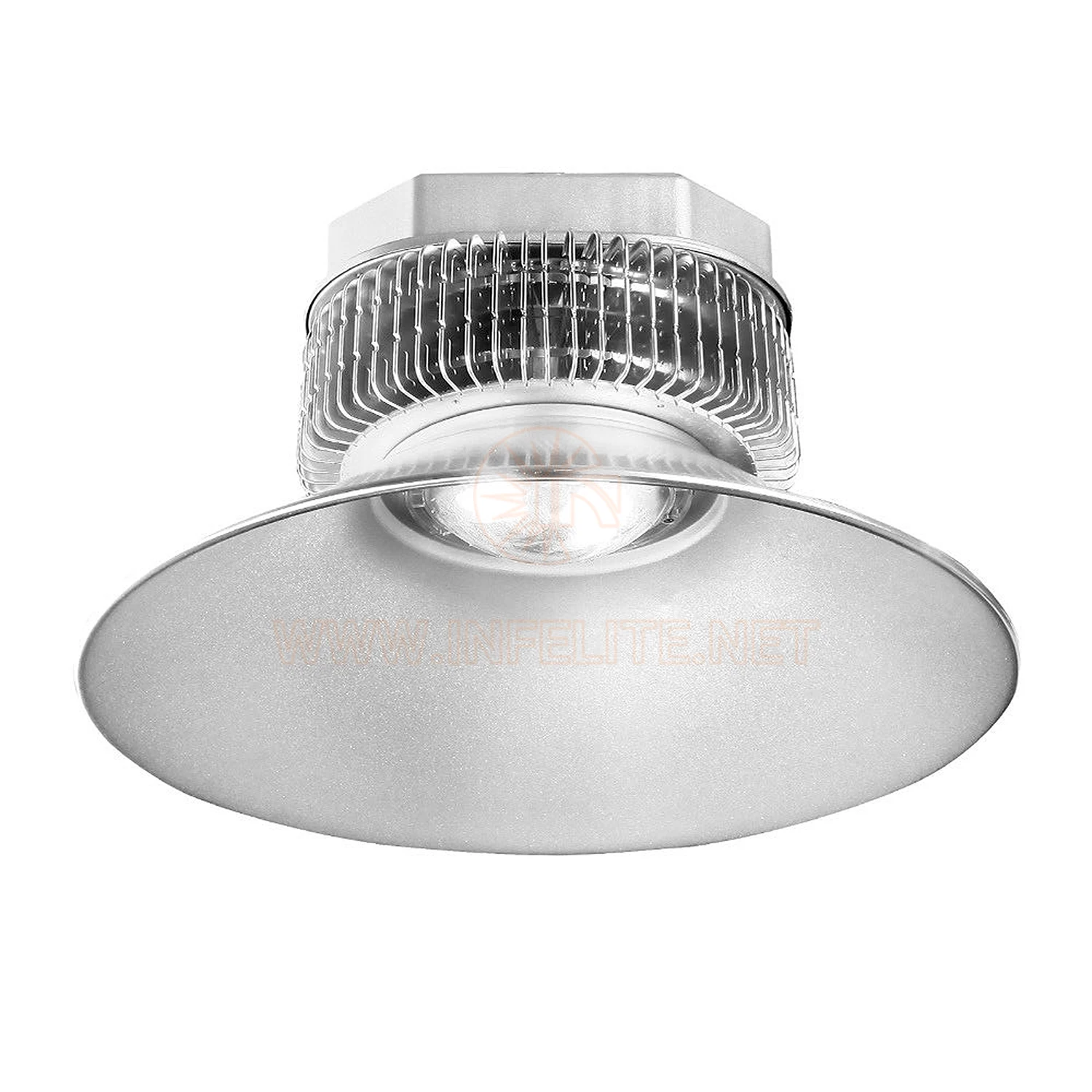

HL101 Pure Aluminum Fin Heat Sink Industrial Warehouse LED High Bay Light Lamp 50W 80W 100W 150W 200W 250W
Product Overviews
HL101 Pure Aluminum Fin LED Industrial High Bay Light Parameters:
Product Model:
Power(watt)
Lumen(lm)
LED Qty.(smd)
Unit Size(mm)
IN-HL101-50W
50 Watts
550lm
3035/50pcs
D:350*H:190mm
IN-HL101-80W
80 Watts
8800lm
3035/80pcs
D:350*H:200mm
IN-HL101-100W
100 Watts
11000lm
3035/100pcs
D:450*H:300mm
IN-HL101-150W
150 Watts
16500lm
3035/150pcs
D:450*H:310mm
IN-HL101-200W
200 Watts
22000lm
3035/200pcs
D:490*H:330mm
IN-HL101-250W
250 Watts
30000lm
3035/250pcs
D:500*H:330mm
Voltage Input:
AC85-265V, 100-270V, 50/60HZ
Luminous Intensity:
90lm/W, 100lm/W, 110lm/W, 130lm/W, SMD3035 LED Chip
PF/CRI/THD:
PF>0.90, Ra>80, THD<14%
Viewing Angle:
60, 90, 120 Degrees
Color Temp. (CCT):
3000-3500K, 4000-4500K, 6000-7000K, Dimmable
Working Temp.:
-22°F-+140°F(-30℃-60℃, Work Humidity:5-95% R.H.)
Driver Type:
Waterproof uilt-in Constant Current IC Driver
Light Decay:
<3%@3000 Hours
IP Rating:
Dustproof IP44 Grade
Lamp Base:
Line Interface, 3 Core Outlet Cable
Installation:
Bracket fixture, Hooking hanging
Product Material:
Die Cast Aluminum + Tempered Glass + Steel
Lamp Life Span:
Over 50,000 Hours, 5 Years' Quality Warranty
Lamp Color:
Black/Silver Fin Aluminum Heat Sink+ Silver Lamp Shade
Infelite LED Industrial High Bay Light Specification:
1.Brand new high brightness LM-80 listed COB LED chips output 90lm/W, 100lm/W, 120lm/W. 2.Die cast aluminum heat sink is good at heat dissipation, stay low surface temp. and long lifespan. 3.Waterproof Meanwell, Lifud driver with over-temp., over-current, overload protection function. 4.Beam angle 60°, 90°, 110°, 120° could be choose, perfect solution for different ligting area. 5.Easy installation and maintenance, dust prevention, longer lifetime with high lumen maintenance. 6.It is an ideal replacement for Induction lamp, metal halide, HID lamp, HPS lamp and CFL lamp. 7.Our high bay lamp with aluminum material and the lamp looks like UFO, beautiful and works well.
Product Application: Available for building, factory, storage room, public, parking lot, building, domestic block, mining Lamp, workshop, exhibition hall, stadium, supermarket, gymnasium, gas station, square, advertise, lawn, wharf, warehouses, parking Lot, train station, warehouse, manufacturing, food processing, cold storage, fuel pump, marine, canopy, tunnels, silo, stadium, fresh market, indoor/outdoor sport courts field and other lighting places.
.

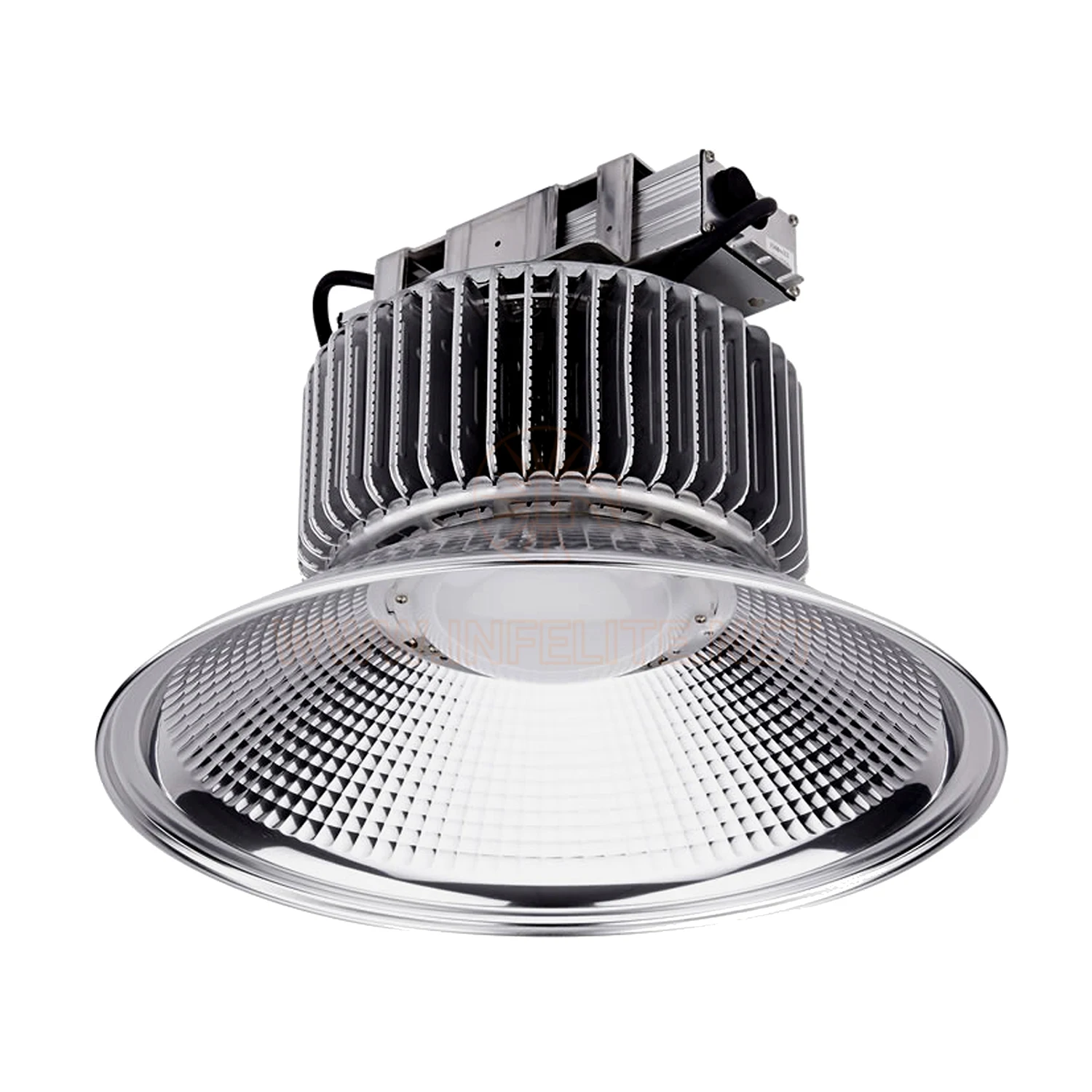

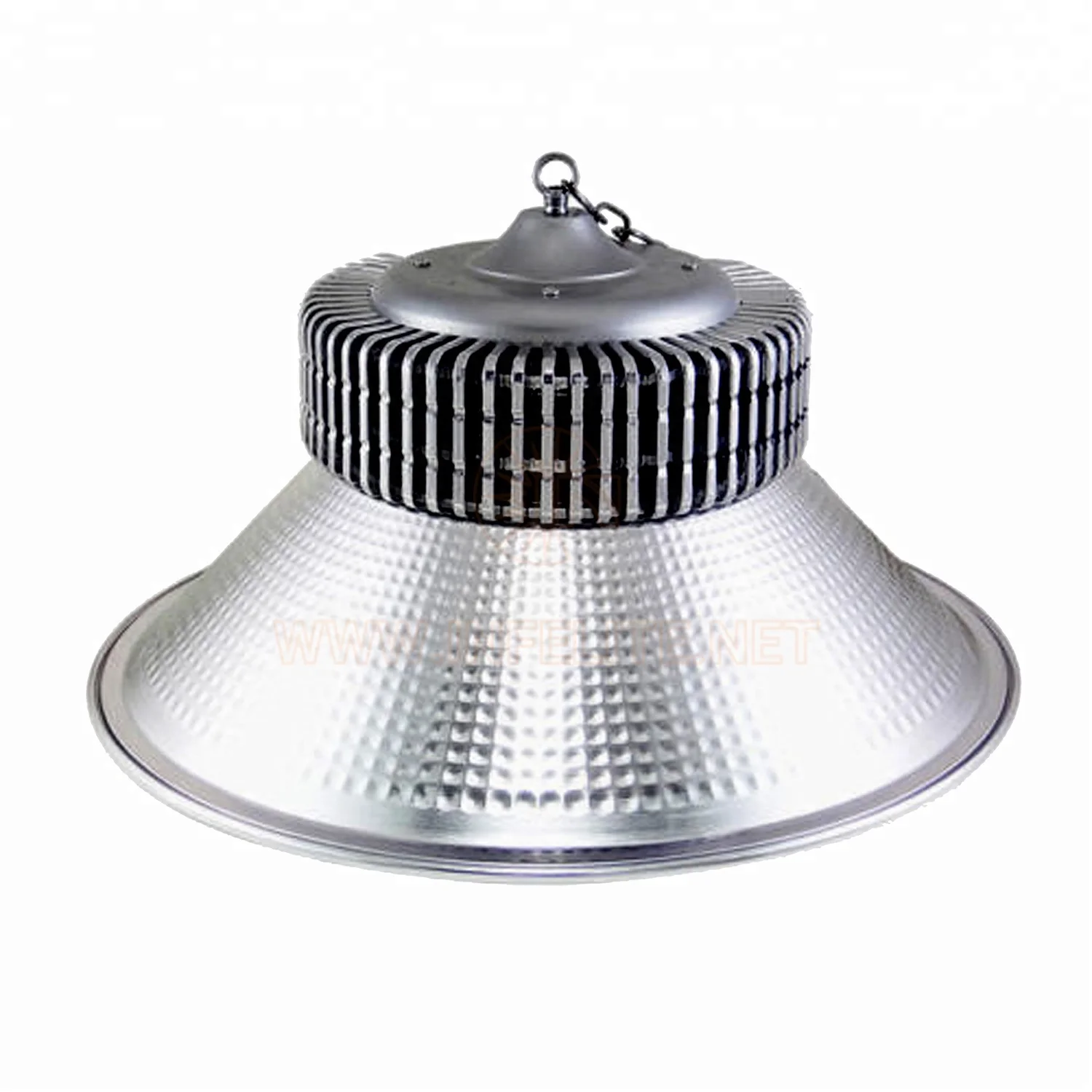

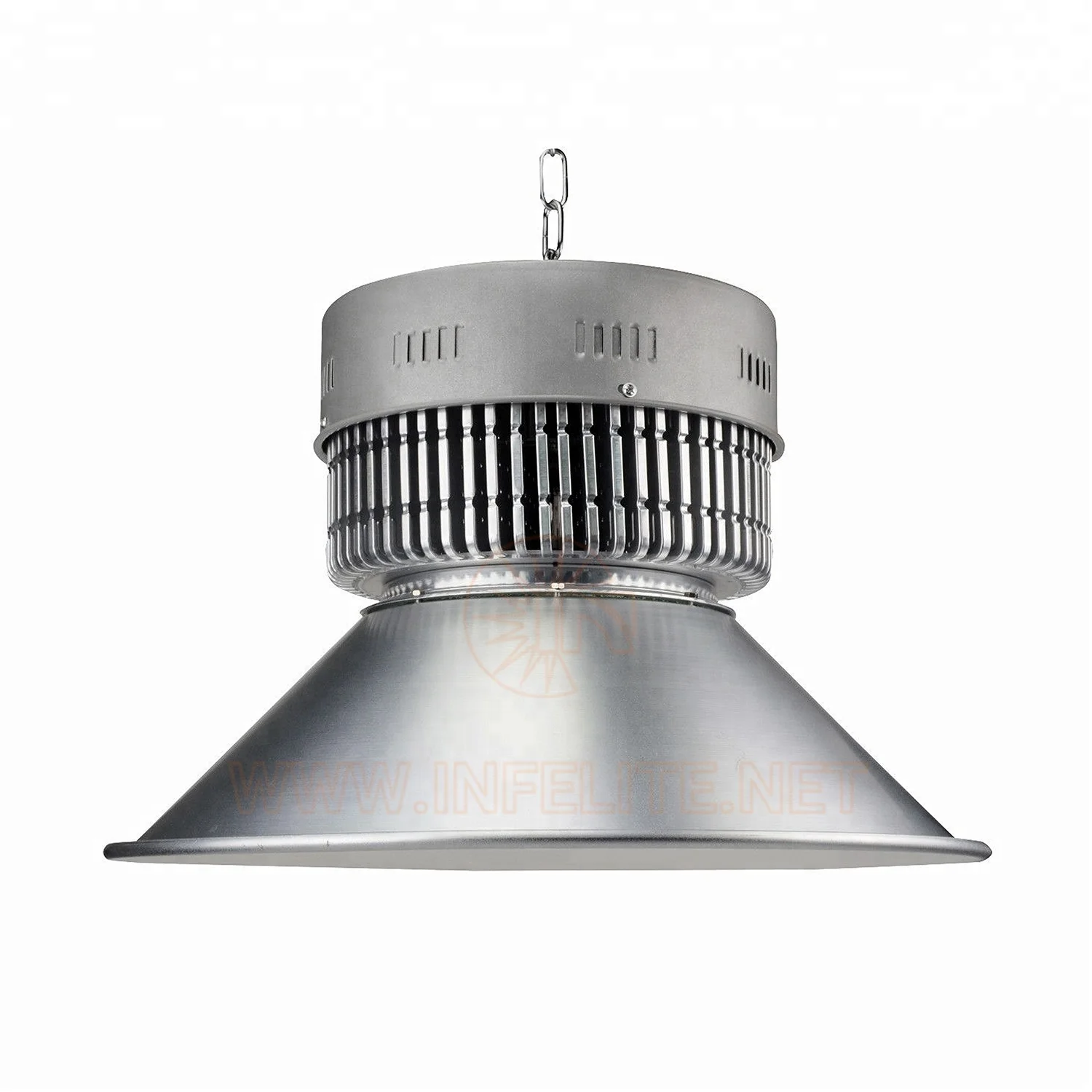

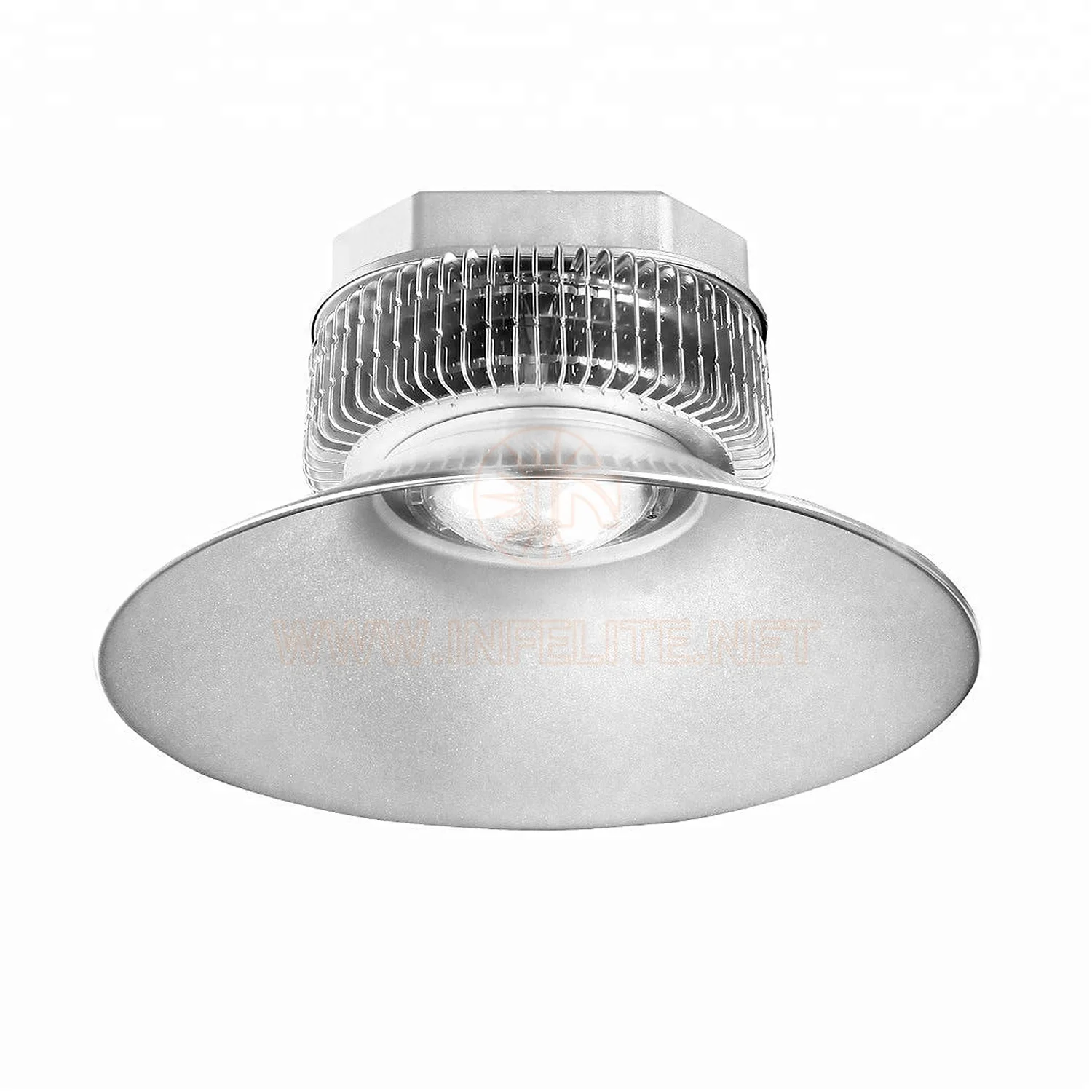

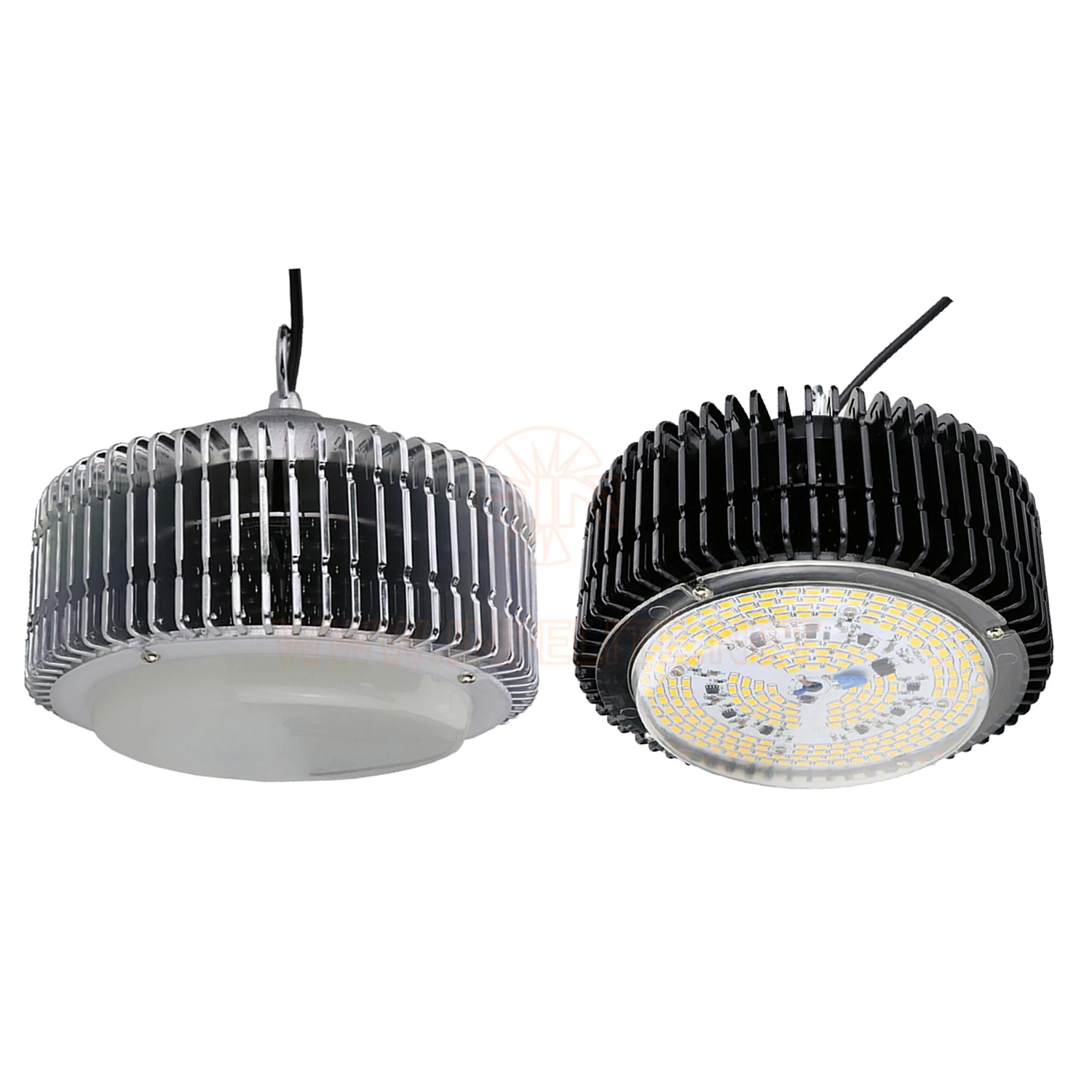

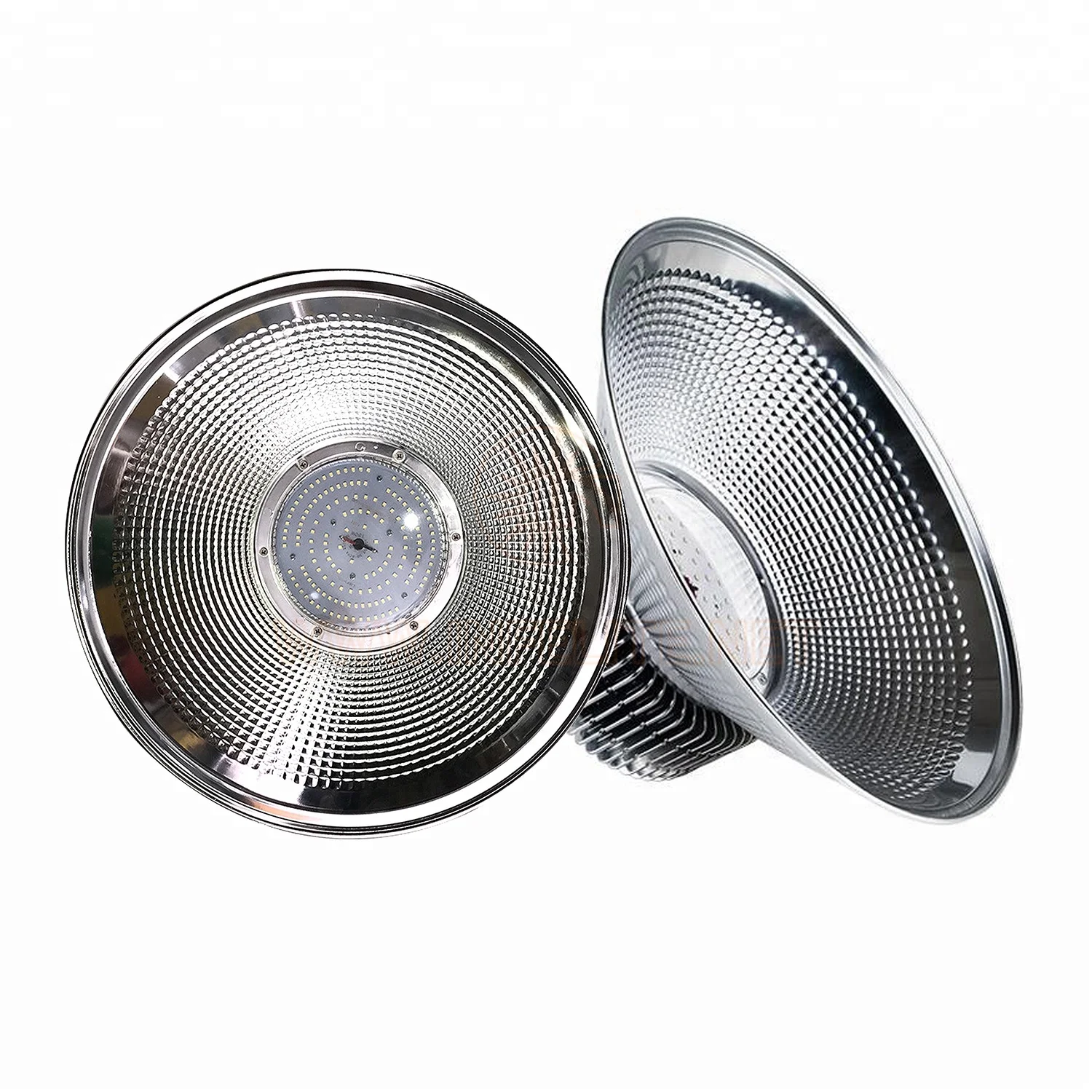

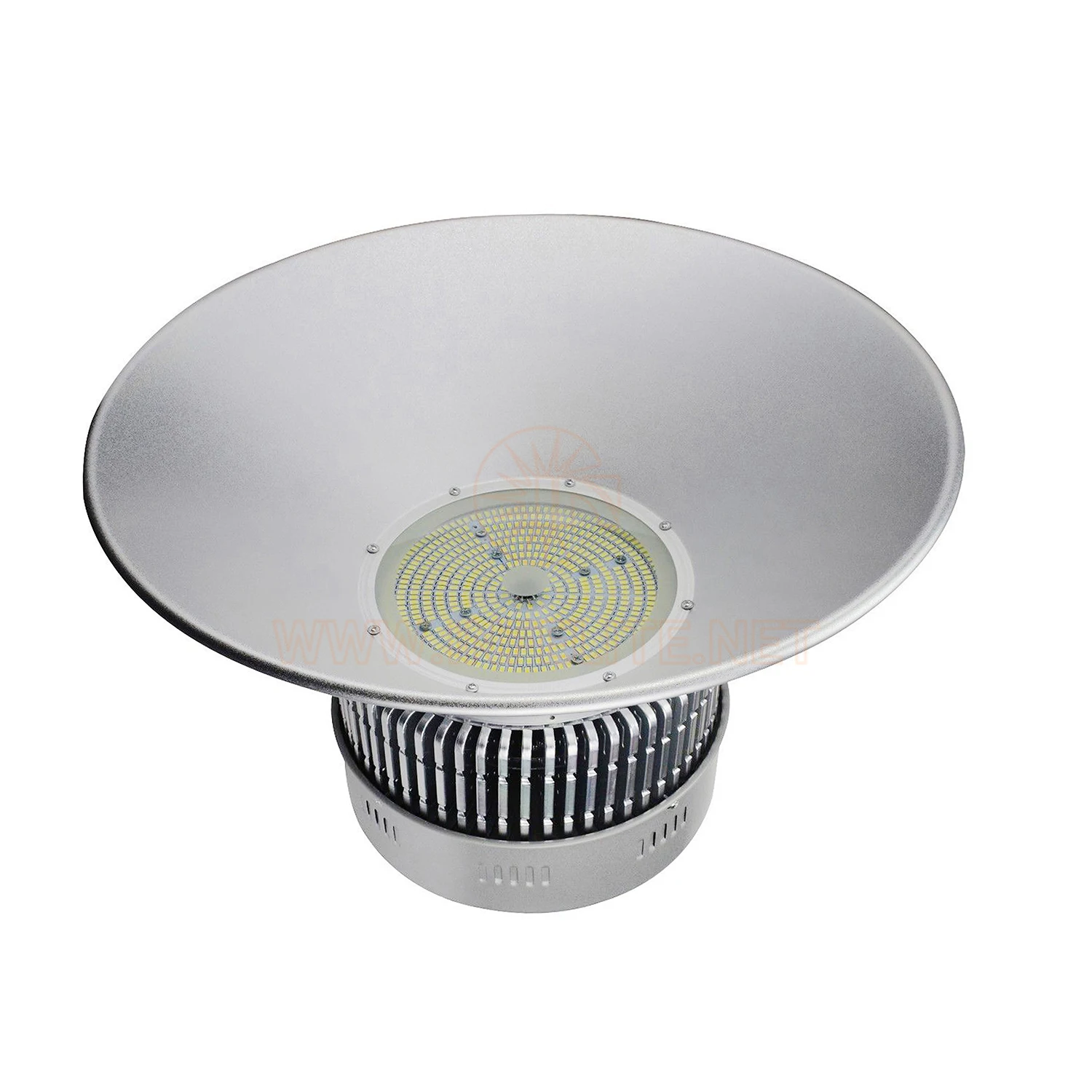

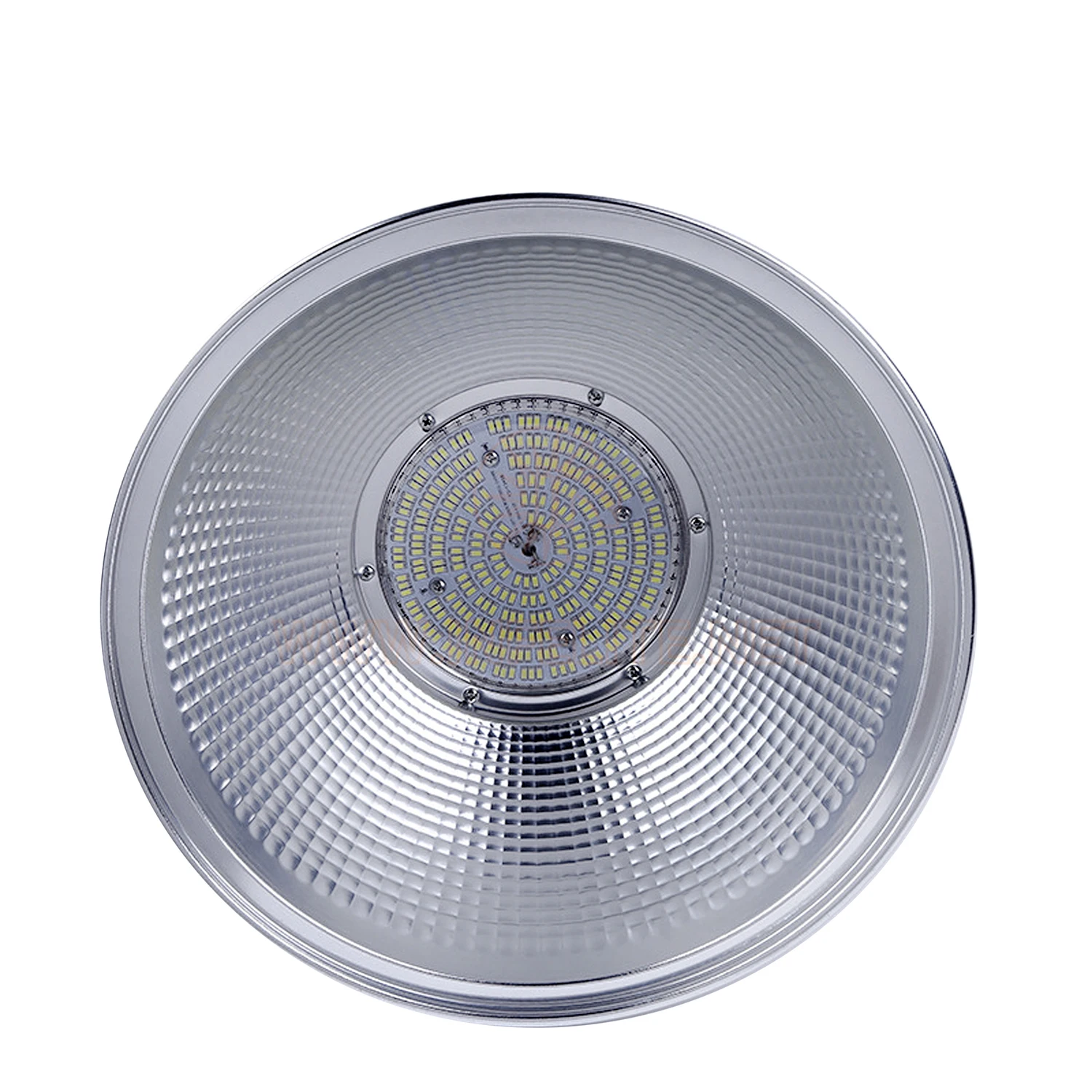

Detailed Images
Packaging Detials
1. Pure aluminum fin heat sink LED high bay light 100w,unit size:D:450*H:300mm.
Welcome To Visit And Investigate Our Infelite Factory !
Shenzhen Infelite Co.,Ltd is an innovative & experienced factory of LED commercial lighting fixture in China. With the complete industrial chain from SMT workshop to testing laboratory for LED illumination field, the main products of LED tube light, LED panel light, LED corn light, LED filament light are produced strictly under ISO9001:2008 quality management system and with CE, RoHS, EMC, TUV, PSE,SAA certifications approved.....
Our Certifications
Our Services
1. Innovative Customize Solutions
Infelite provide high quality LED lighting solutions for the commercial sectors at competitive pricing, maximizing utility rebates and reasonable financing charges. The innovative solutions involve a new lighting fixture model design assistance, molding, photo-metric layout consulting, ROI analysis and lighting solution audit etc. Your logo printed on the packing box or laser marked on the products is available.
2. Customized OEM&ODM Service If our existing design is not satisfactory, just tell us your request of design, such as lamp size, lumen output, lamp shape, heat dissipation solution could design out the product for your demond.We can make out the samples for you in as fast as 7~10 working days, and the test report is free for the samples.
3. 3 ~ 5 Years’ Quality Warranty Our quality management system is compliant with standard ISO 9001:2008, all products produced by Infelite have 3 years limited warranty period at least, some items have 5 year limited warranty. If item fails due to quality problem during warranty, we can send new replacement via air freight immediately if urgently. Or we prefer to send replacement with next order. Welcome to choose Infelite lighting to start a Long-Term Win-Win Situation!
