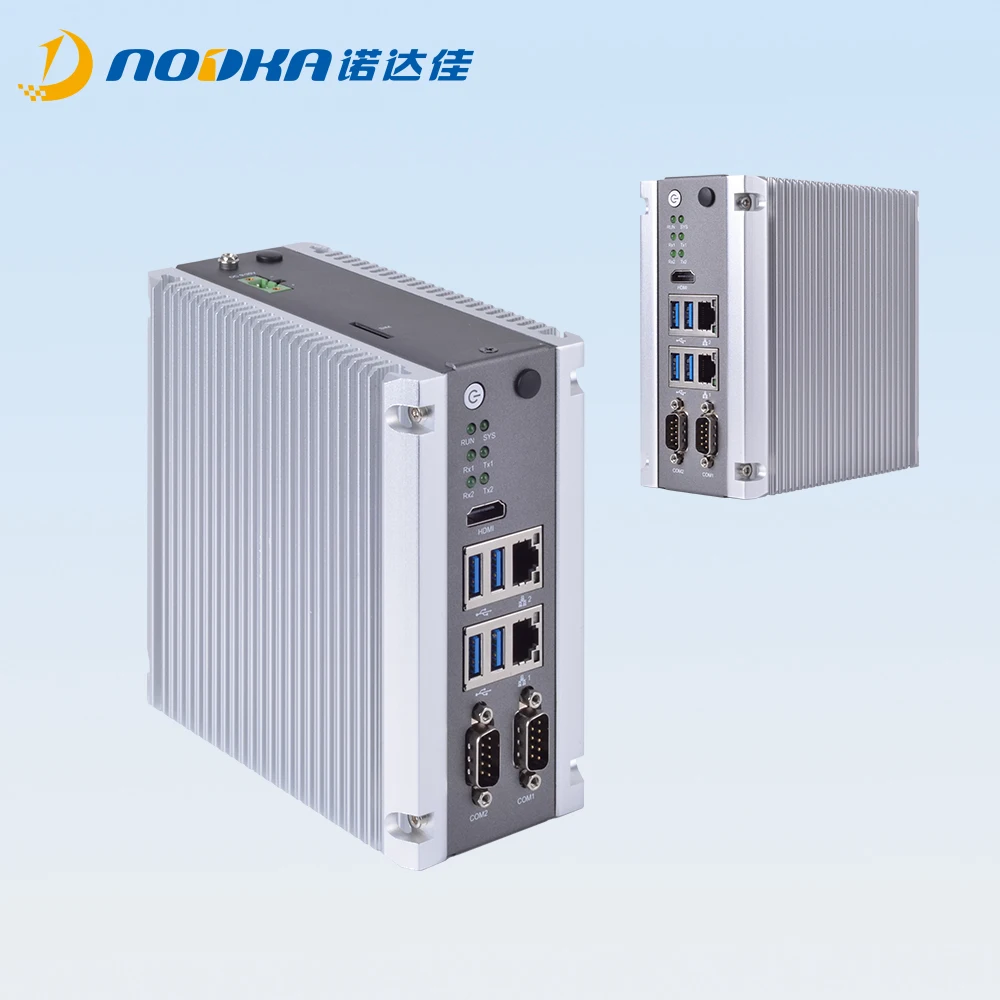

Nodka desktop and din rail computer mini pc 4 lan eBOX 3560
- Category: >>>
- Supplier: Shanghai NODKA Automation Technology Co. Ltd.
Share on (60828657823):
Product Overview
Description
Poster
Product Description
System | ||||||
CPU | Apollo Lake Series J3355 | |||||
Frequency | Dual core 2.3GHz | |||||
L2 Cache | 2MB | |||||
Display controller | Integrated graphics media accelerator | |||||
BIOS | AMI EFI 16Mbit | |||||
Architecture | DDR3L-1666MHz | |||||
Capacity | Upto 8GB | |||||
DIMM | 1×204-pin SODIMM | |||||
HMI | Max resolution up to 4096×2160@30Hz | |||||
Extended LAN | 4×1000Mbps RJ-45 | |||||
SSD | 1*full size mSATA SSD | |||||
COM | 2xRS-232(RS-232/485 Optional) | |||||
USB | 4 x USB3.0/2.0/1.1 | |||||
WatchDog | 0-255 seconds programmable | |||||
OS | Win 10, Ubuntu | |||||
PowerType | AT | |||||
Box structure | Aluminum alloy BOX | |||||
Mounting | Din-rail | |||||
Dimensions(LxWxH) | 145mm×145mm×75mm(5.71"×5.71"×2.95") | |||||
Work Temperature | -20~60°C(-4°F~140°F)(Wide temperature SSD), 0~45°C(32°F~113°F)(General temperature HDD/SSD) | |||||
Storage Temperature | -40~80°C(-40~176°F) | |||||
Relative humidity | 5~95%(Non condensation) | |||||
Shake | SSD applied:1.5Grms, IEC60068-2-64, random,5~500 Hz, 1 hr/axis | |||||
Shock | SSD applied:10G, IEC60068-2-64, Half-sine wave, 11ms duration | |||||
EMC | CE/FCC Class A | |||||
Safety Certification | CCC | |||||
Related Products
Our Company
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not for free charge.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
