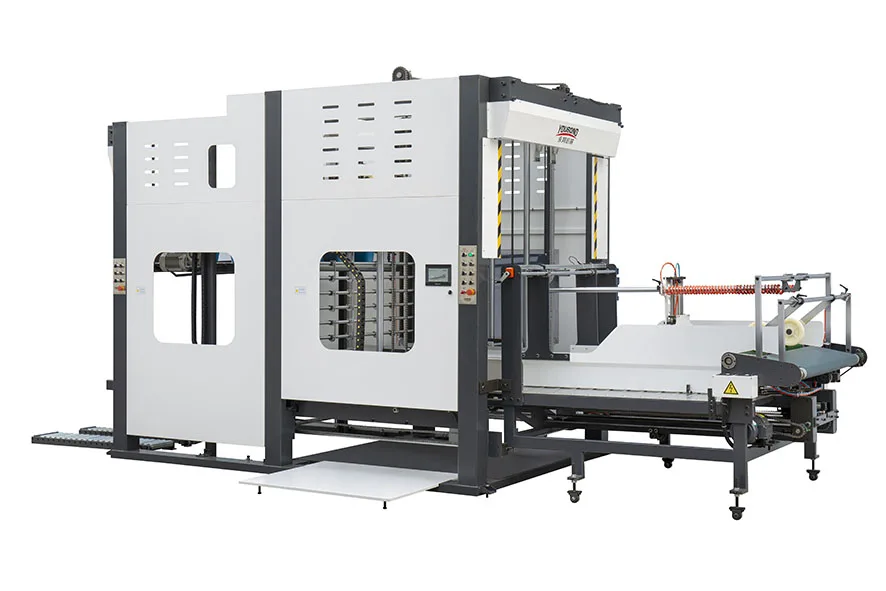

Automatic paper carton box flip flop stacking machine

Automatic pile turner and stacker machine(Flip Flop stacker)

Specification of the YB-1450-1650S Flip flop stacker machine

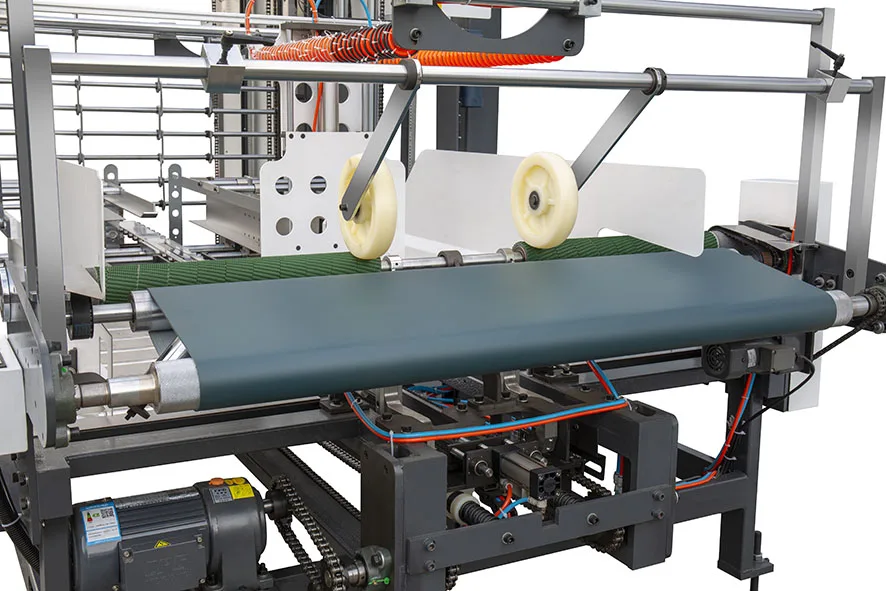

1. Paper Separating system

Driving wheel and laminating press belt joint to transmit power. Laminated paper be stacked down to down pallet by driving wheel and synchronous belt, when reach the specified number, separating rod lift and separate the paper.

2. Down Push System

Driven by the cylinder two pawl forward movement, push the set up quantity paper into a turnover device

3.Turning System

Using the automatic clamping system to make paper front and back alternately placed, make sure the laminated paper smooth and stiff, convenient for subsequent production line.

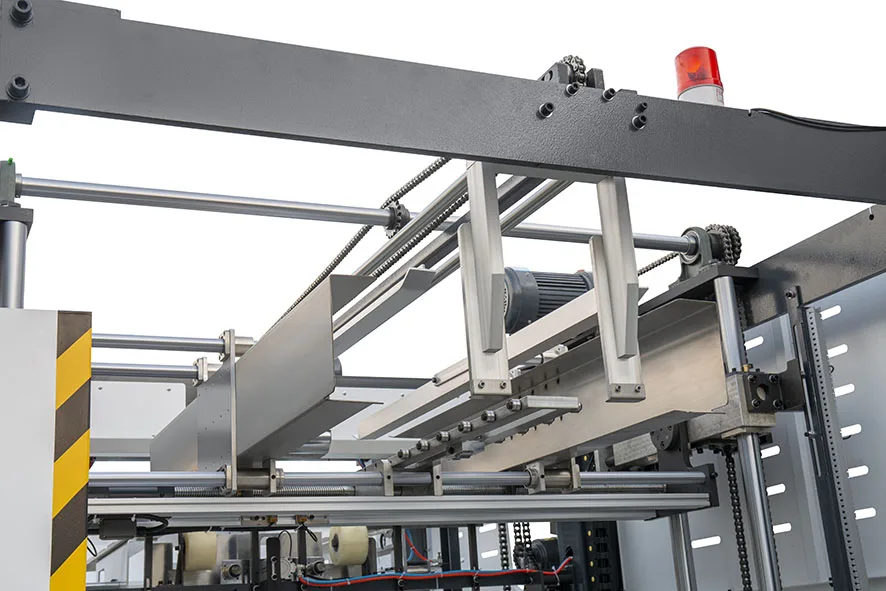

 4. Up Push System

Using The motor drives the chain to drive the upper push plate to move forward and backward pushing the lifting paper into collecting system and waiting to be piled

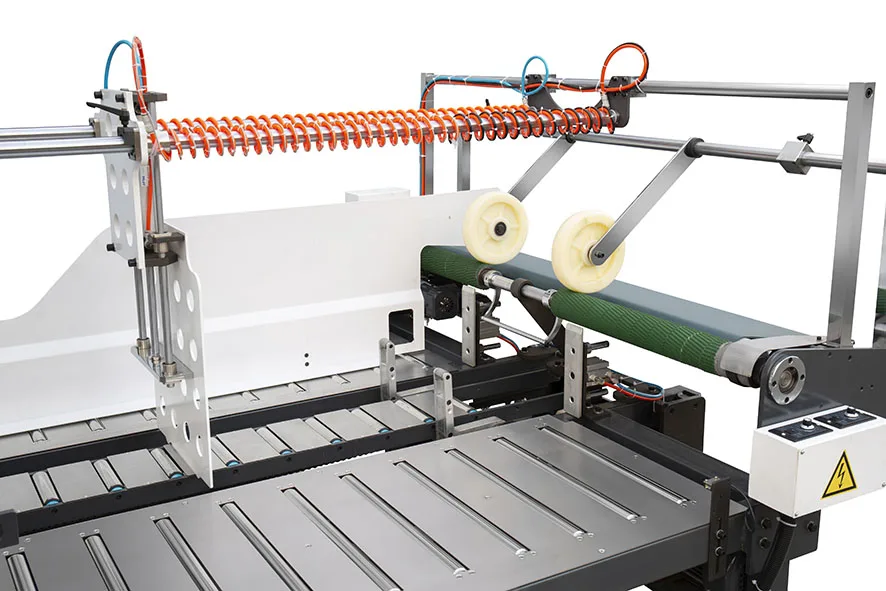

5. Piling System

Reciprocating motion of four splint patting the collected paper orderly, ensure the collecting neat

6. Collecting System

When the paper stacking to 1.7M in height, collecting platen automatic drop, hydraulic car will pull out the whole stack of paper, at the same time the vice paper collecting table automatic work, complete non-stop collecting finished
